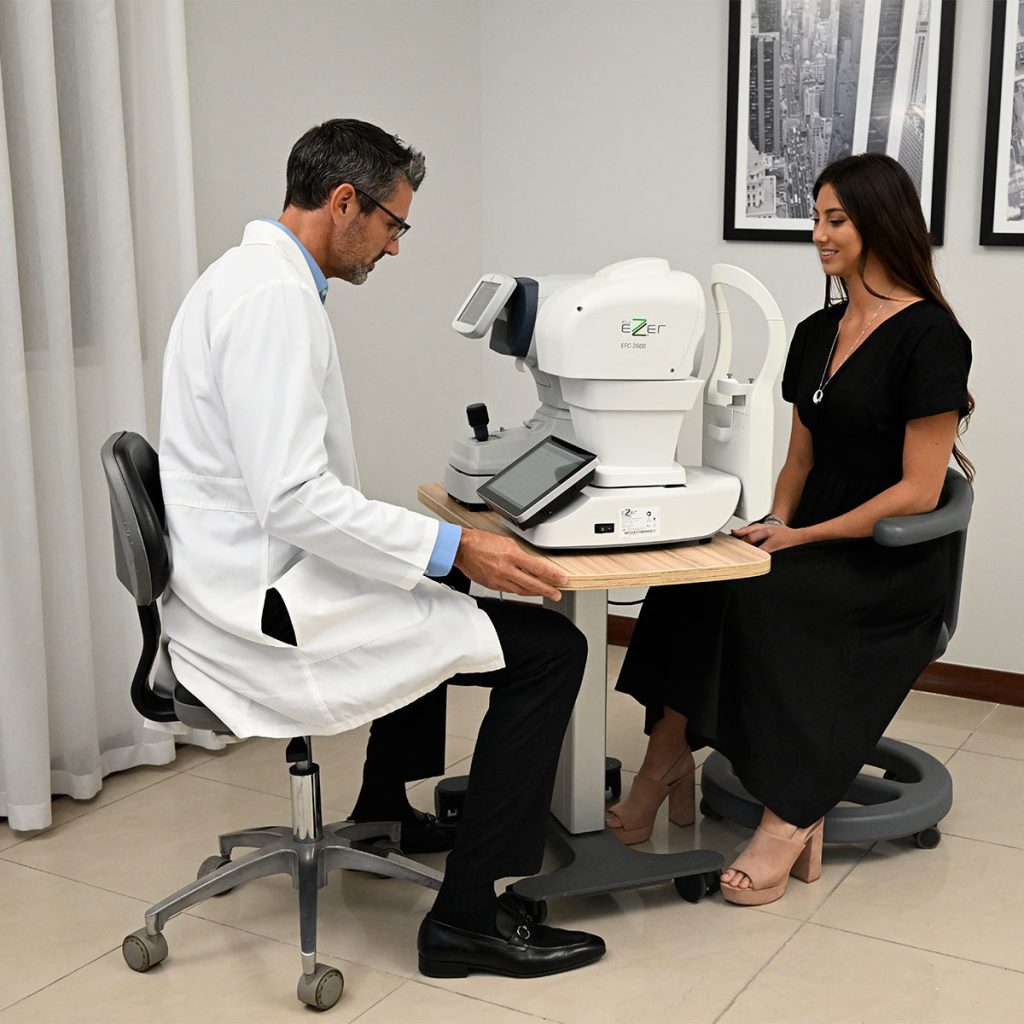

Counter space is often very limited in most clinical settings, and there are frequently more devices than available space to place them. Unfortunately, solutions to this problem tend to be unsatisfactory. Counters can simply be crowded with equipment, but this makes work more difficult, especially if a device is used infrequently. Devices can be transported back and forth from storage, but this carries a risk of drops that can destroy costly equipment and injure the user. Even once placed on a counter or table, ophthalmic instruments are often not at the correct height for the task, requiring both the patient and the operator to adapt to the equipment. The Visionare Tavola motorized table solves this problem by adapting to the patient wherever they are, rather than the other way around.

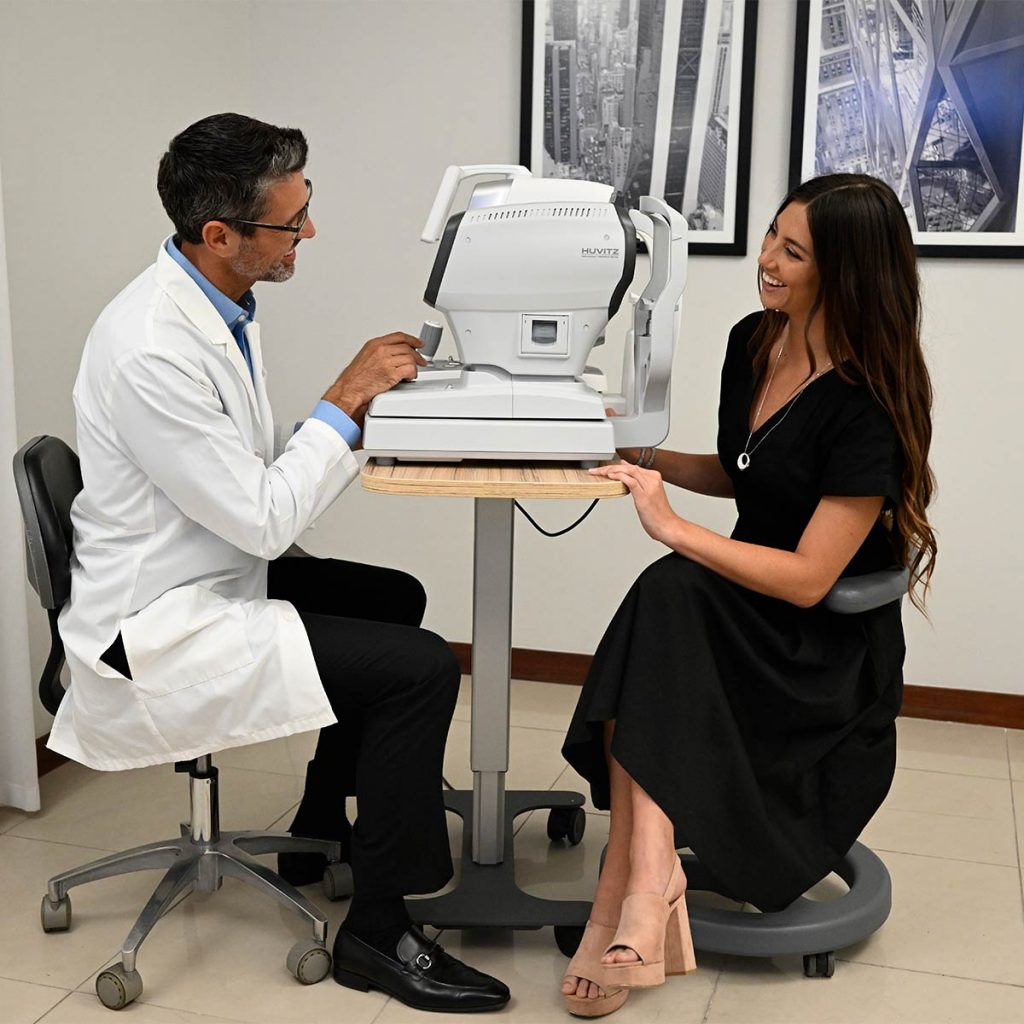

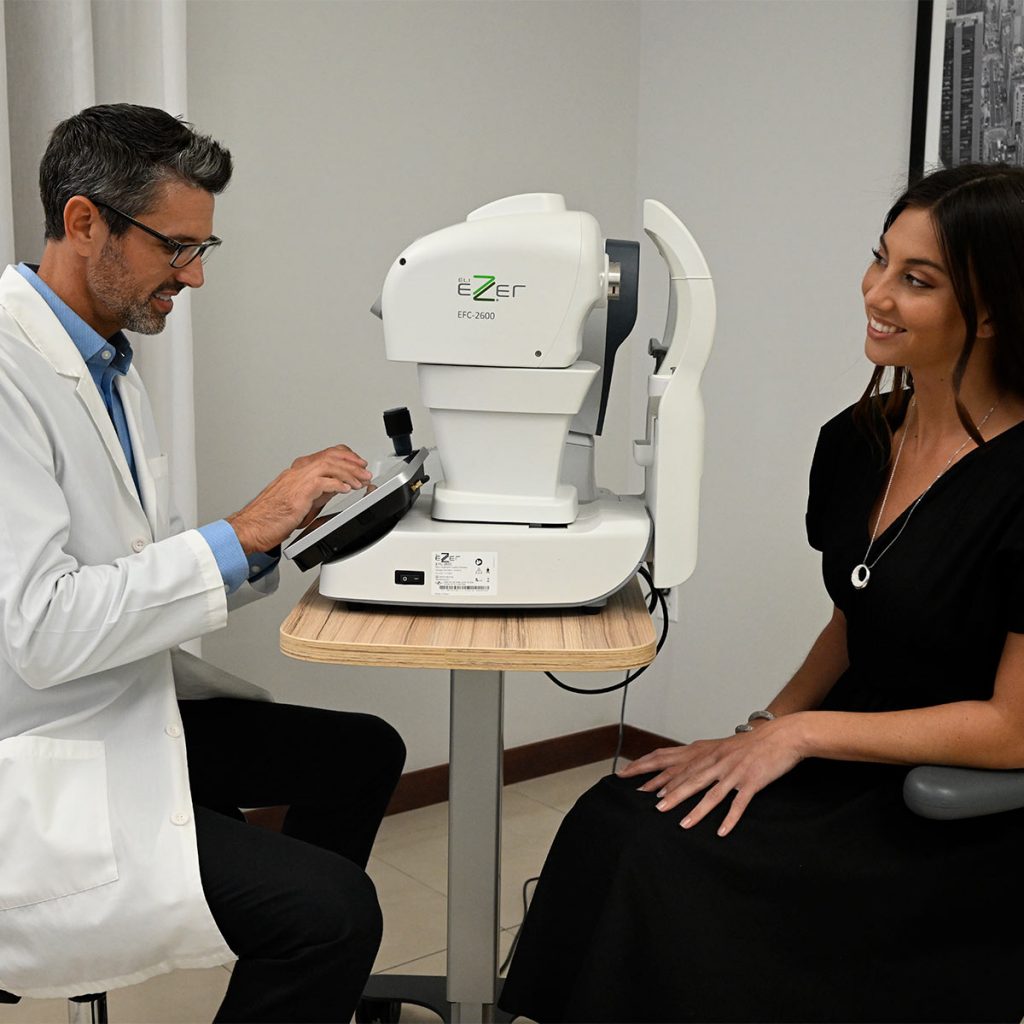

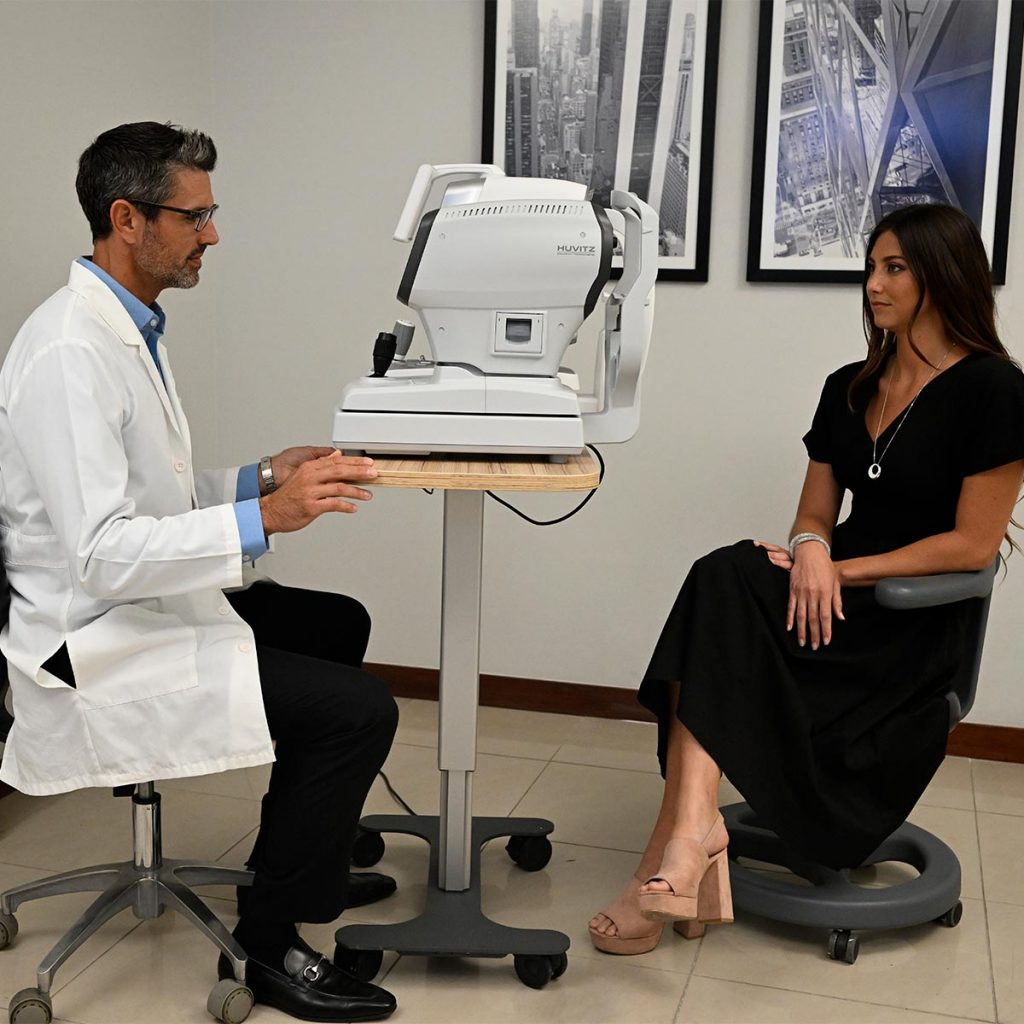

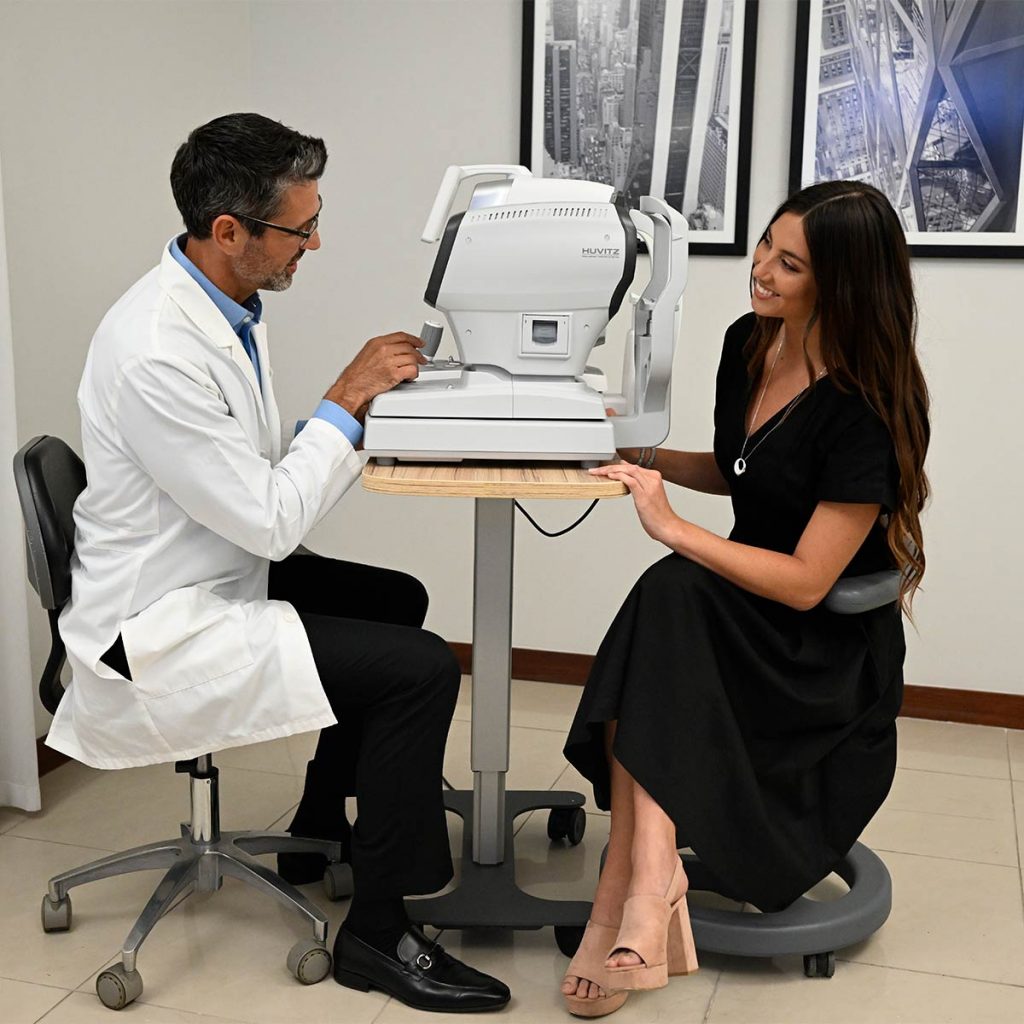

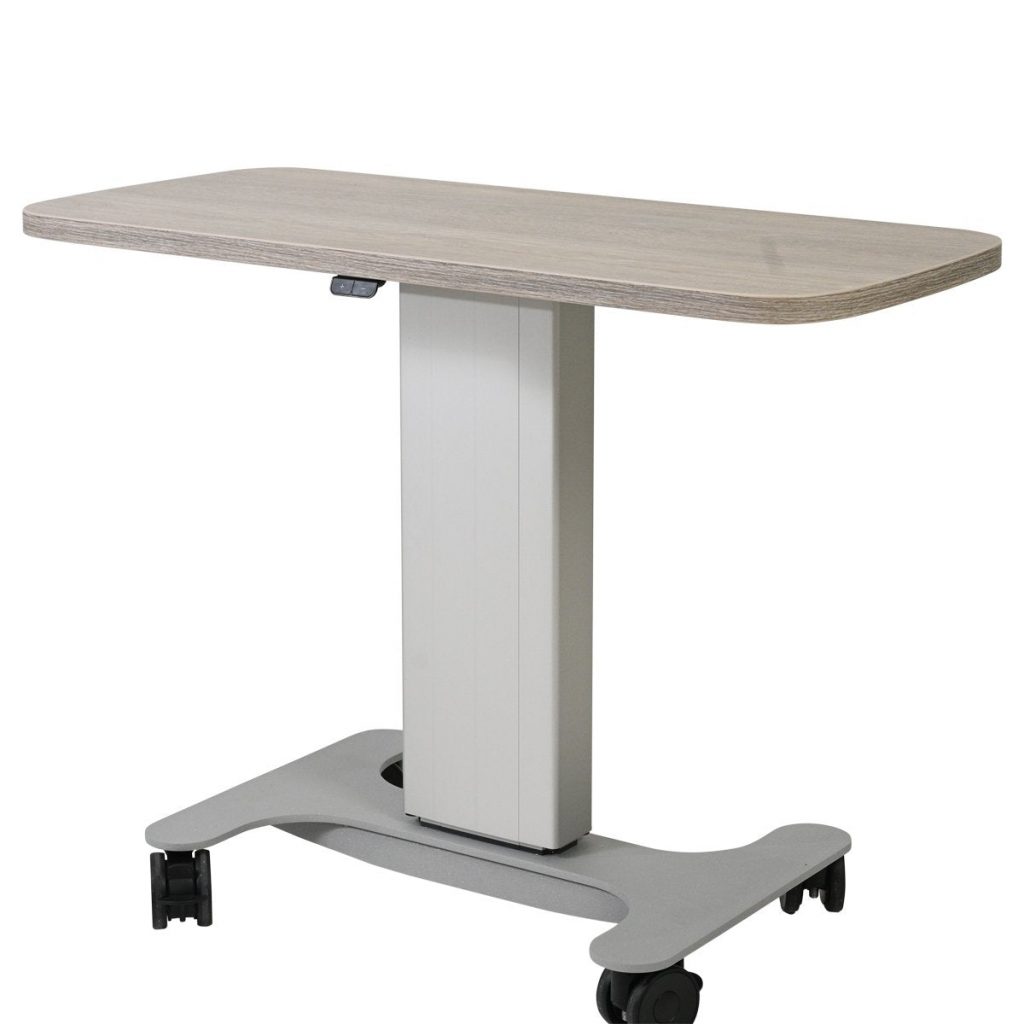

Visionare Electric Table for Two Instruments Tavola Doppia
Motorized Adjustable Height from 26 to 39 Inches
Electric lifting system that allows the equipment height to be adjusted to the patient, not the other way around. Provides greater comfort for the patient and facilitates the operator's work without uncomfortable adjustments.
Efficient Mobility and Storage with Wheels

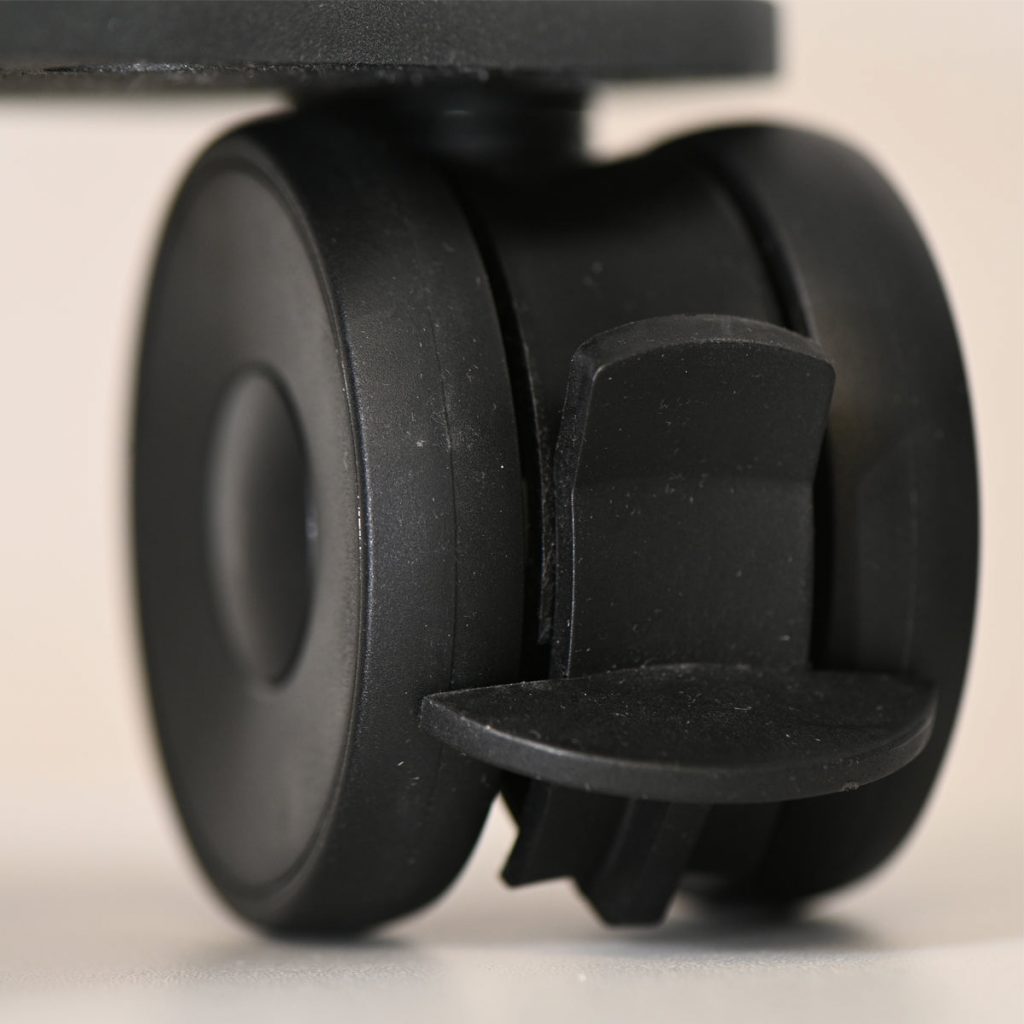

Rolling cart with lockable wheels that eliminates the risk of falls when transporting costly equipment. Solves space limitations in examination rooms without cluttering work surfaces.
Load Capacity of 110 Pounds

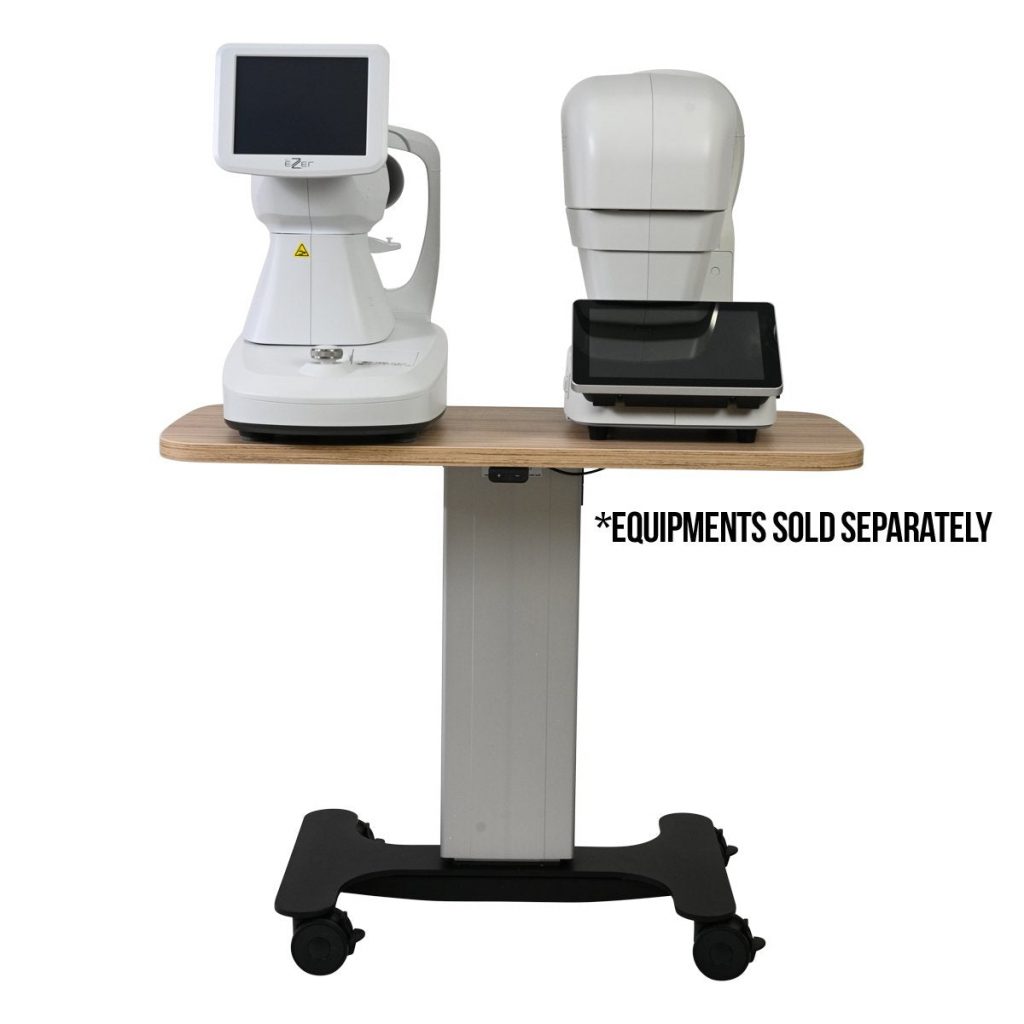

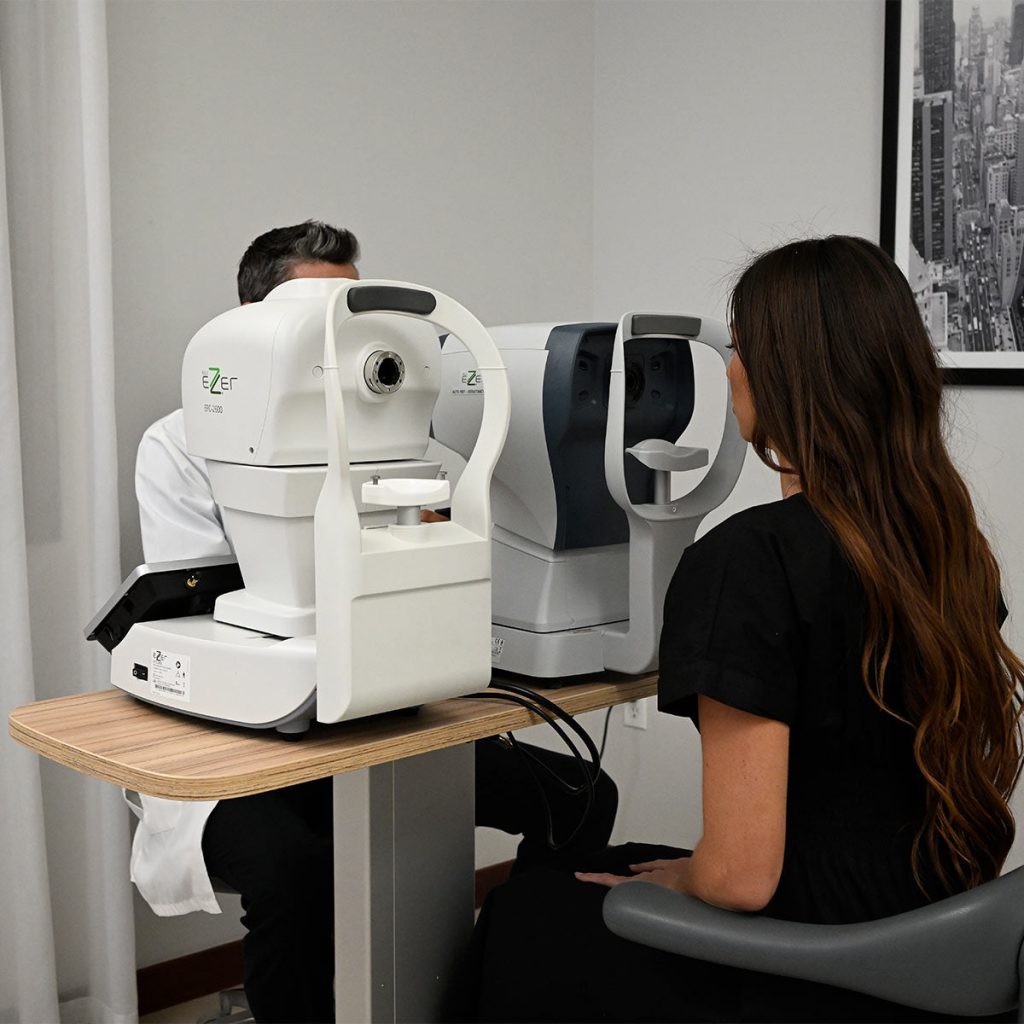

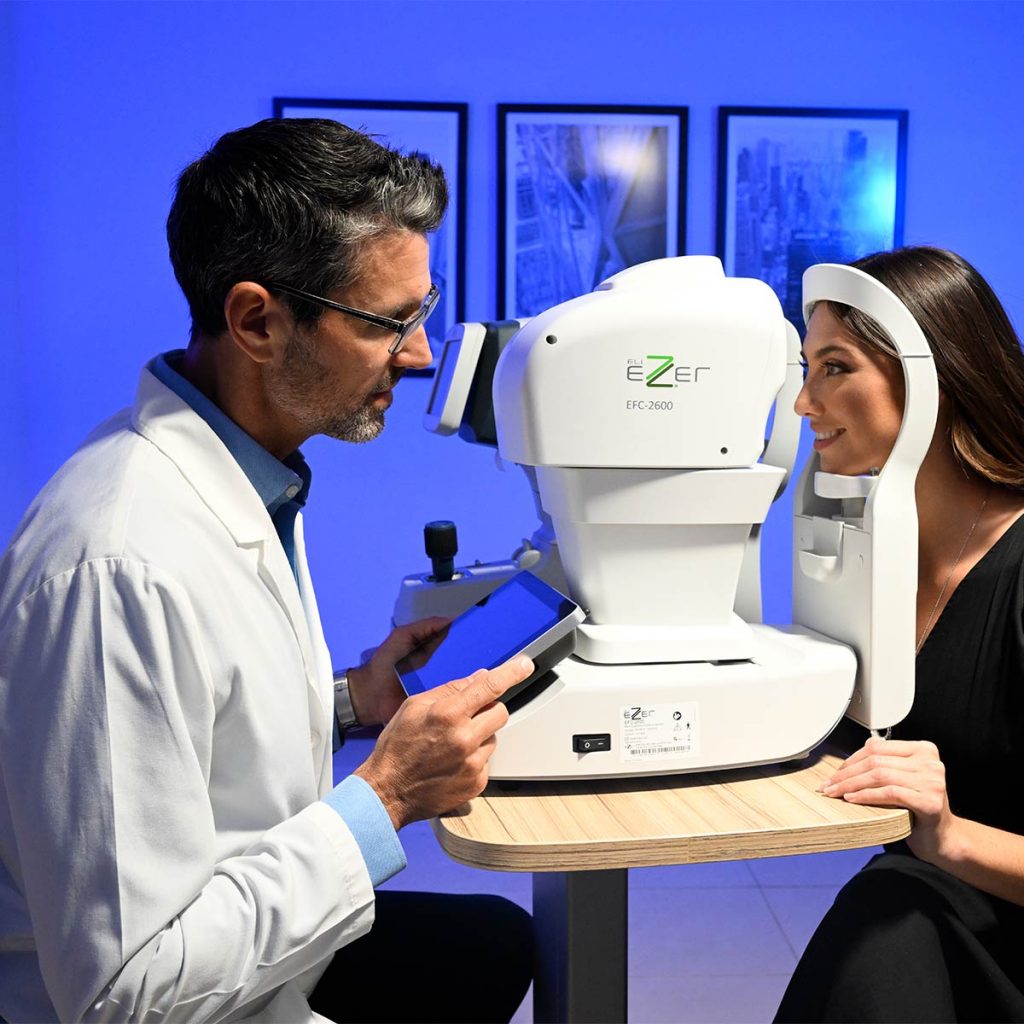

Supports up to two ophthalmic instruments simultaneously with complete safety. Ideal for practices requiring multiple devices accessible at a single point.
Accessible and Safe Height Control
Switch located beneath the surface allows quick adjustments without accidental activations. Lifting speed of 1.18 in per second protects delicate equipment without wasting time.

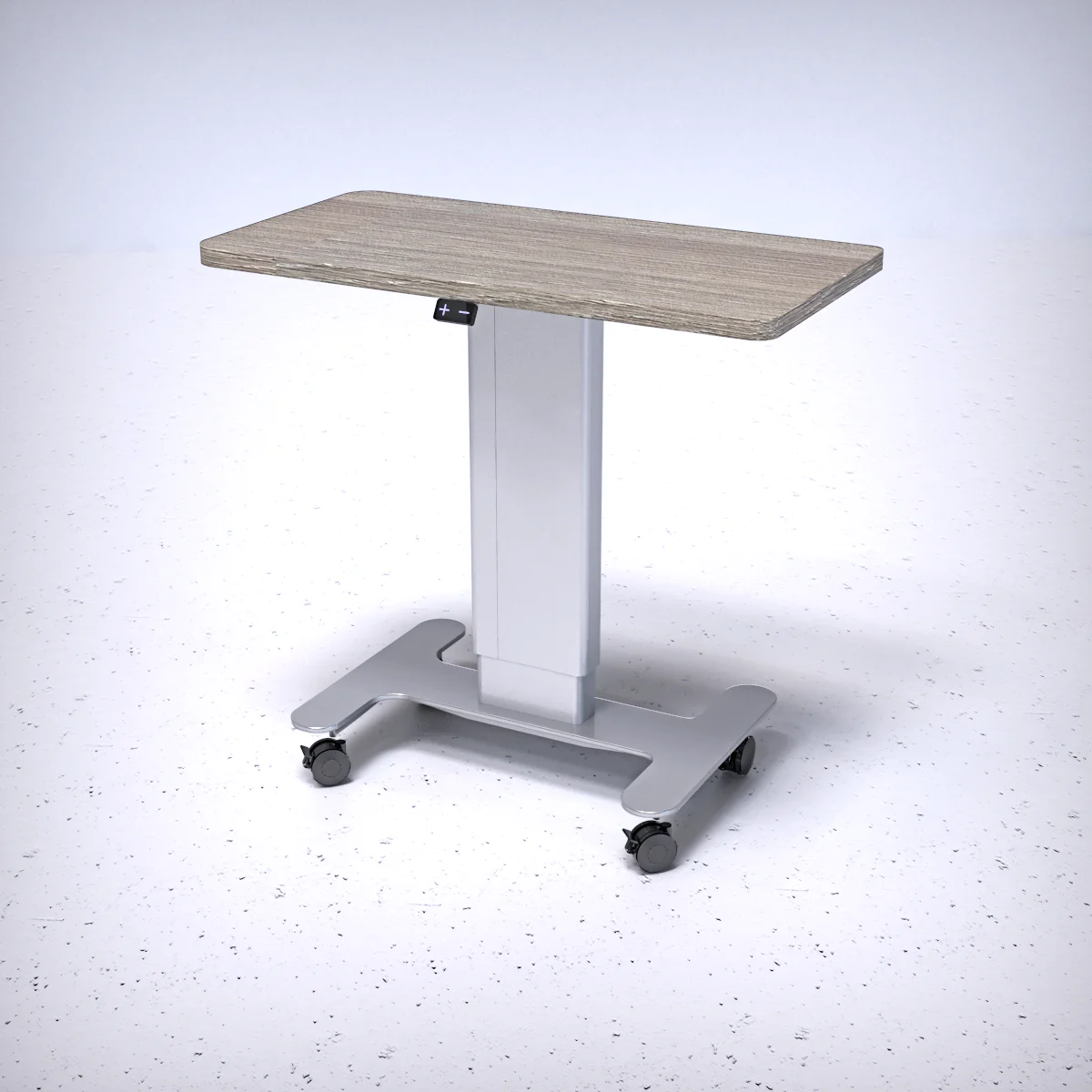

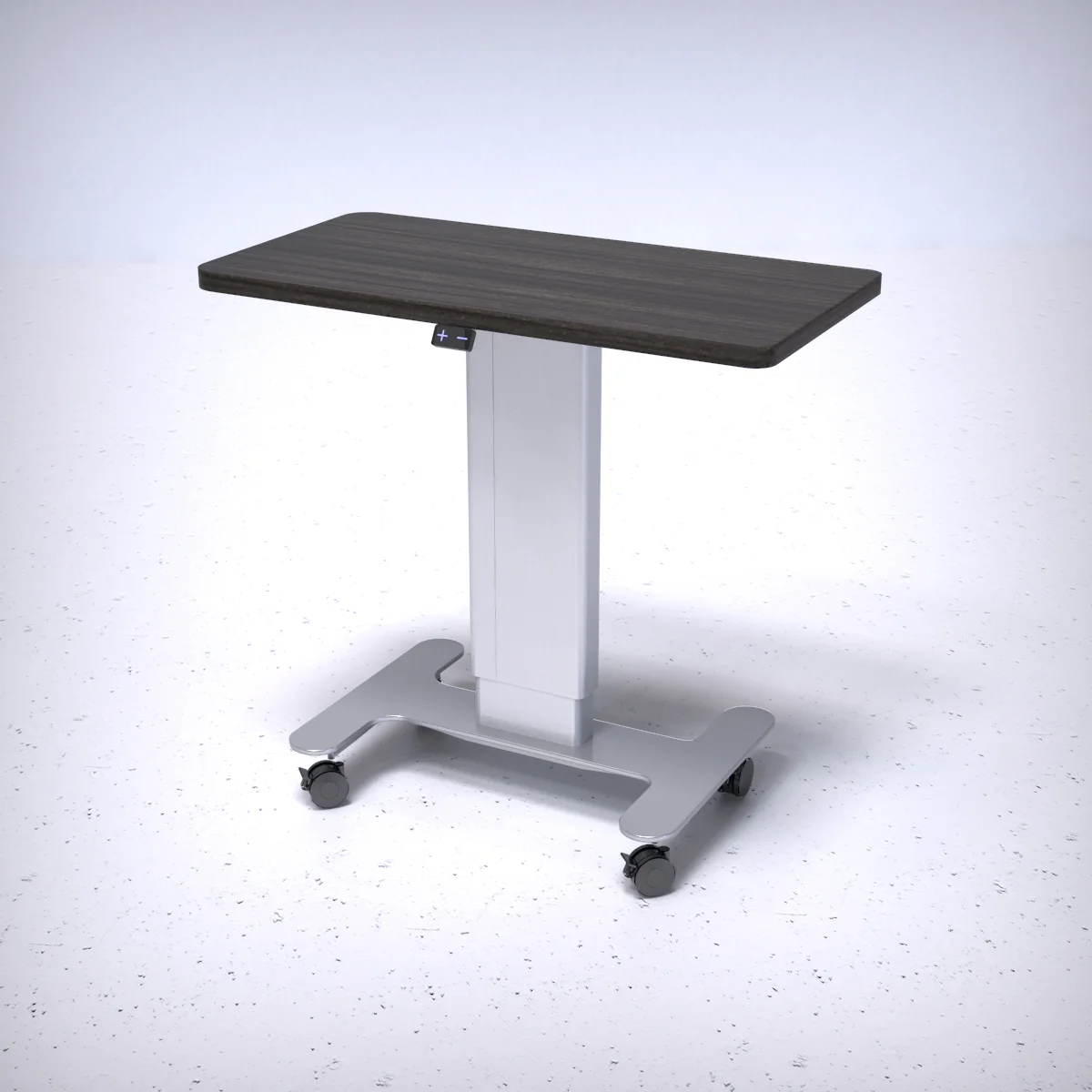

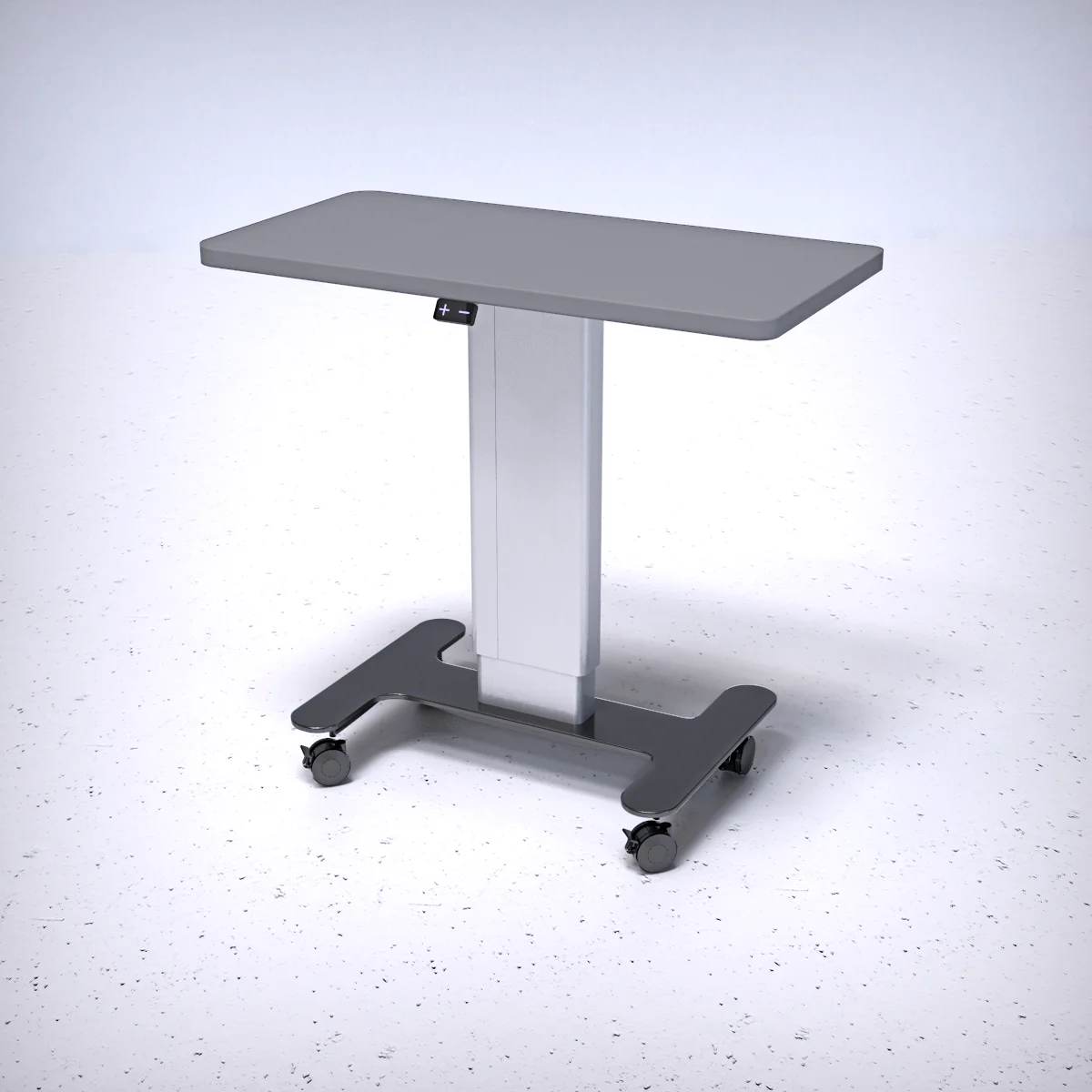

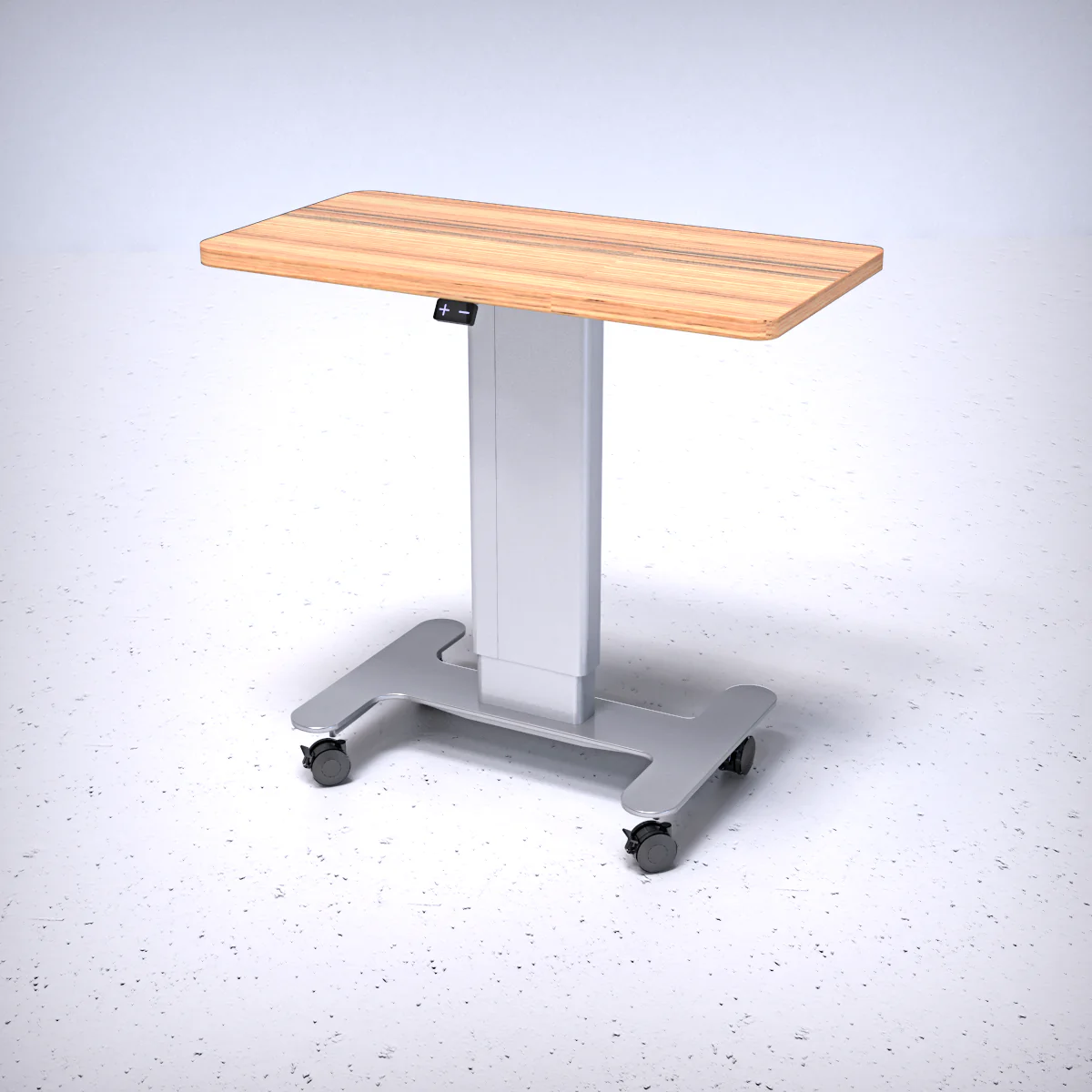

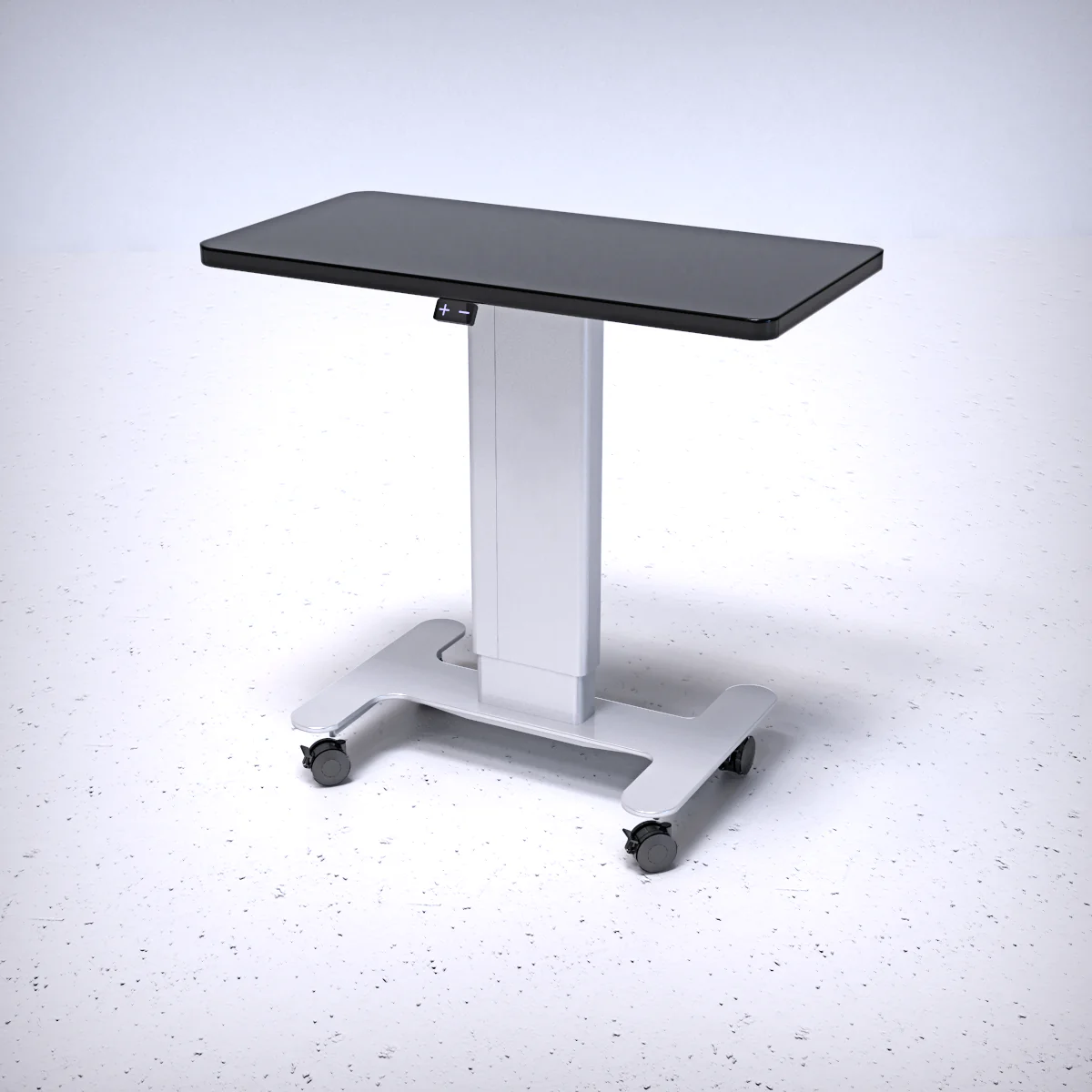

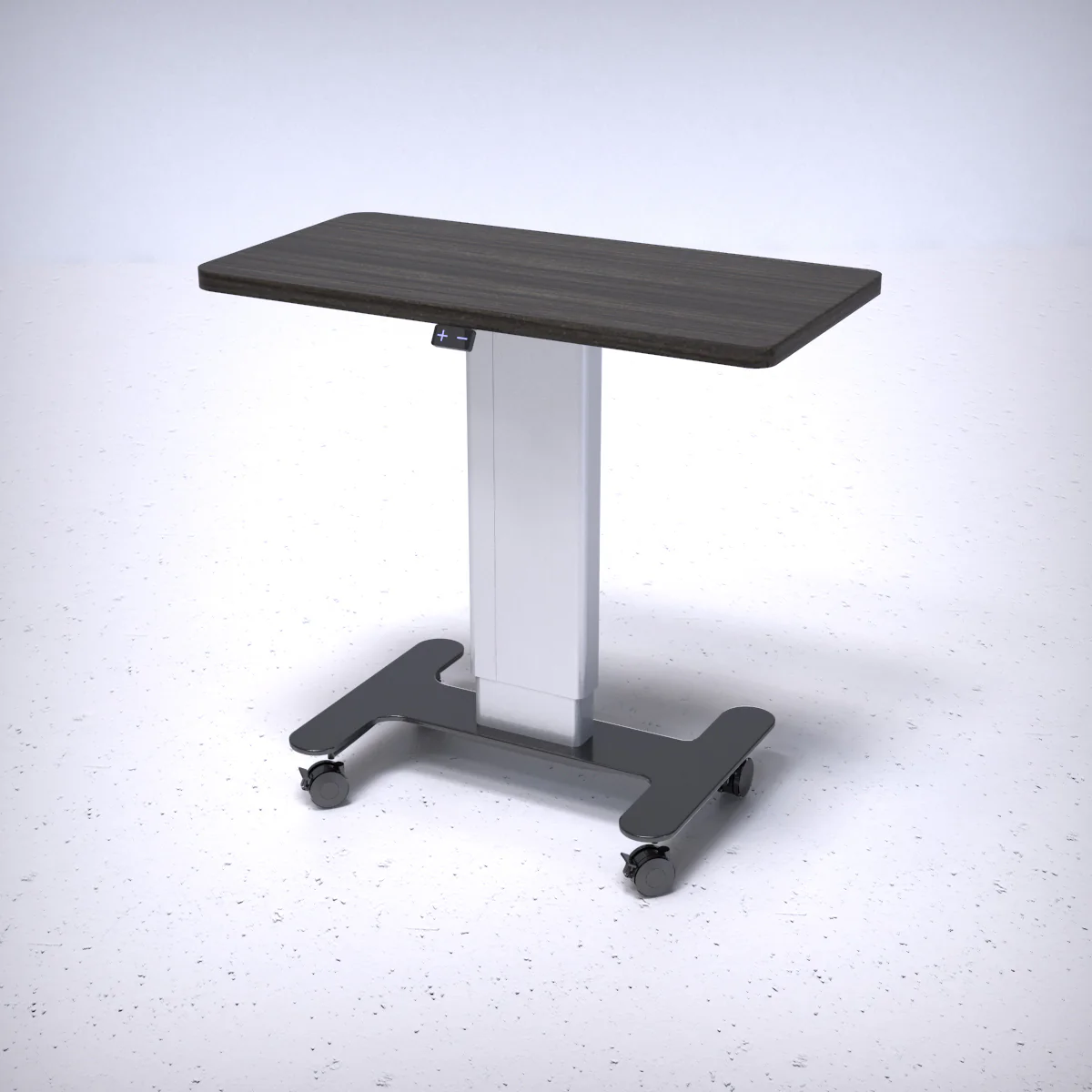

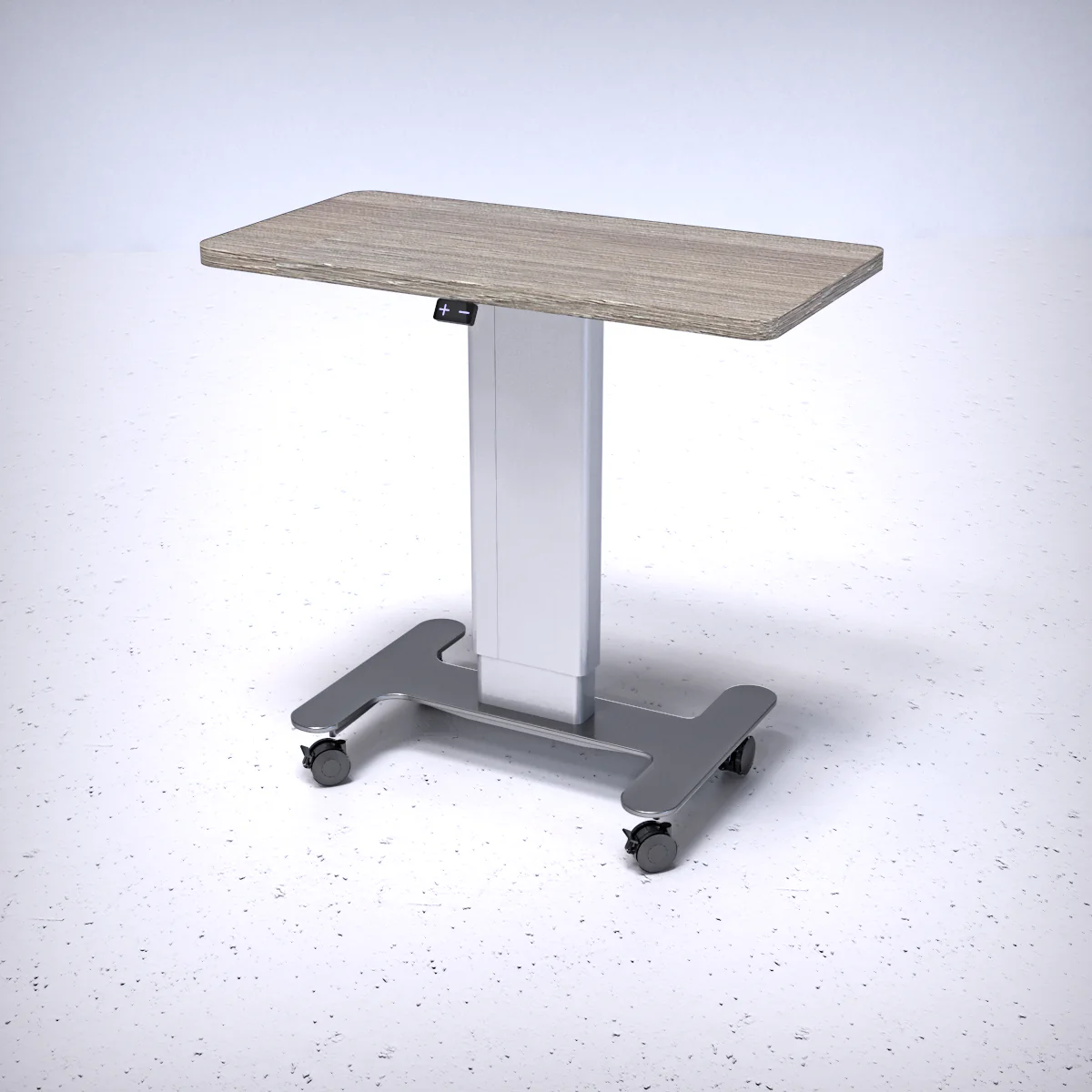

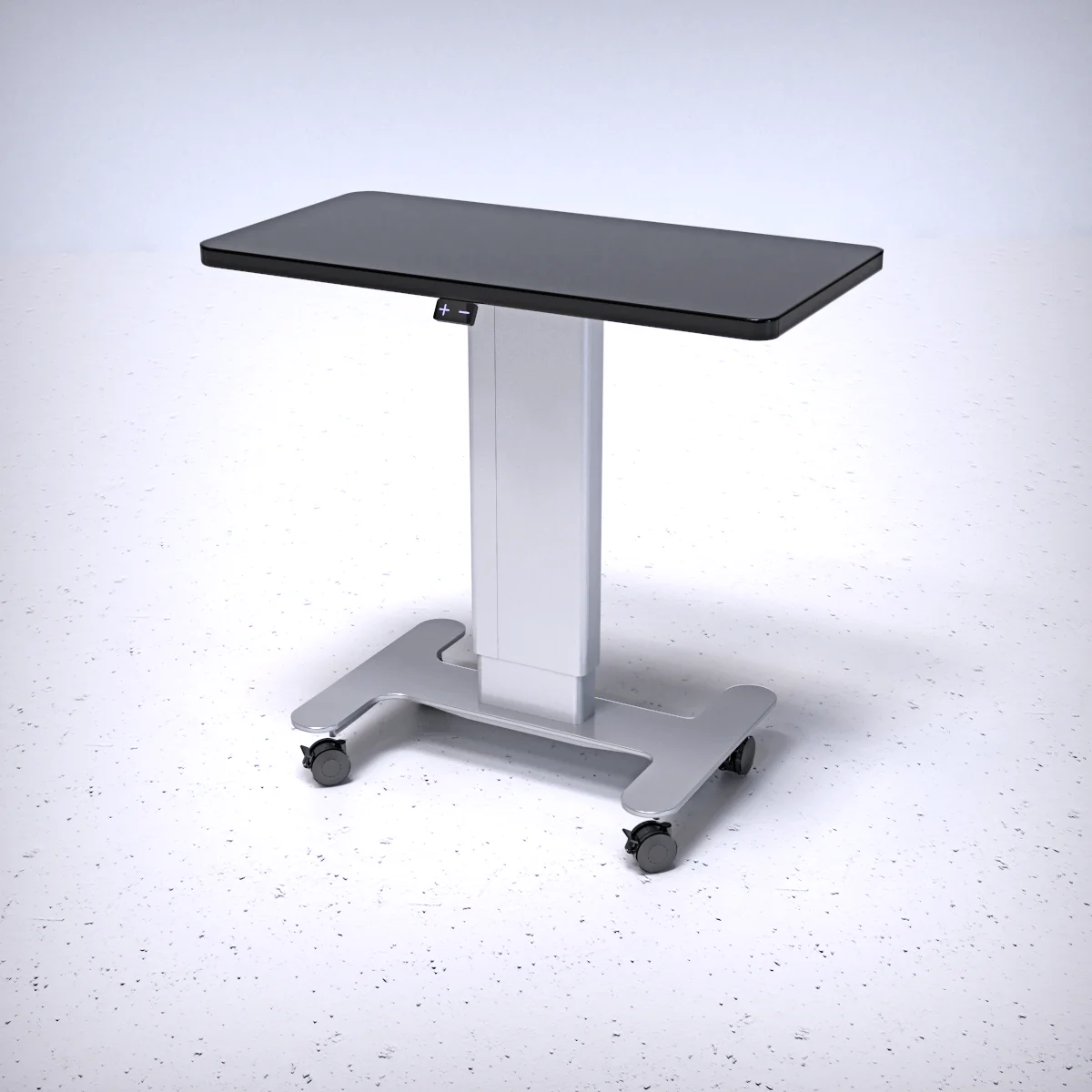

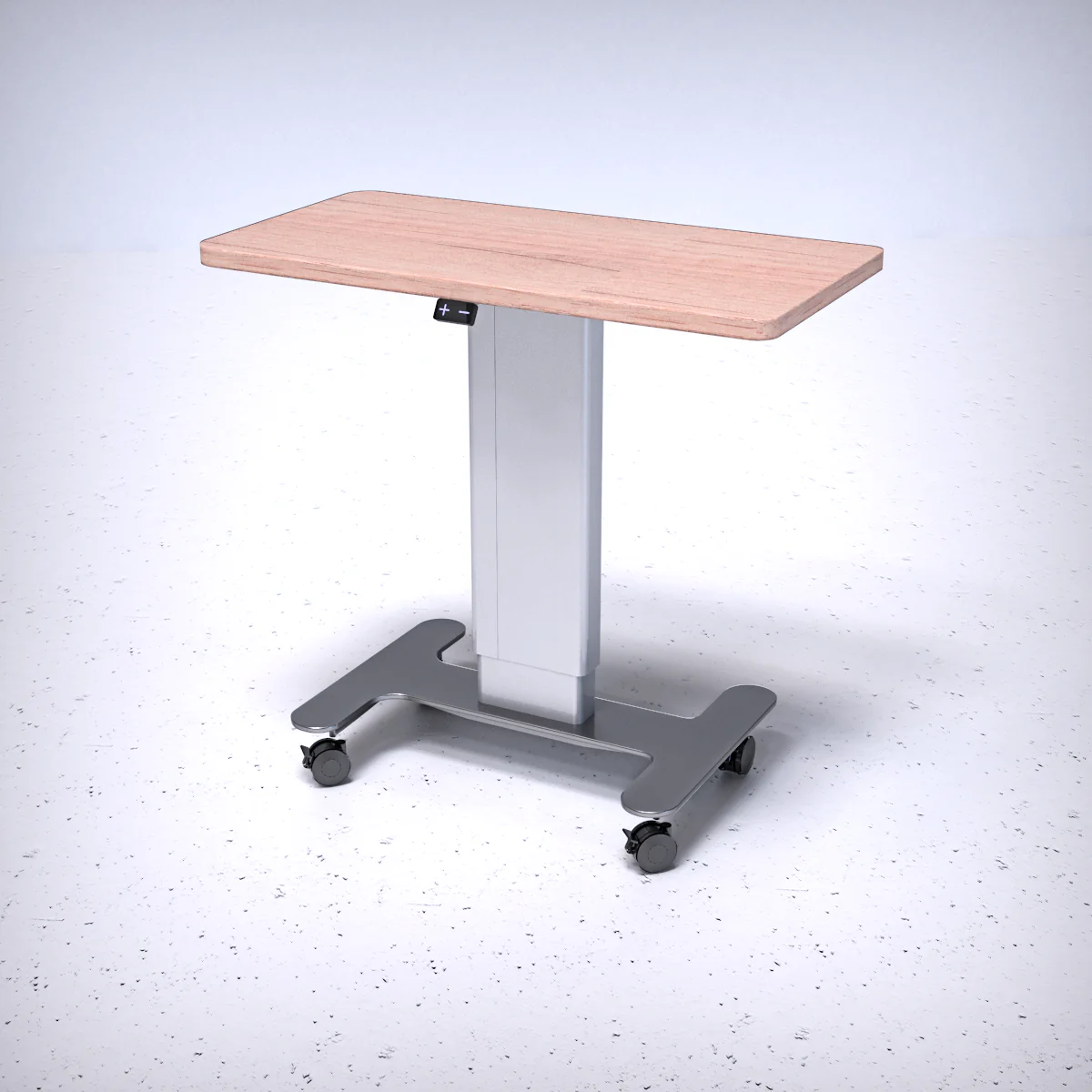

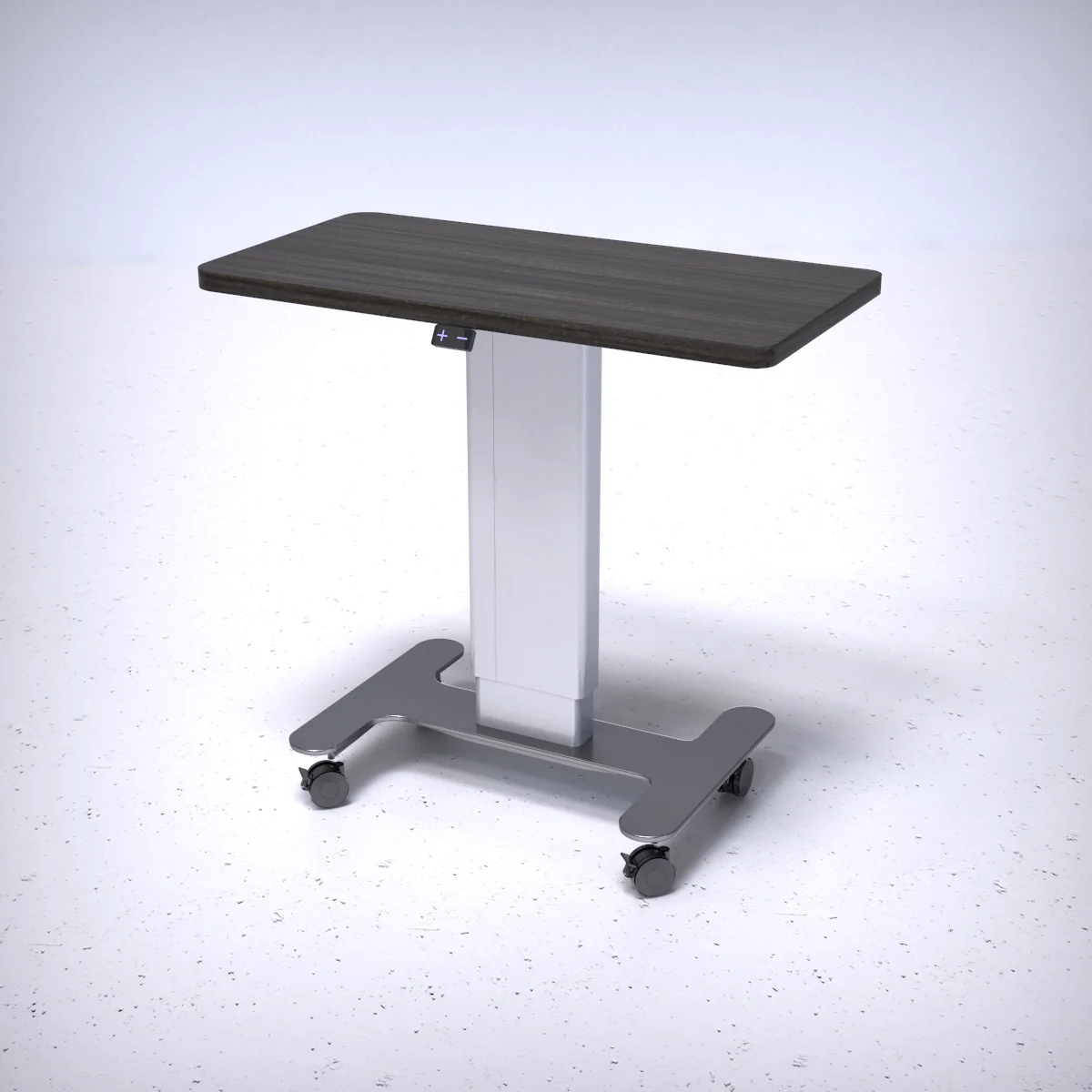

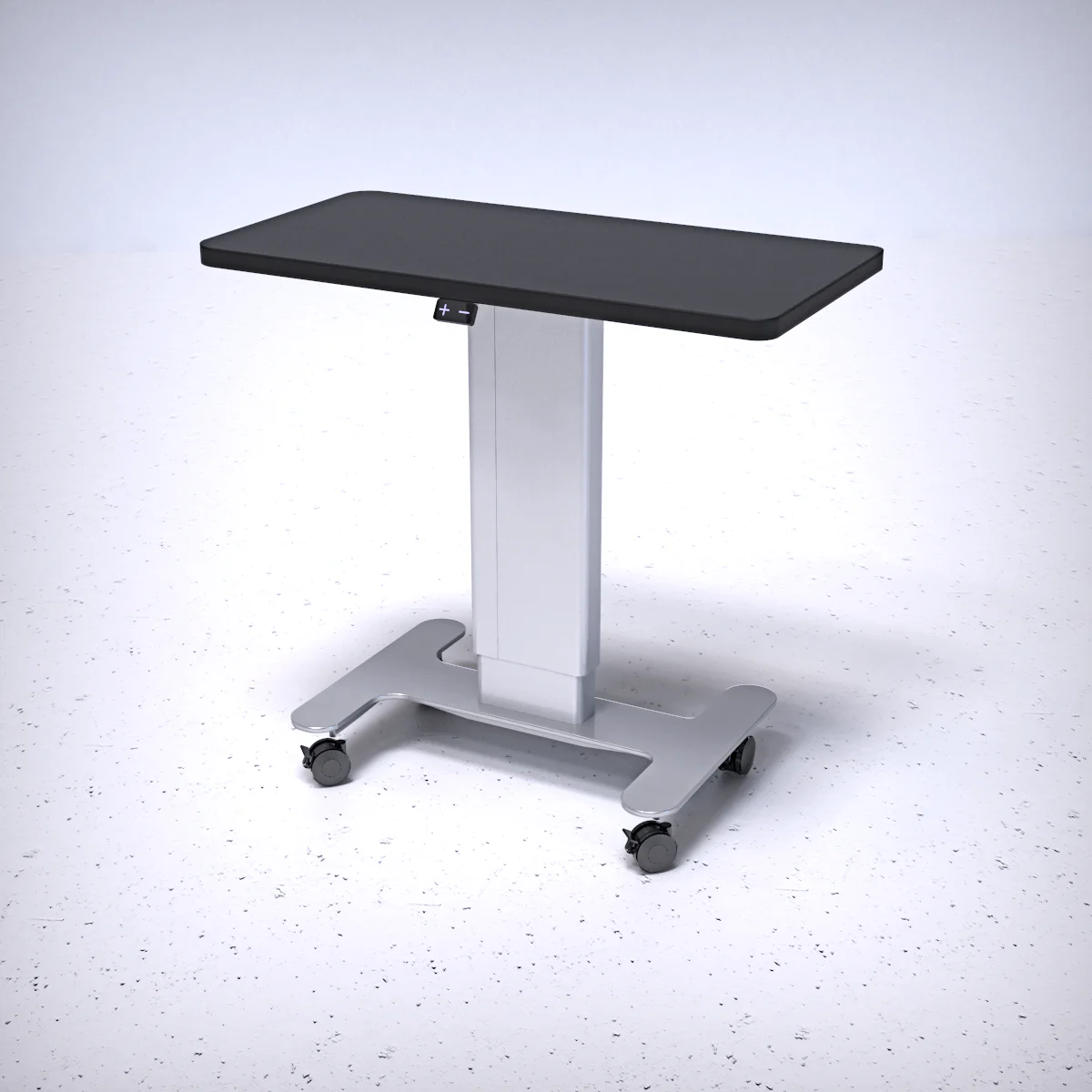

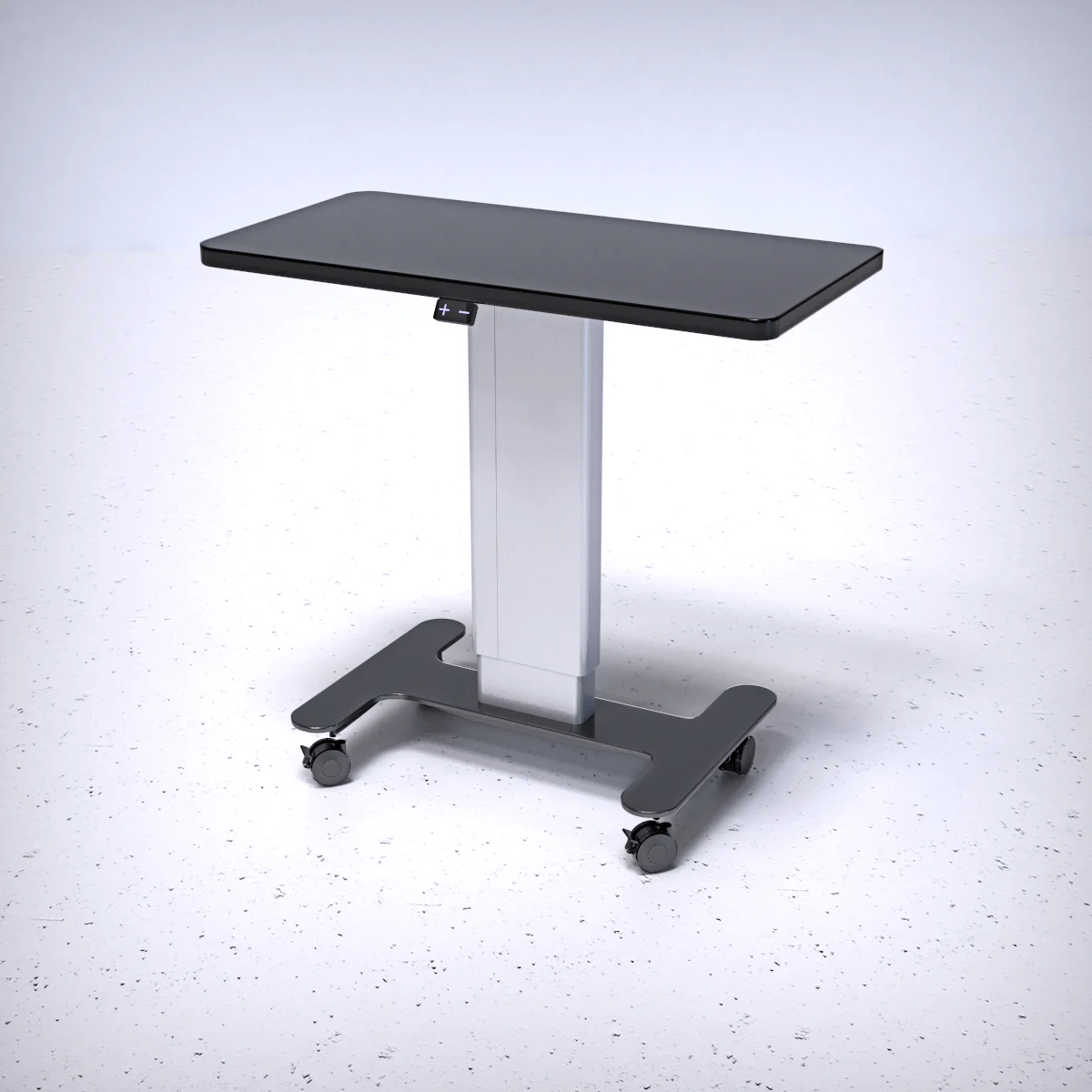

Configure your Visionare table

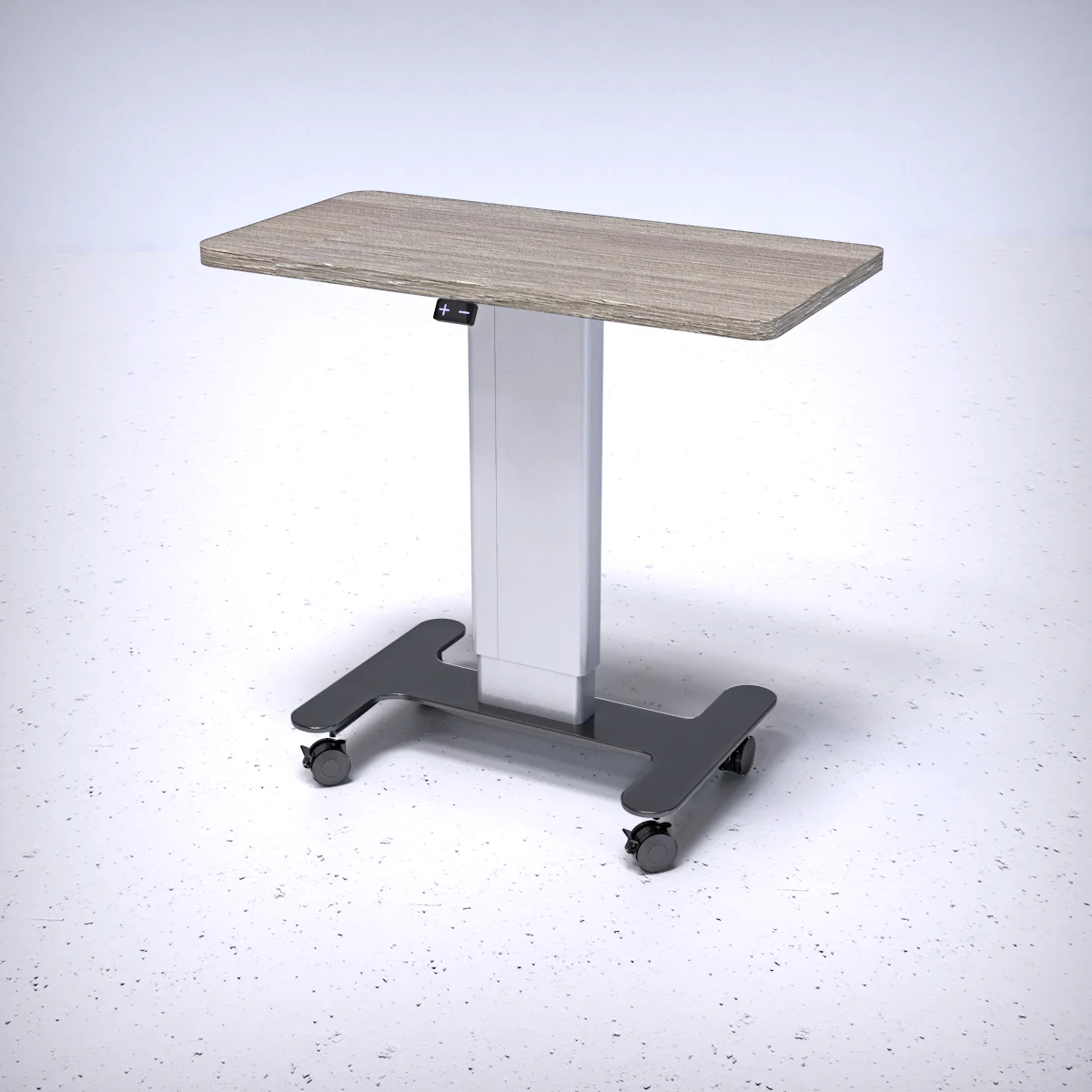

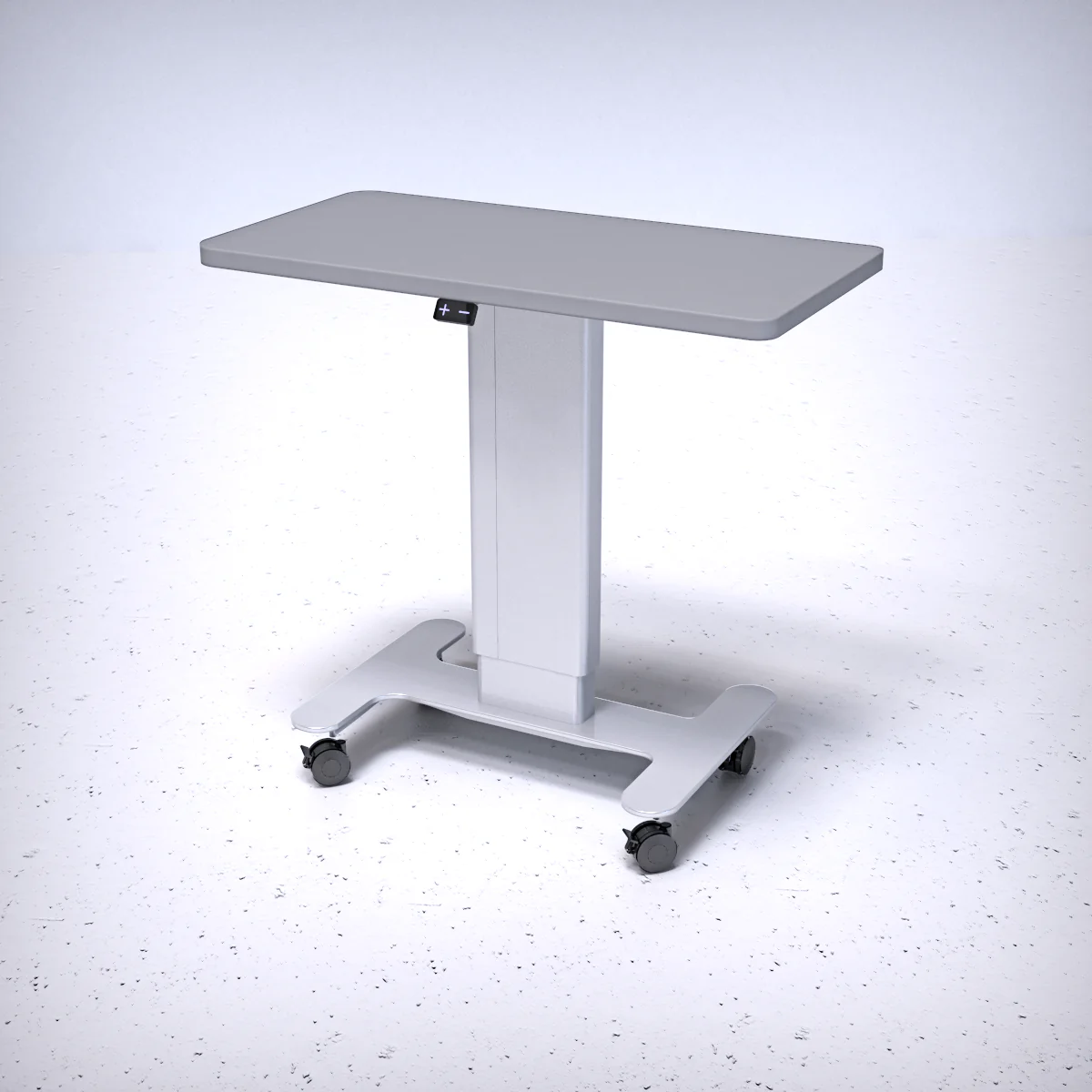

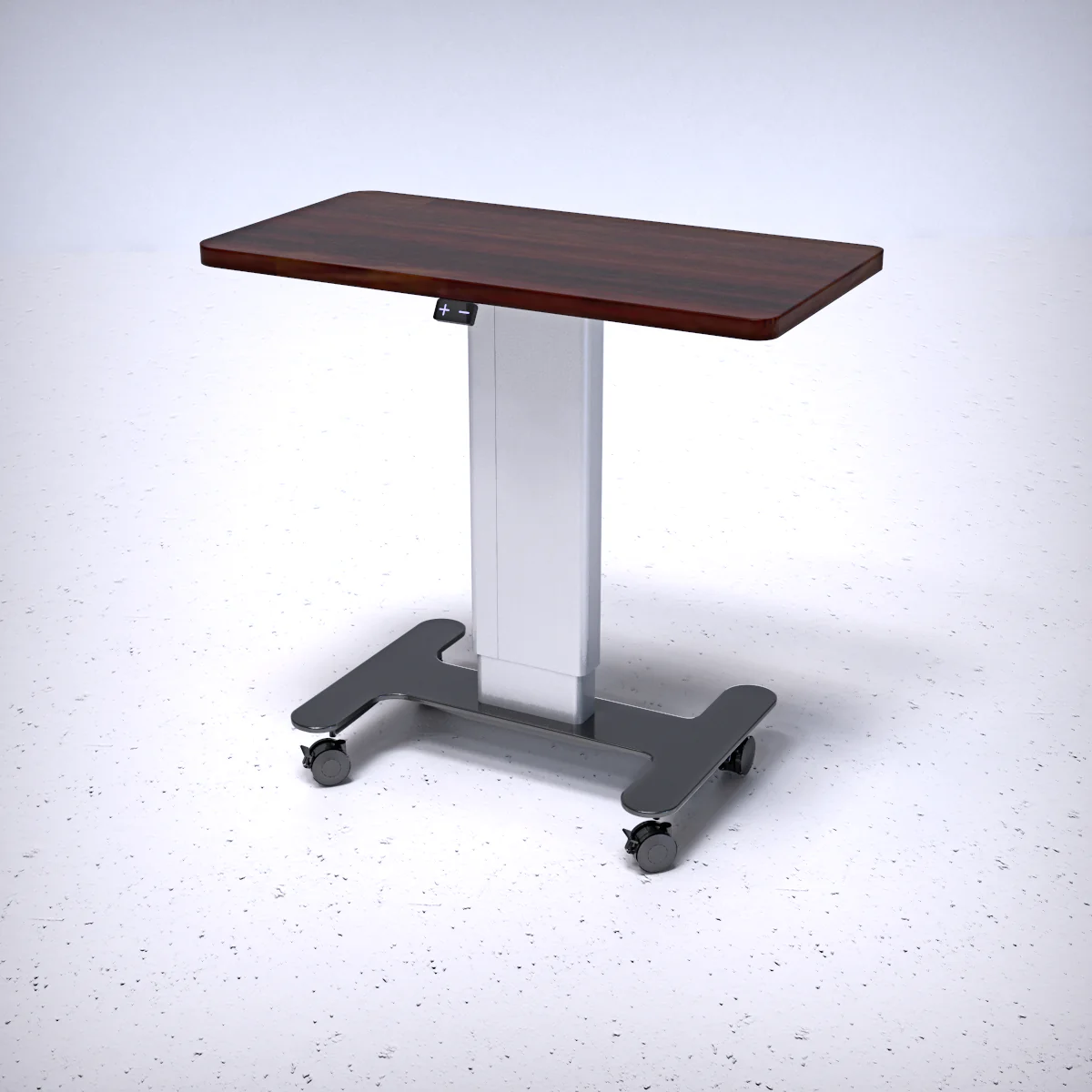

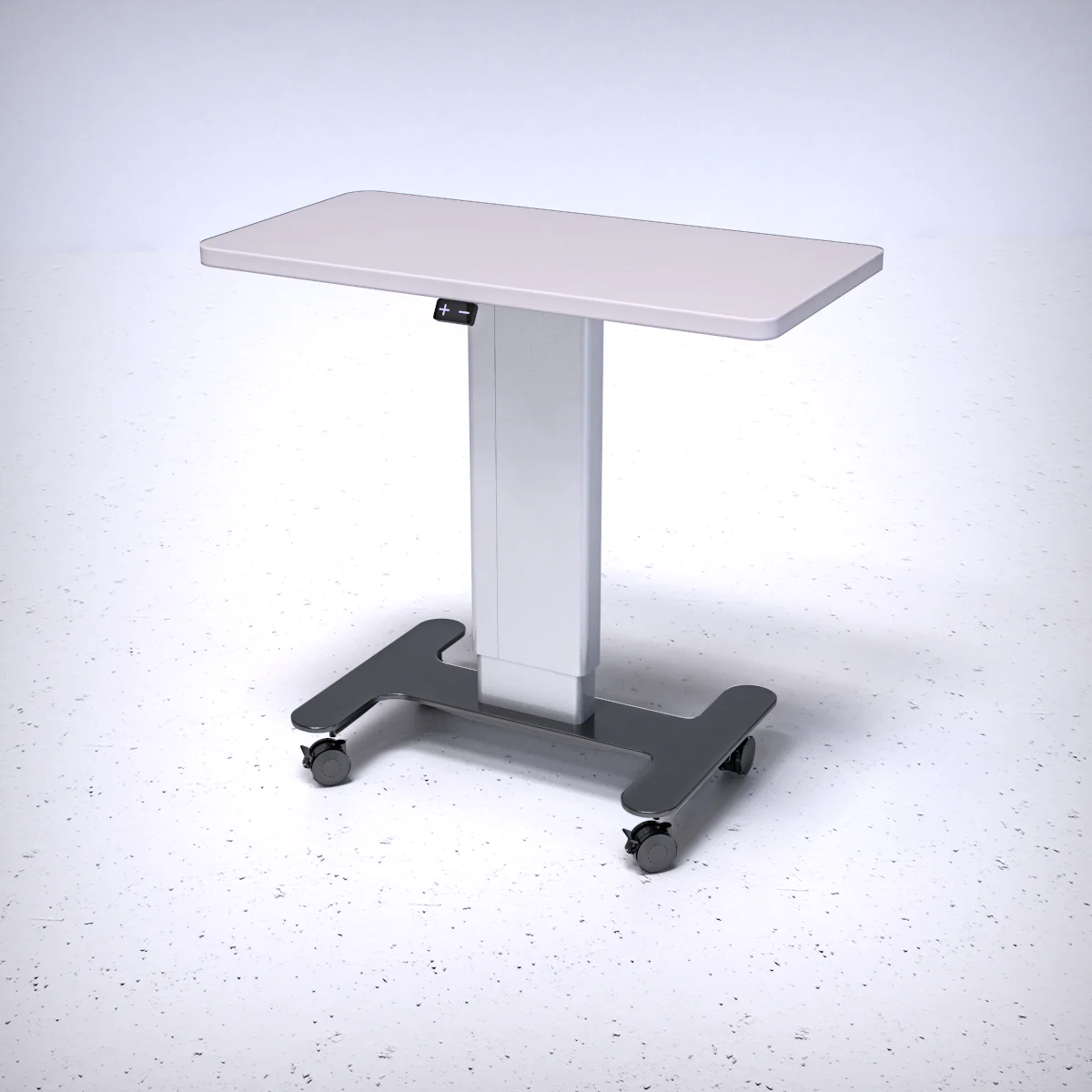

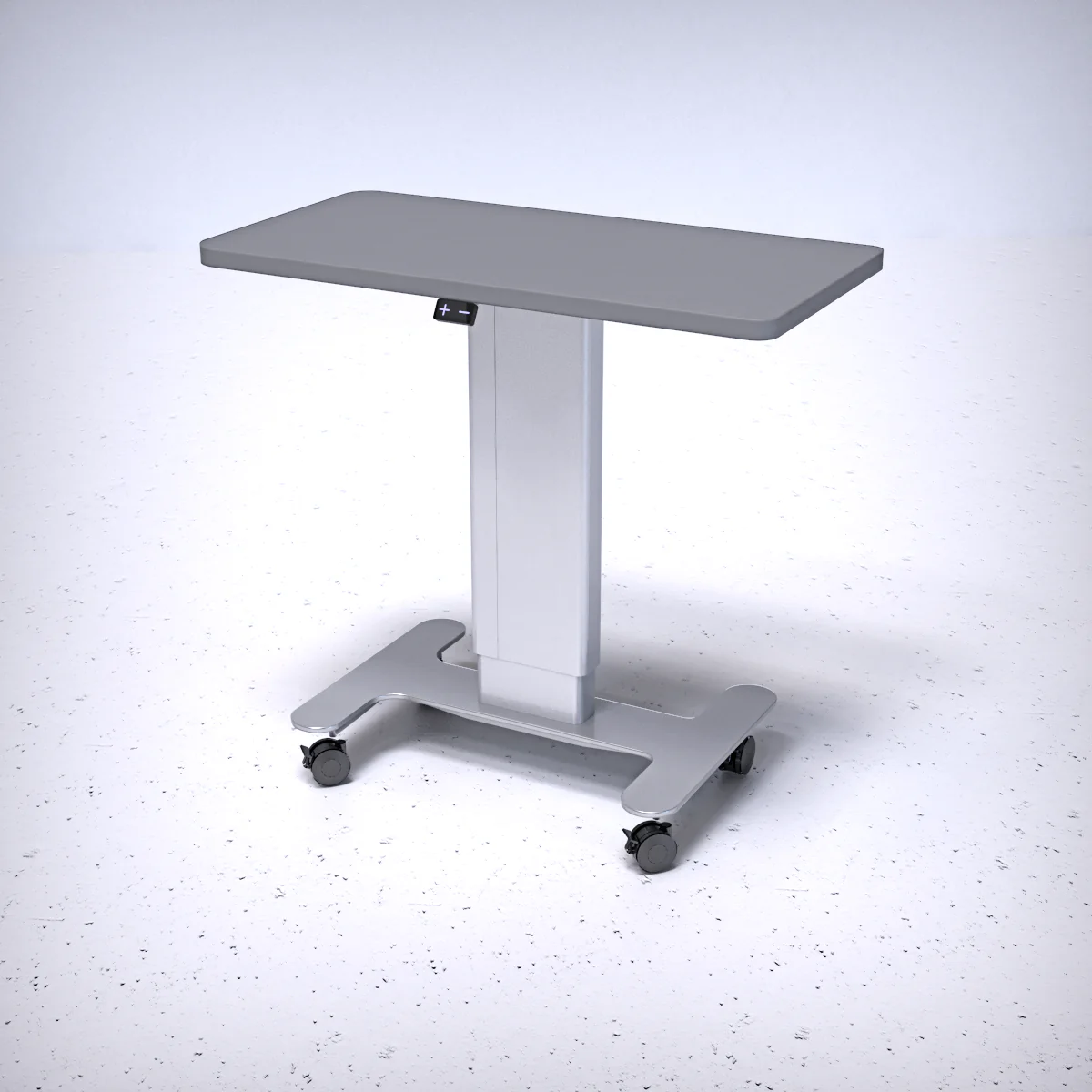

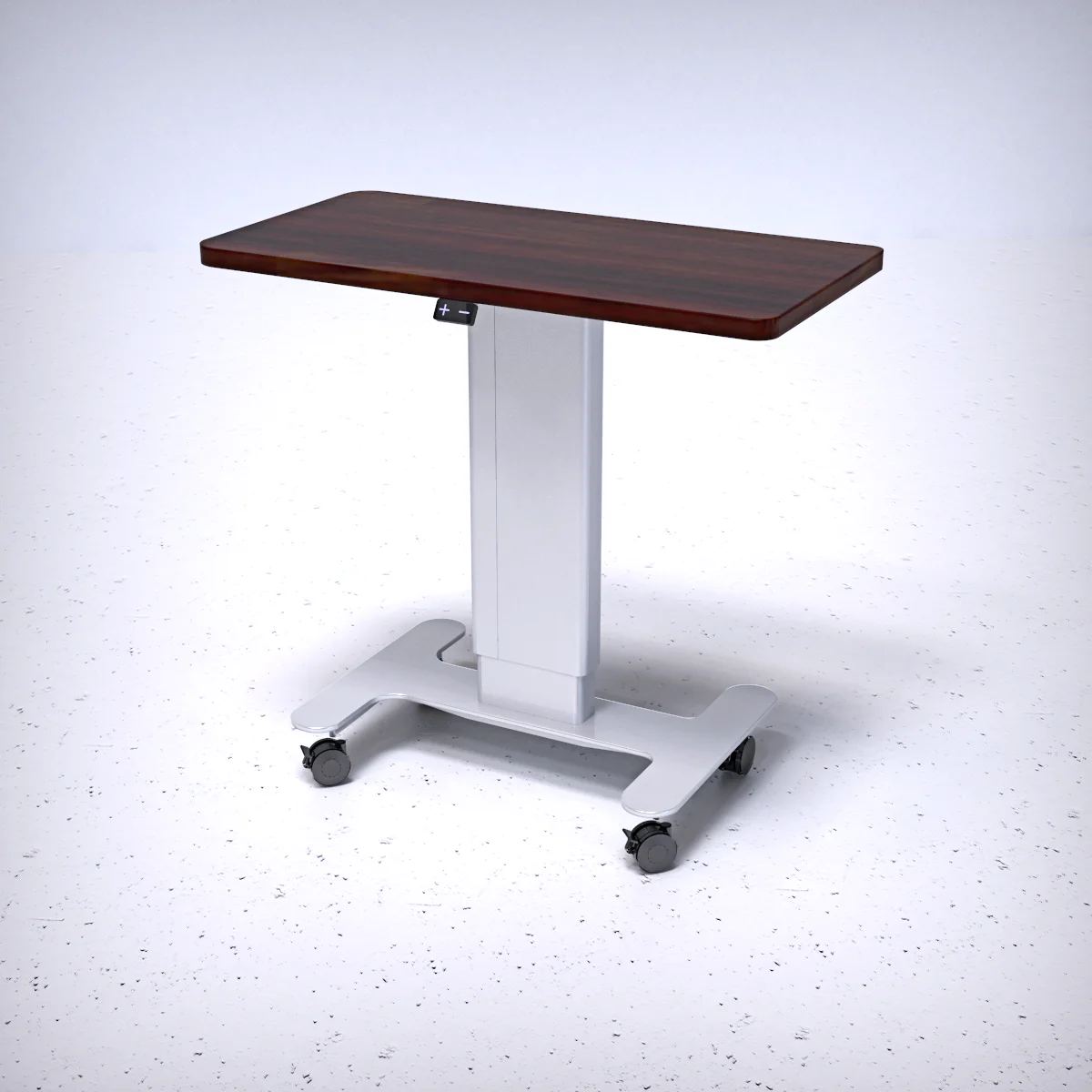

Choose a top and a base to see the combination.

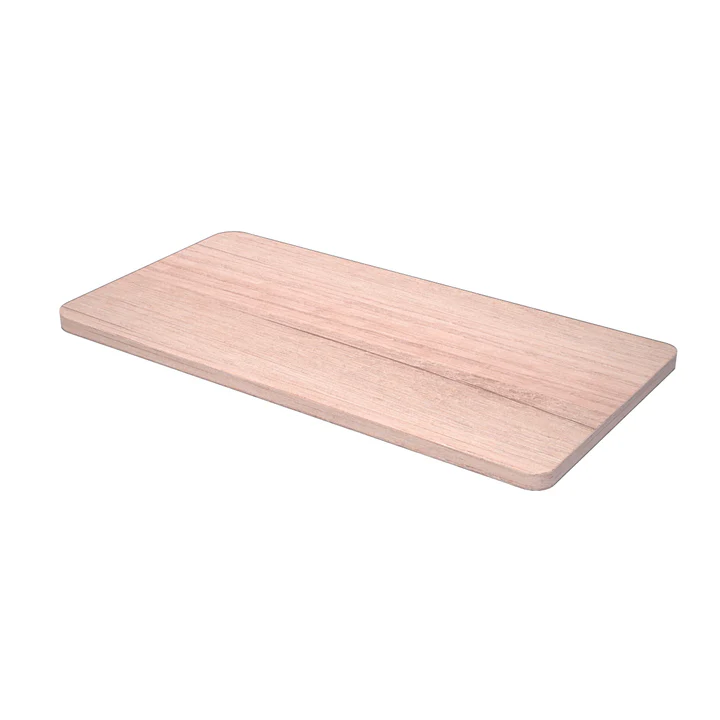

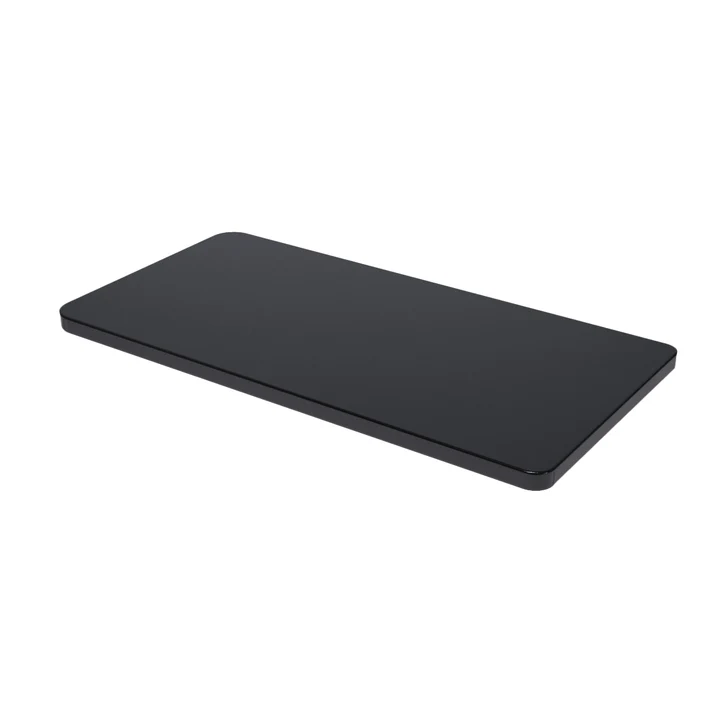

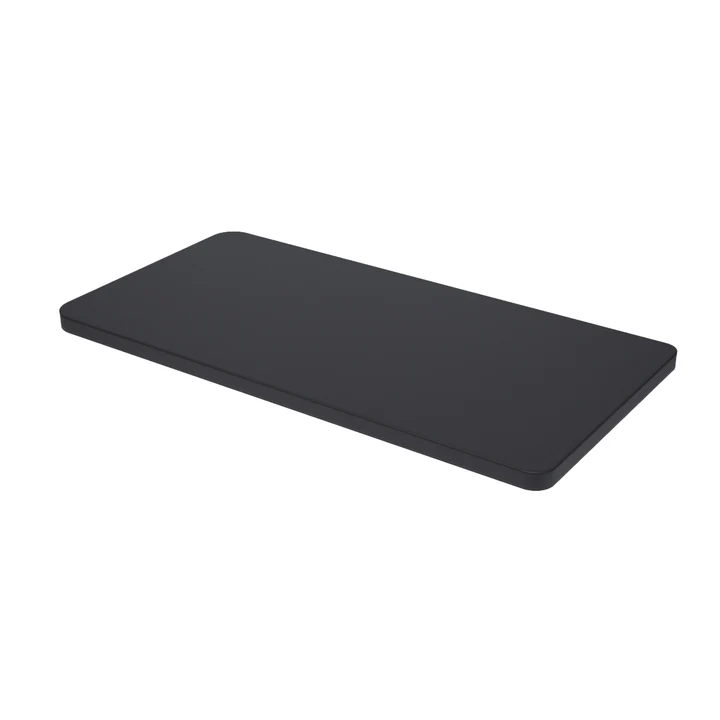

Top
14 options

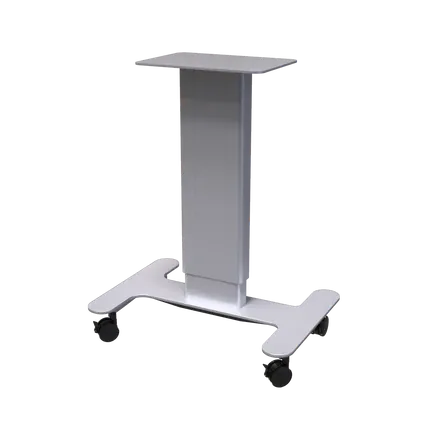

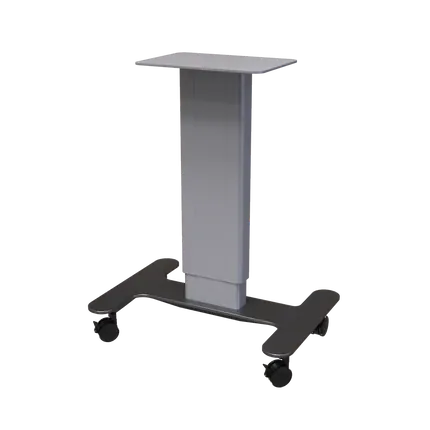

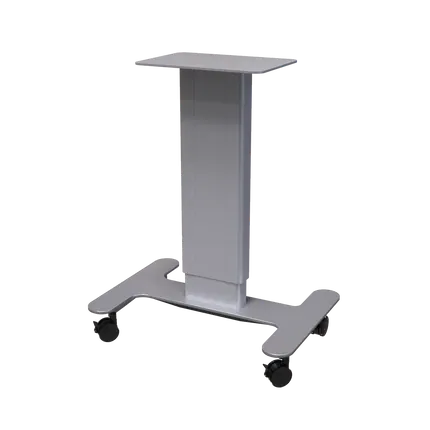

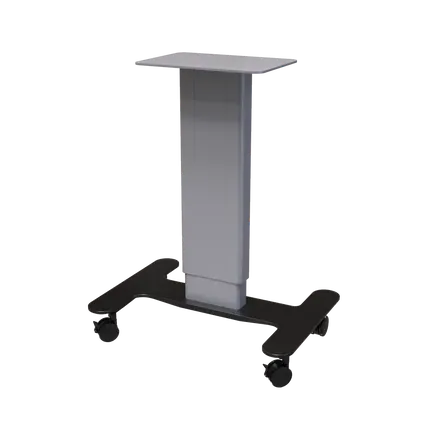

Base
4 options

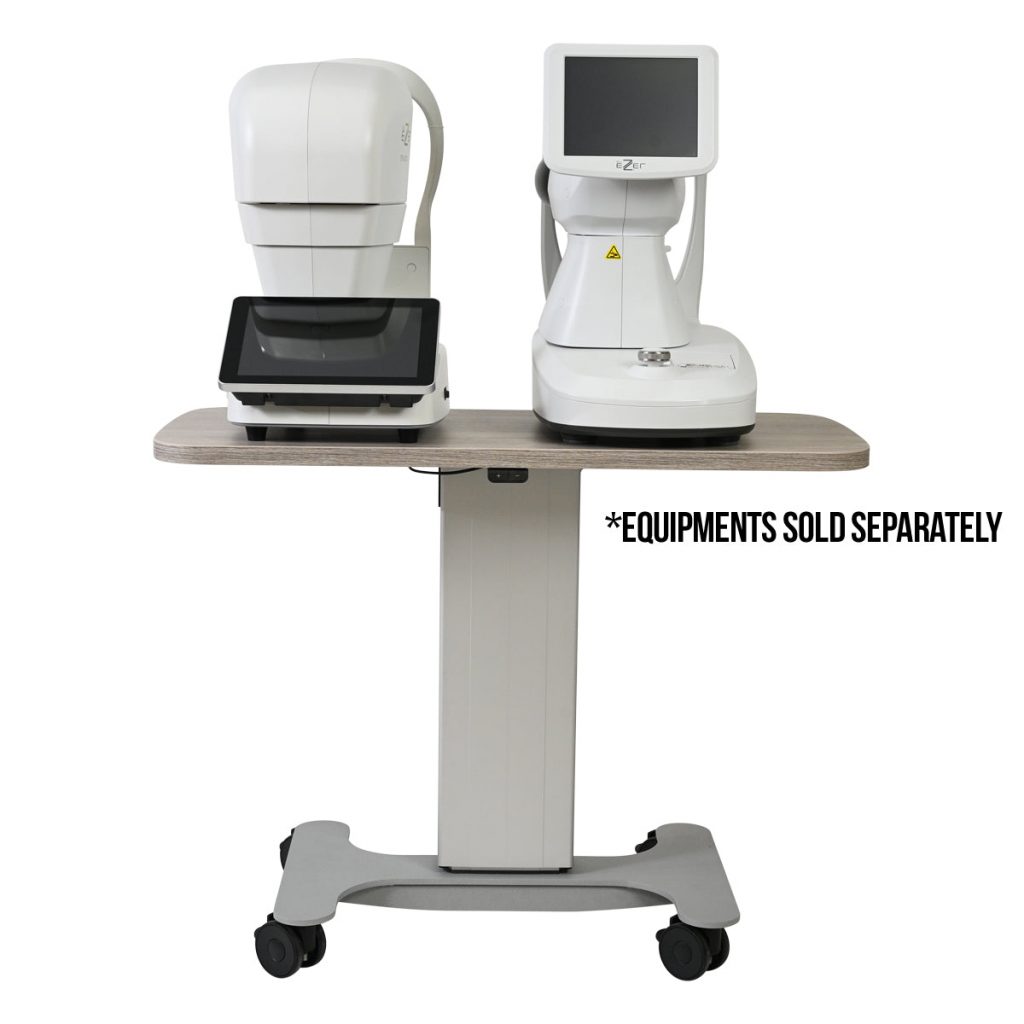

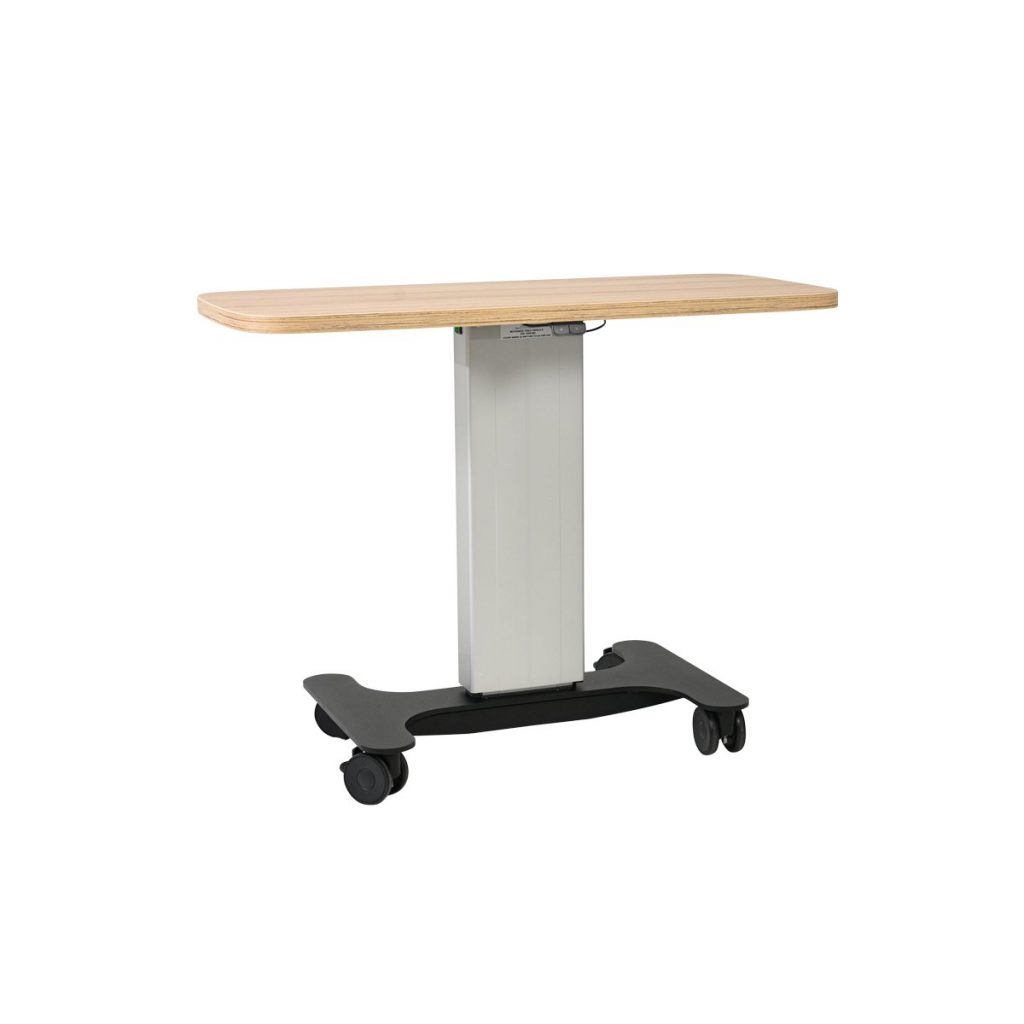

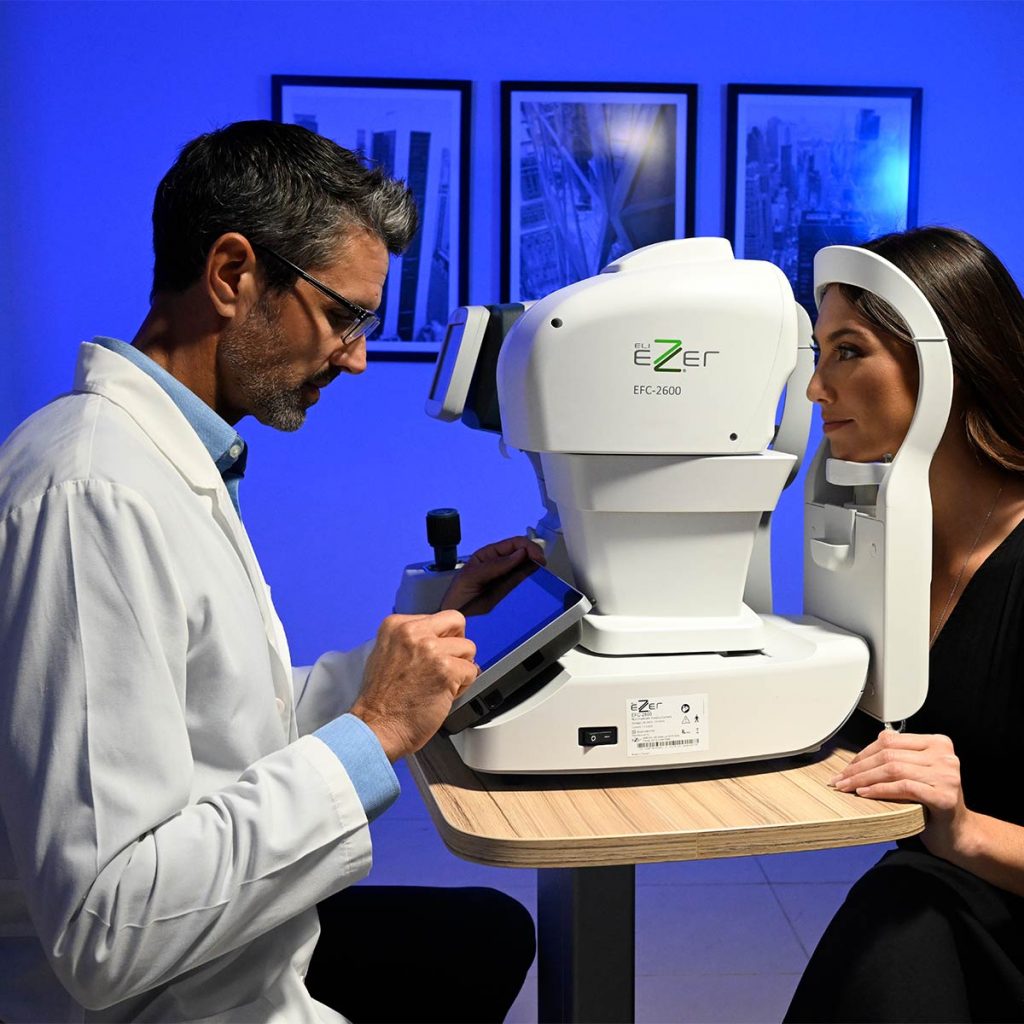

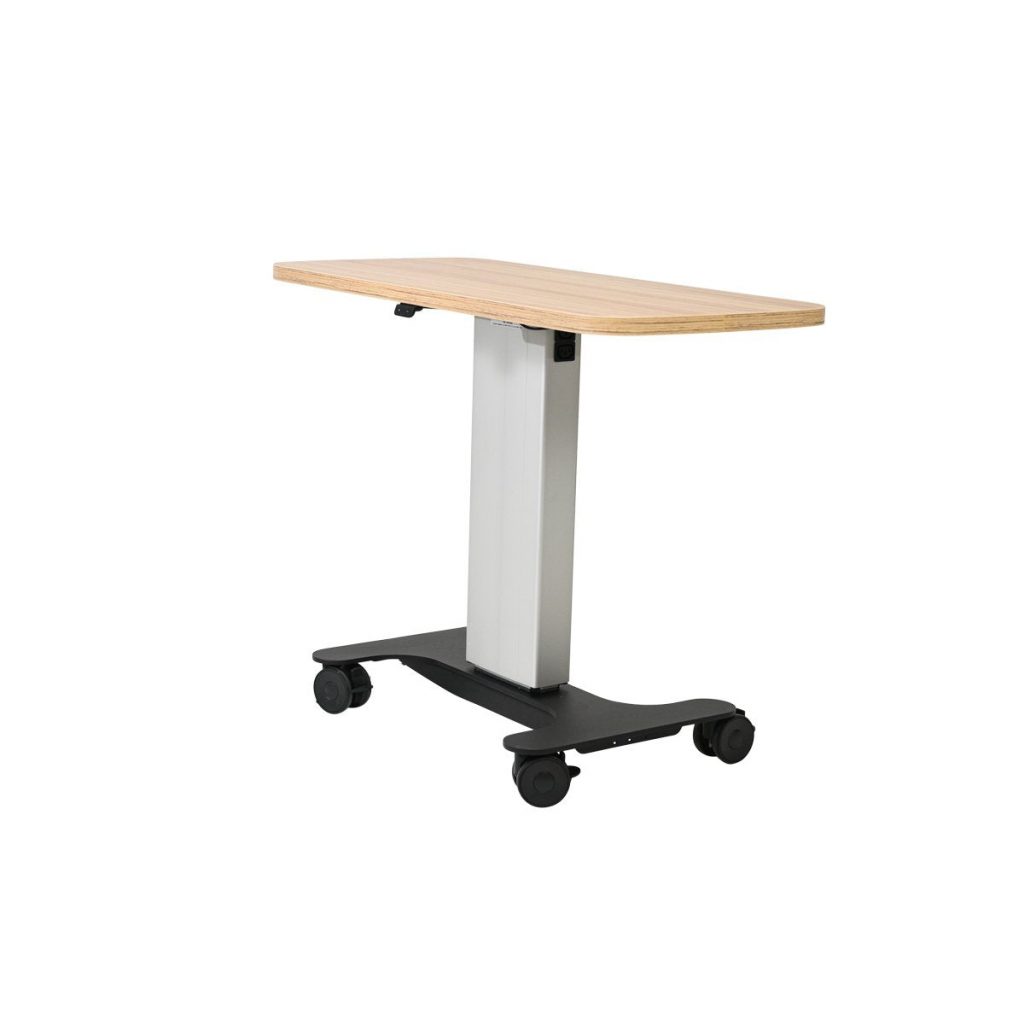

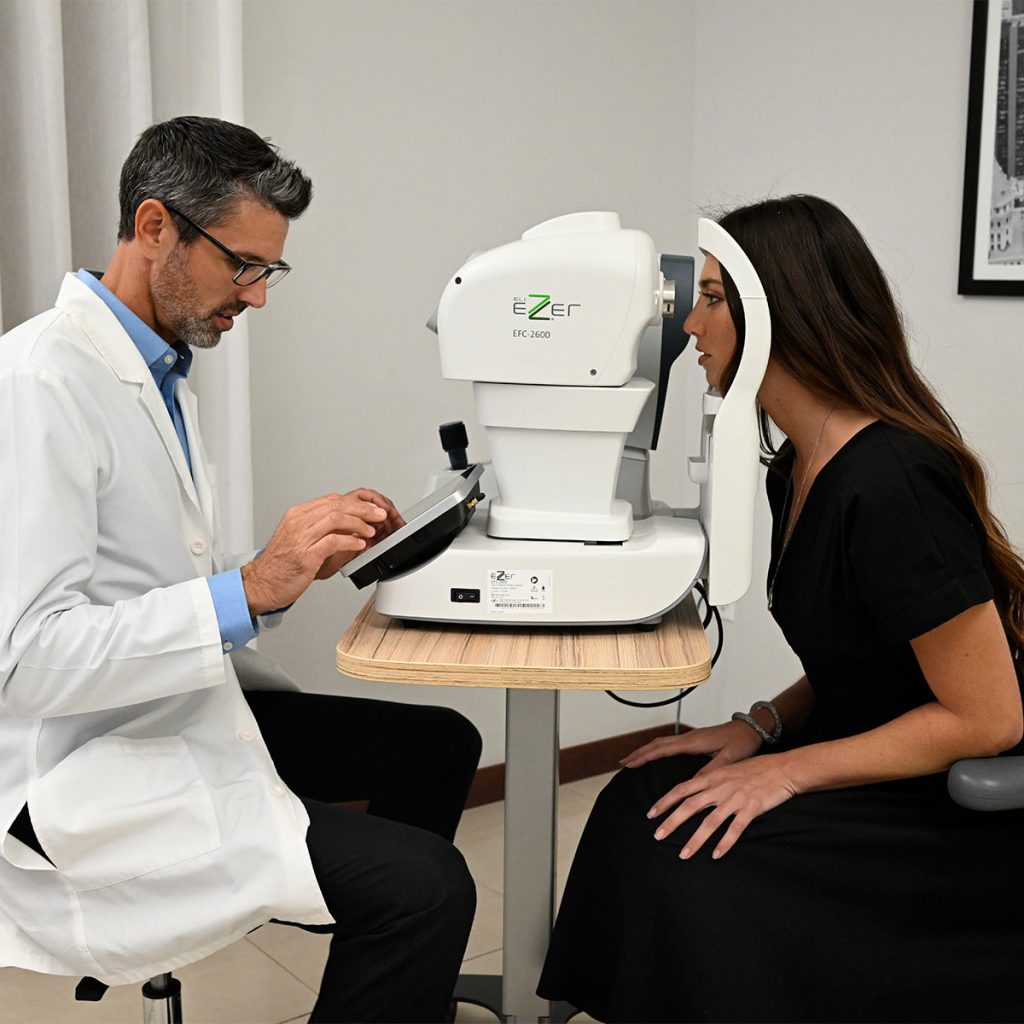

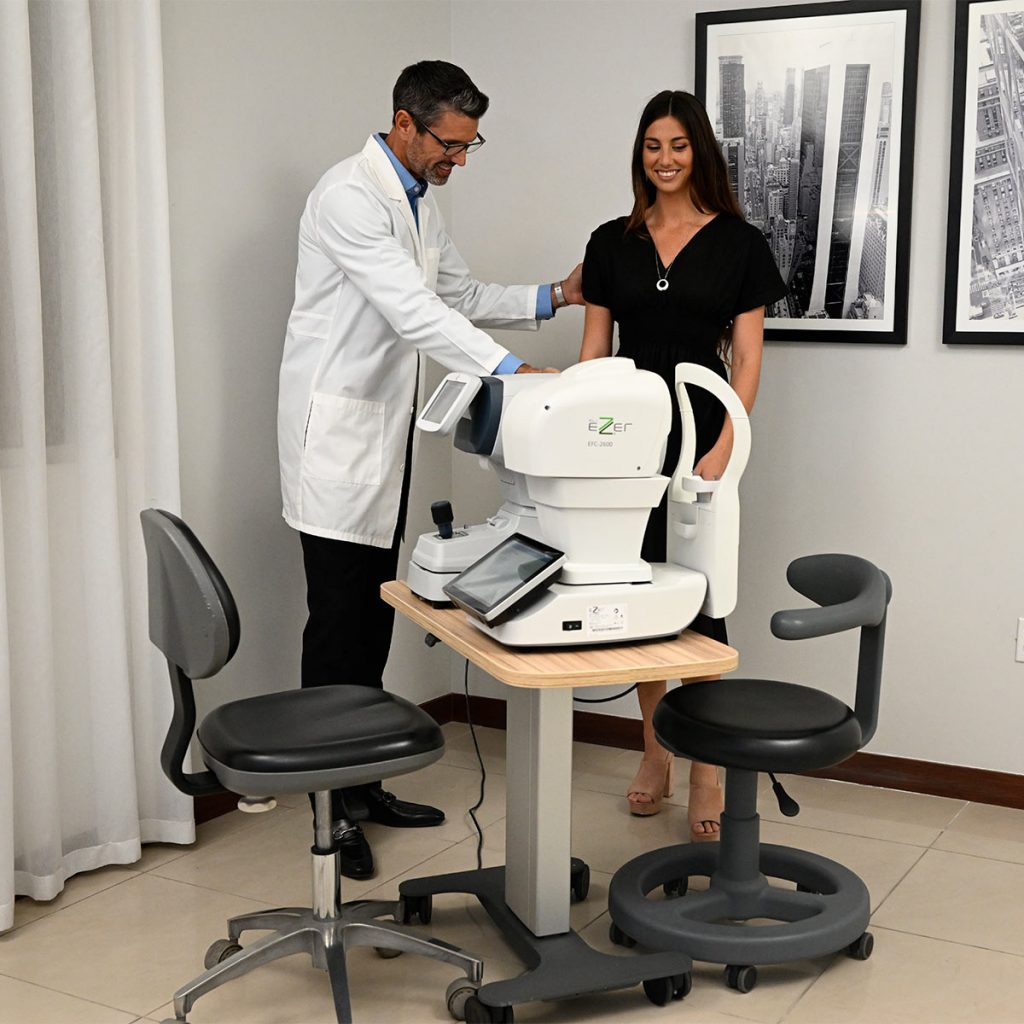

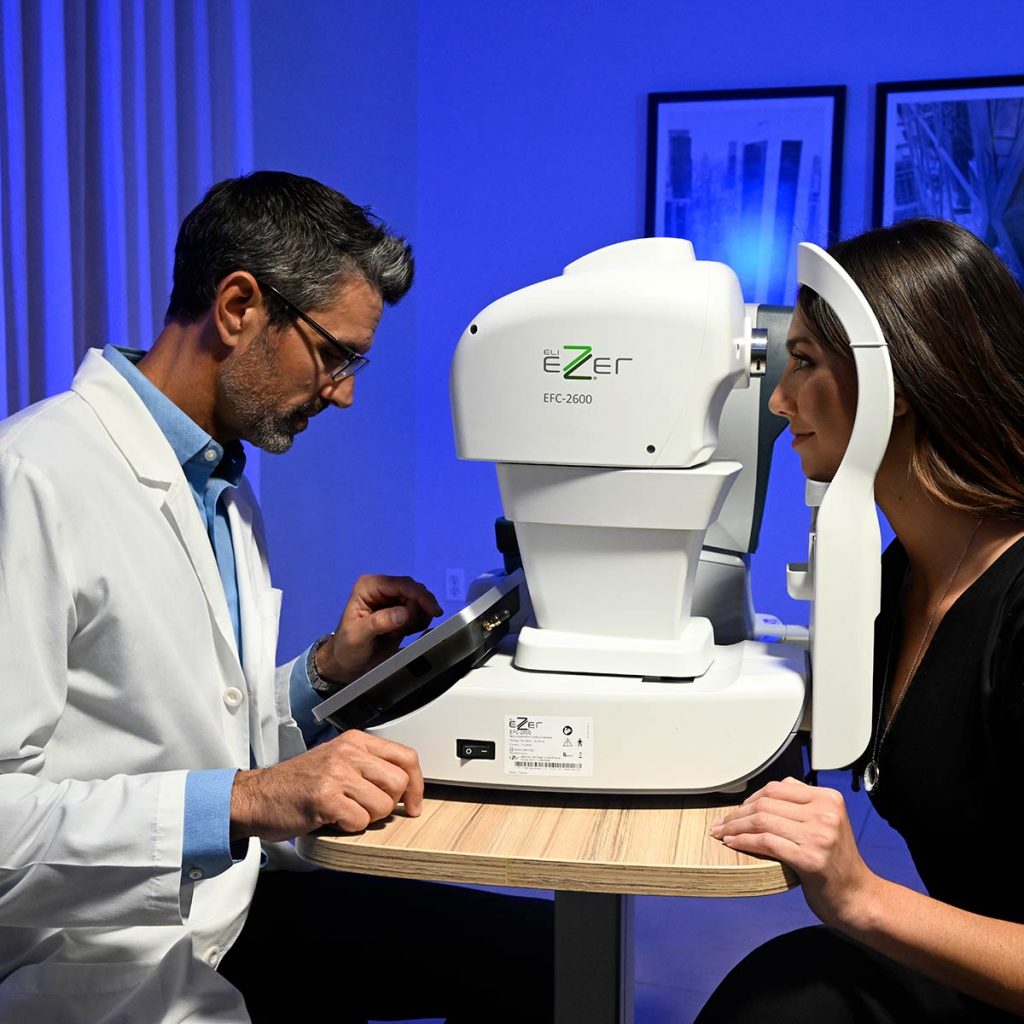

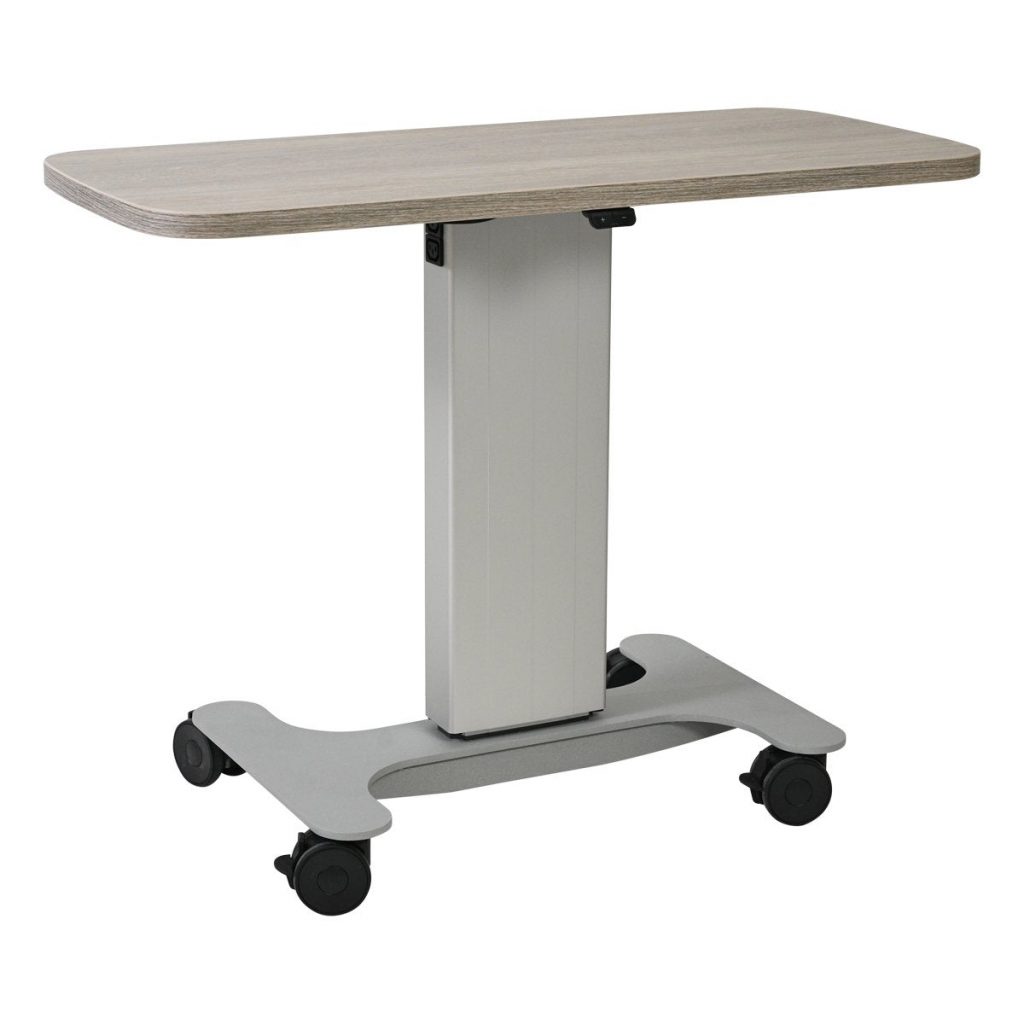

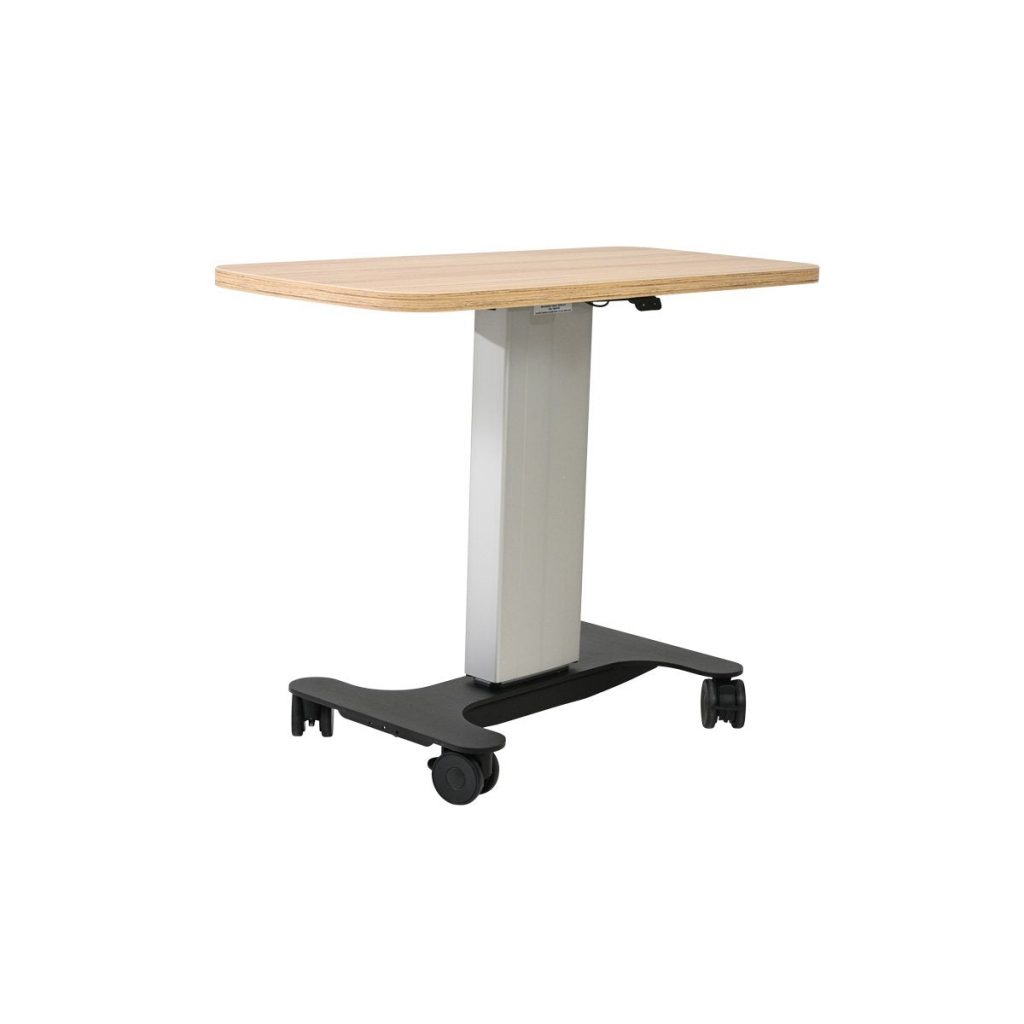

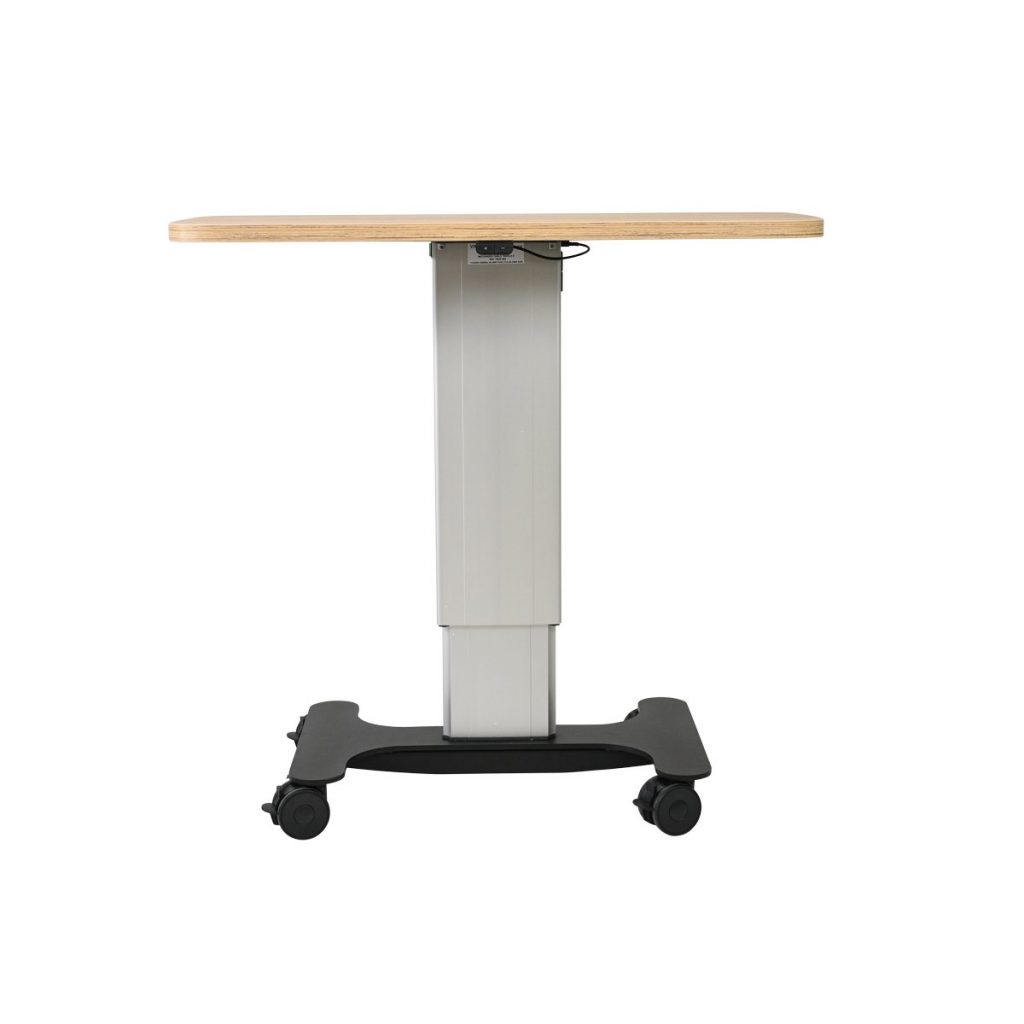

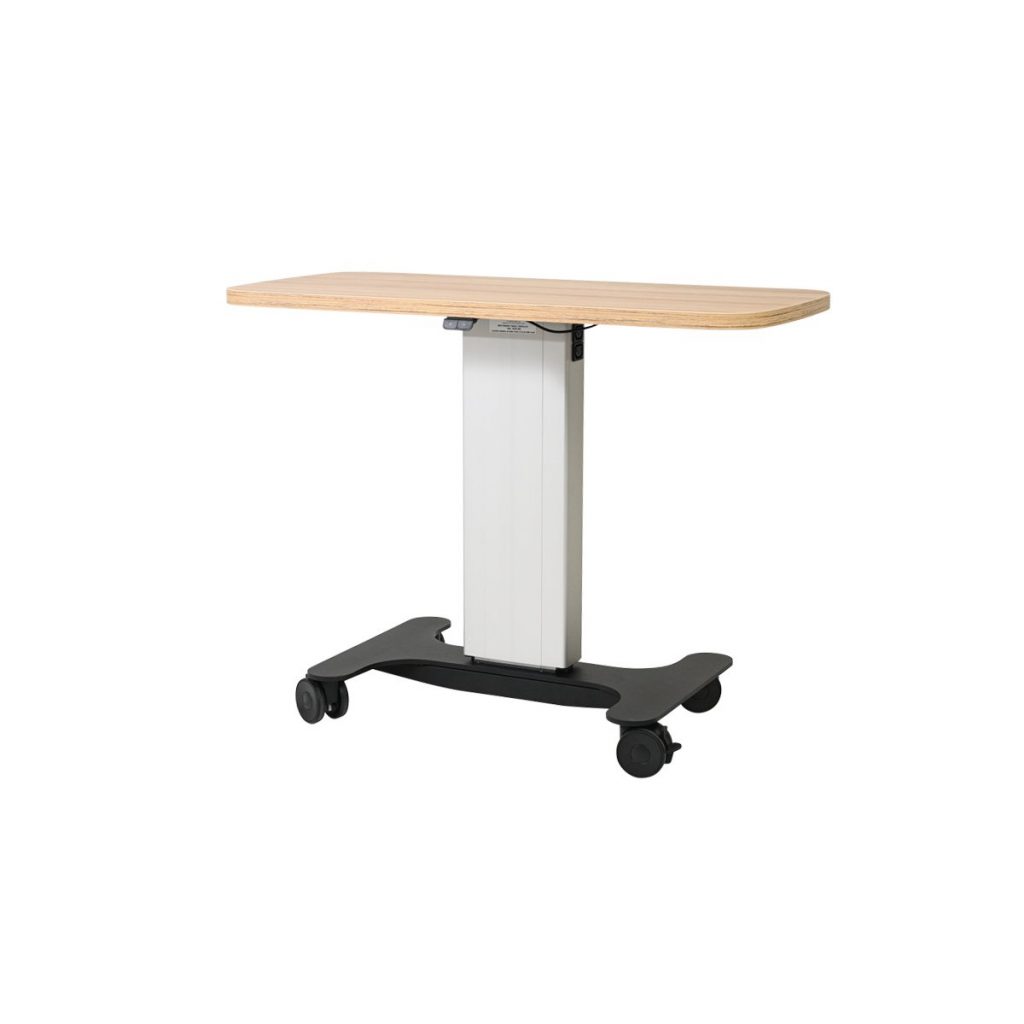

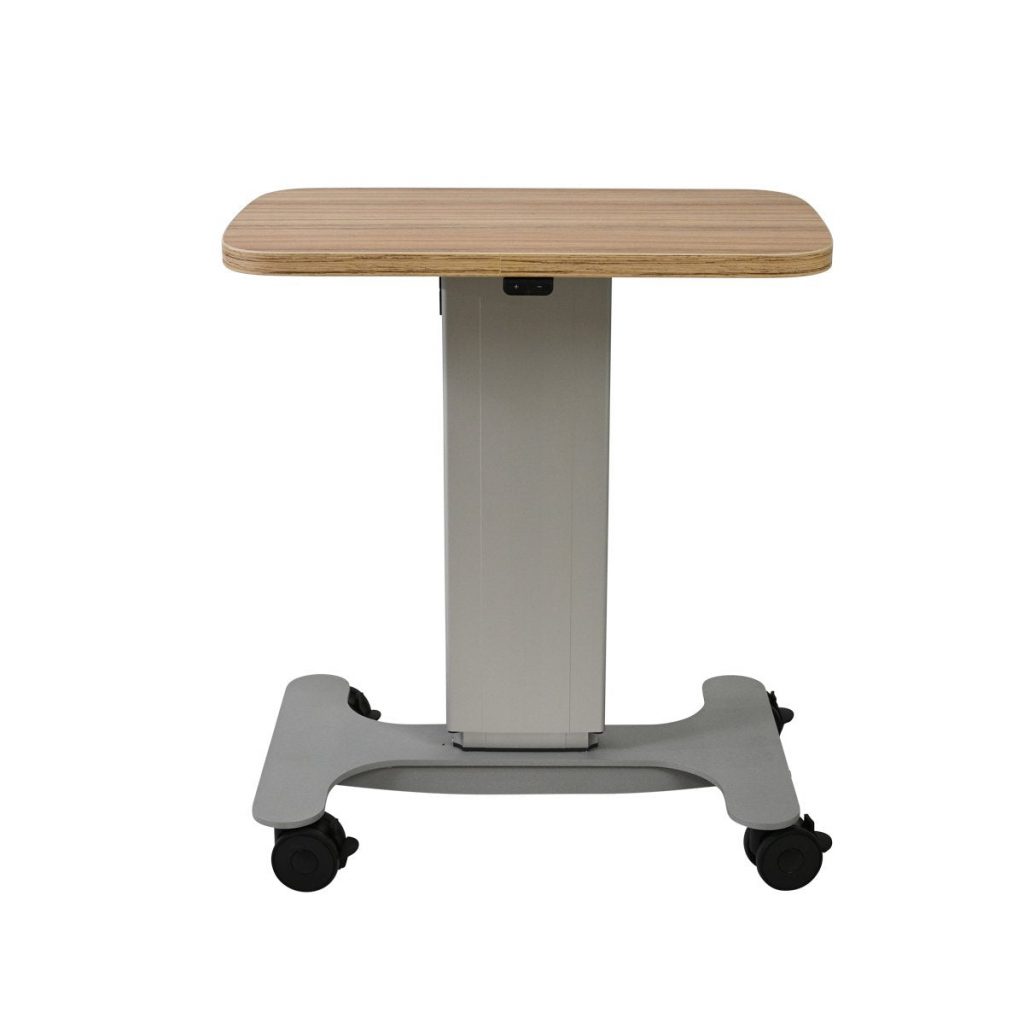

The Tavola Doppia is designed for two instruments. The motorized table is a wheeled table for examination rooms that features a motorized lift to raise or lower the equipment as needed.

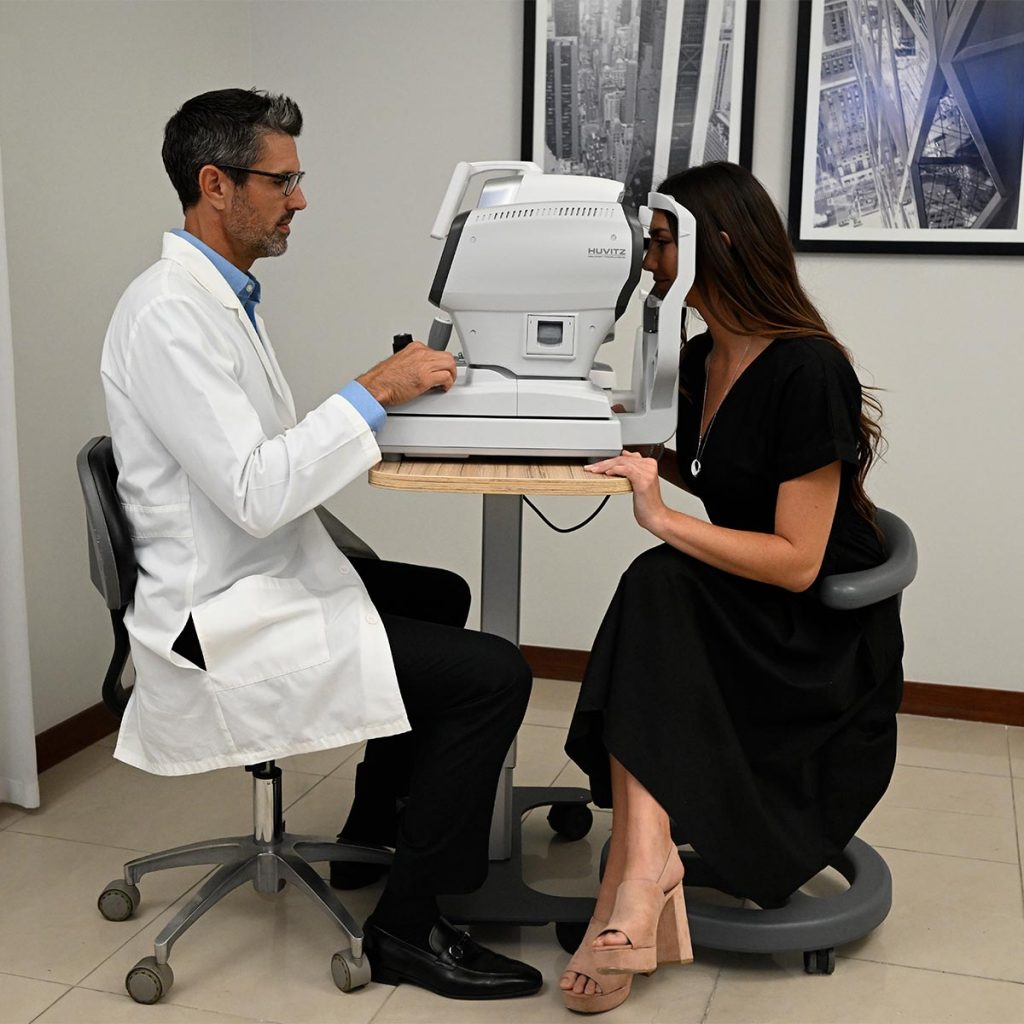

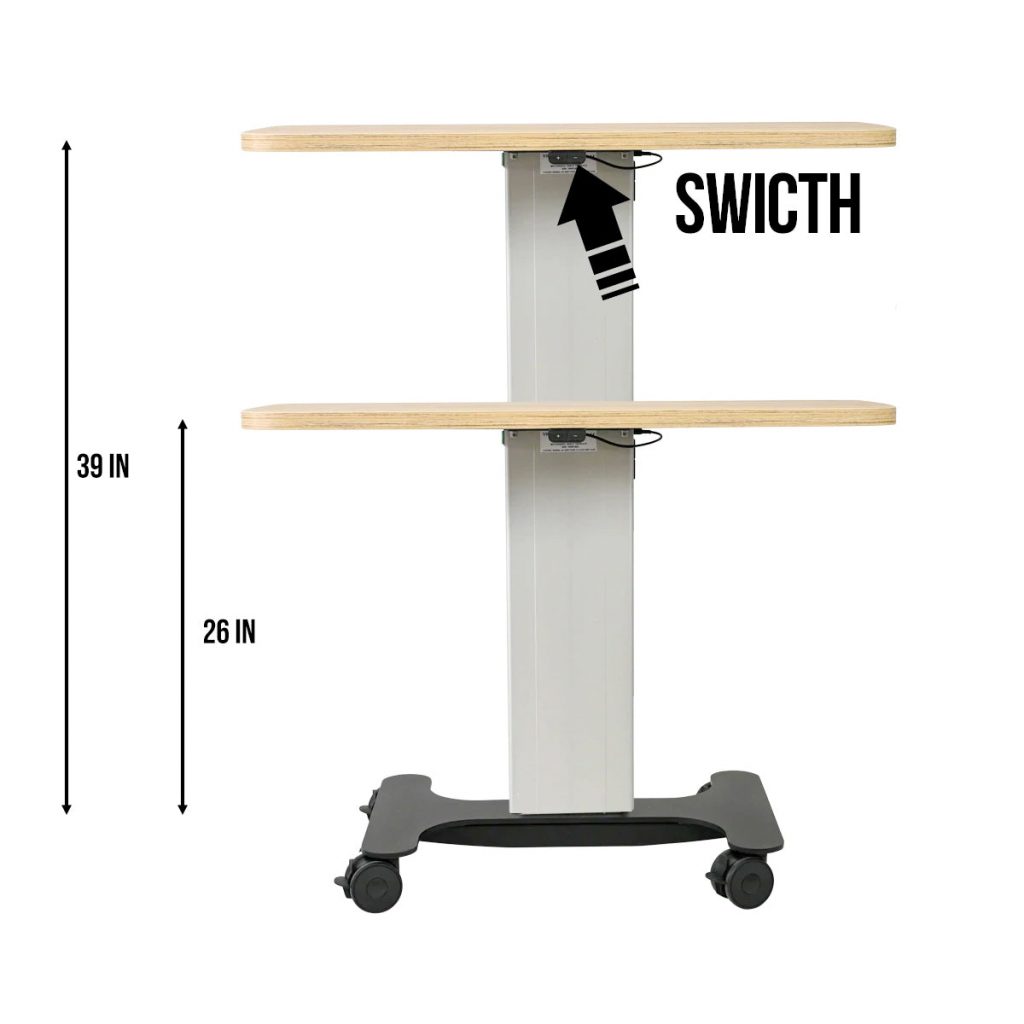

The height is controlled by an up/down switch located just below the table surface, allowing quick access with no risk of bumping or accidental activation. With its adjustable height ranging from 26 in to 39 in, the Tavola Doppia can meet the needs of most seated patients without asking them to adjust, providing them with greater comfort and the operator with fewer complications. Additionally, the table rises or lowers at 1.18 in/s, slow enough to protect delicate equipment yet fast enough to avoid wasting time.

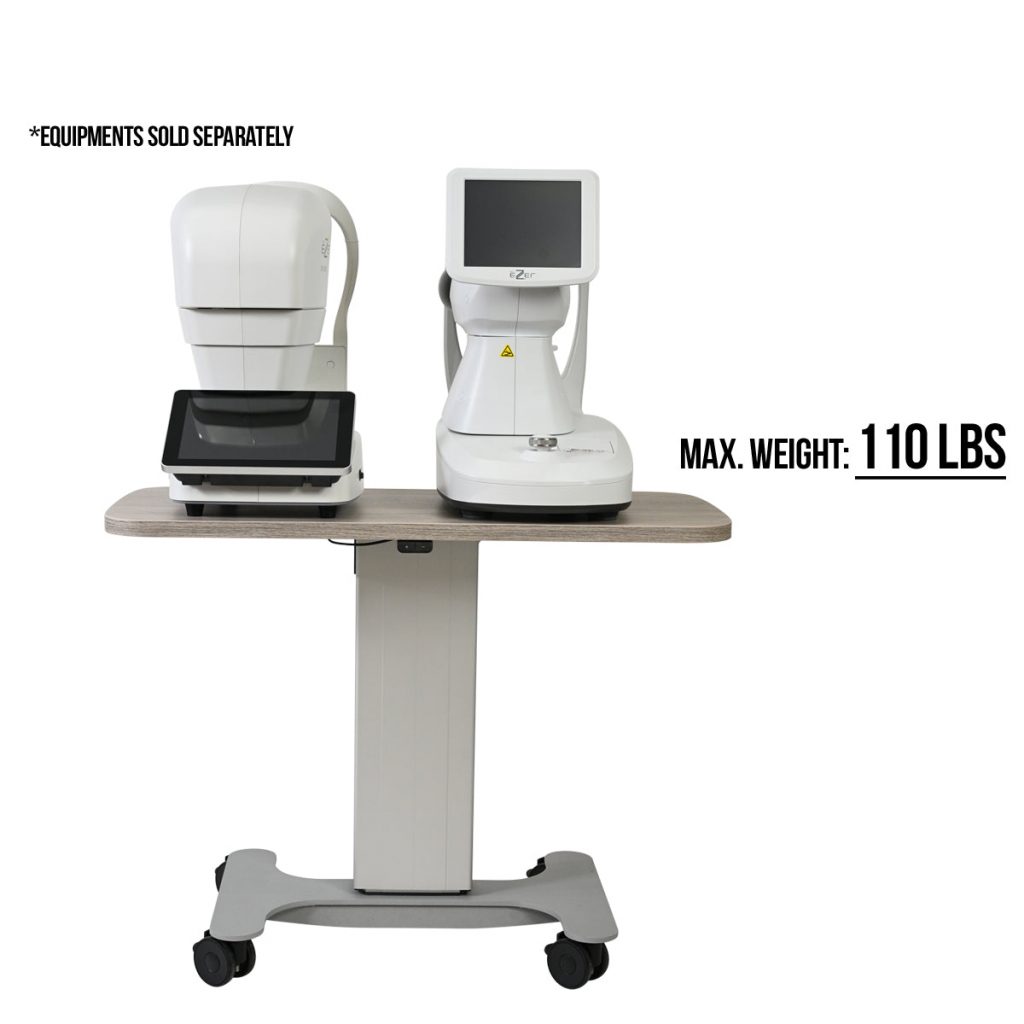

The Tavola Doppia can support up to 110 lb on the table surface.

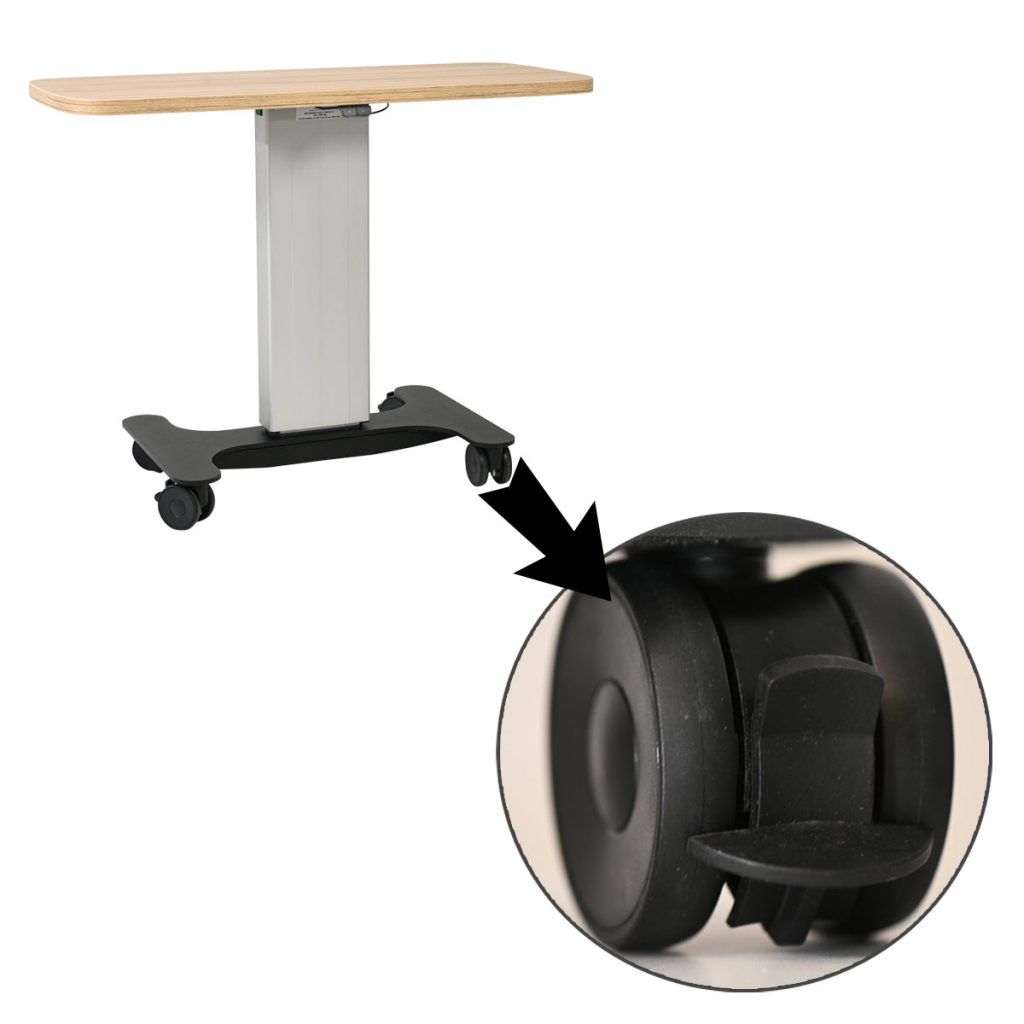

The Tavola Doppia table provides easy access. Simply move the table to the desired location and lock the wheels as needed.

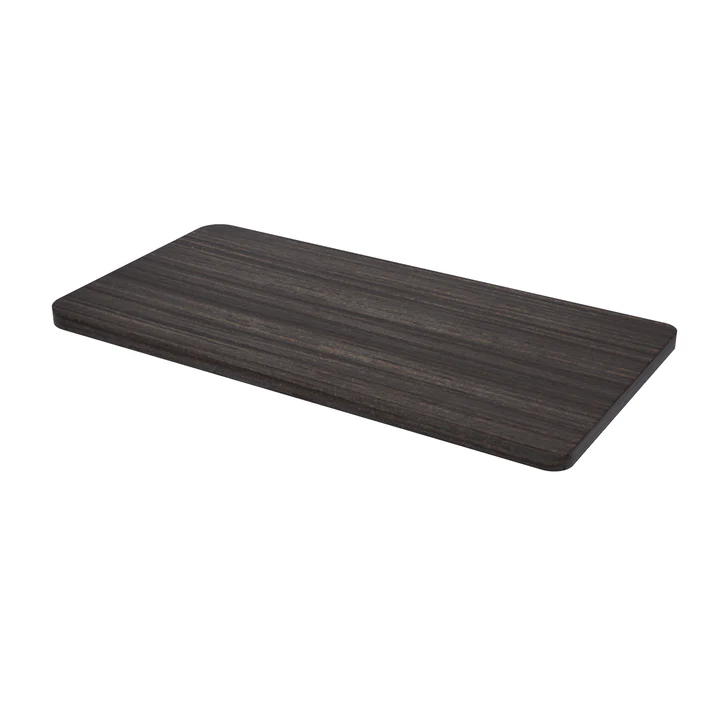

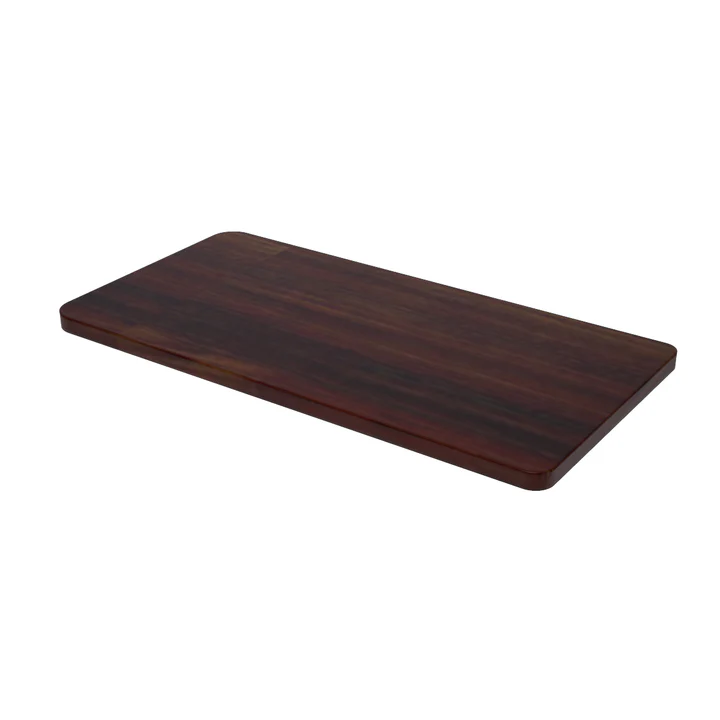

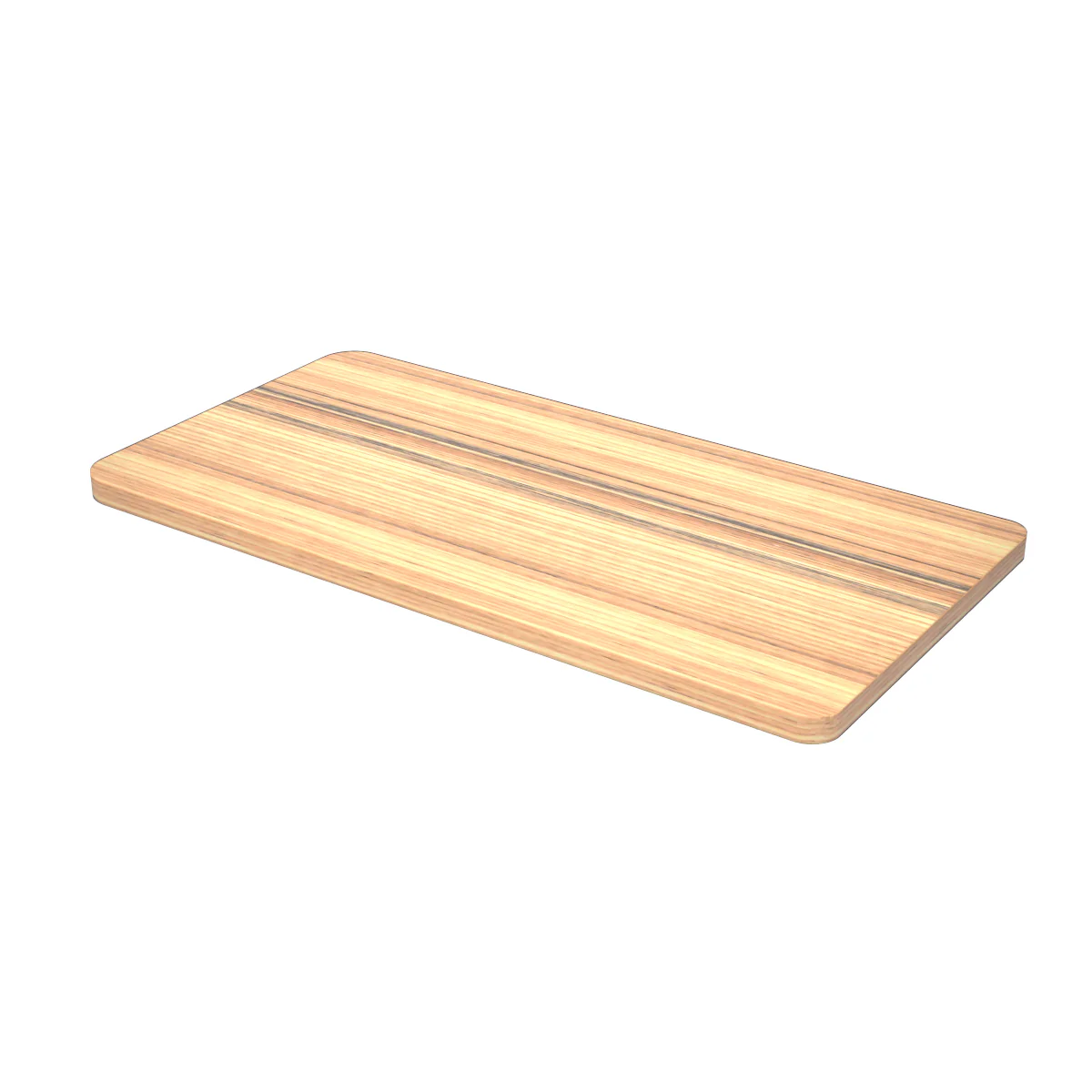

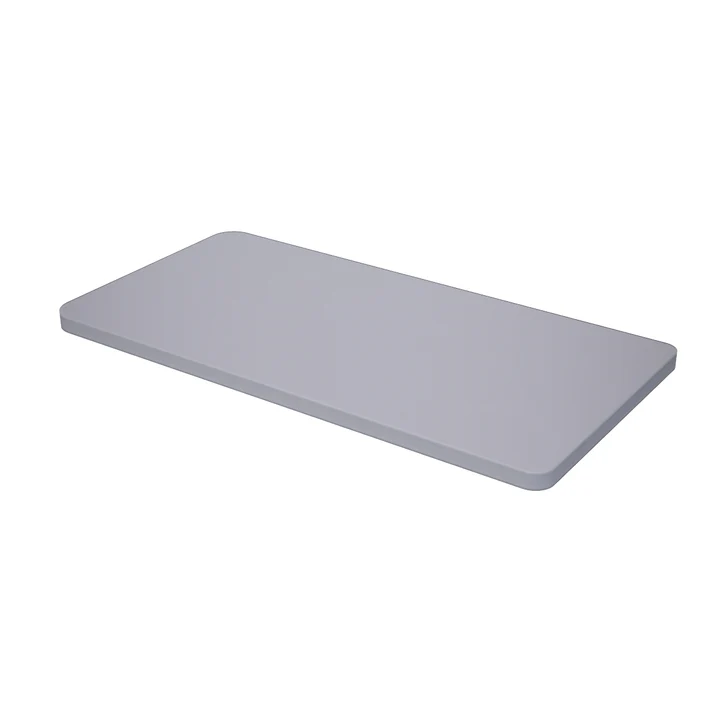

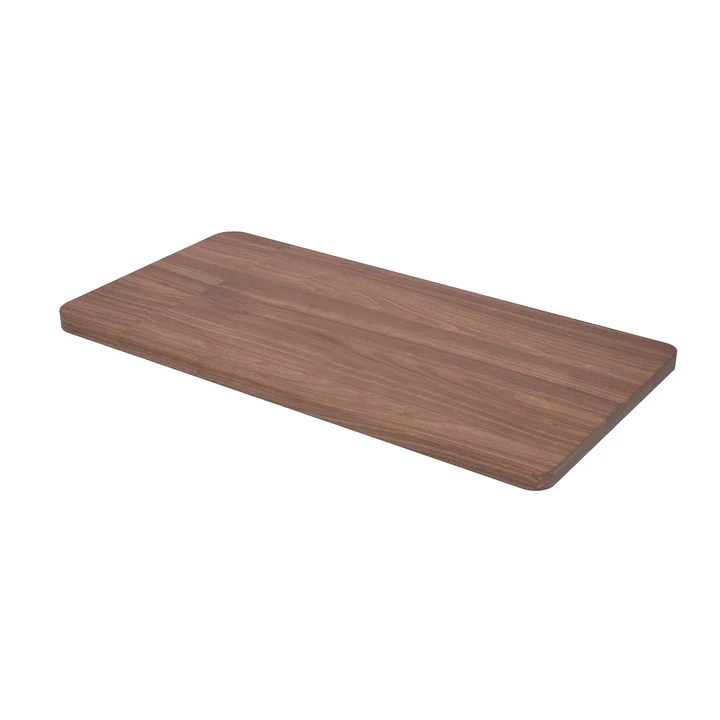

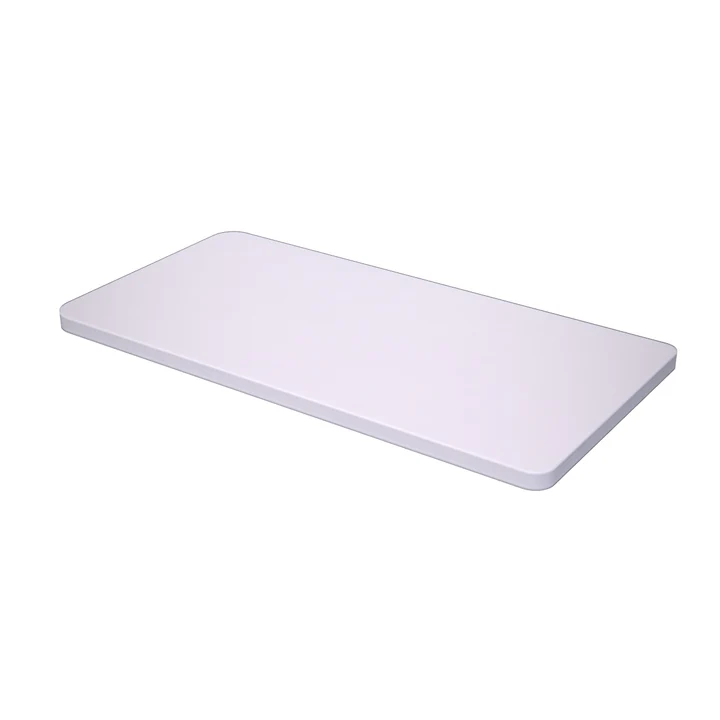

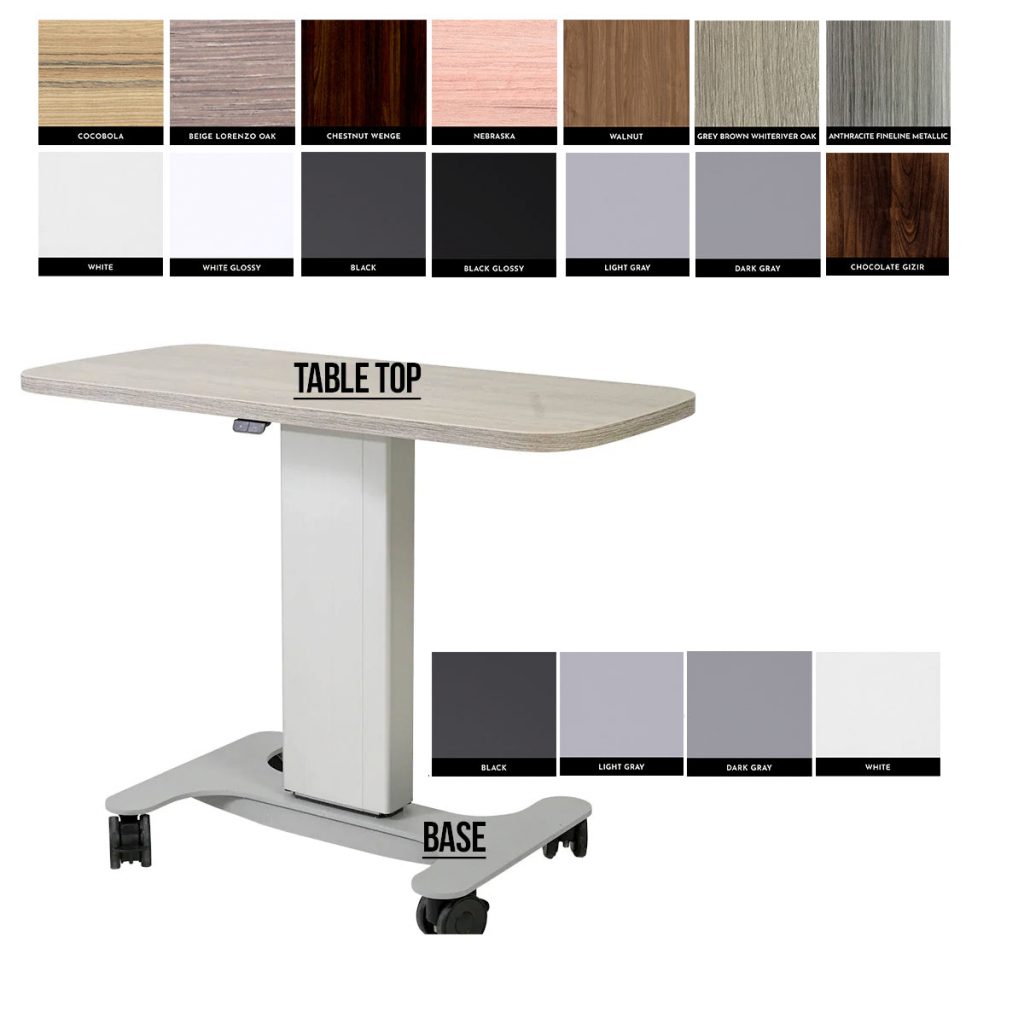

Variety of colors for the table surface and base
With these features, options, and Visionare’s dedication to quality, the Tavola Doppia table is the ideal solution to maximize workspace without compromising comfort.

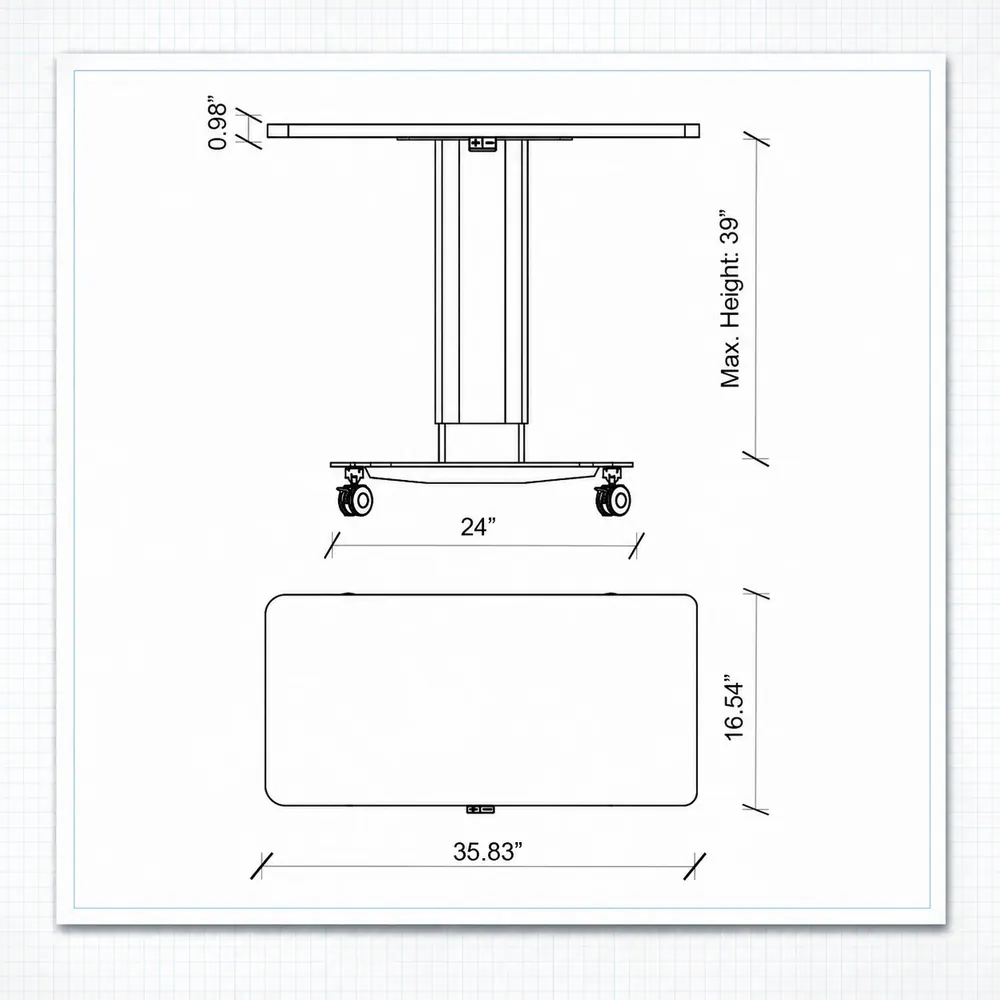

Dimensions
Specifications
| Height (without board) | Min* 26" Max* 39" Stroke* 13" |
|---|---|
| Dimensions (without board) | Width 24" Depth 16" Weight 39.6 lbs |
| Board Dimensions | Width: 35.83" Depth: 16.54" Height: 0.98" |
| Lifting Speed | Load-dependent 0.78-1.18 in/s |
| Load Capacity of the Table | Max 110 lbs |
| Height Adjustment Mechanism | Electrical |
| Height Adjustment Control | Up/down switch, located under the panel |
| Input Voltage/Frequency | 115/230 V ~ 50/60 Hz |
| Idle Current Draw | Version 220-240 V~: max 0.8A Version 115 V~: max 1.6A |
| Current Draw with Connected Instruments | Max 3A |
| Main Fuse Located in the Fuse Holder Next to the Power Cable Plug | T 4A 250V 5x20 |
| Electric Motor Duty Cycle | Max 10%. After 2 min of continuous operation, it must cool down for at least 18 min. |

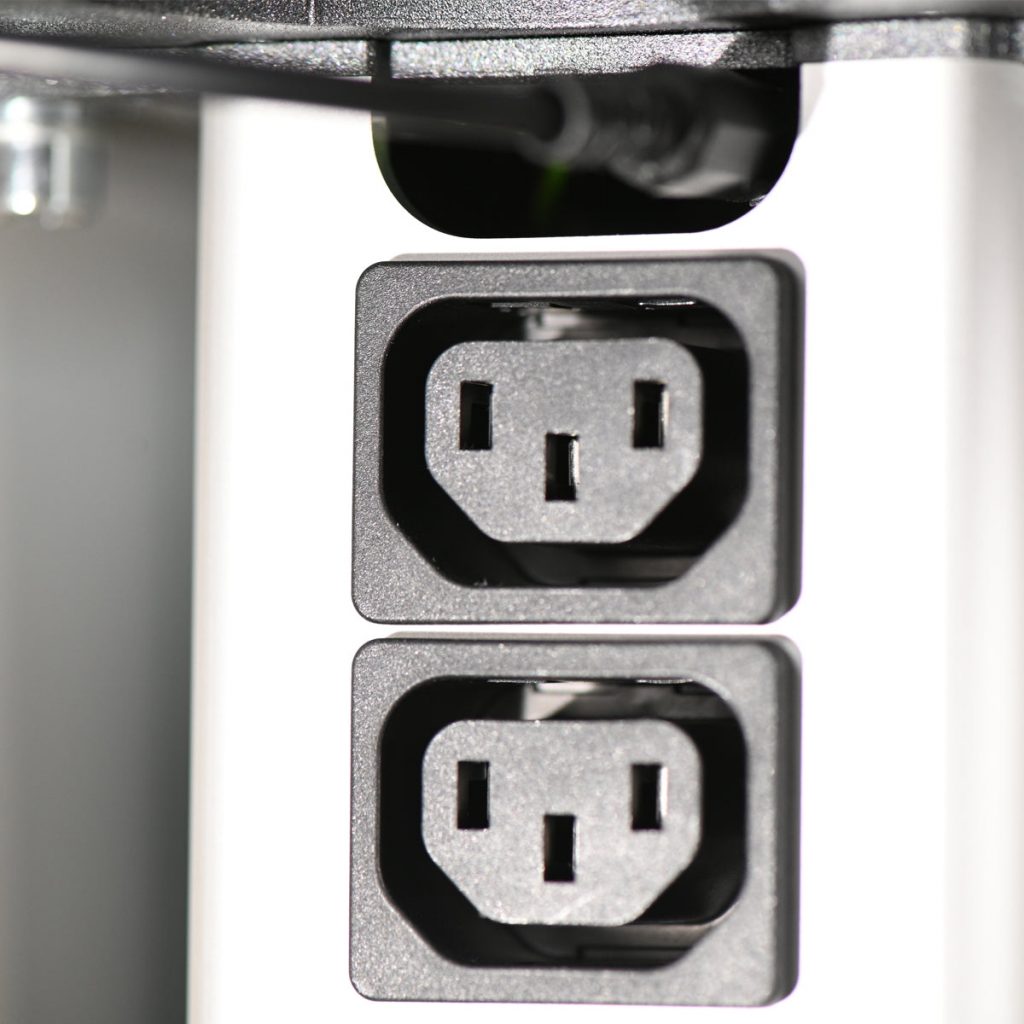

| 2 auxiliary power outlets of 200W max for instruments | May vary slightly |
