Clinical spaces are often overcrowded. For every device that can remain in the exam room, there are 3 or 4 more in storage. For convenience, the heaviest and/or most frequently used items often take up valuable counter space. This leaves physicians with few options. Devices can be moved between storage and the exam room counter with each use. However, this puts equipment at risk of being dropped, which can destroy delicate optics and electronic components and potentially injure the user. Otherwise, physicians must crowd existing counters or obtain additional exam space, neither of which are optimal or even feasible options. The Visionare Tavola Duplice motorized table solves these problems, offering ample table space and a convenient motorized lifting system.

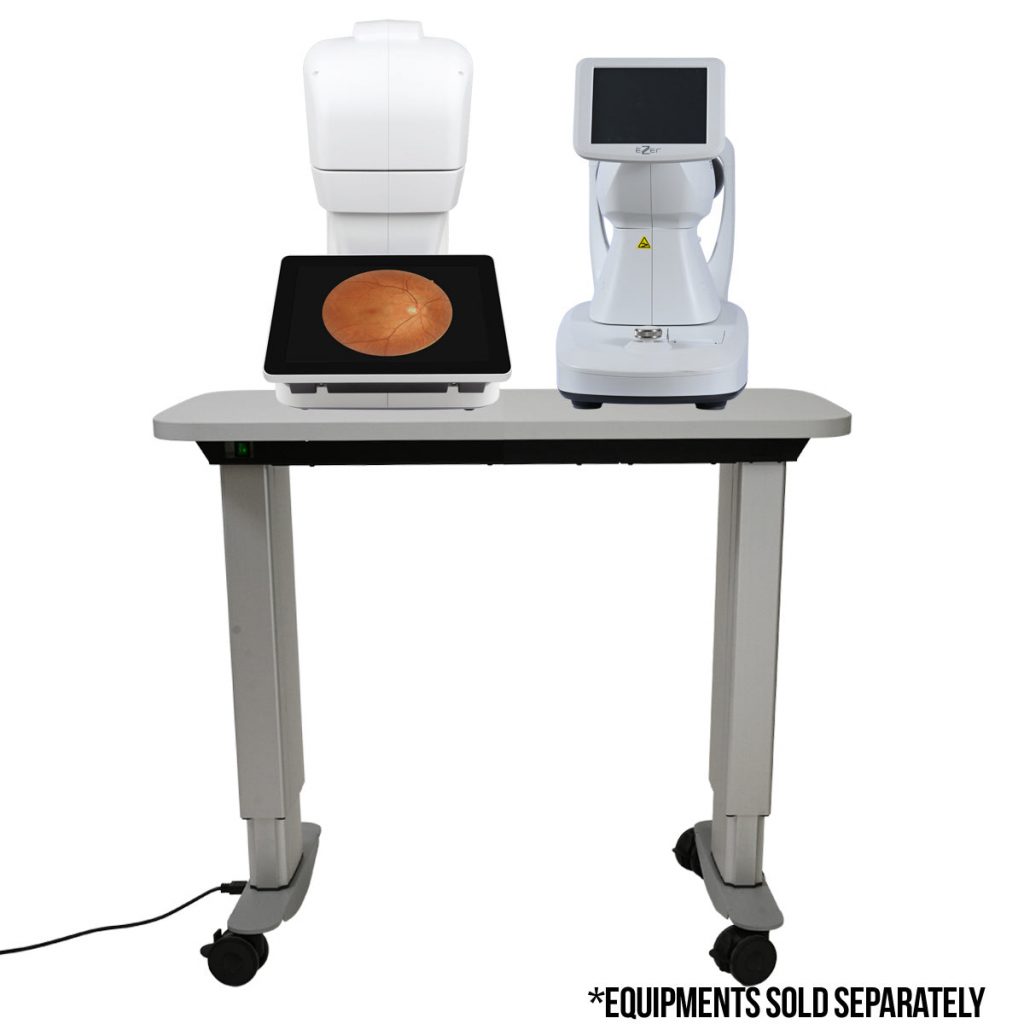

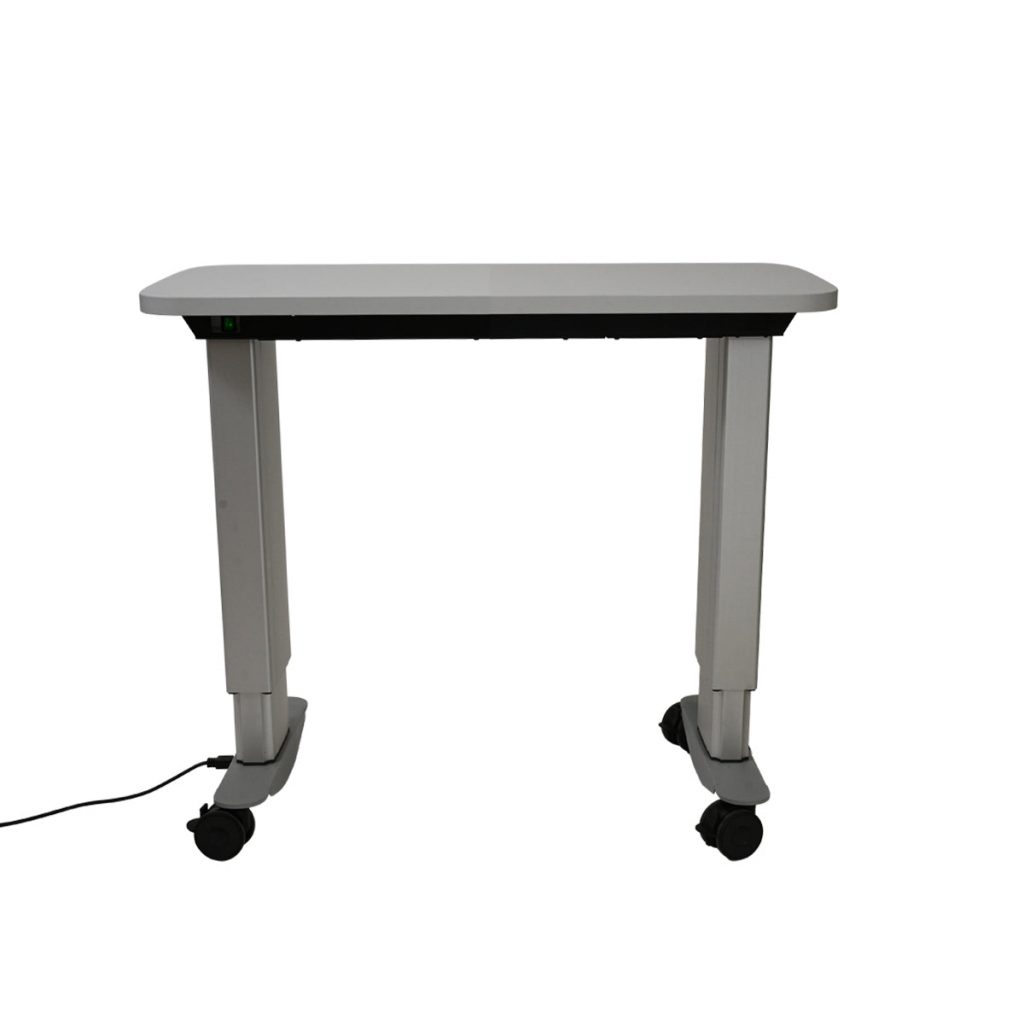

Visionare Electric Table for Two Instruments Tavola Duplice
Adjustable motorized elevation for enhanced ergonomics
Motorized lift system that adjusts height from 26 to 39 in, allowing equipment to be positioned at the optimal visual level for both patient and operator. Eliminates the need for uncomfortable patient adjustments or postural strain on the clinician.
Robust capacity for two ophthalmic instruments
Supports up to 220 lbs of equipment, allowing two complementary instruments to be installed simultaneously. Optimizes clinical space by eliminating the need for multiple surfaces or constantly moving equipment.
Safe mobility with lockable wheels
Wheeled table that facilitates the transfer of heavy equipment between rooms without risk of falls. Locking system ensures stability during procedures and examinations.
Three integrated auxiliary power outlets
Includes three power outlets within the support structure, connected to the main switch. Provides direct power supply to the ophthalmic equipment installed on the table.

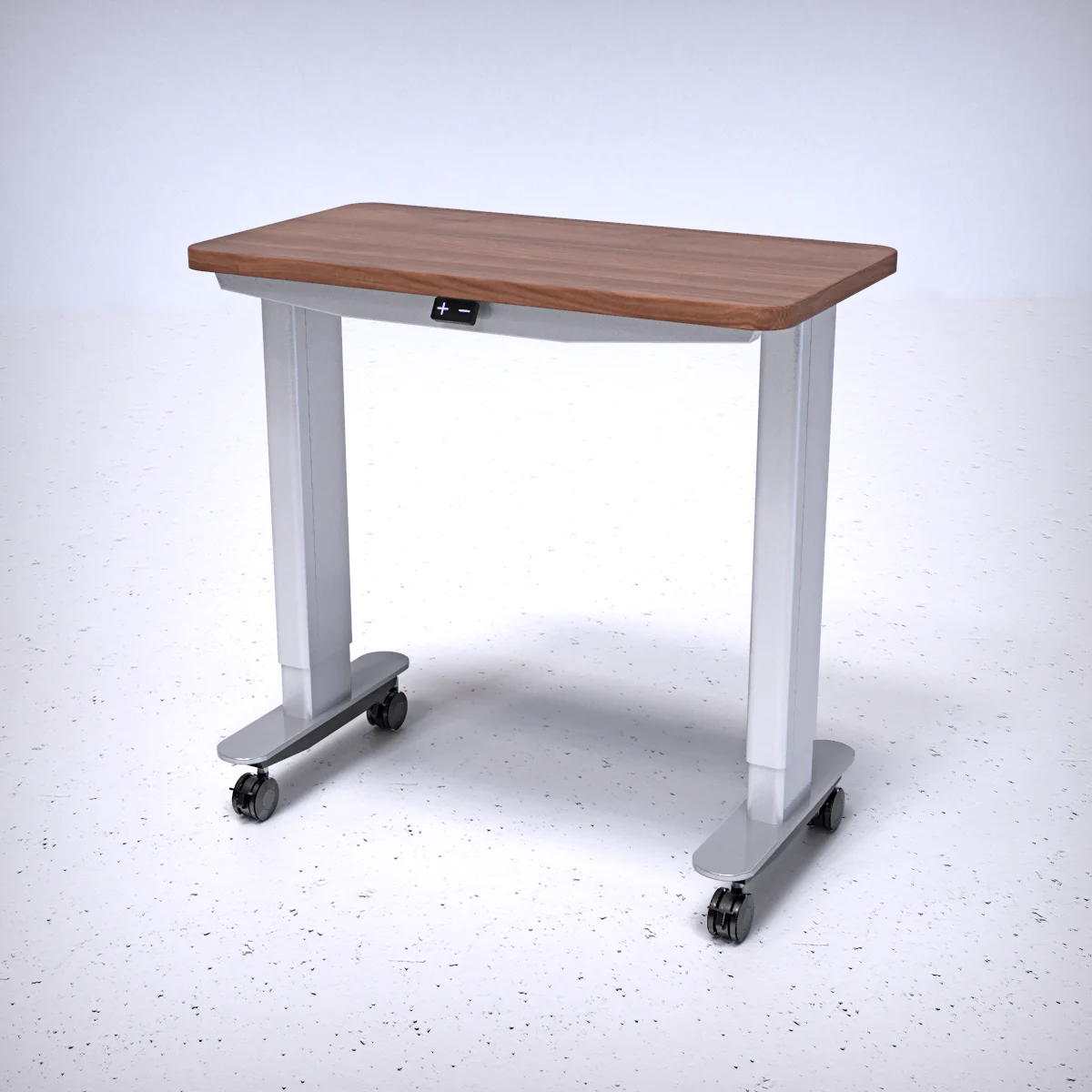

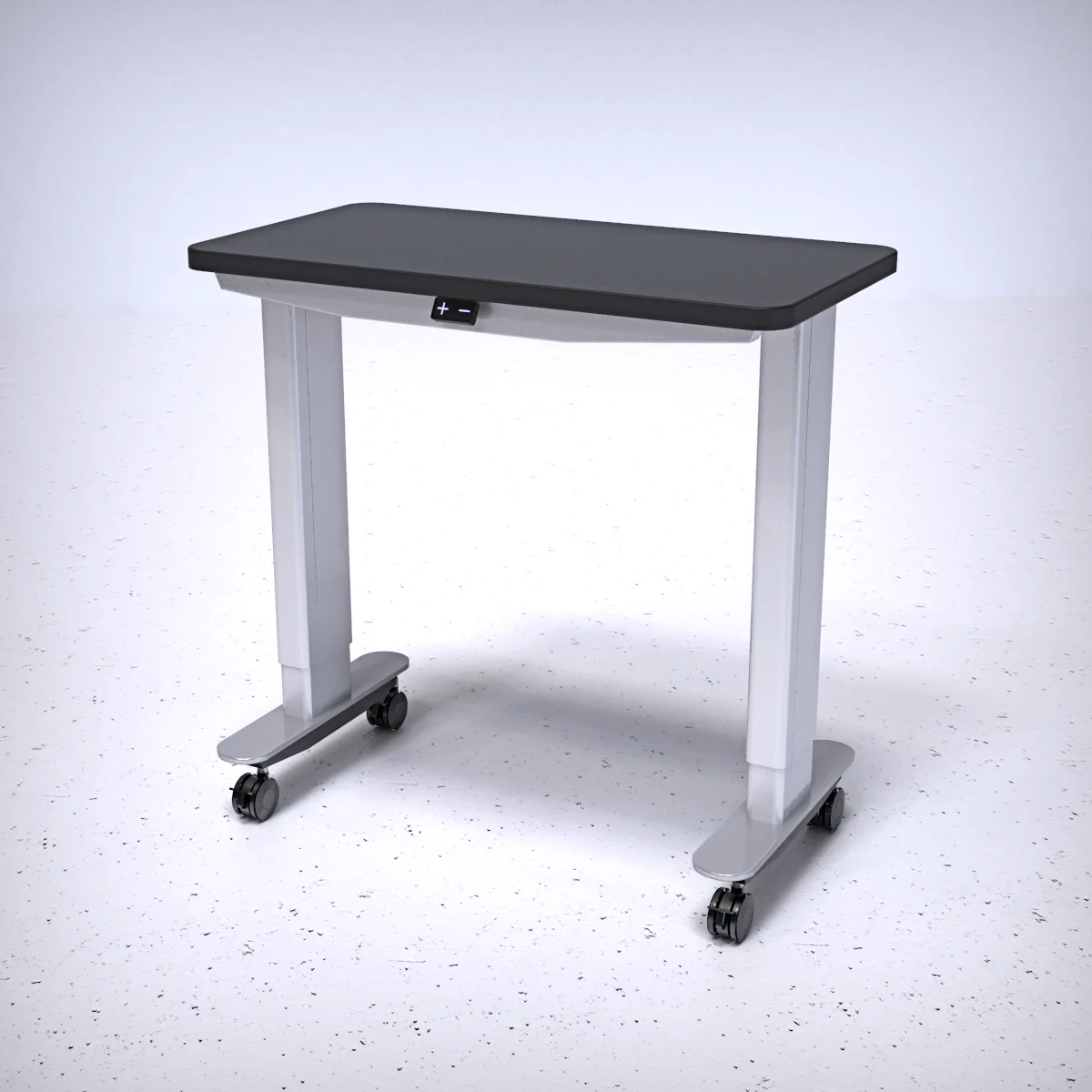

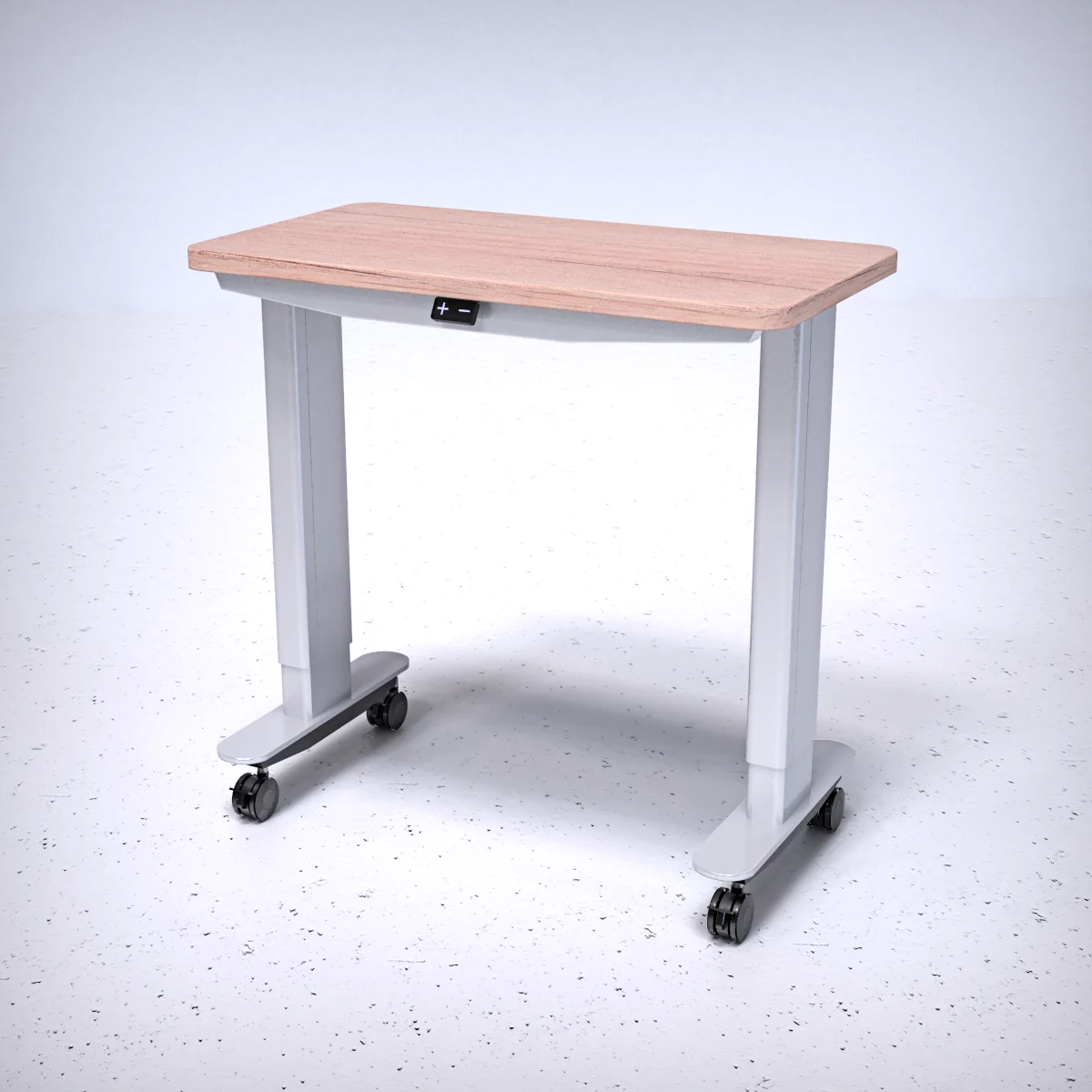

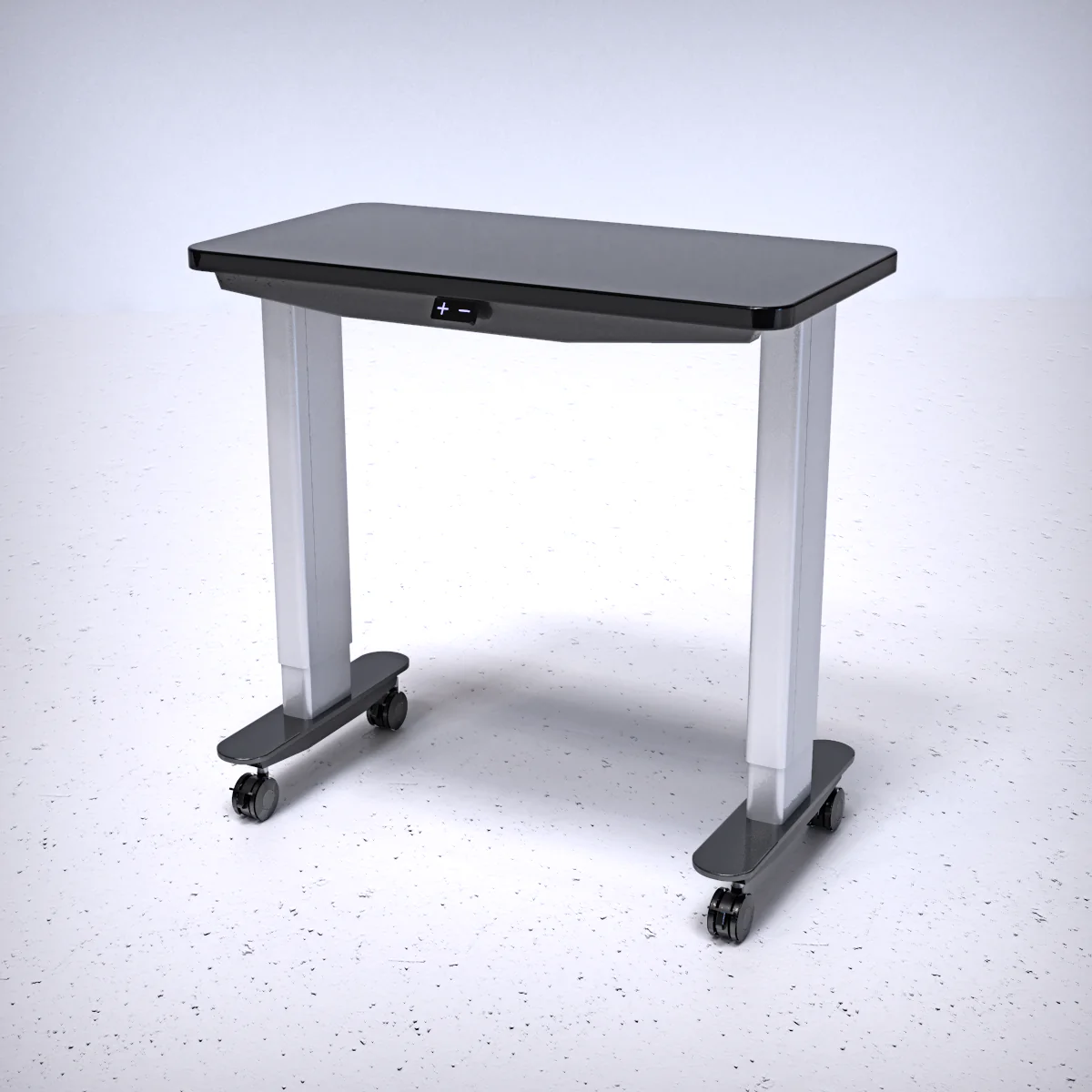

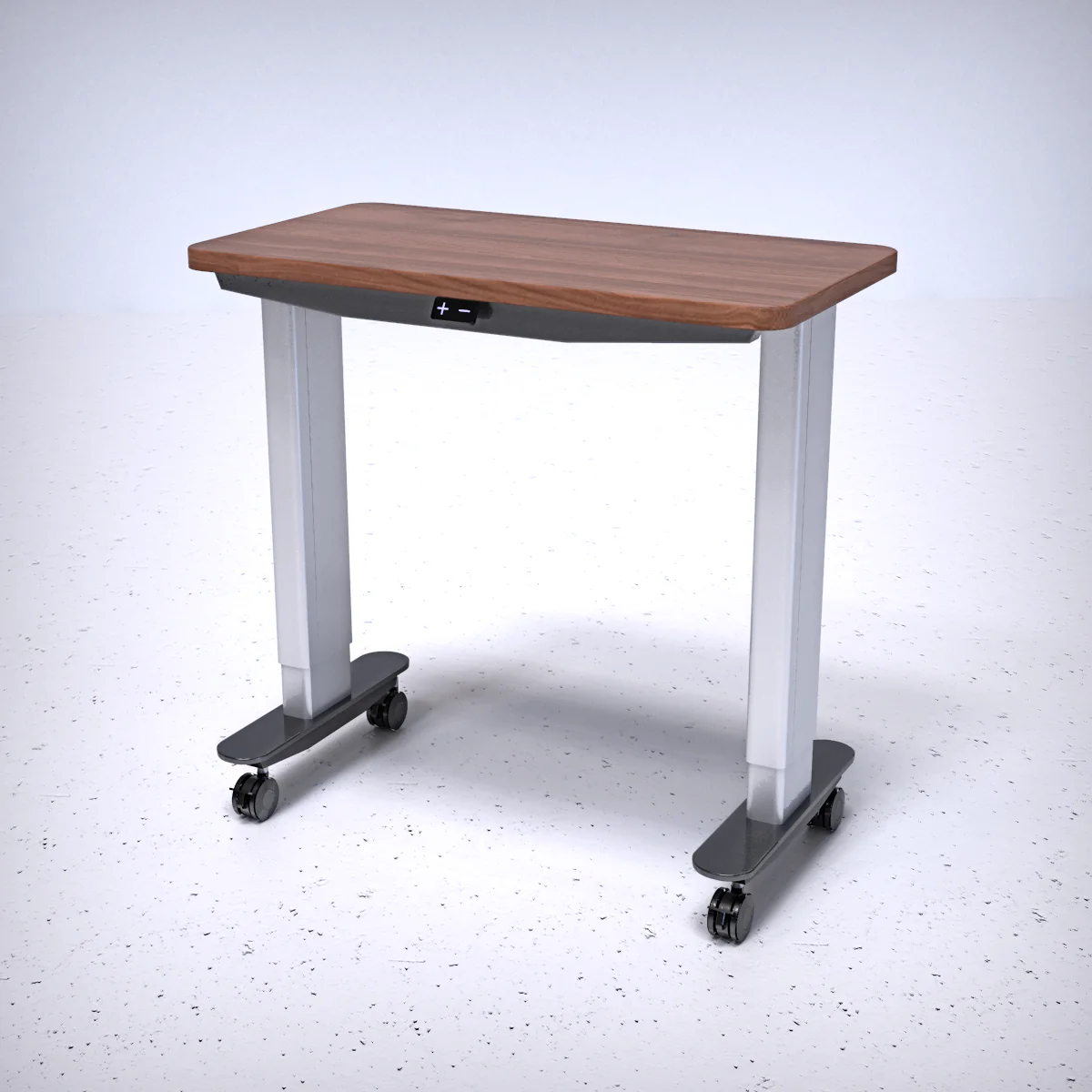

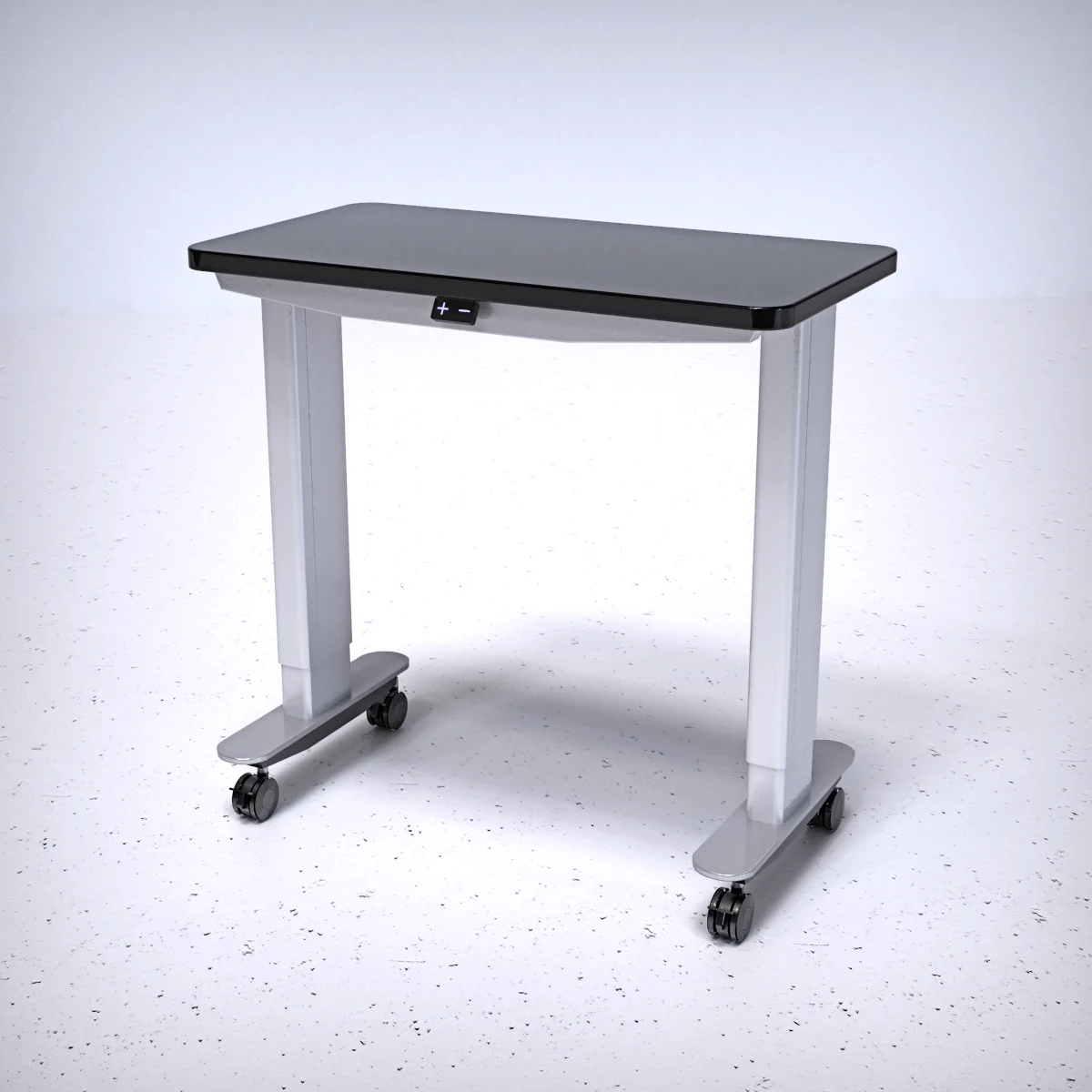

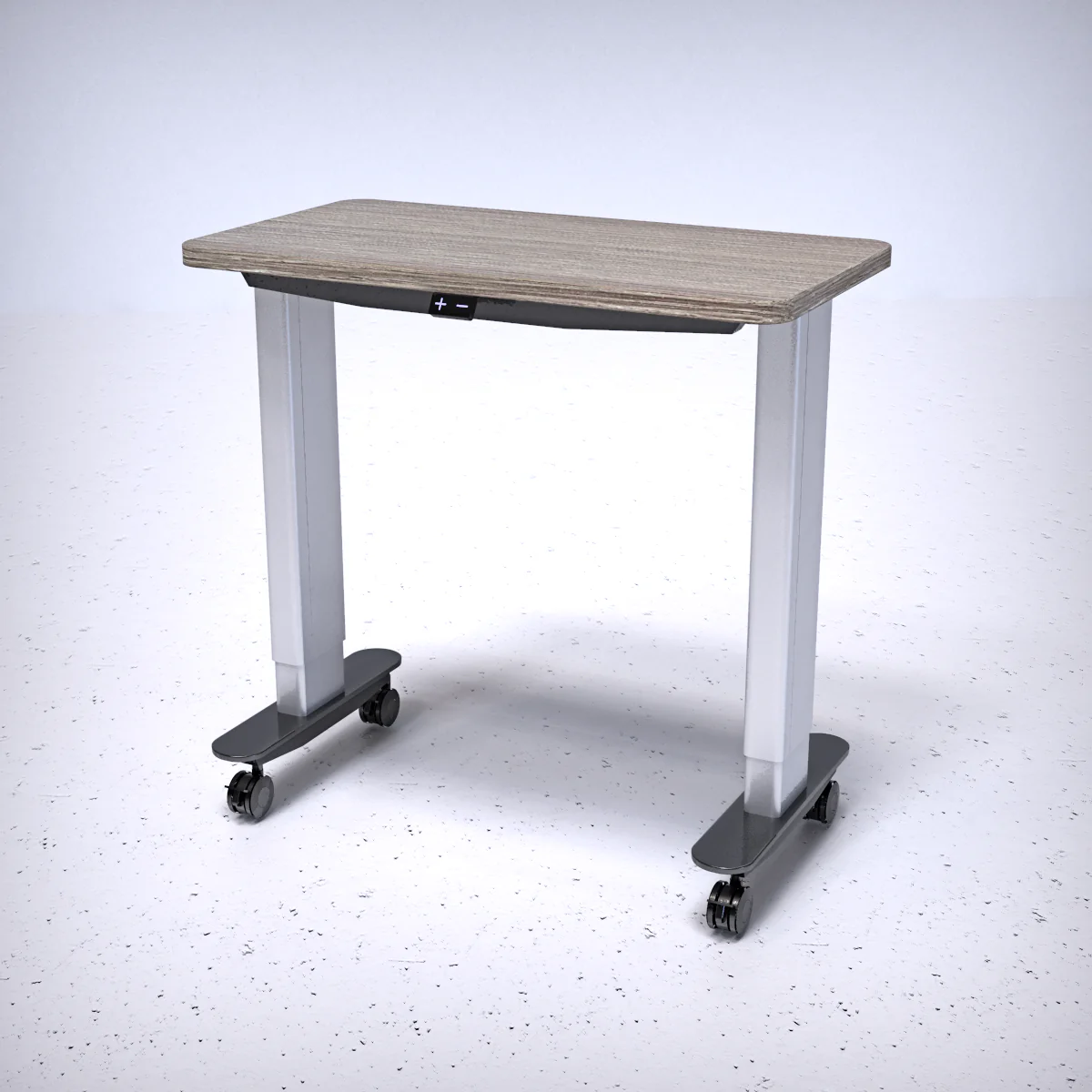

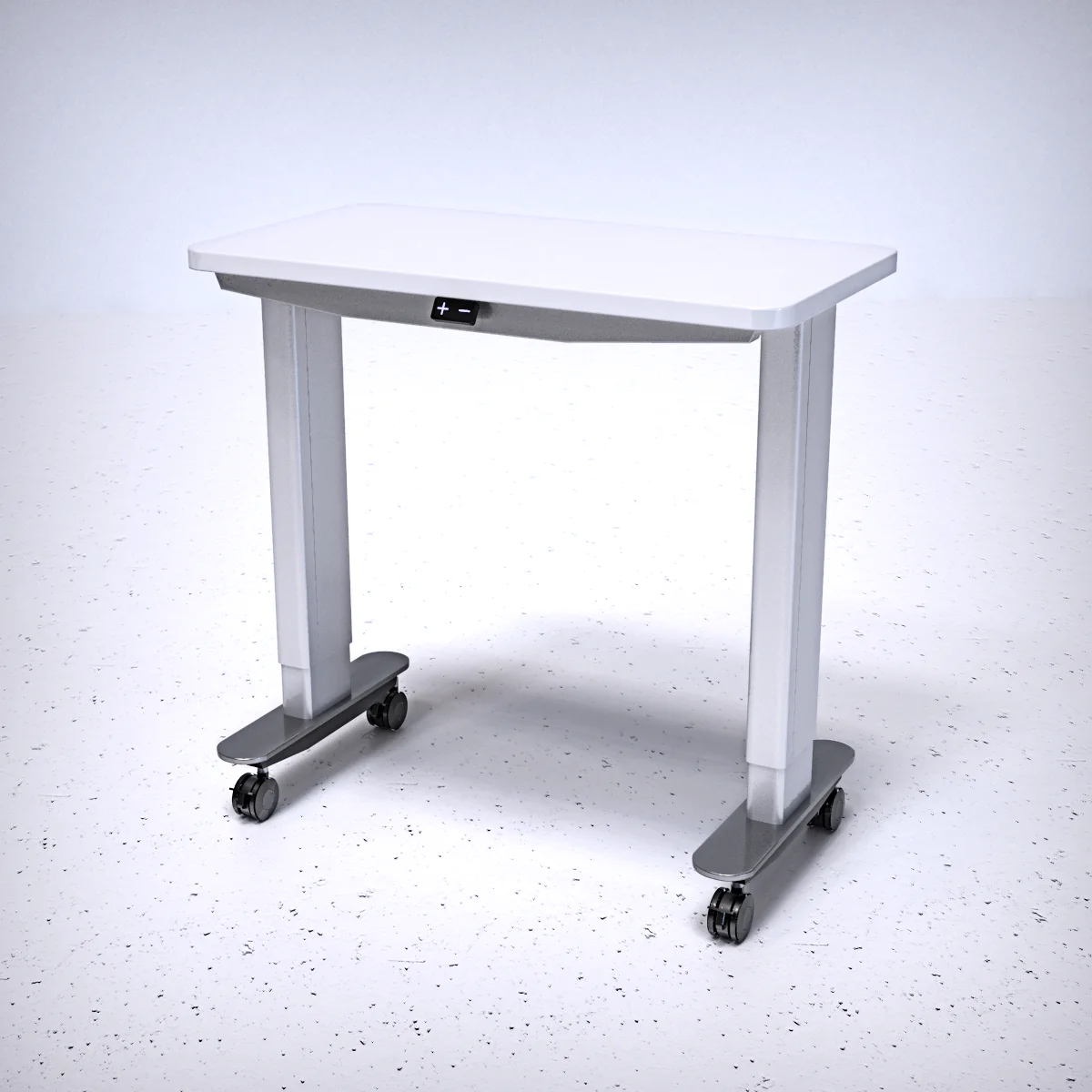

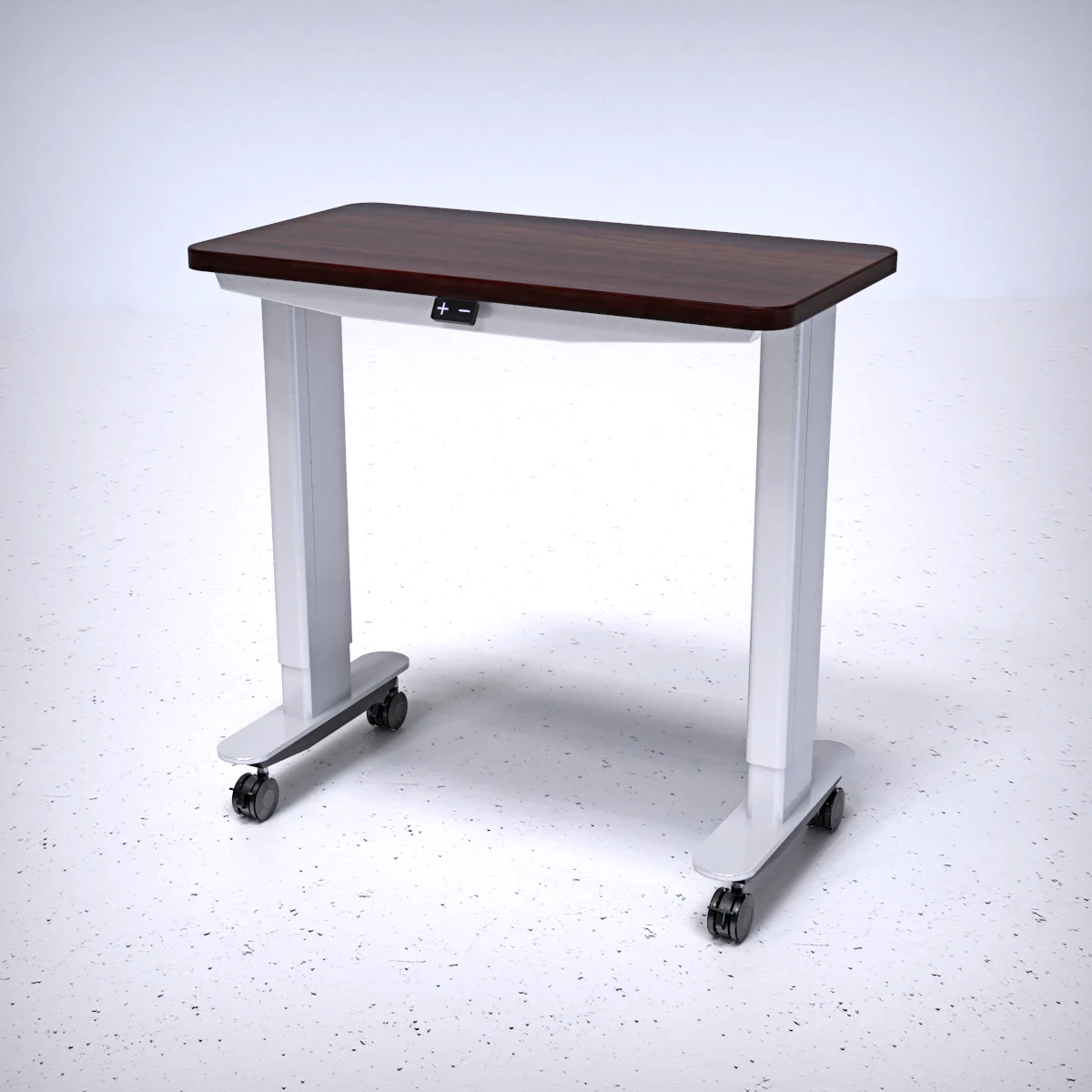

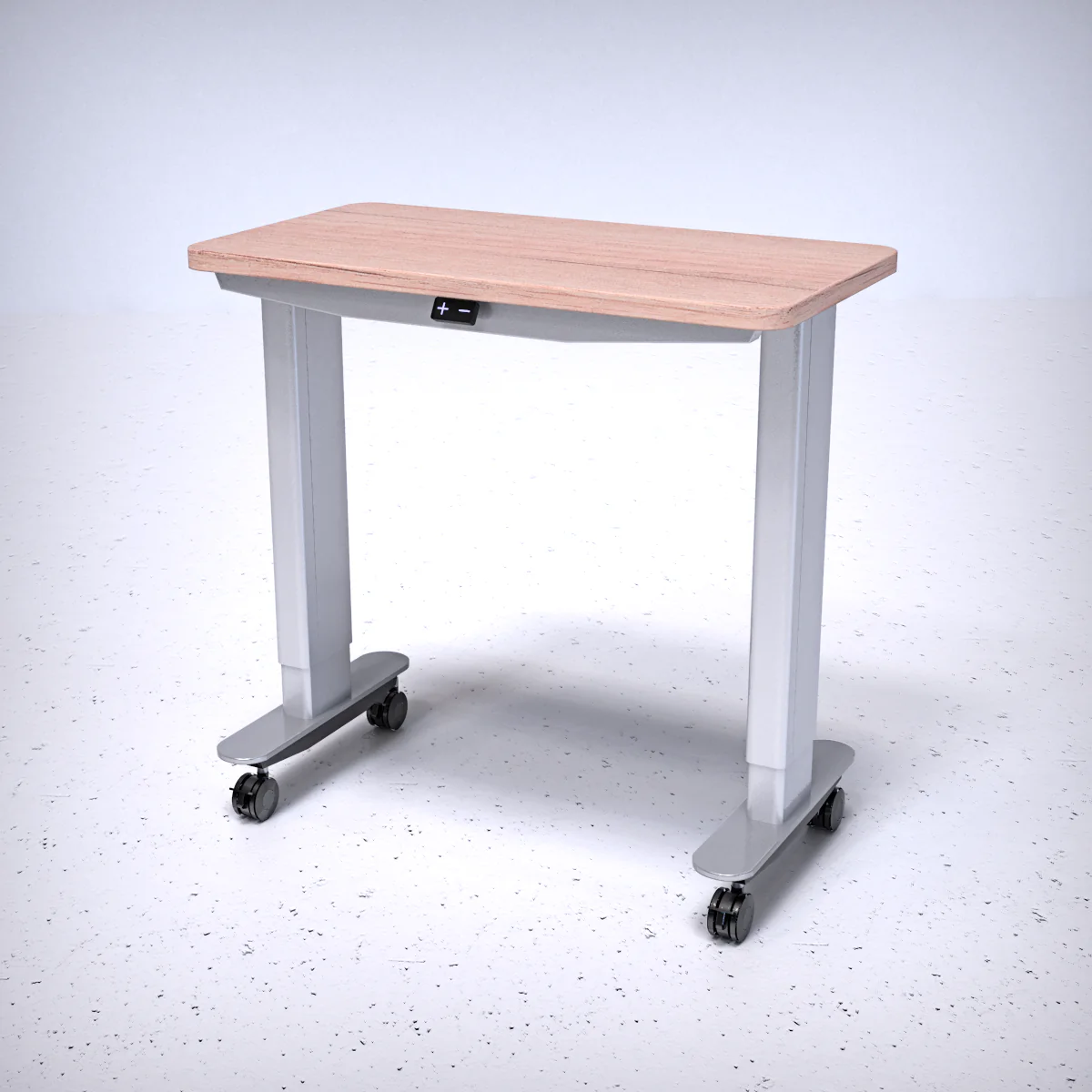

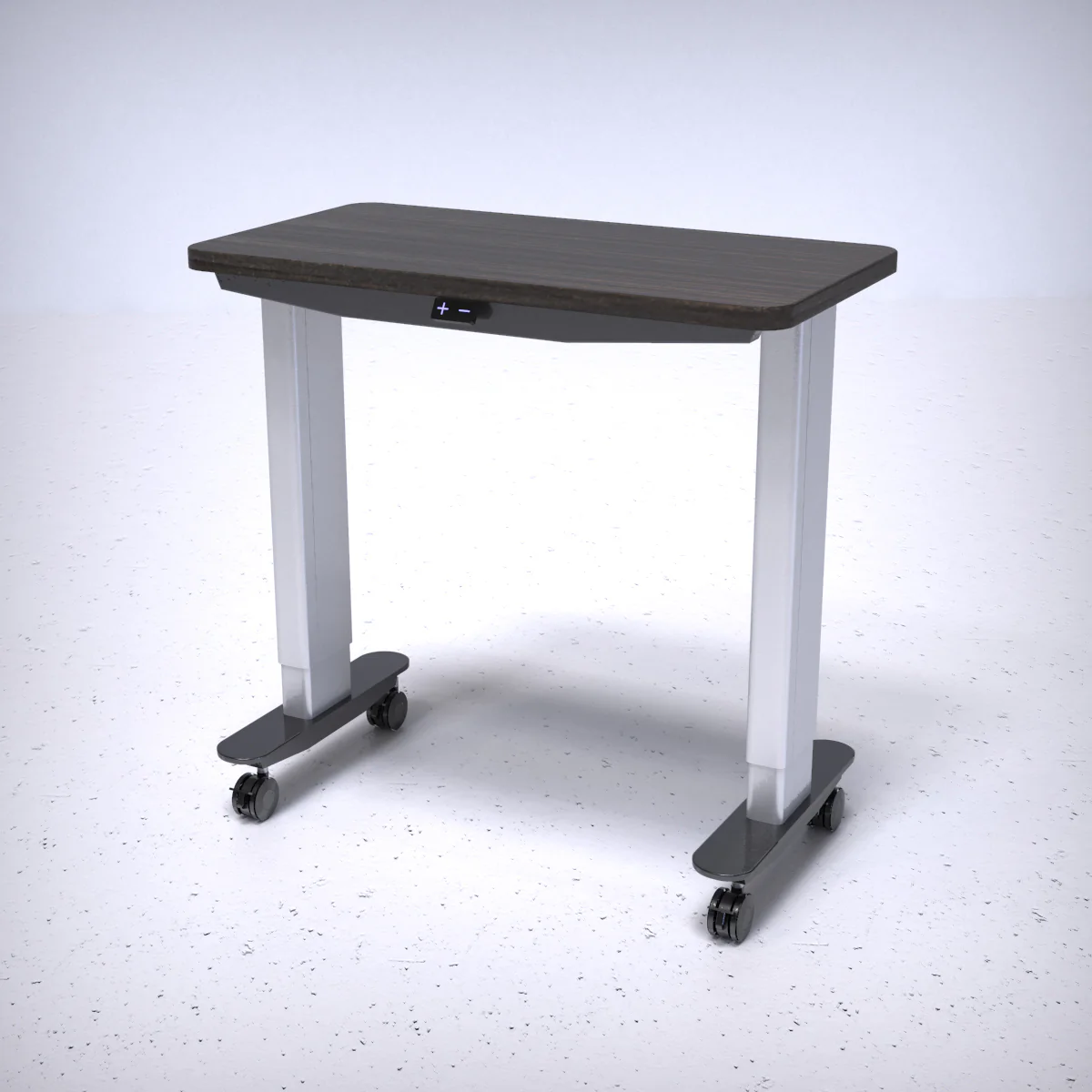

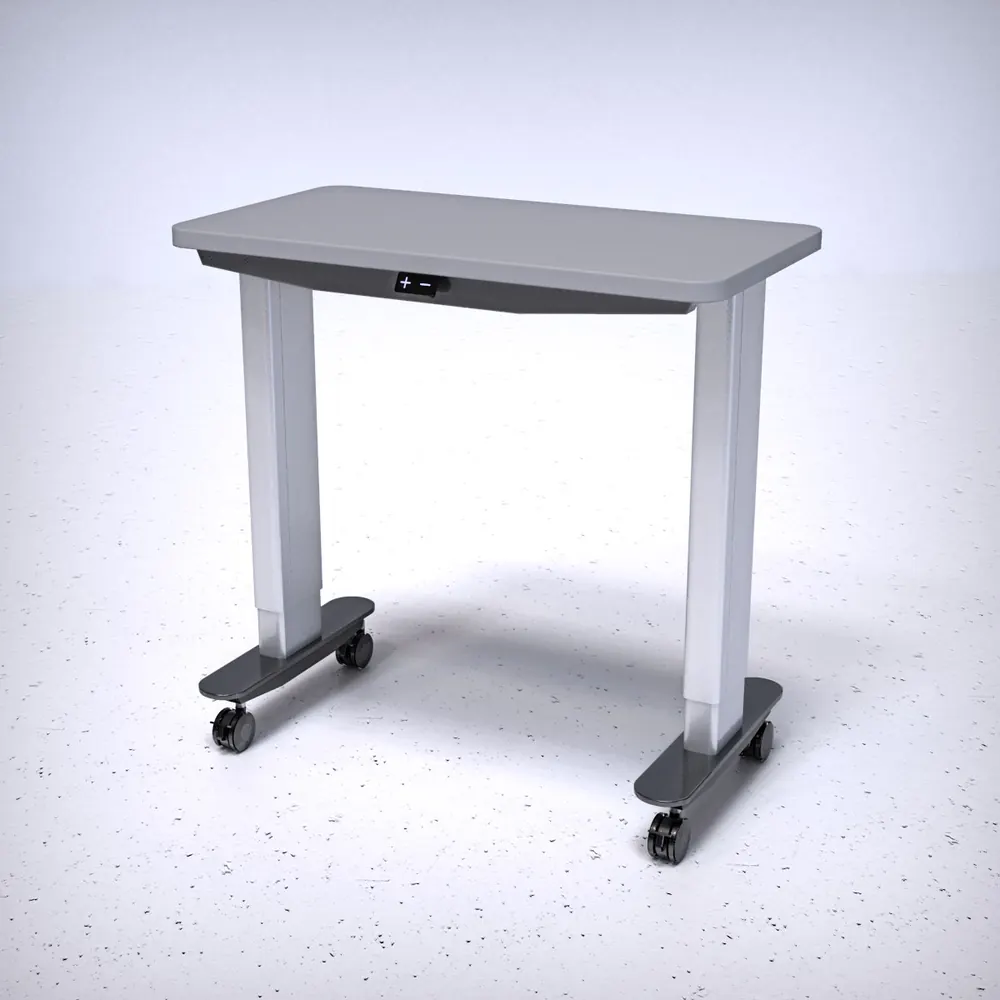

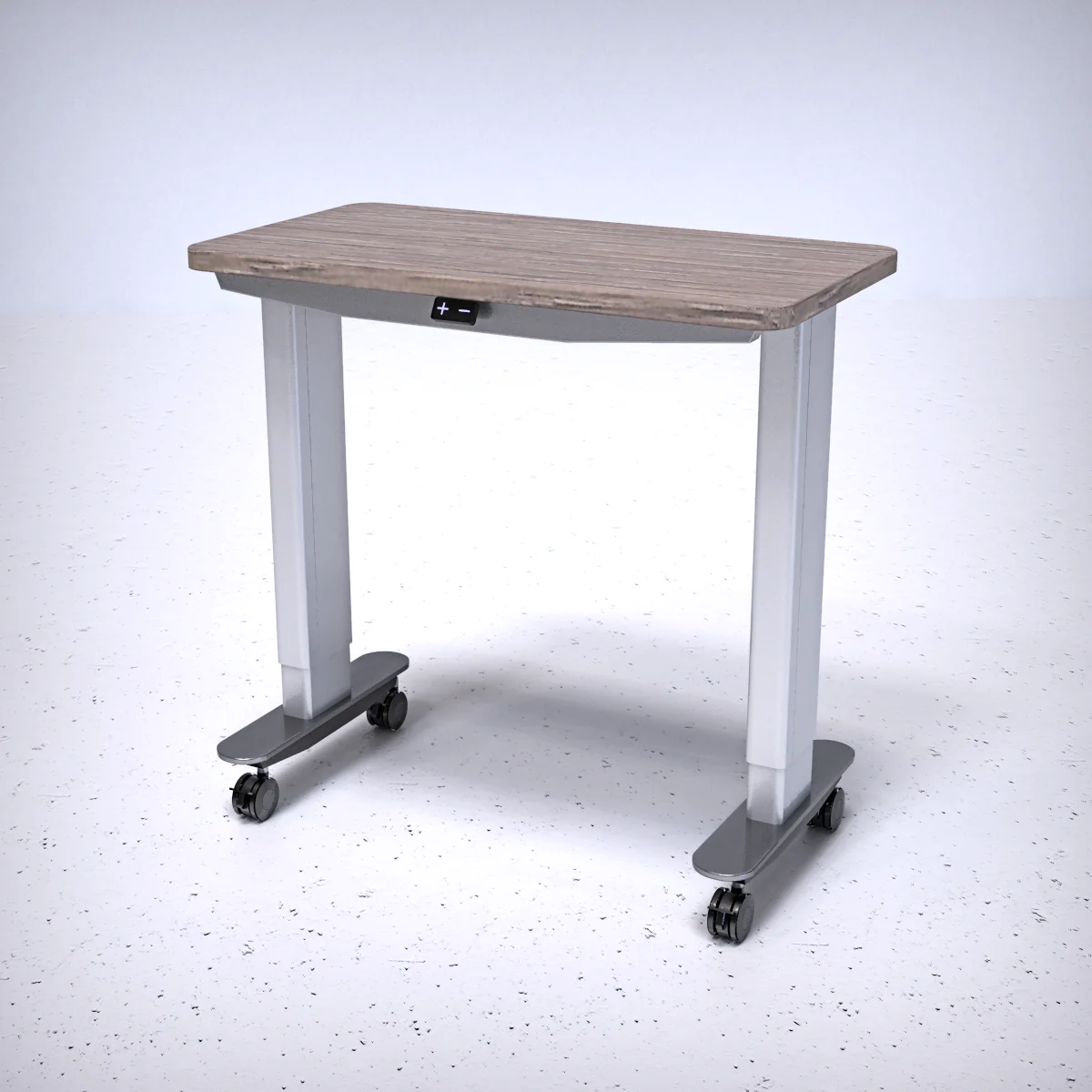

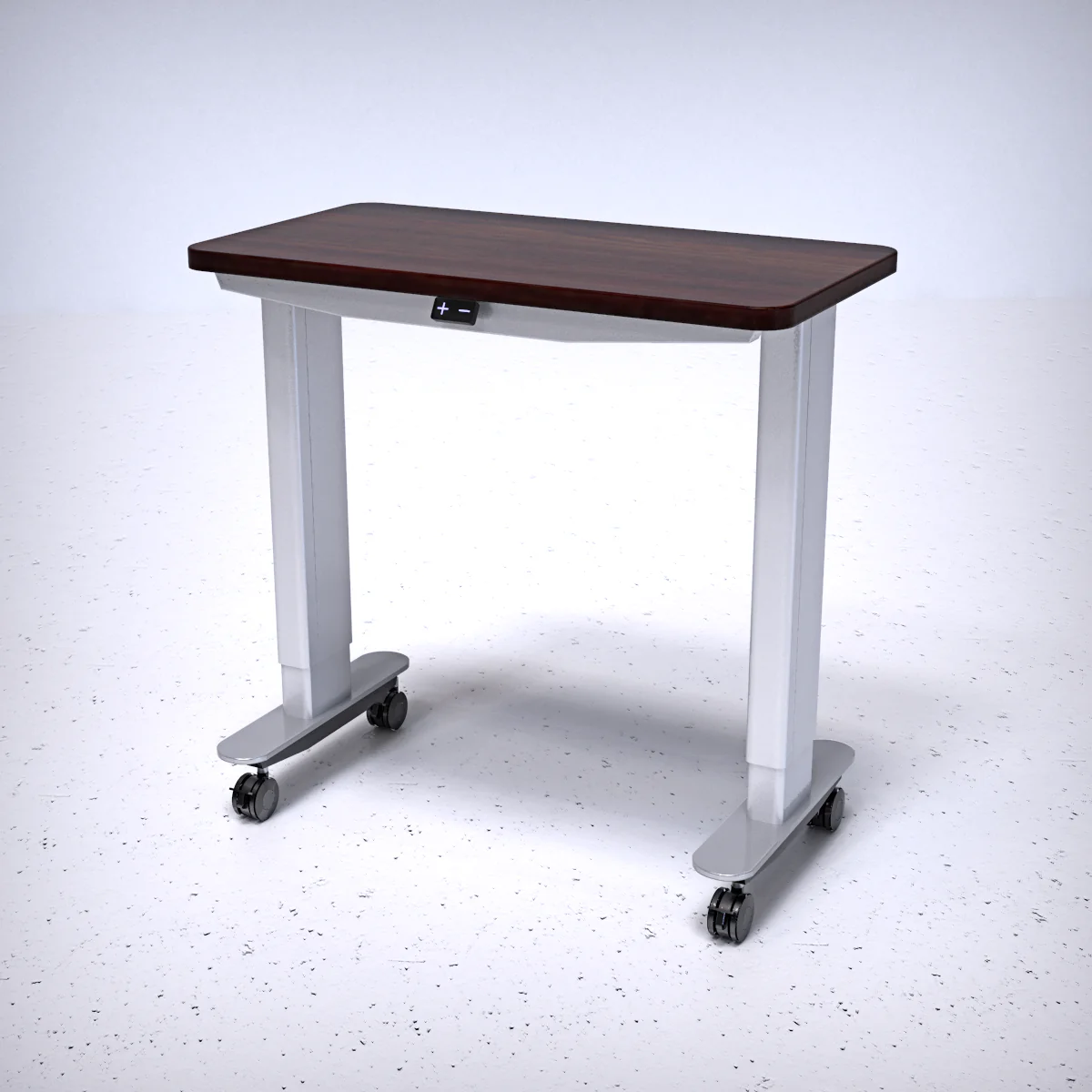

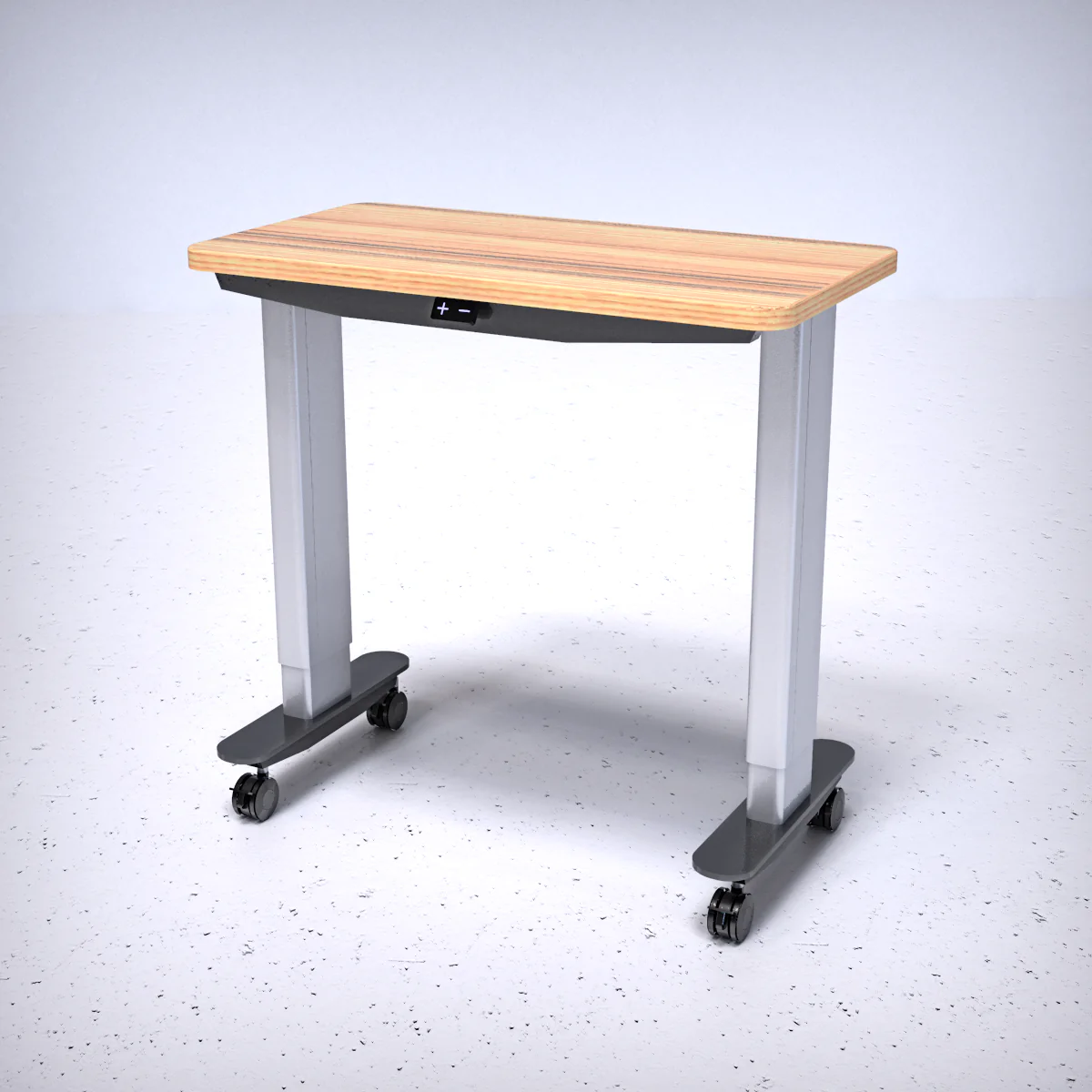

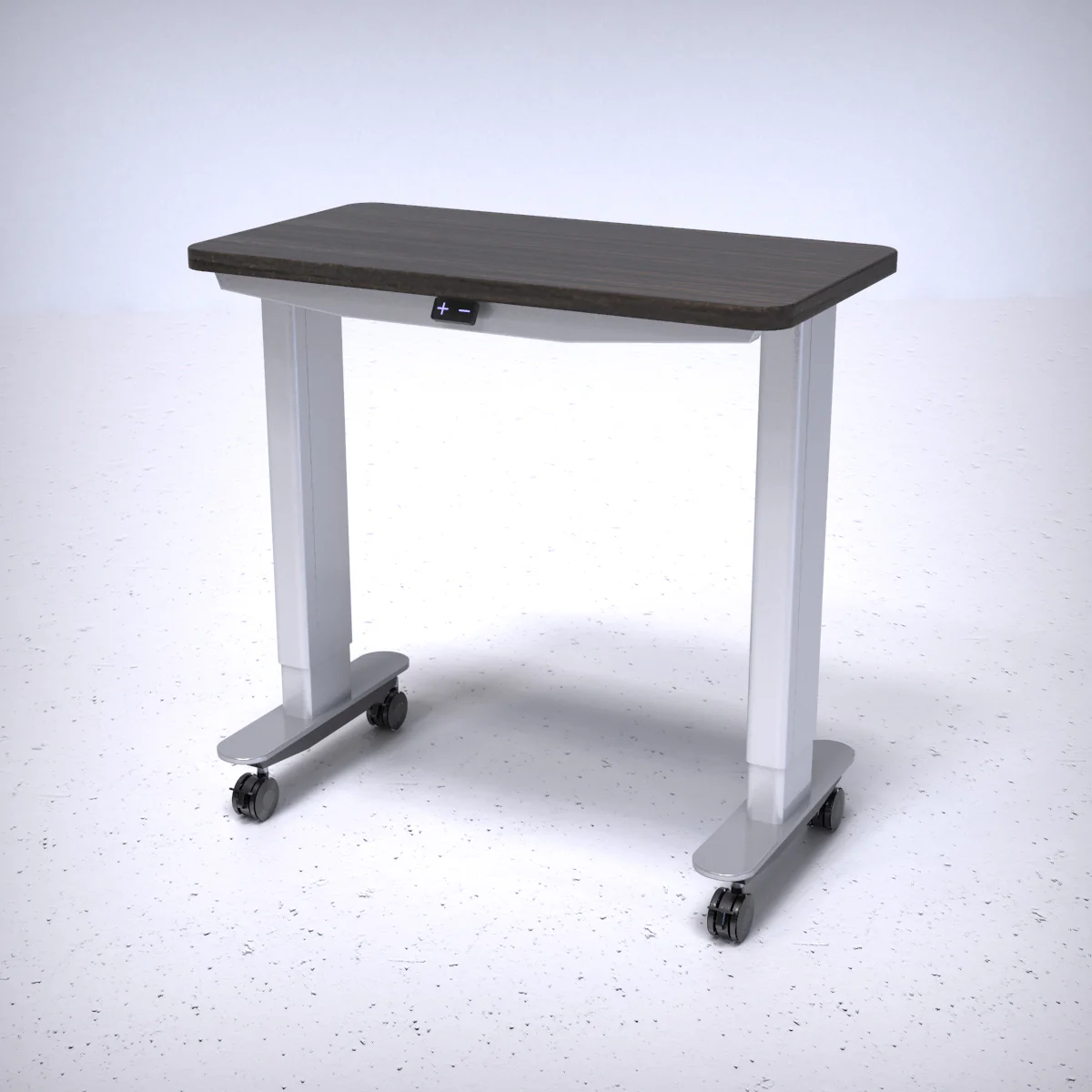

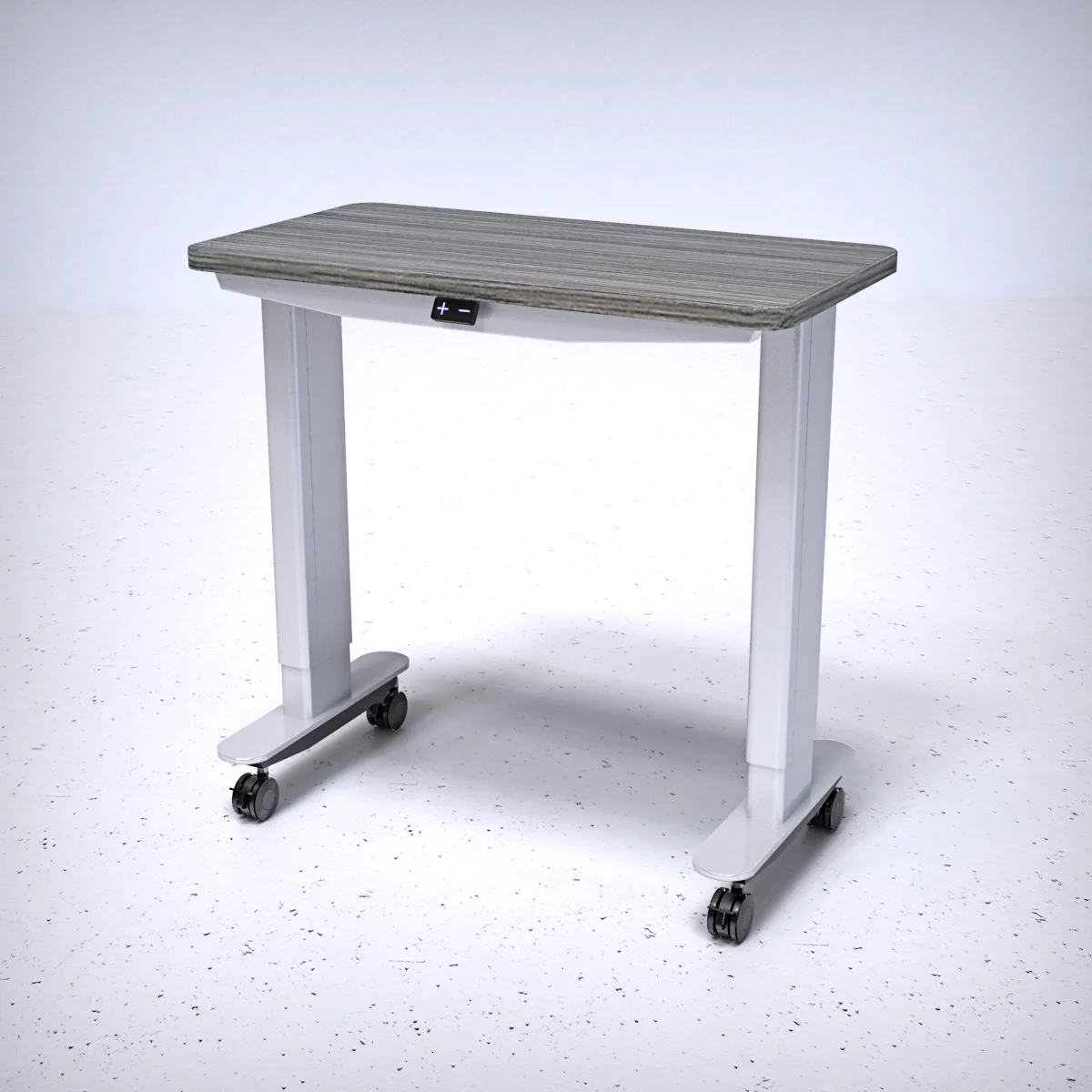

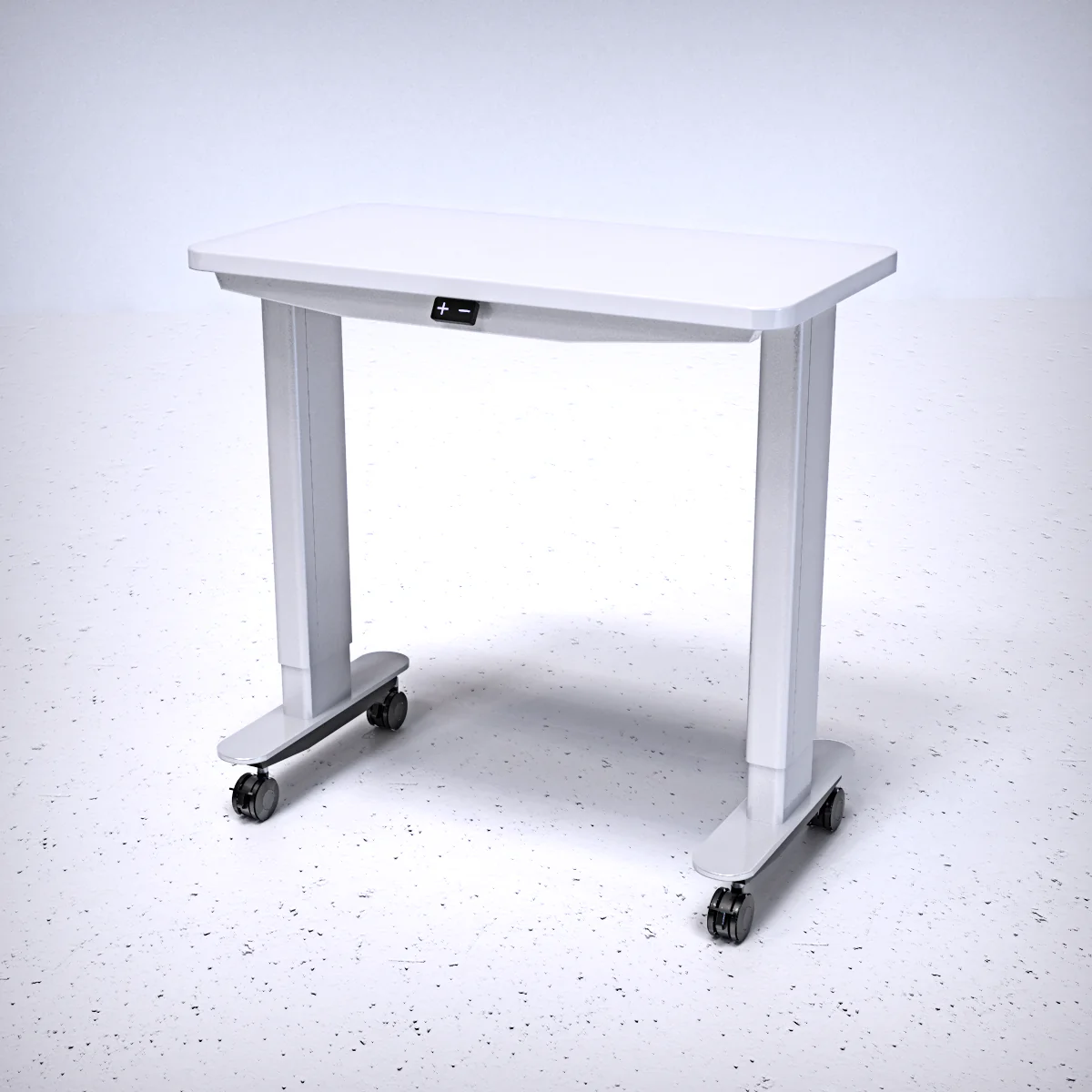

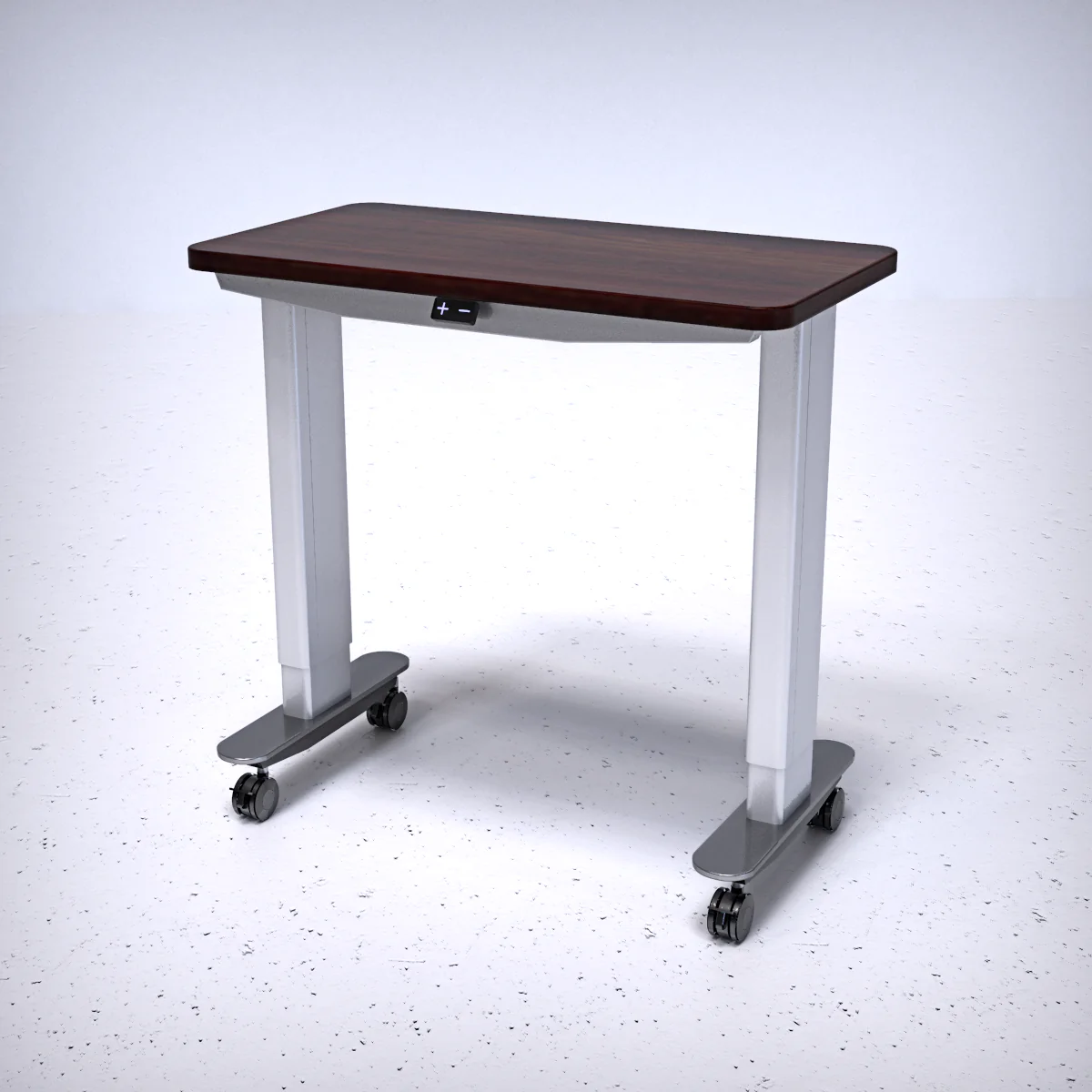

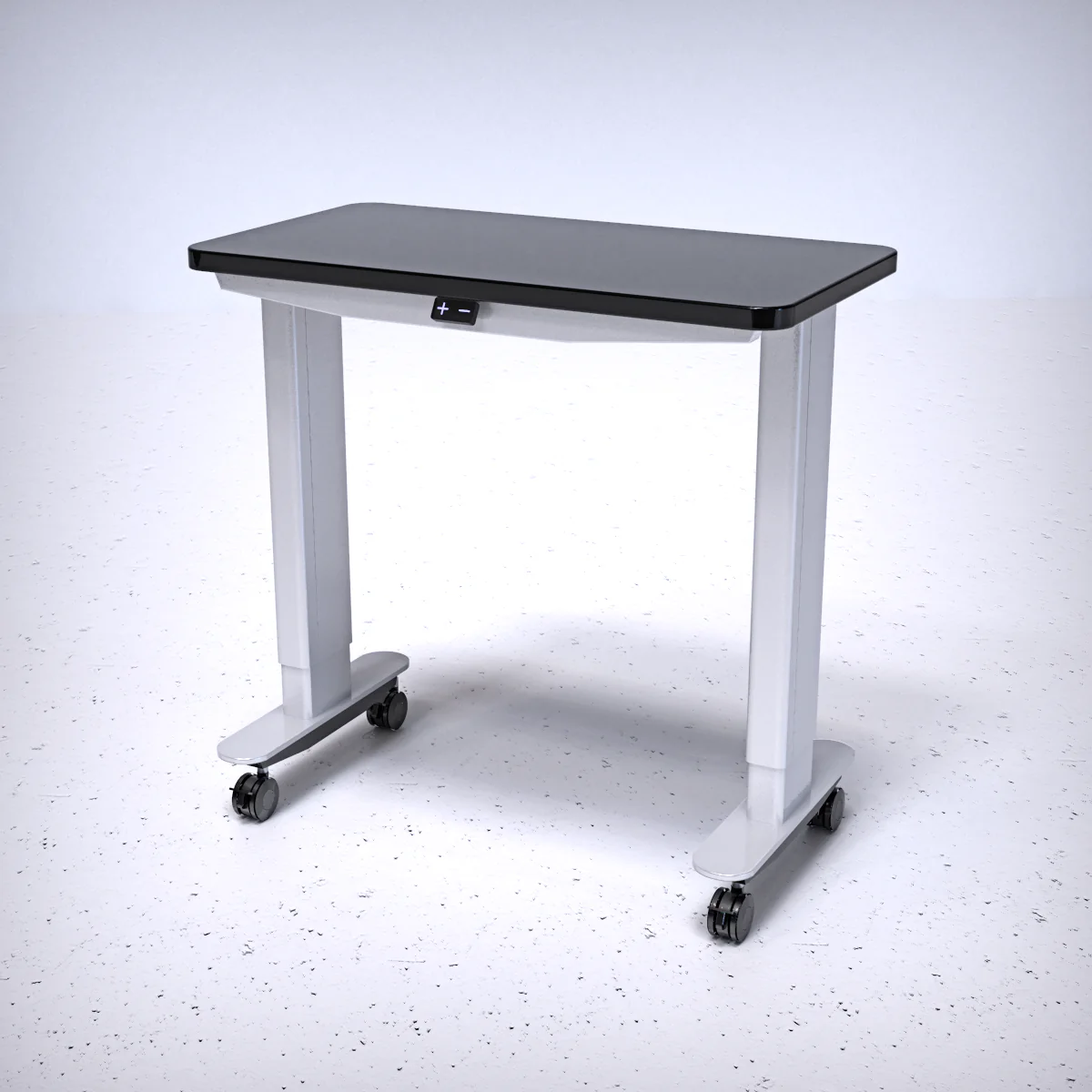

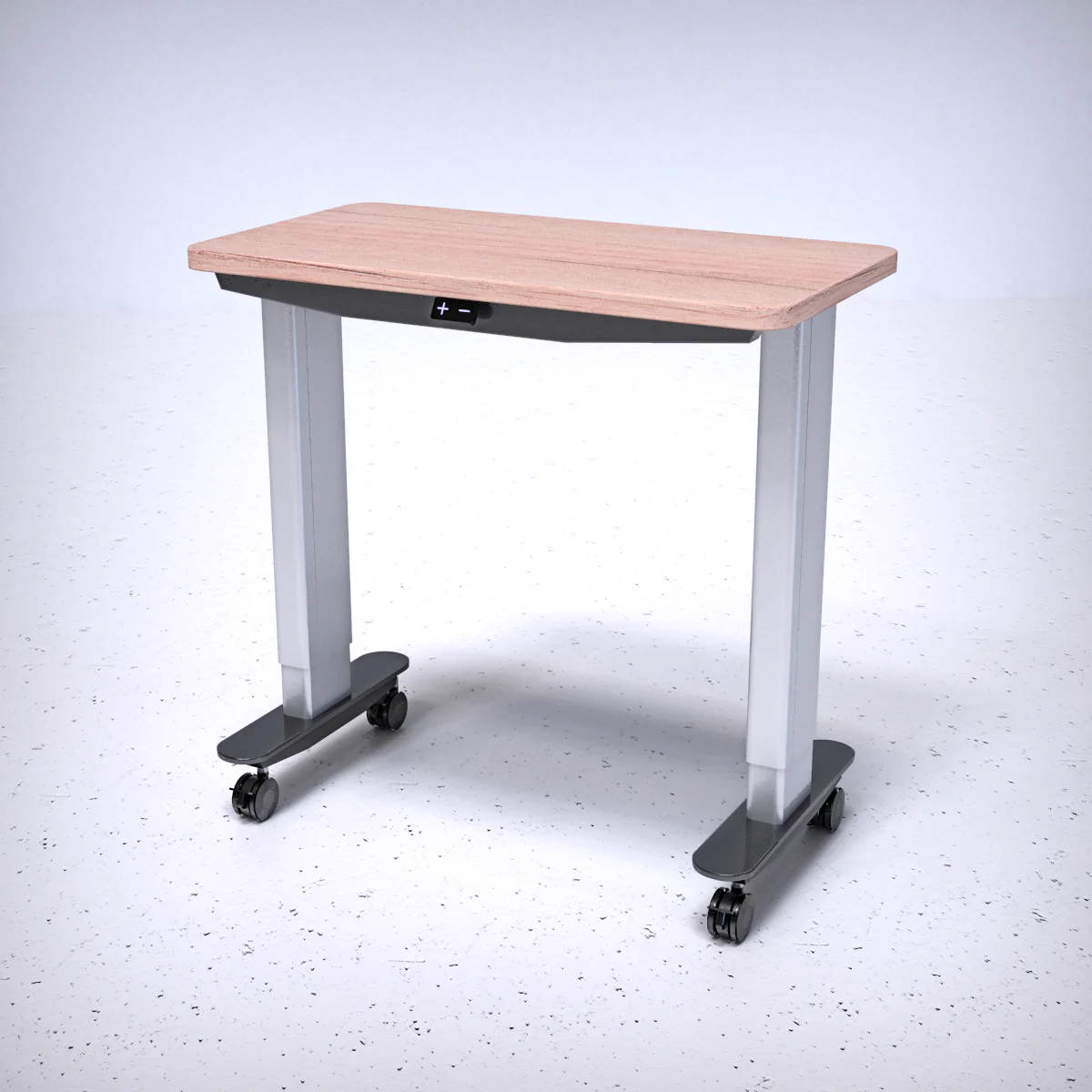

Configure your Visionare table

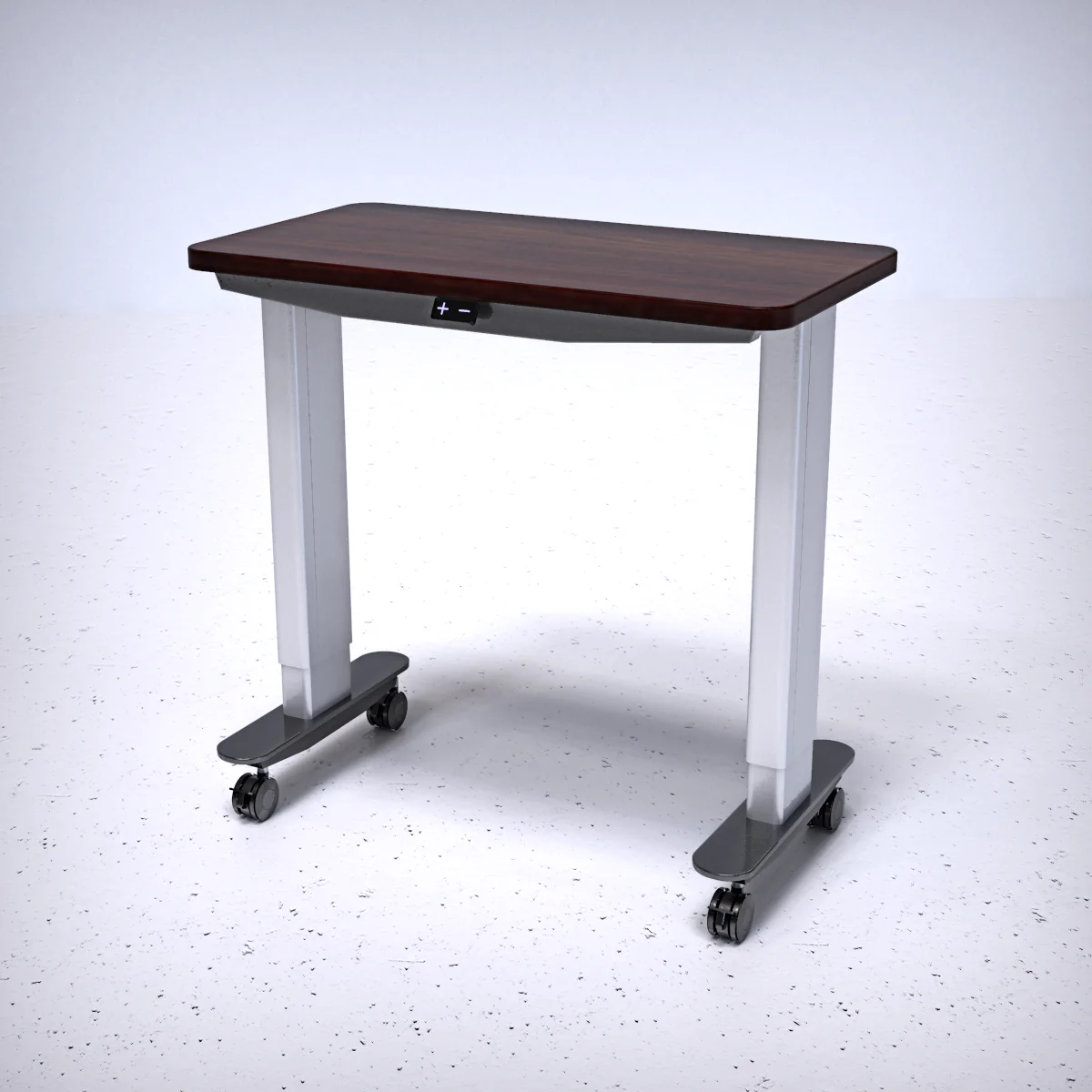

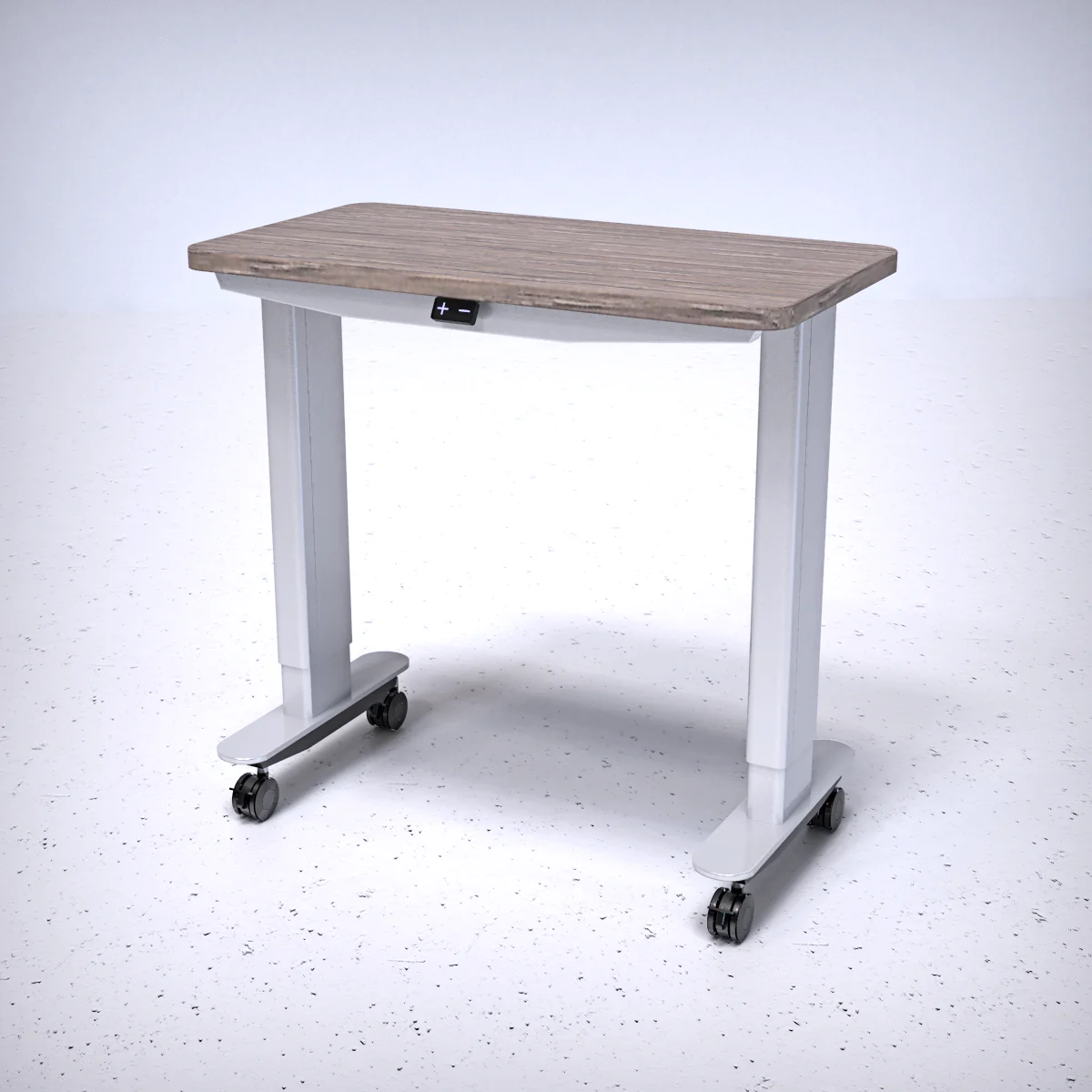

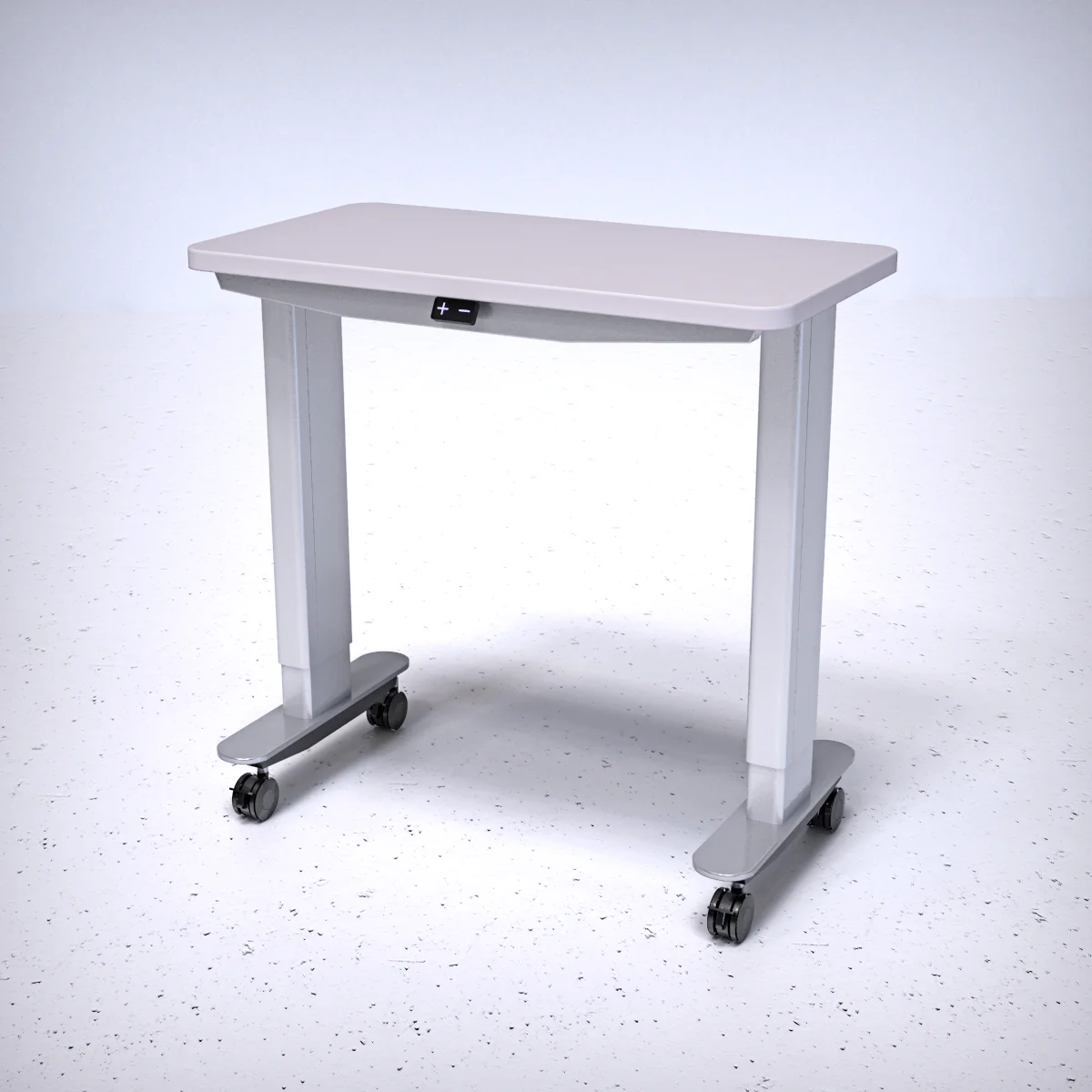

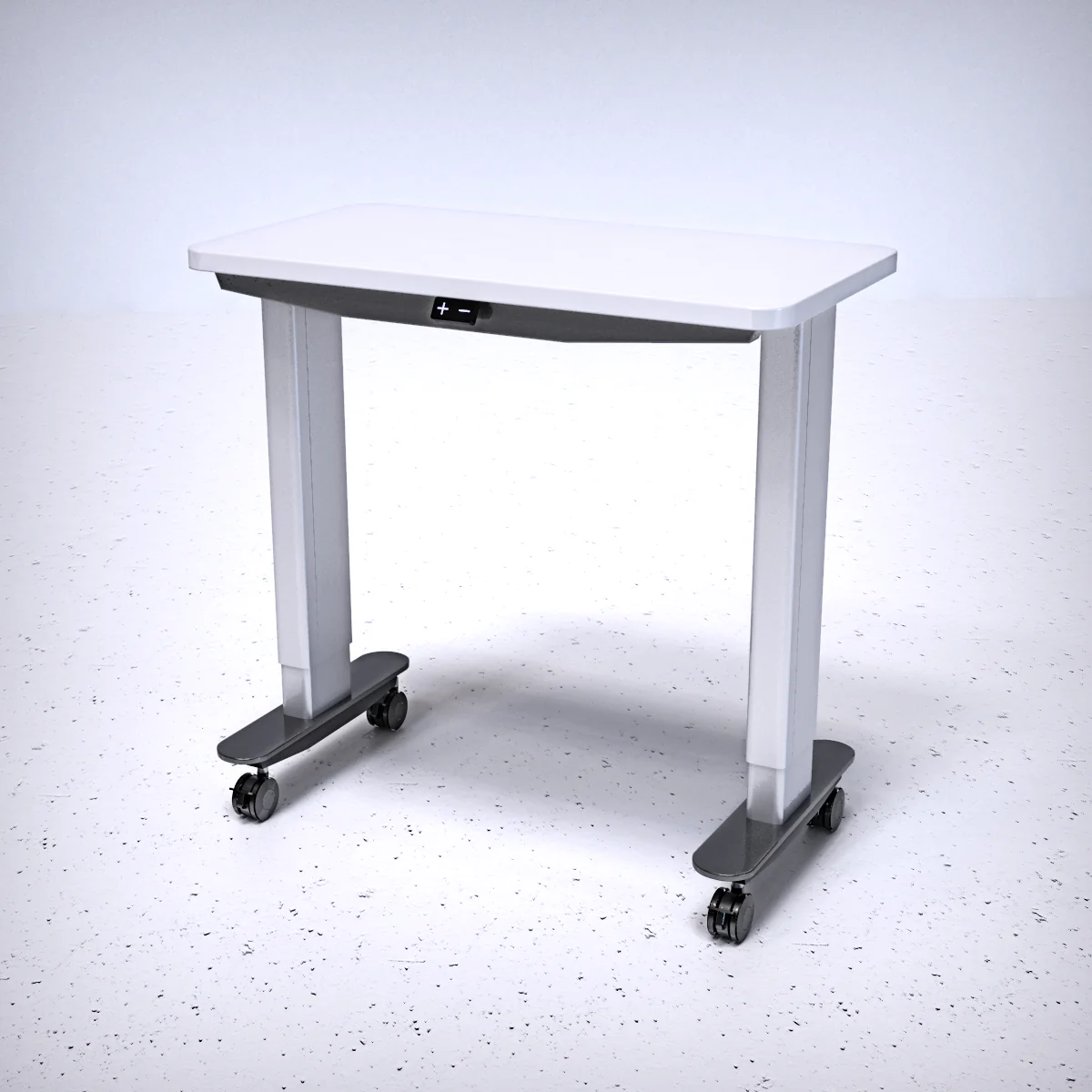

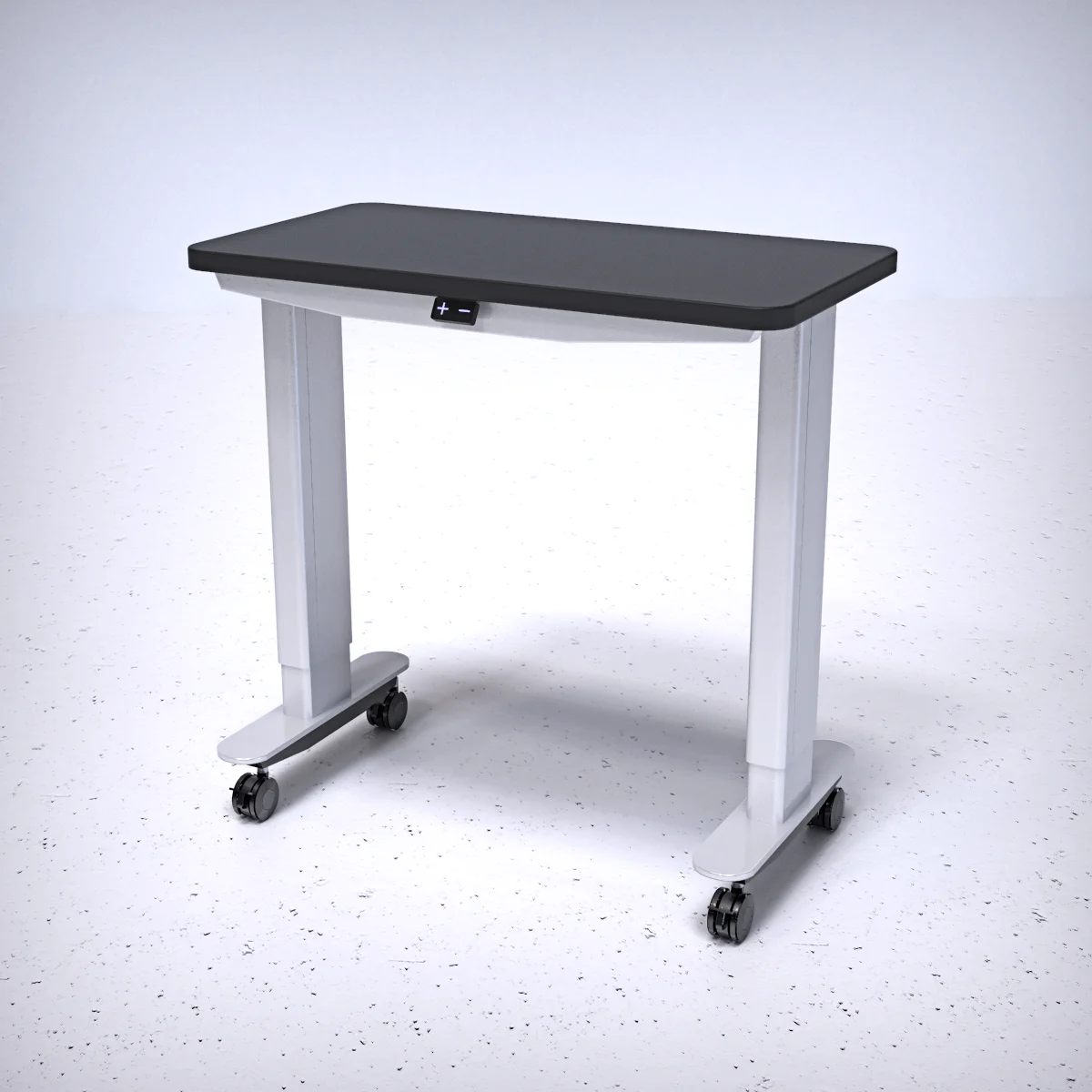

Choose a top and a base to see the combination.

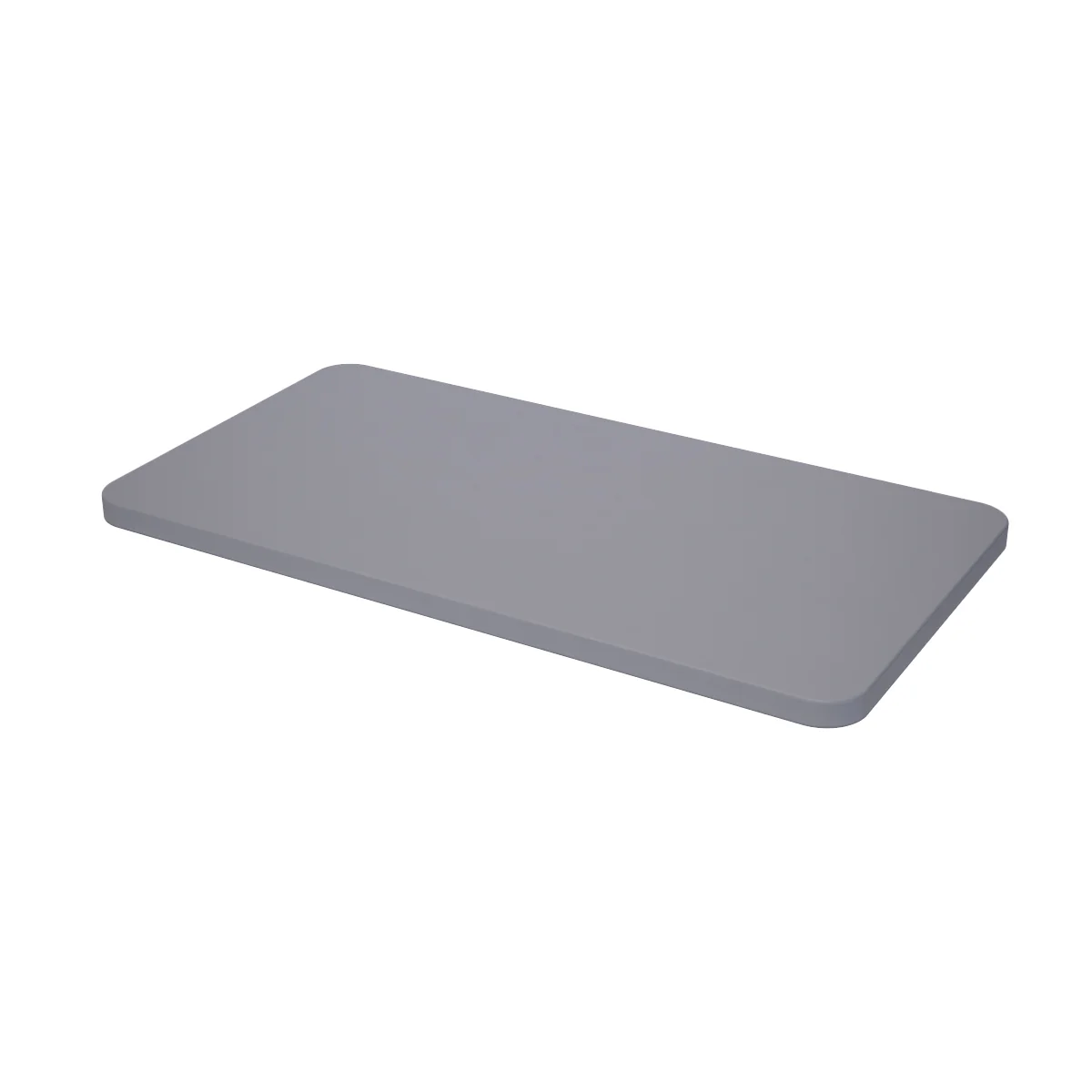

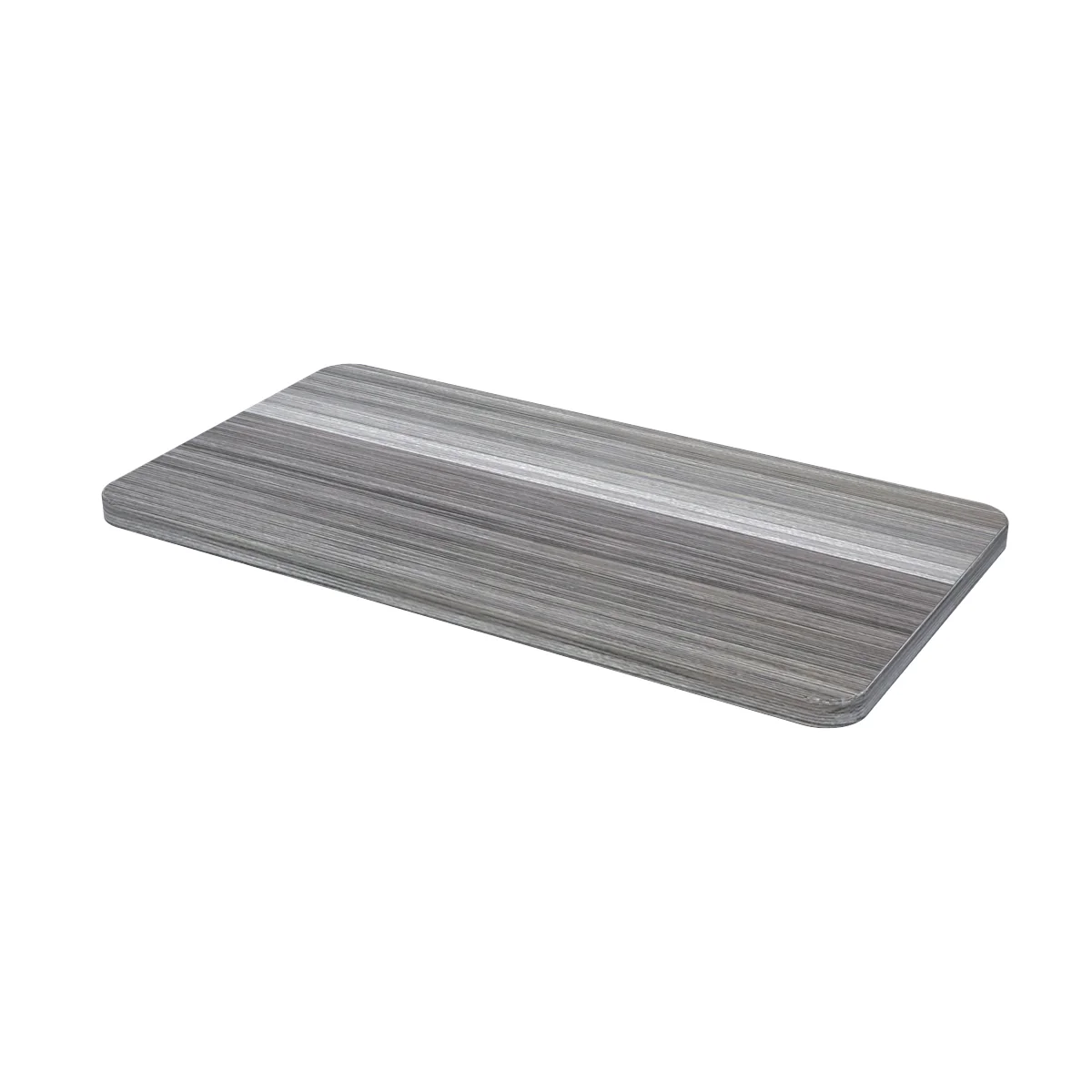

Top
14 options

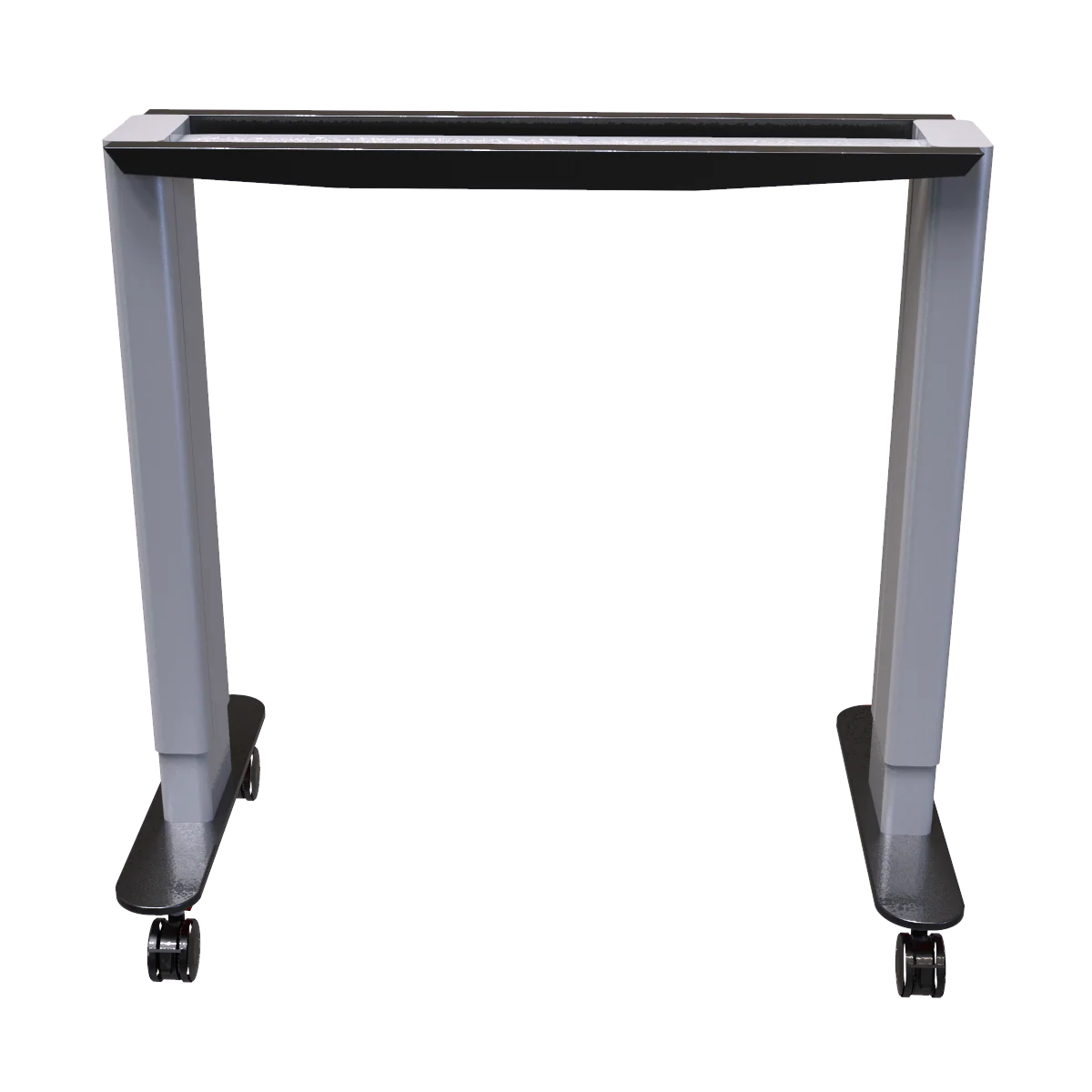

Base
4 options
Beyond that, patients and physicians vary widely in height. As a result, ophthalmic instruments need to be at the correct elevation to perform their function, requiring both the patient and the operator to adjust. For the patient, this means being inconveniently raised and lowered in a seat. For the operator, this may require a stool or bending over, potentially causing back strain. The Visionare Tavola Duplice motorized table solves both problems, offering ample table space and a convenient motorized height adjustment system.

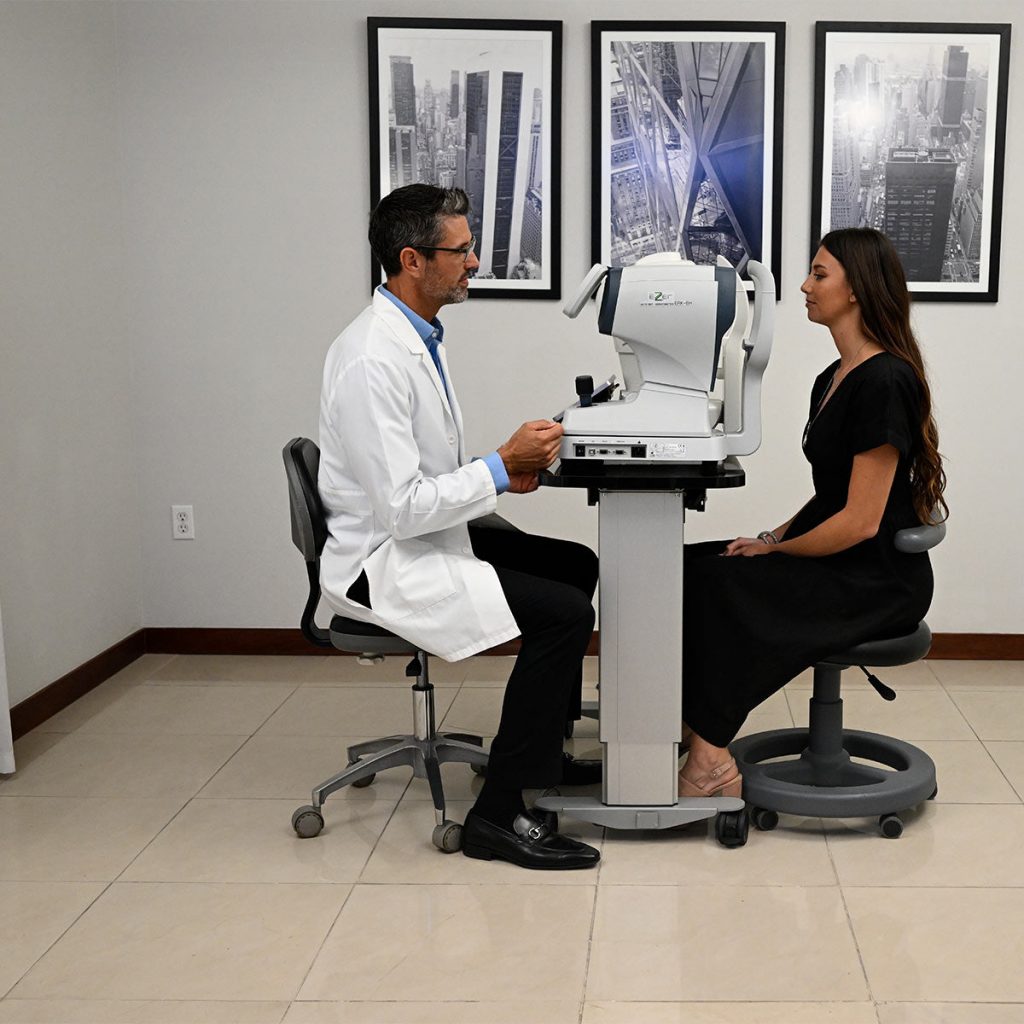

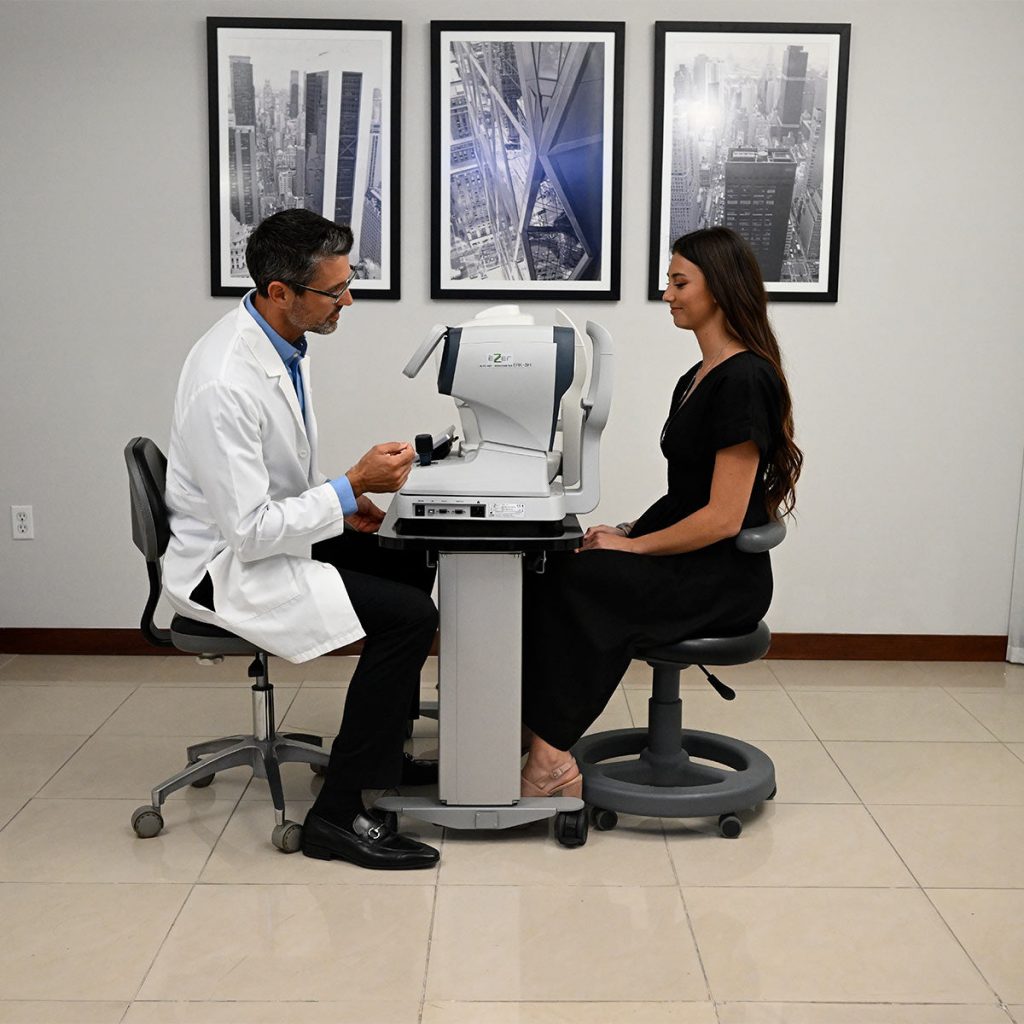

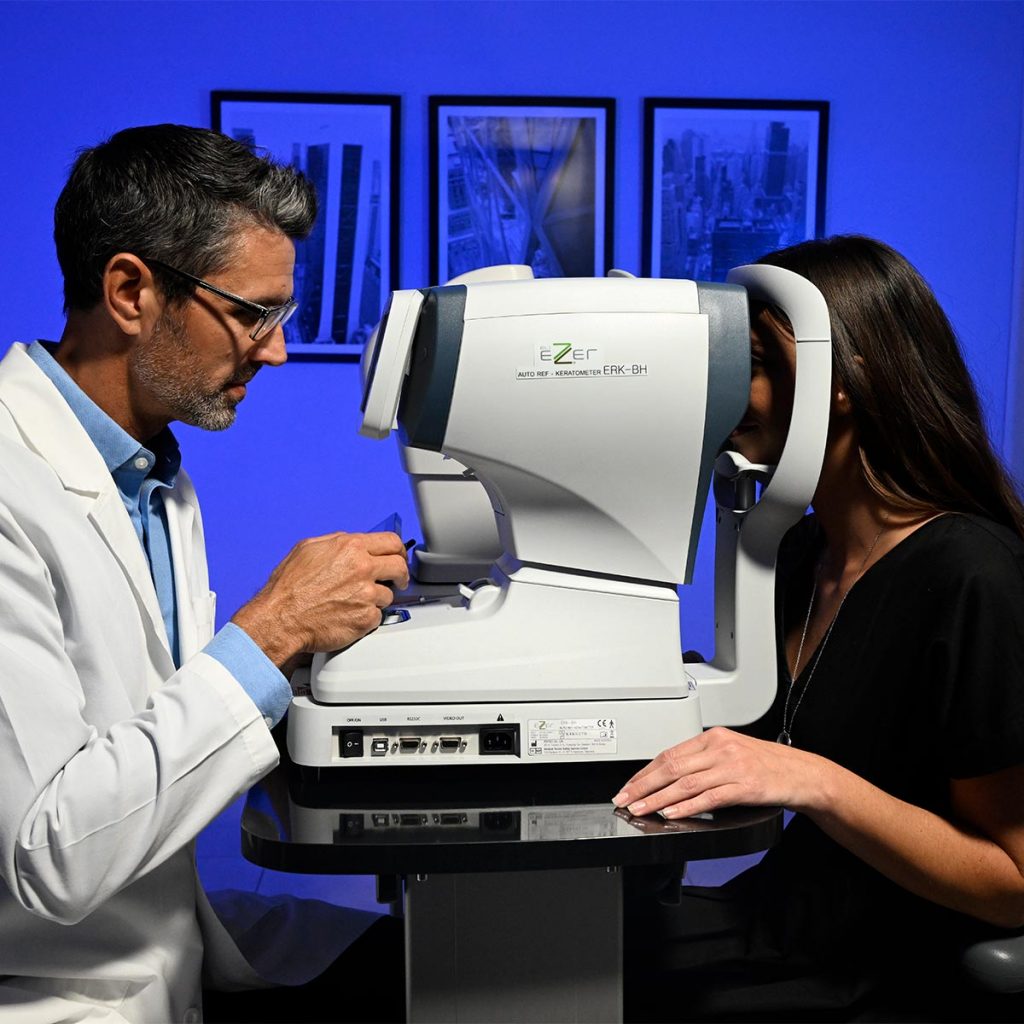

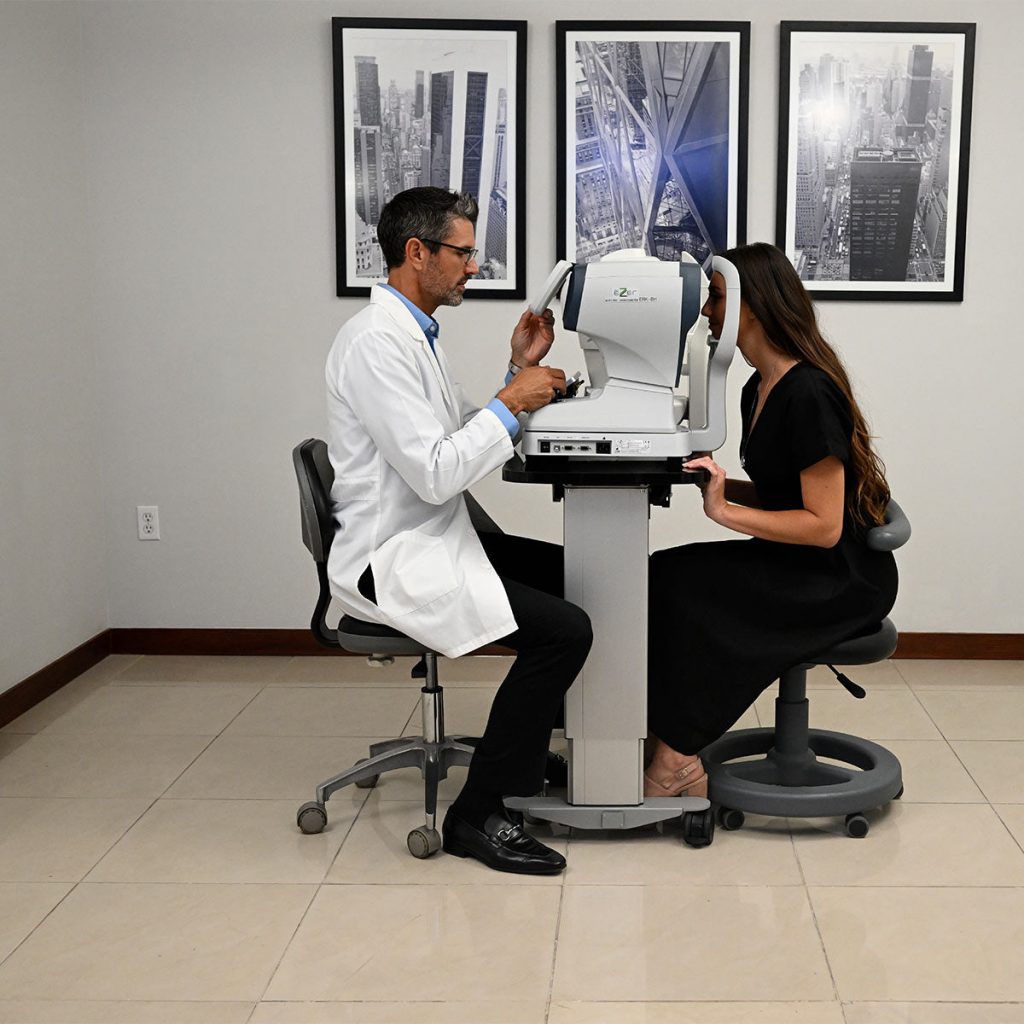

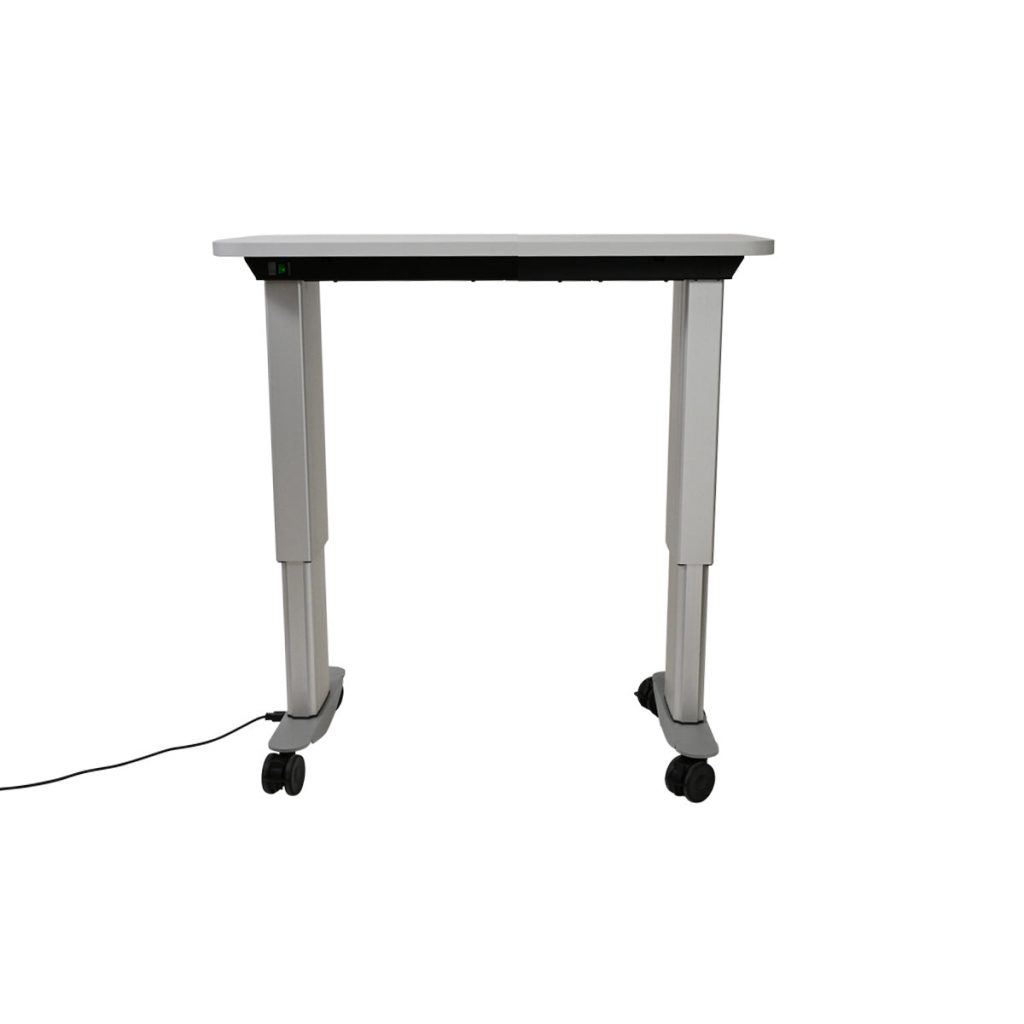

The Tavola Duplice motorized table is a wheeled table featuring a motorized lift capable of raising or lowering up to 2 pieces of equipment as needed. Its powerful lift can raise or lower up to 220 lbs from 26 in to 39 in effortlessly using an up/down switch conveniently located underneath the table surface. This placement ensures easy access while preventing accidental activation. It brings the devices resting on it to the eye level of both the user and the patient. Depending on the load size, the table adjusts its elevation speed to 0.98 in/s at minimum load and 0.55 in/s at maximum capacity, ensuring safety for both the user and the equipment while providing convenience for the patient.

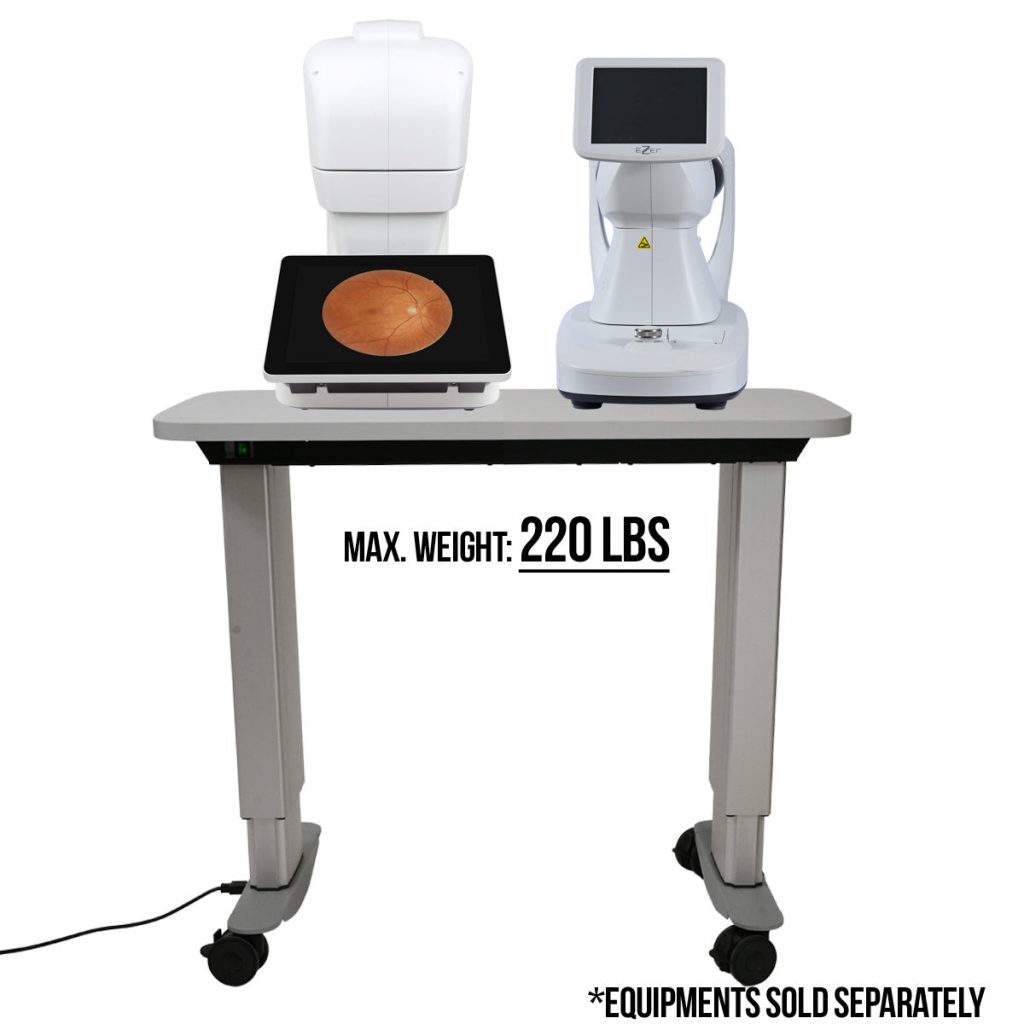

The Tavola Duplice can support up to 220 lb on the table surface.

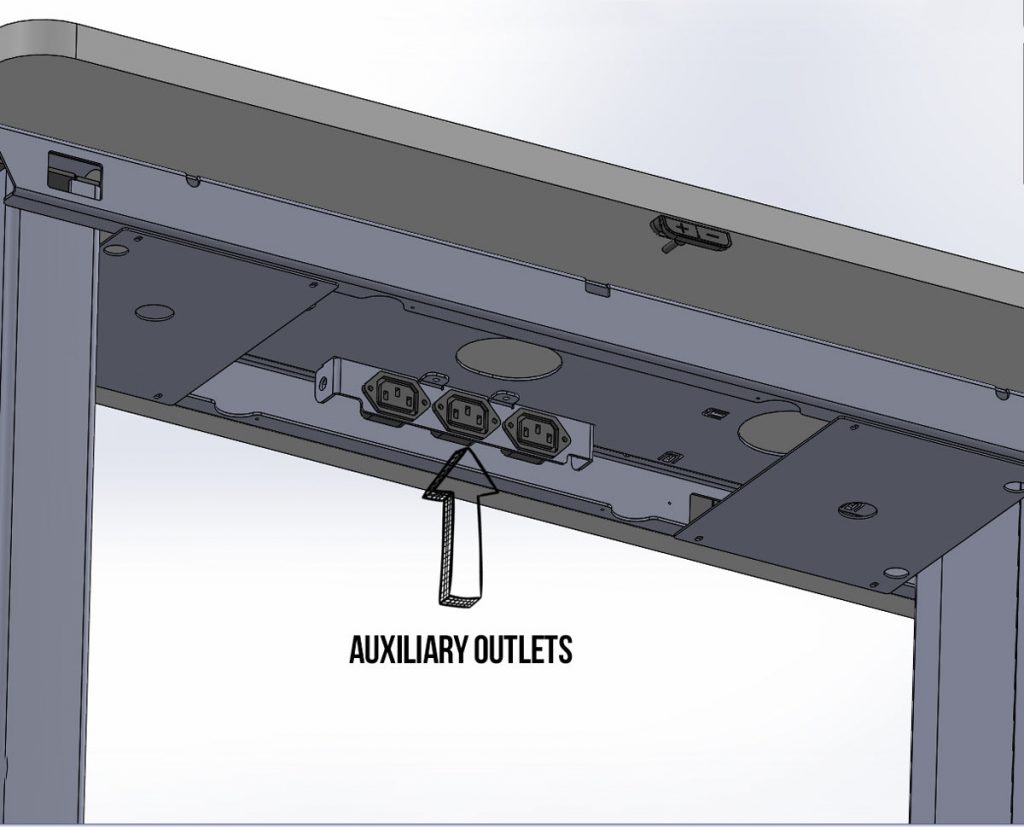

Three auxiliary power outlets are located inside the table surface support box. These outlets are directly connected to the power switch. This means that mains voltage is present at the outlets when the main switch is in the ON position.

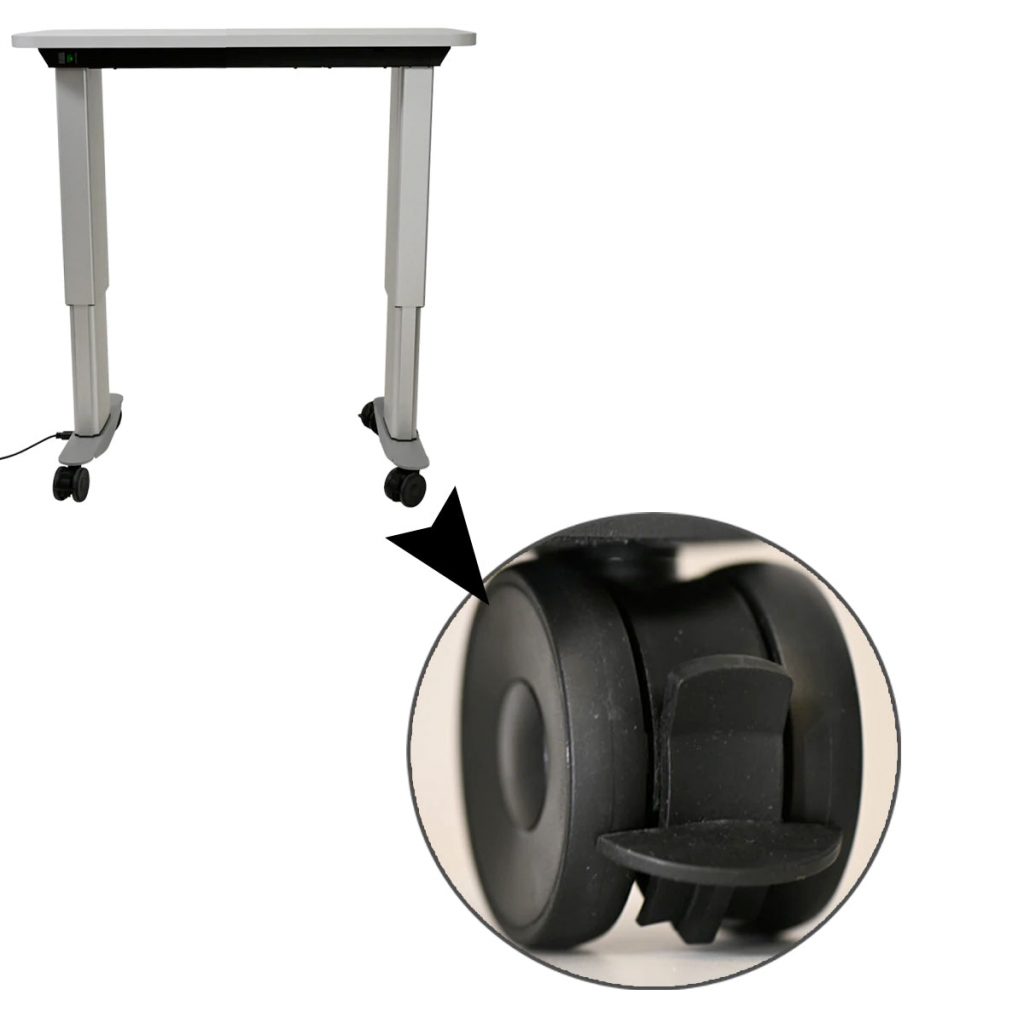

The Tavola Duplice table provides easy access. Simply move the table to the desired location and lock the wheels as needed.

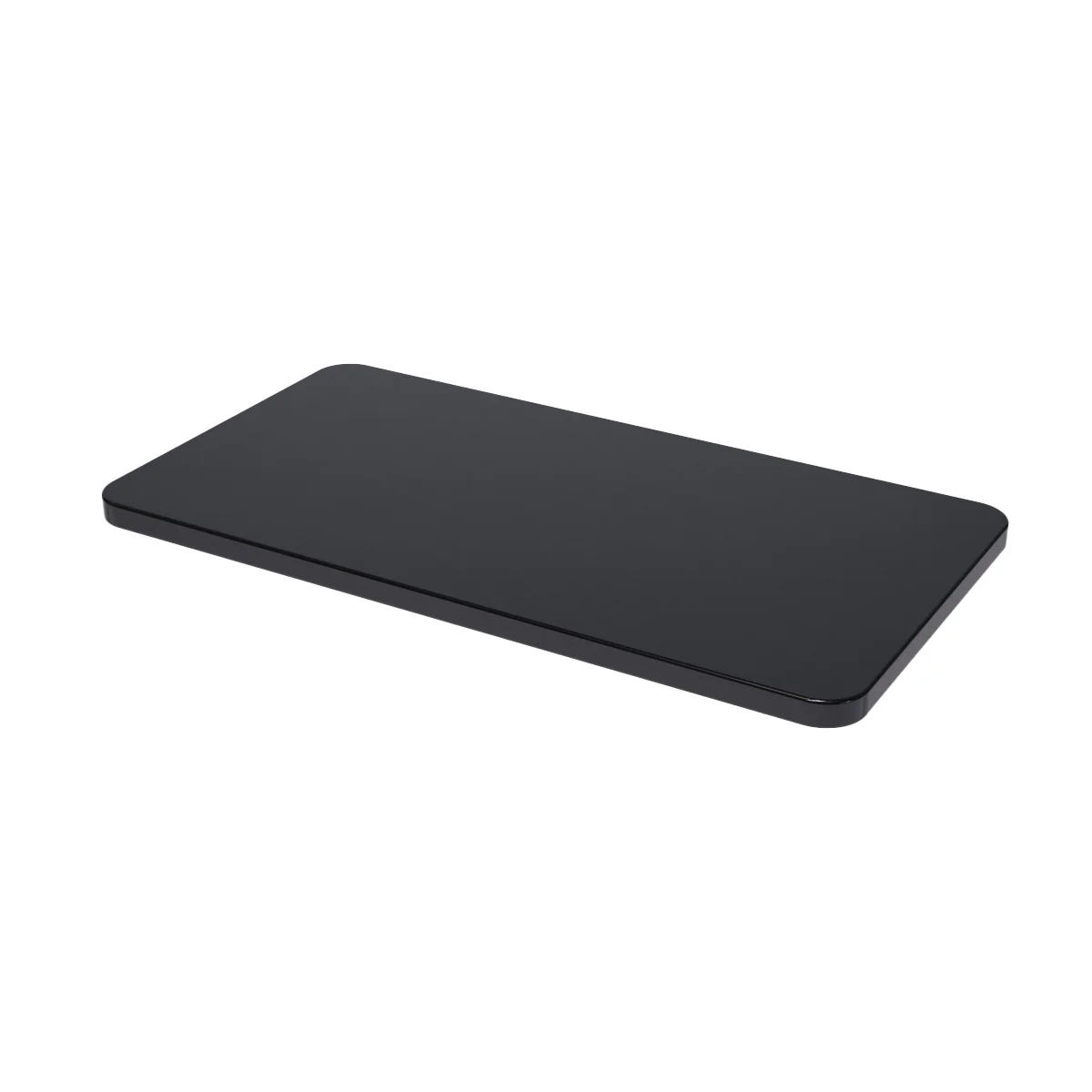

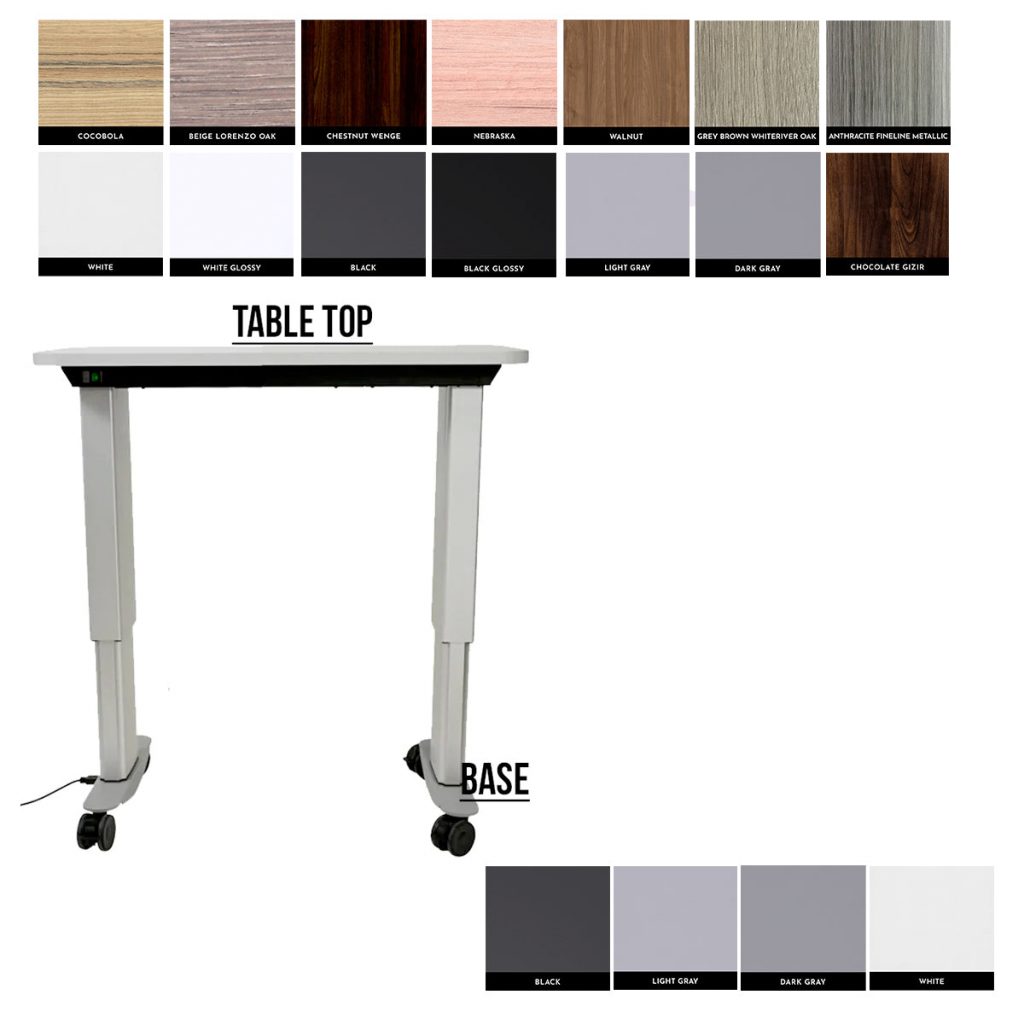

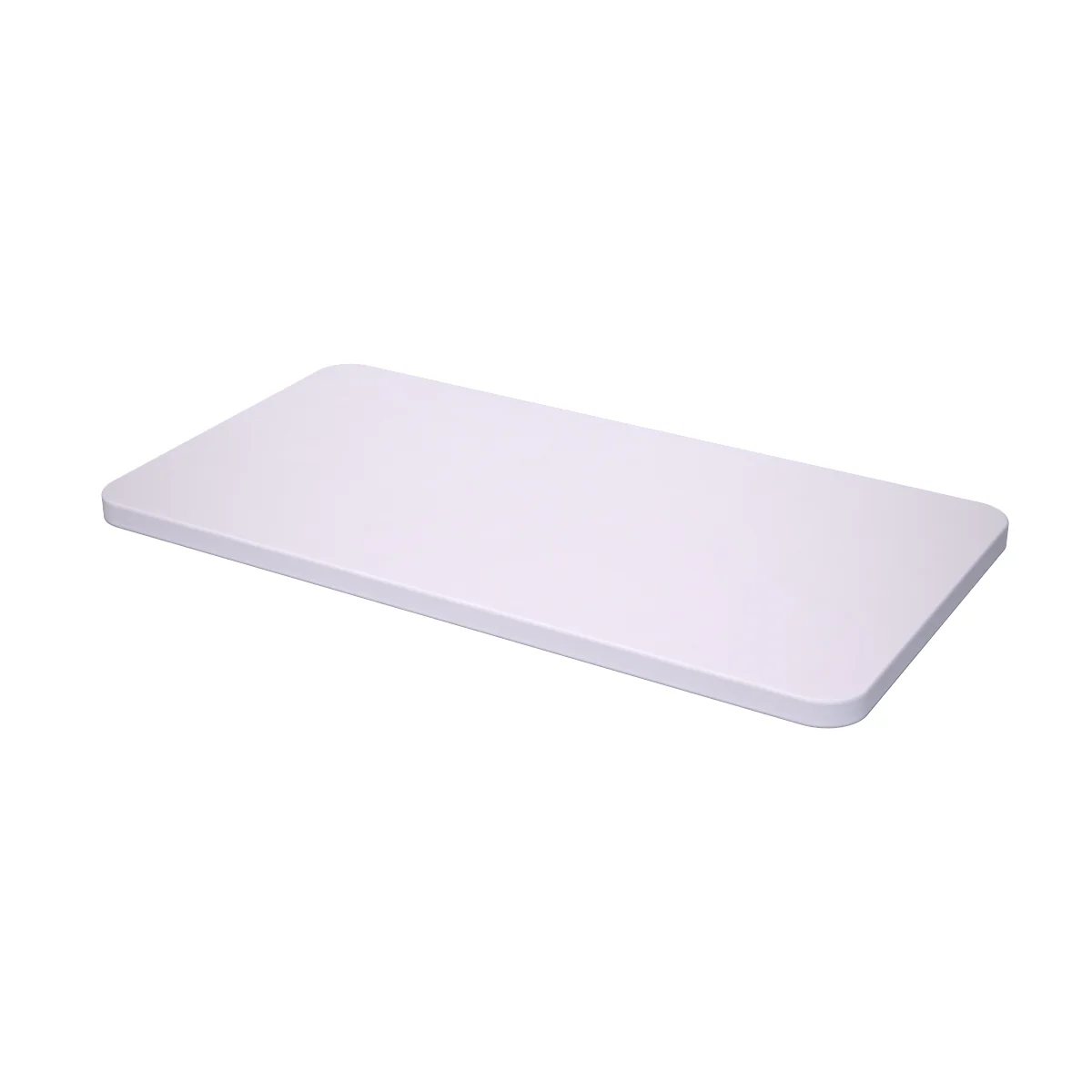

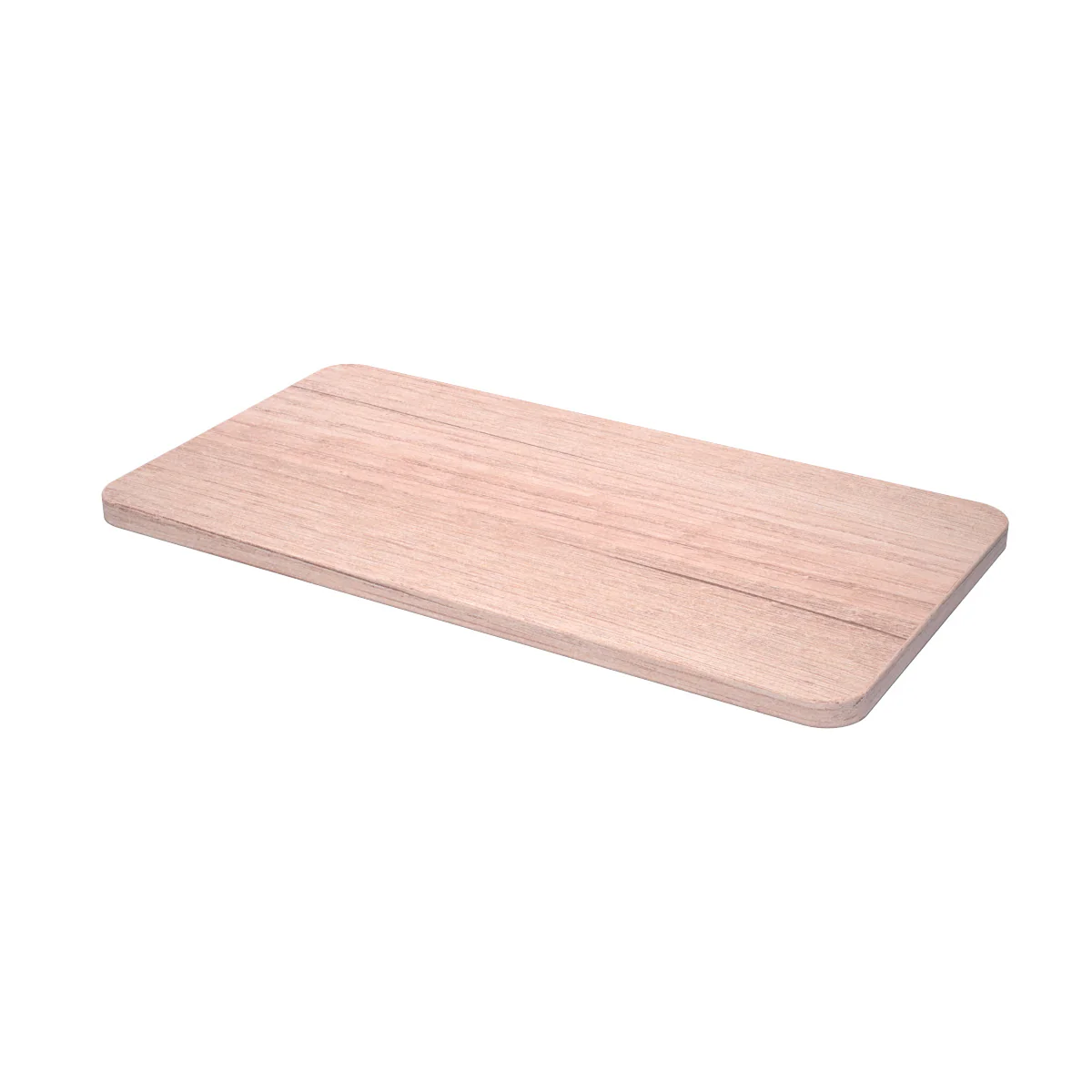

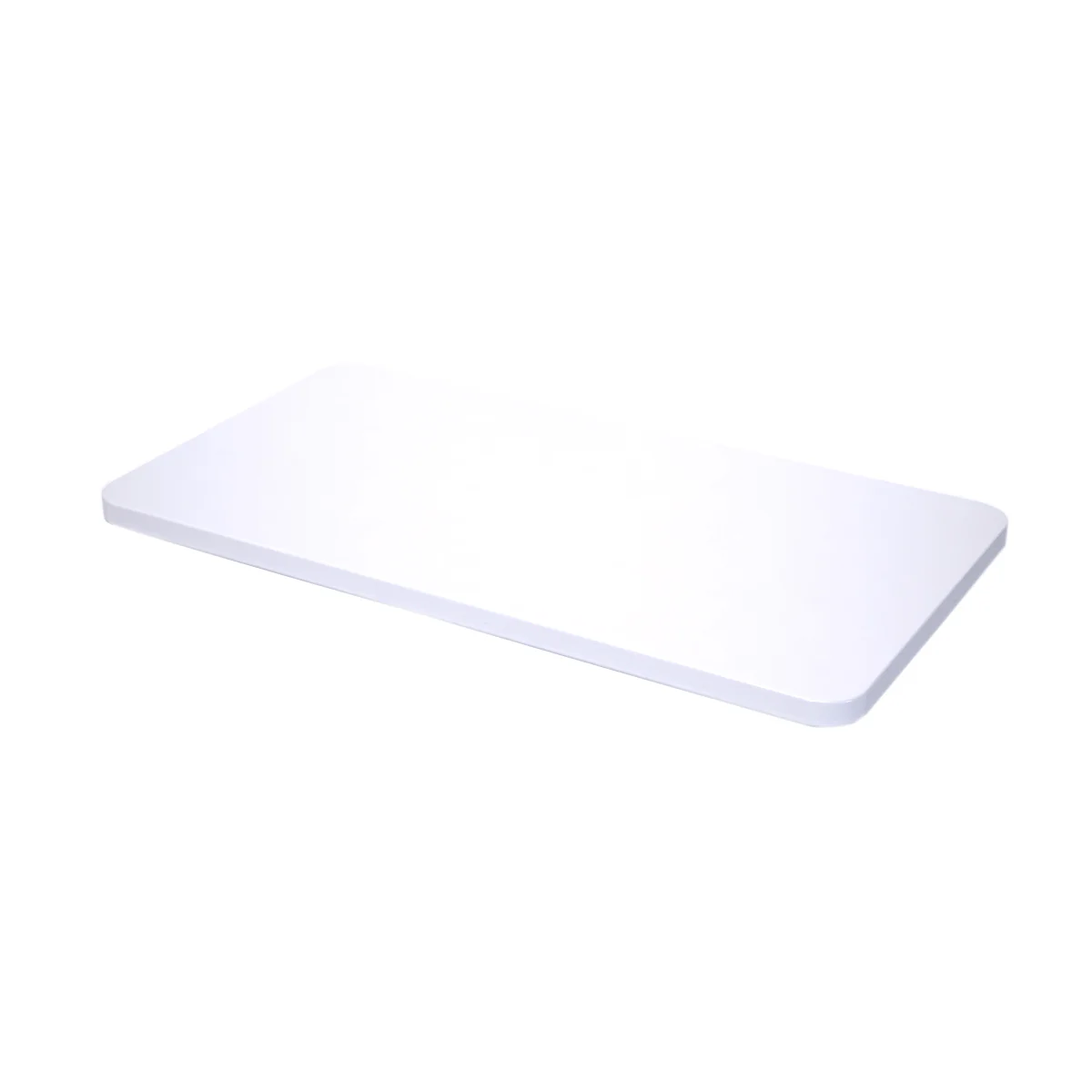

Variety of colors on the surface and base
Therefore, the Tavola Duplice is the perfect option for examinations and procedures requiring multiple complementary equipment and is ideal for clinical professionals who value space and comfort.
Dimensions
Specifications
| Height (without board) | Min* 27" Max* 39" Stroke* 13" |
|---|---|
| Dimensions (without board) | Width 36" Depth 20" Weight 59.4 lbs |
| Board dimensions | Width: 39.37" Depth: 17.72" Height: 0.98" |
| Minimum/maximum lifting speed under load | 0.98 - 0.55 in/s |
| Capacity | Max 220 lbs |
| Load capacity on a single lifting column | Max 110 lbs |
| Height adjustment mechanism | Electrical |
| Height adjustment control | Up/down switch, located beneath the board |
| Input voltage/frequency | 230 V ~ 50/60 Hz |
| Input current | Version 220-240 V~: max 1A |
| Input current with instruments connected | Max 4A |
| 2 main fuses located in the fuse holder situated below the power cable socket | T 5A 250V 5x20 |
| Electric motor duty cycle | Max 10%. After 2min of continuous operation, it must cool down for at least 18min. |
| 3 auxiliary power outlets, max 200W, for instruments | May vary slightly |
