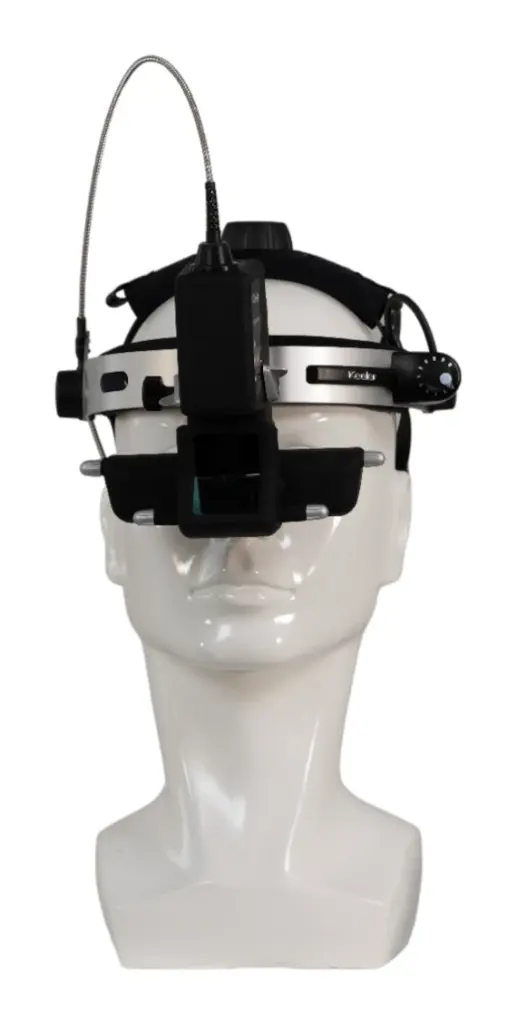

Laser Indirect Ophthalmoscope

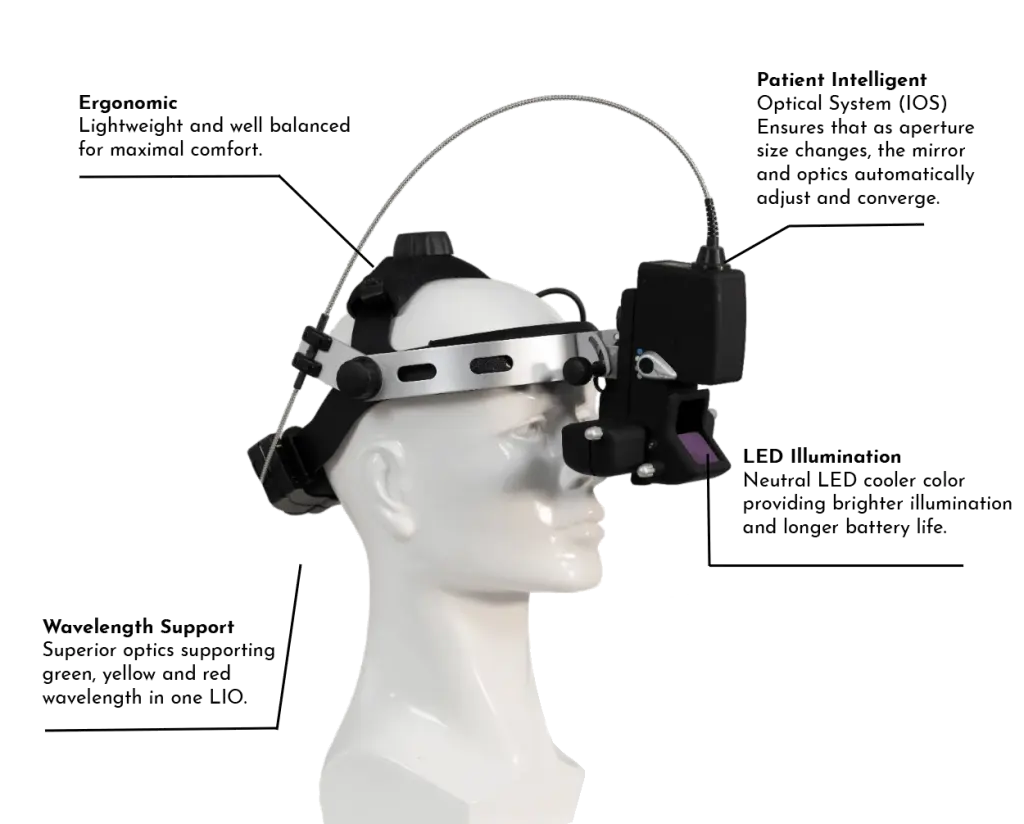

The Laser Indirect Ophthalmoscope (LIO) is expertly optimized for the Merilas platform, offering unparalleled precision with laser delivery coaxial to the user's viewing axis. It features a standard LED module with a neutral cooler color, providing brighter illumination and extended battery life. The high-contrast optics, built-in filters, and intelligent optical system with automatic optics and mirrors adjustment ensure superior image quality and ease of use. Additionally, it includes a high-magnification lens with an extra 1.6x magnification, making it an invaluable tool for detailed retinal examinations.

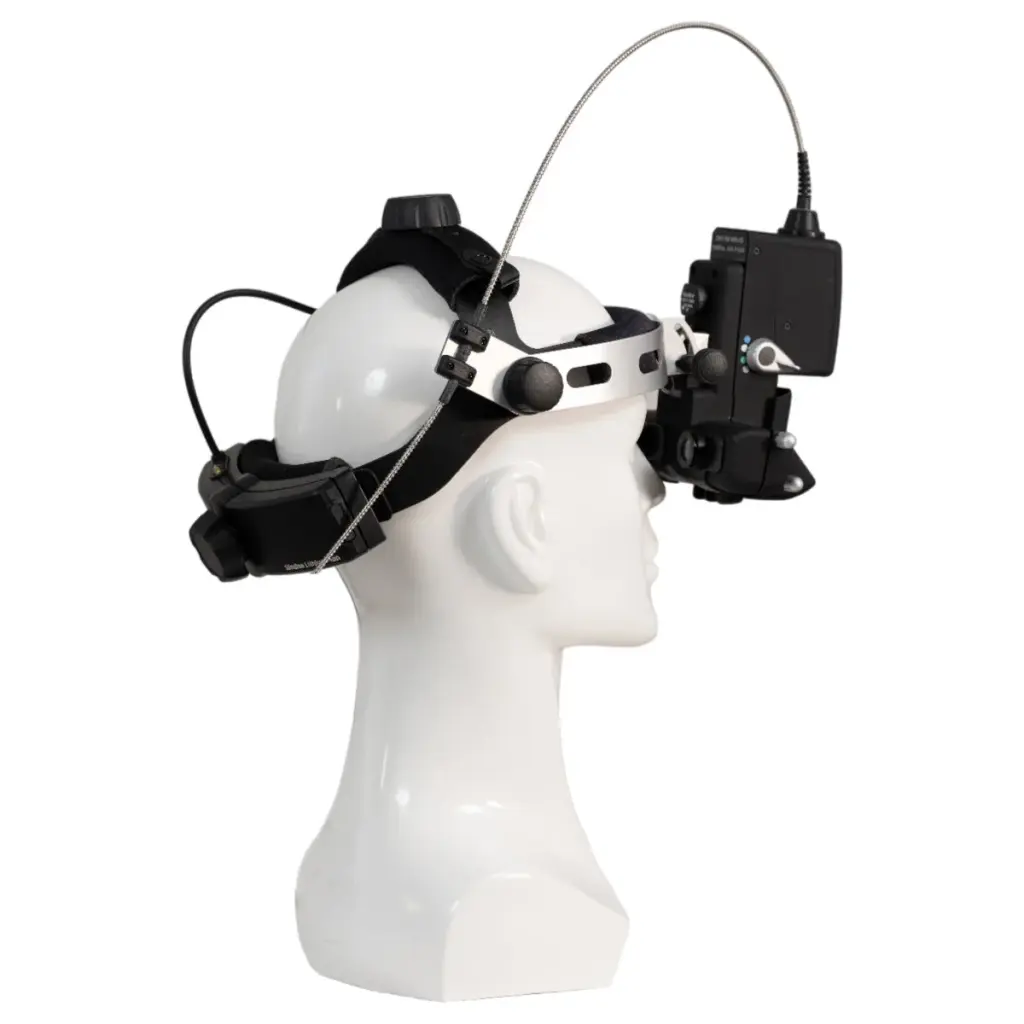

The Laser Indirect Ophthalmoscope is an easy-to-use single-mirror device that offers exceptional peripheral visualization, treatment flexibility, consistency, and reliability. Designed with ergonomics in mind, it is intuitive and ideal for patients who are best examined and treated in a supine position. The lightweight headset features adjustable sizing to optimize fit and comfort. Additionally, it is compatible with 532 nm, 577 nm, and 810 nm Meridian lasers, making it versatile for various treatment needs.

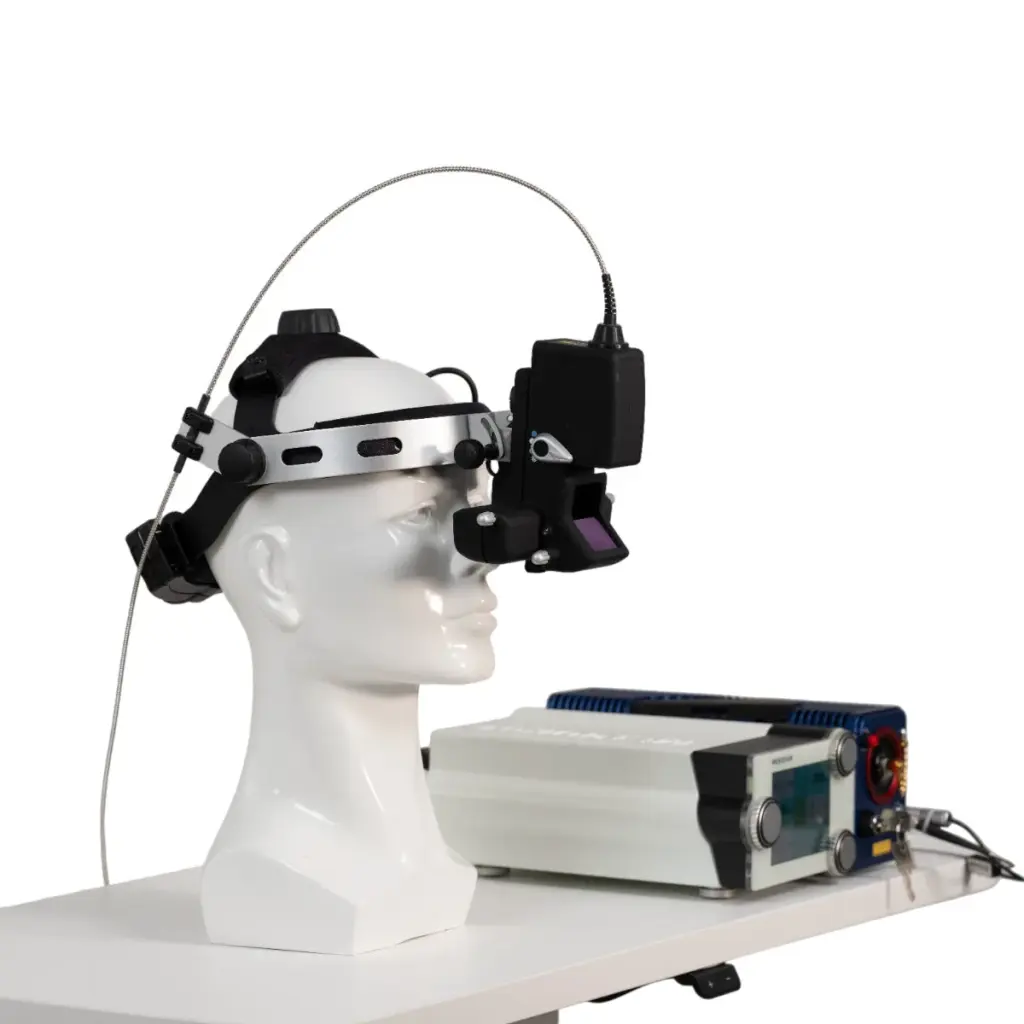

The Laser Indirect Ophthalmoscope is compatible with a Green Laser Merilas α532, 532; Yellow Laser Merilas 577 and Diode Laser Merilas 810.
| Description | Mode |
| Spot Size | 1100 μm ± 20% |
| Working distance (front of LIO to focused spot) | 280 mm ± 20% |
| Operating wavelengths (Factory configured to one therapy wavelength |
Therapy laser: 532 nm, 577 nm or 810 nm up to 2000 mW pulsed Aiming laser: 635 nm, 1 mW |
| Back-scatter protection | OD > 5.5 at therapy wavelength |
| Laser Fiber |
100 µm core, multimode with A/R coating 3 mm stainless steel protected 5 m length SMA905 laser termination |
| Power Source | Wall mounted wireless charger including spare lithium battery |
