The EZ-OPH-3600 3.5V Pro coaxial portable ophthalmoscope is easy to use. It features the latest technology for more accurate results and an ergonomic, easy-to-grip design. As a healthcare professional, having the best instruments is essential. For this reason, Ezer has created a line of optical instruments that allow us to elevate the quality of service for specialists. The EZ-OPH-3600 ophthalmoscope is an excellent example highlighting the quality of the Ezer product range. This compact portable model uses a combination of 68 focusing lenses, features a concave mirror and a curved filament lamp for a much wider field of view, making it a superior model compared to many other ophthalmoscopes on the market. Thanks to its first-class technology and 18 unique aperture and filter combinations, the specialist can easily visualize pupils without the need for dilation, enabling a far more thorough examination with precise resolution and superior quality, thus enhancing the level of care received by the patient.

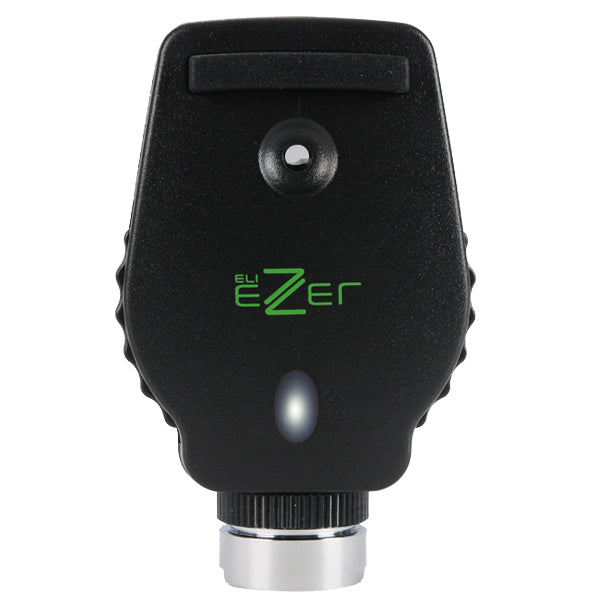

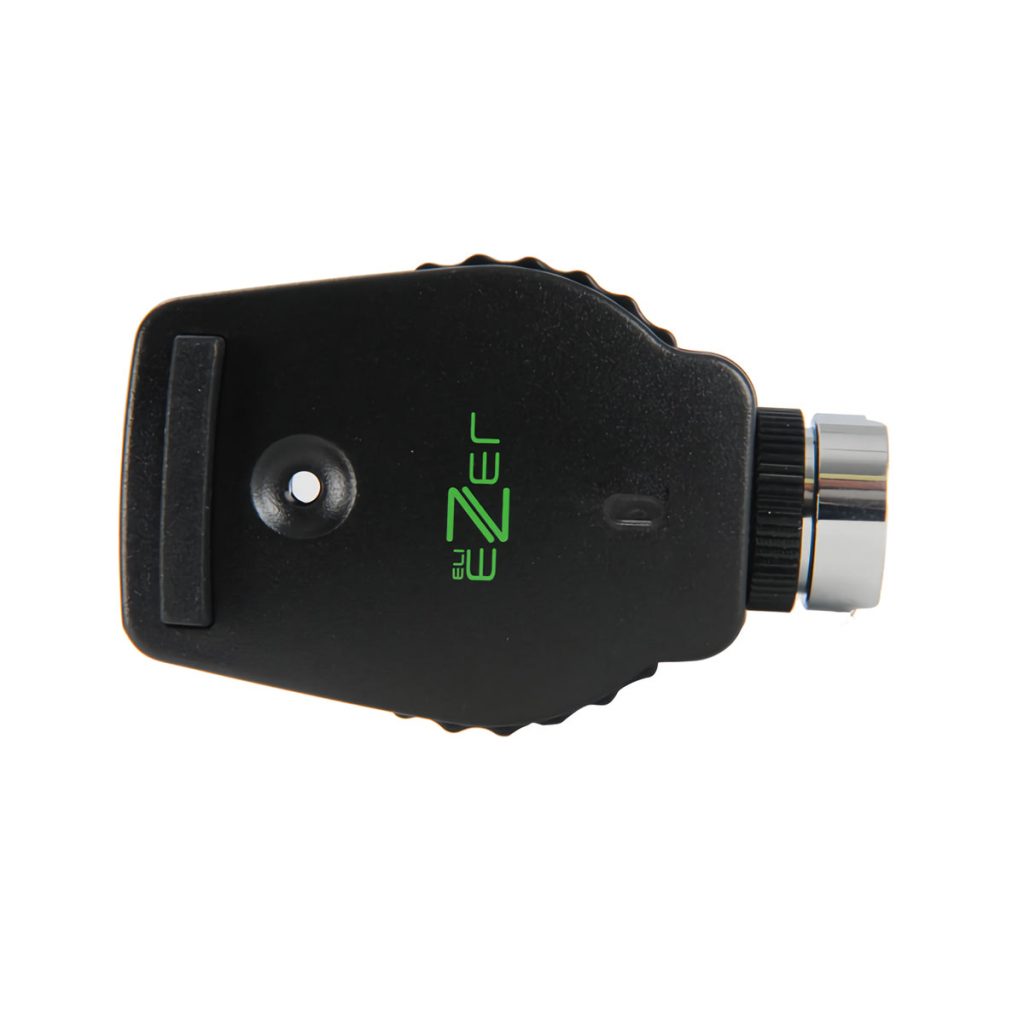

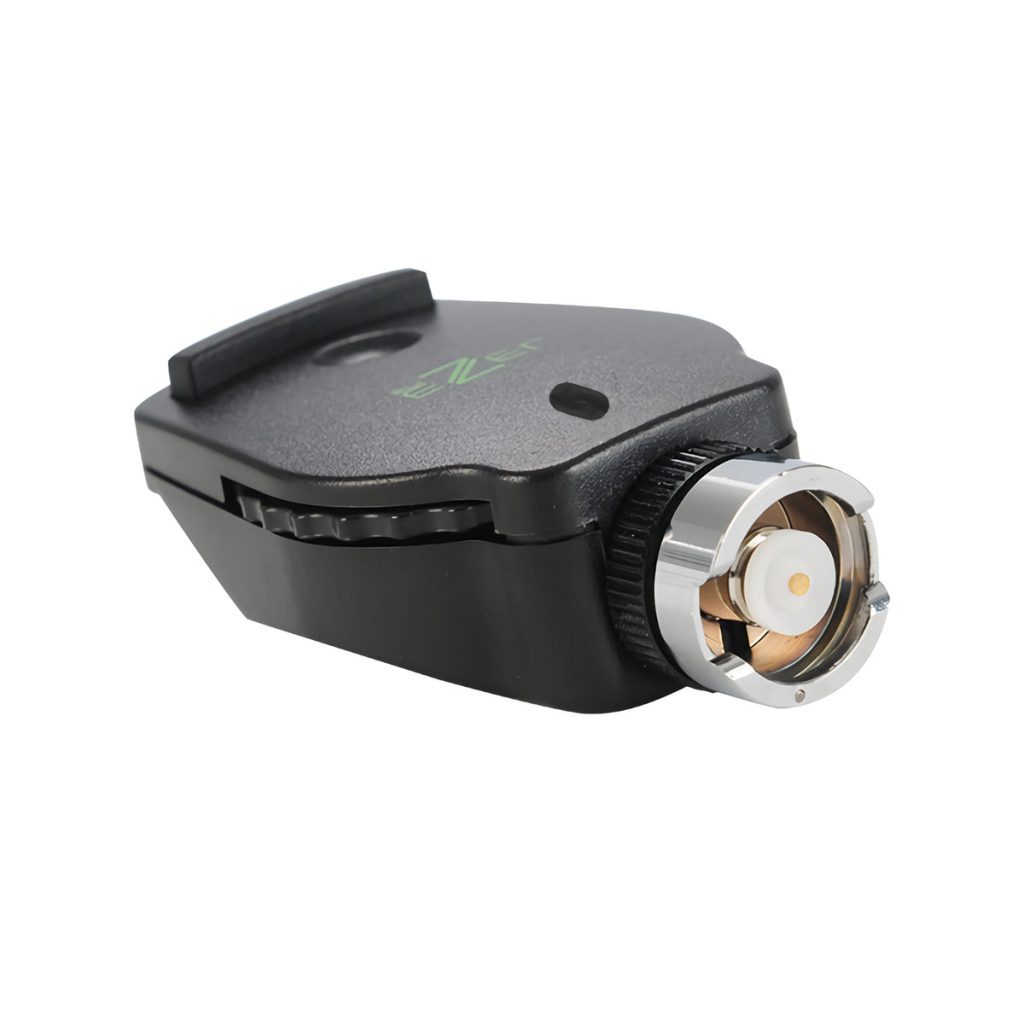

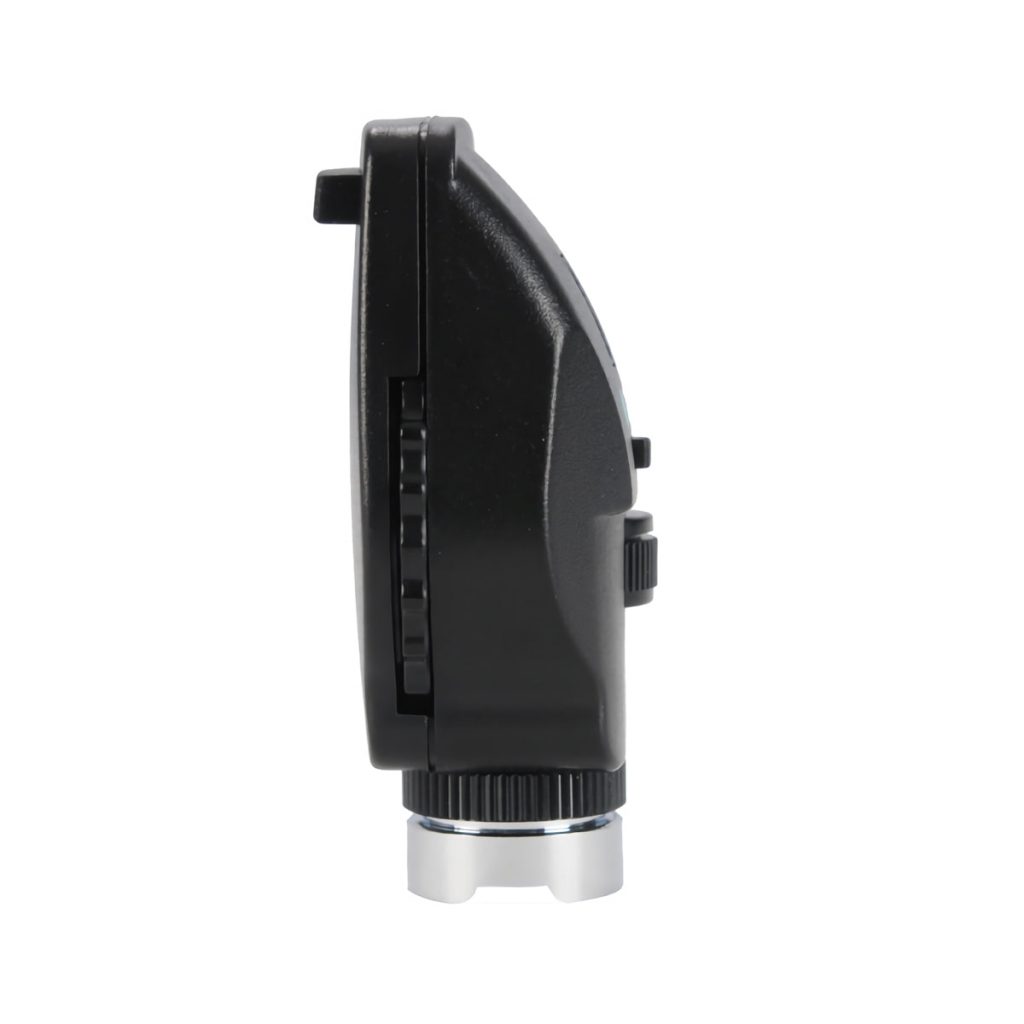

Ezer Coaxial Ophthalmoscope EZ-OPH-3600
Coaxial optics for shadow-free examinations
The coaxial optics system aligns the light axis with the visual axis on the retina, eliminating shadows and enabling more precise examinations. It facilitates entry into the interior of the eye without the need for pupil dilation.
18 unique aperture and filter combinations
Offers maximum diagnostic versatility with essential filters including Cobalt Blue, Linear Cross-Polarization, and Red-Free. Allows examination of small pupils without dilation in both healthy eyes and eyes with cataracts.

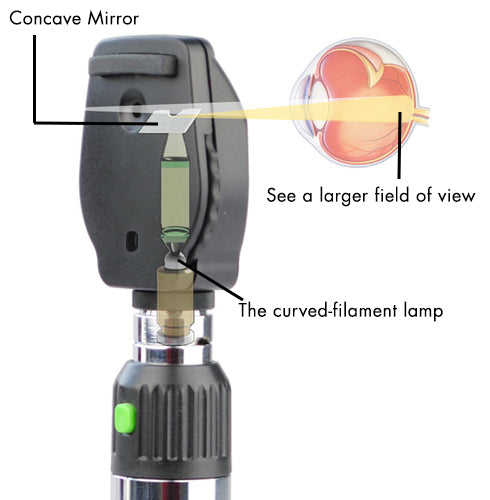

68 focusing lenses for a wider field of view
Combines 68 focusing lenses with a concave mirror and curved filament lamp for a significantly wider field of view. Provides precise resolution and superior quality in every examination.
Long-lasting 3.5V halogen illumination
3.5V halogen lamp providing consistent and long-lasting illumination with true tissue color reproduction. Alternative LED 2.7W light option available according to specialist preference.
Coaxial Optics
The coaxial optics system enables more thorough examinations and diagnoses, as it directs the light axis to coincide with the visual axis on the retina, thereby eliminating potential shadows. Through the curved filament lamp, high precision and optical alignment are achieved, facilitating easier access to the interior of the eye without the need for pupil dilation or the presence of ocular disorders.
18 unique aperture and filter combinations
The EZ-OPH-3600 ophthalmoscope, as a high-end device, features 18 extraordinary aperture and filter combinations, achieving greater versatility during examination. This wide range of filters provides better visibility for entering with optimal light levels in small and undilated pupils, in both healthy eyes and eyes with cataracts. Among its essential diagnostic filters are: Cobalt Blue, Linear Cross-Polarization, and Red-Free.

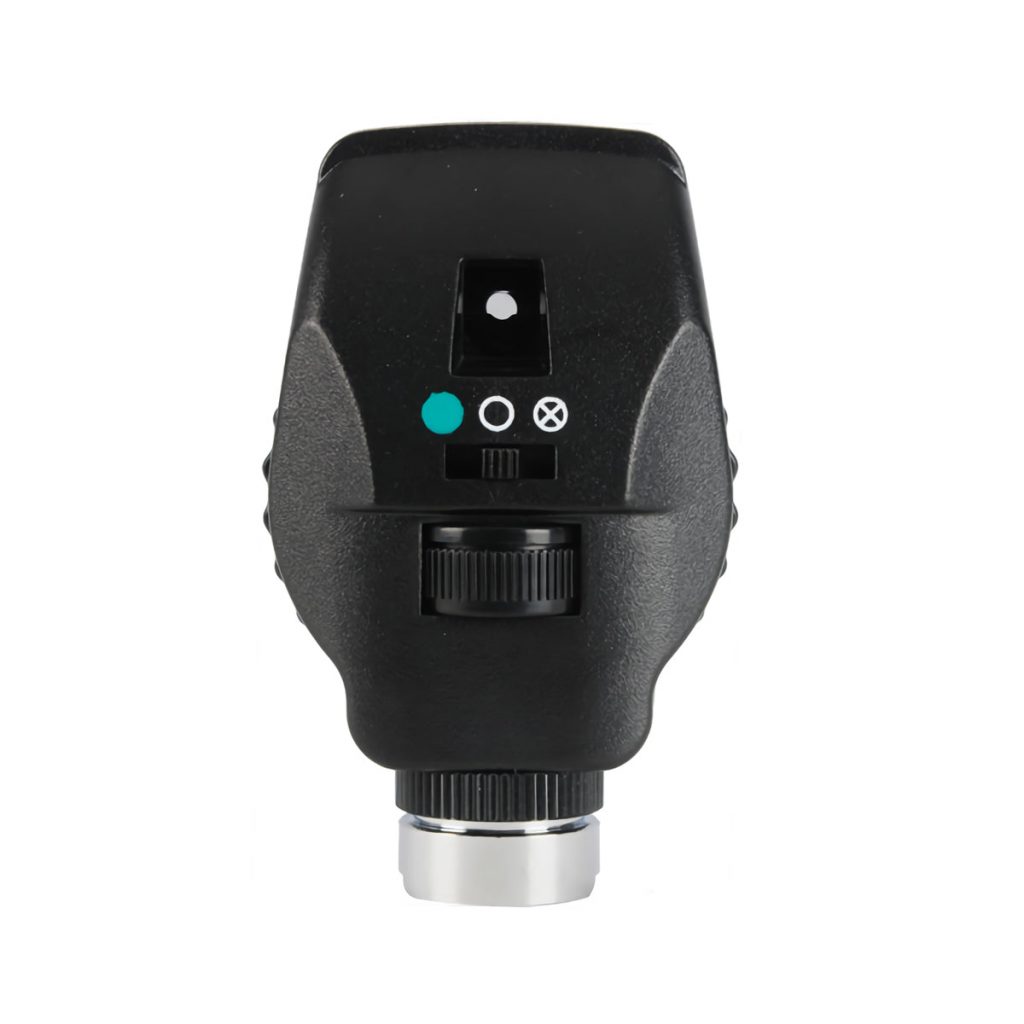

Apertures and Filters
▪ Micro Aperture: allows easy access to very small, undilated pupils.
▪ Small Aperture: provides a simple view of the fundus through an undilated pupil.
▪ Large Aperture: standard aperture for dilated pupils and general eye examination.
▪ Fixation Aperture: allows measurement of eccentric fixation or localization of ocular lesions using its graduated reticle.
▪ Slit Aperture: useful for determining various elevation levels of lesions, particularly tumors and edematous discs.
▪ Cobalt Blue: blue filter used with fluorescein dye to easily visualize small lesions, abrasions, and foreign bodies.
▪ Red-Free Filter: excludes red rays from the examination field to facilitate identification of veins, arteries, and nerve fibers.
Halogen Light 3.5V / 2.7W
The EZ-OPH-3600 ophthalmoscope features a remarkable 3.5V halogen lamp that provides consistent and long-lasting illumination, with a light output that allows true tissue color appreciation. This type of device enables the specialist to select between 3.5V halogen light or 2.7W LED light, according to their preference.

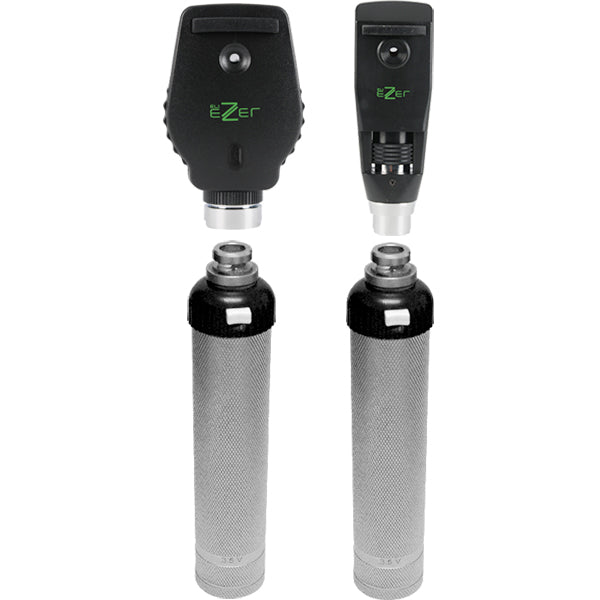

Can be part of the following kits:

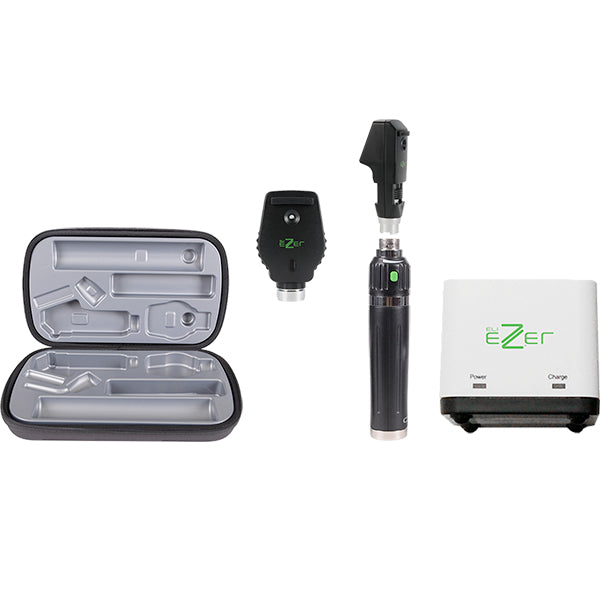

Kit 1
Includes: EZ-OPH-3600, EZ-RET-2600, EZ-HND-2600, EZ-CHG-3600, EZ-OPH/RET-CASE
Kit 2
Includes: EZ-OPH-3600, EZ-RET-2600, EZ-HND-700 (2)
Kit 3
Includes: EZ-OPH-3600 (Lamp Type: Halogen), EZ-RET-2600 (Lamp Type: Halogen), EZ-WTC-5200 DC
Kit 4
Includes: EZ-OPH-3600 (Lamp Type: LED), EZ-RET-2600 (Lamp Type: LED), EZ-WTC-5200 DC
Specifications
| Optical Specifications | |
|---|---|
| Diopters | -30D~+38D (68 lenses in one diopter steps) |
| Opening | Large Aperture, Small Aperture, Micro Aperture, Slit Aperture, Cobalt Blue Aperture and Fixation Aperture. |
| Filter | Red-free filter / Polarizing filter |
| Bulb type | 3.5 V / 2.7 W |
| Operation Mode | Intermittent, the on-time must not exceed 2 minutes with an off-time of no less than 5 minutes. |
| Environmental Requirements | |
| Operation | Temperature Environment +10 °C - +35 °C Relative Humidity 30% - 75% Atmospheric Pressure 700 hPa - 1060 hPa |
| Shipping | Common Carrier |
| Storage | Temperature -40 °C - +55 °C Rel. Humidity 10% - 90% Air Pressure 500 hPa - 1060 hPa |
