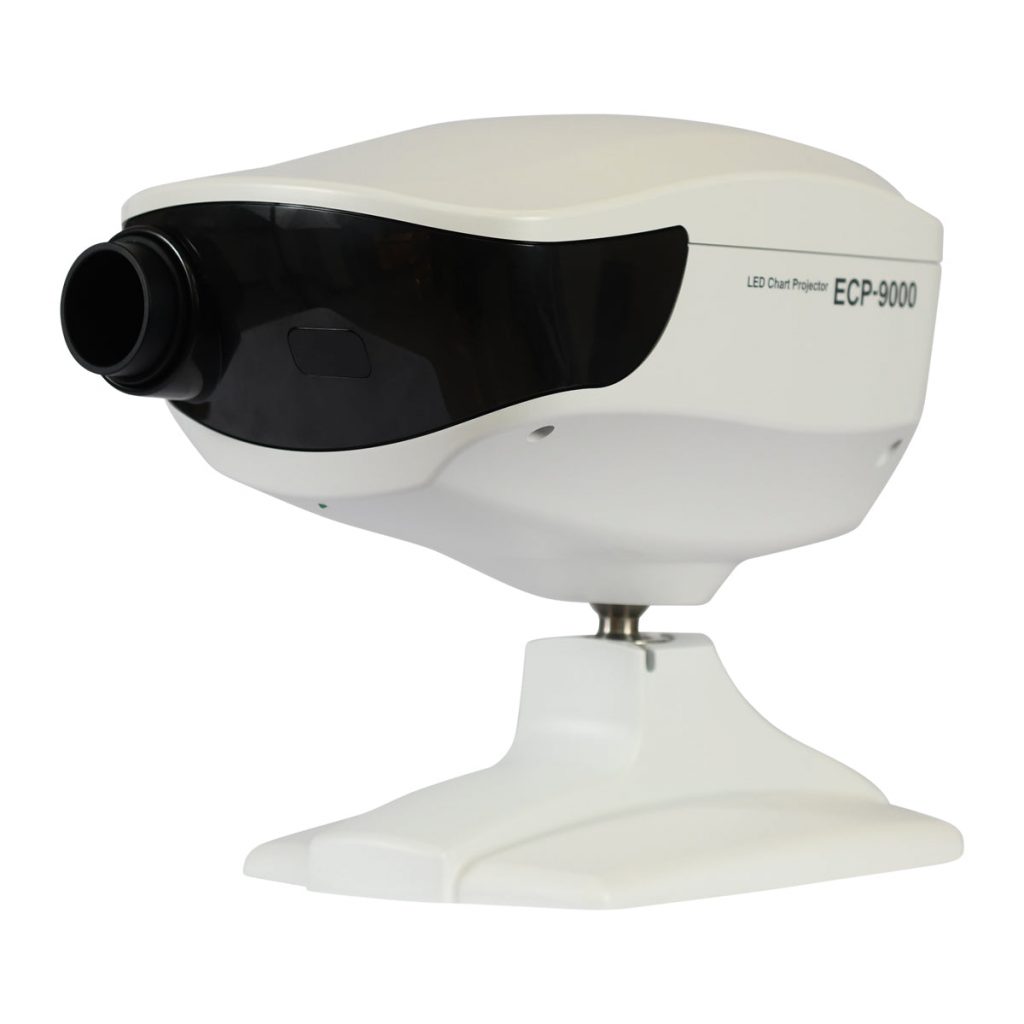

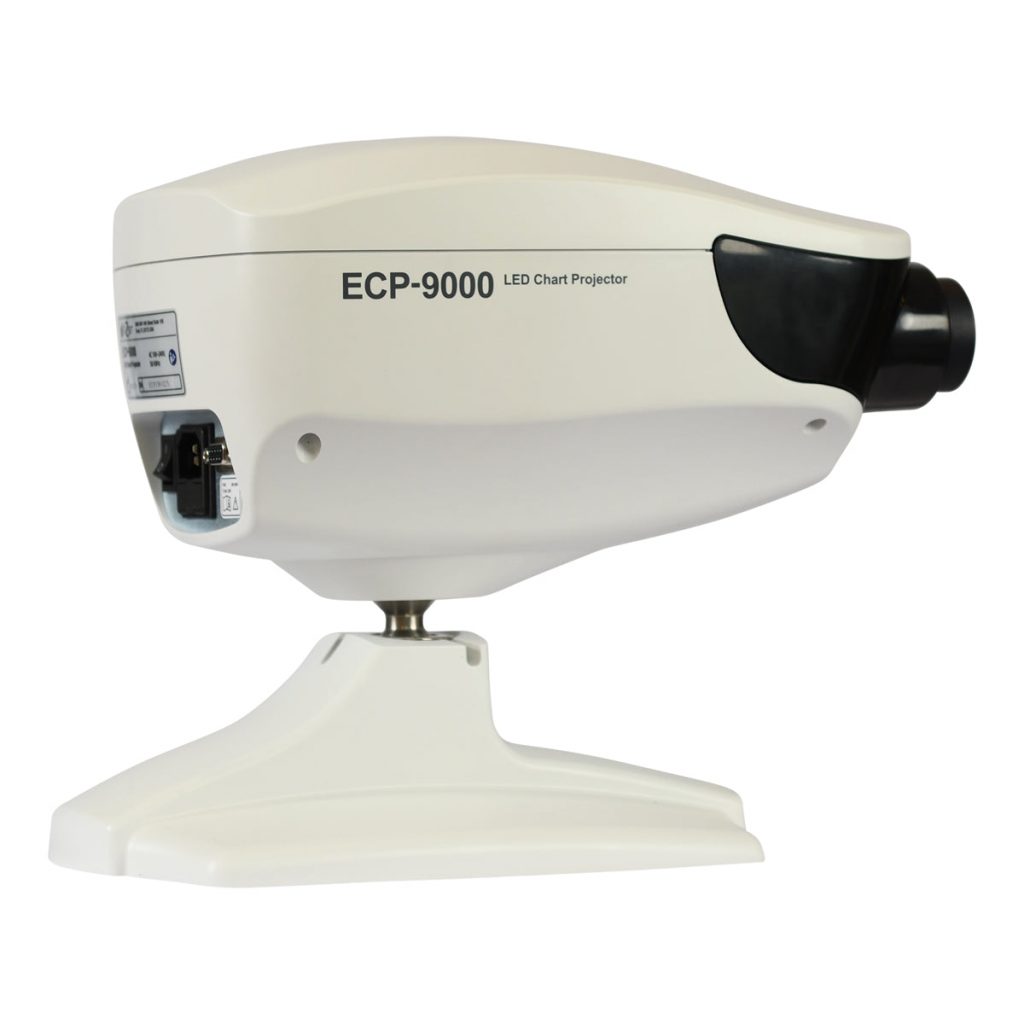

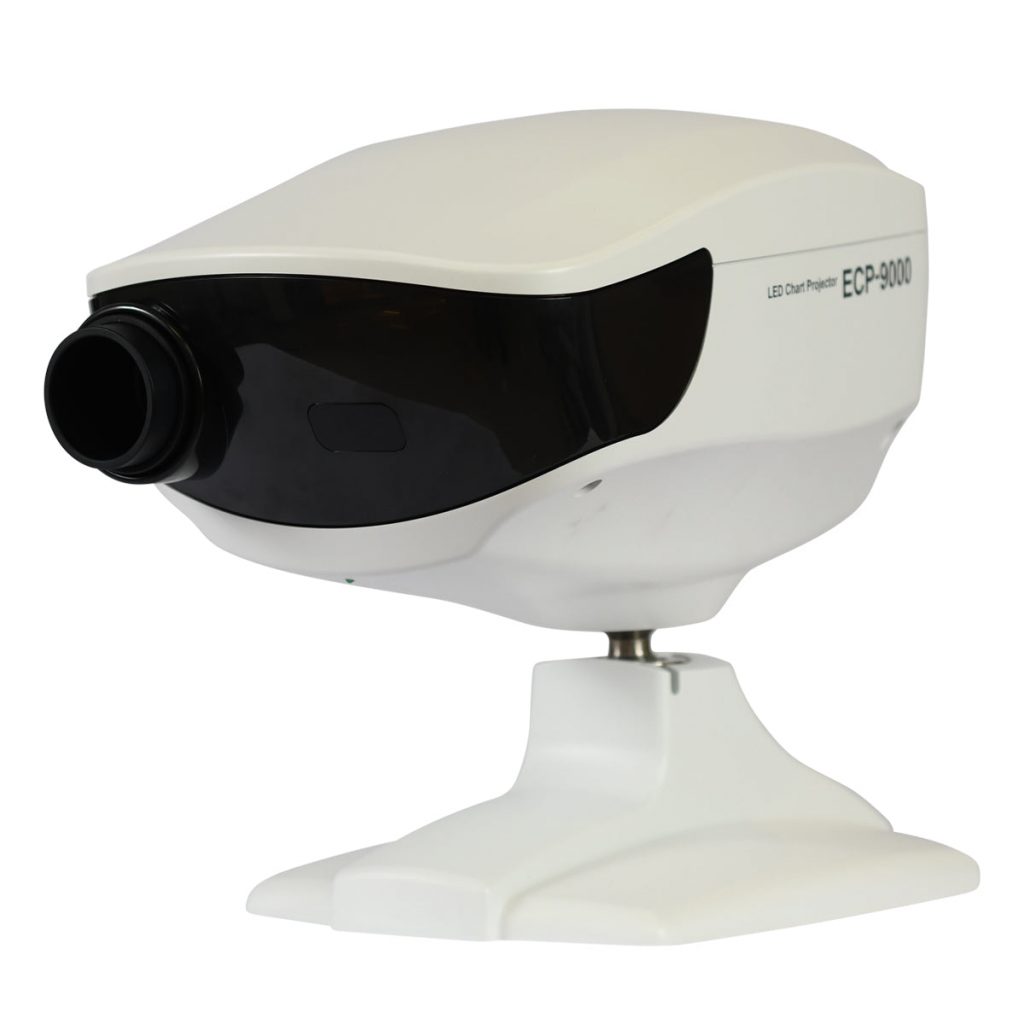

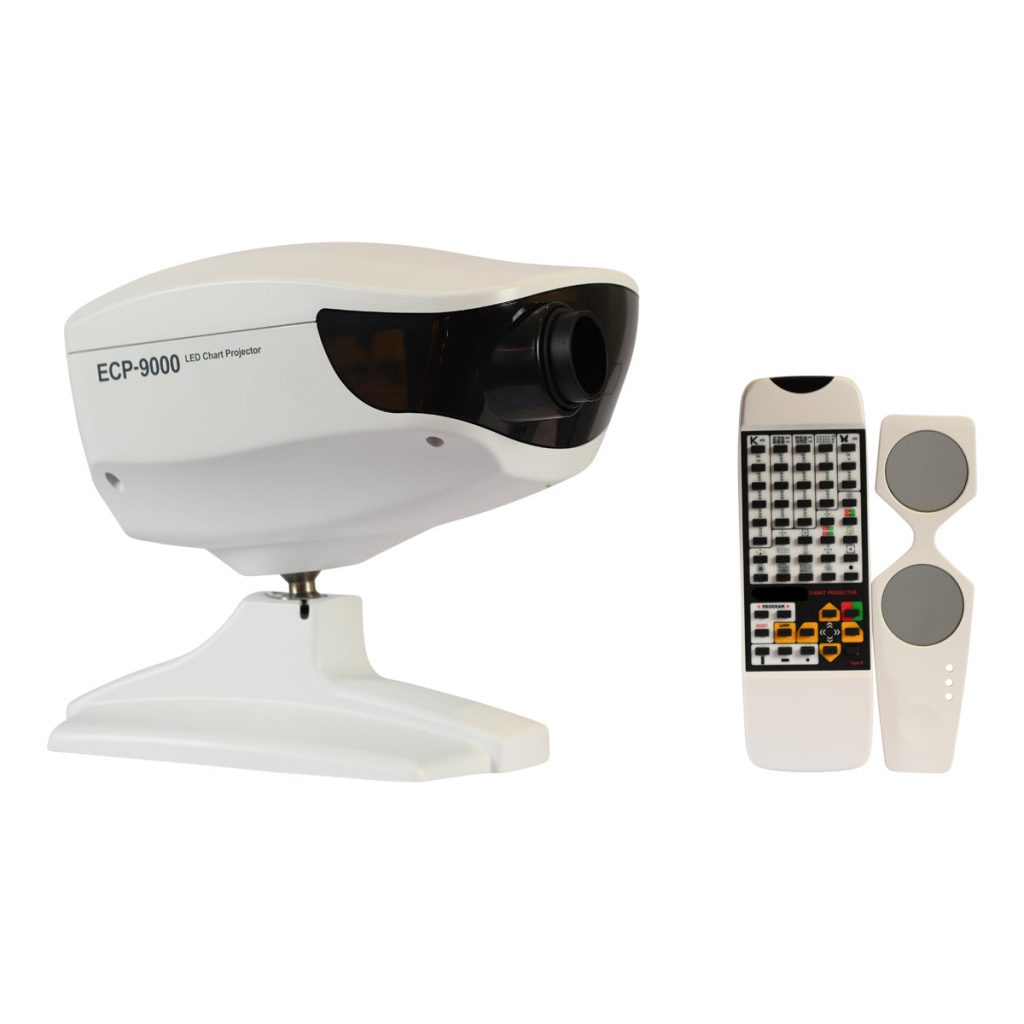

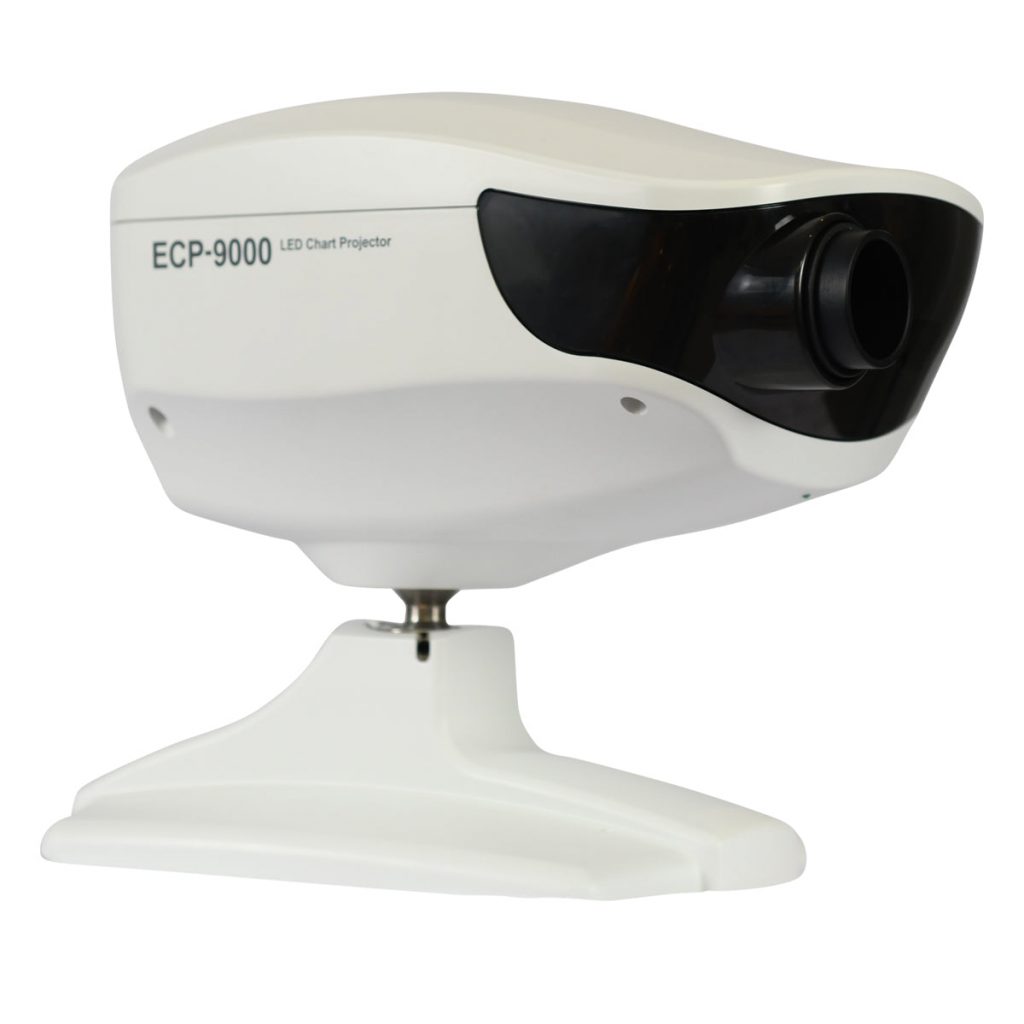

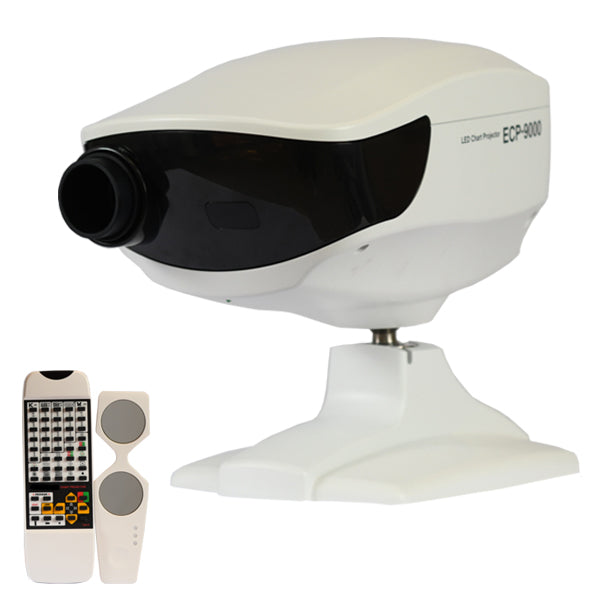

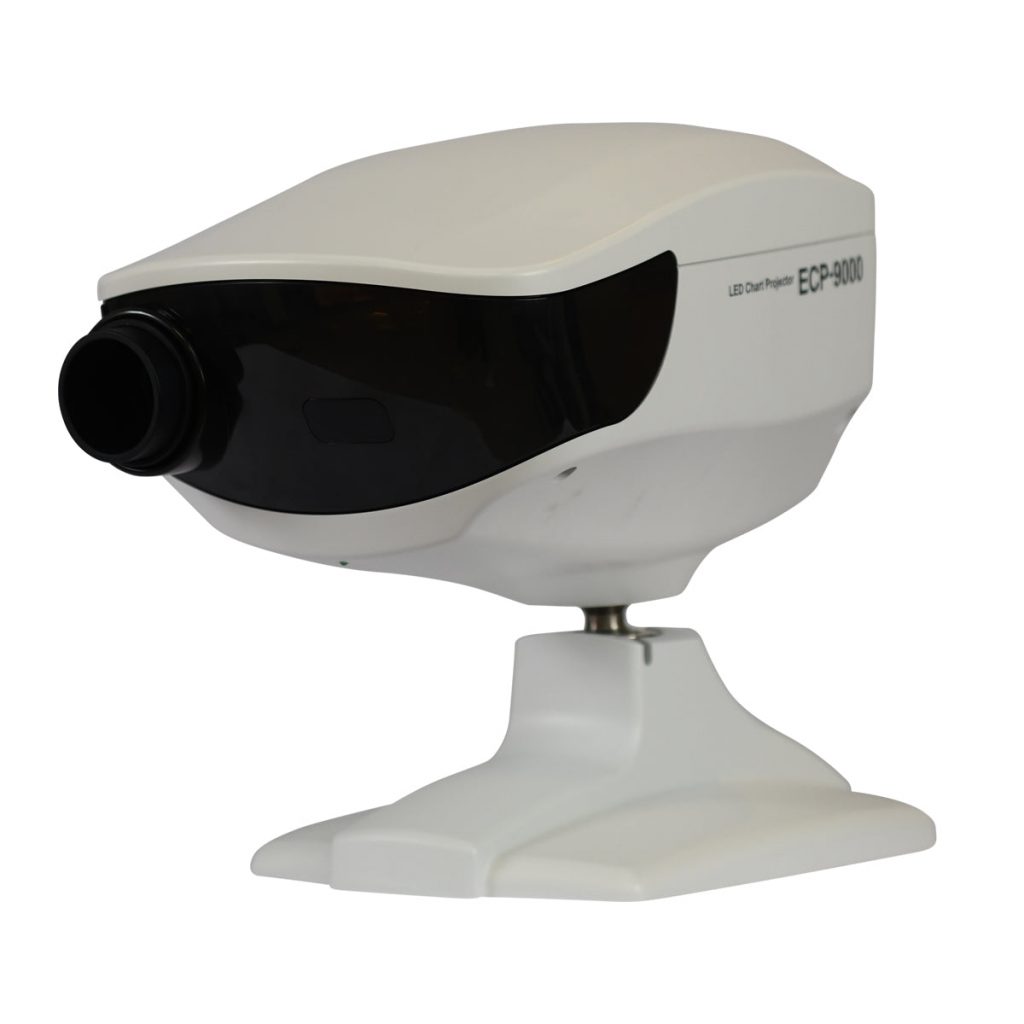

The Ezer ECP-9000 Auto Chart Projector is a brilliantly conceived and beautifully crafted vision chart projection system. This bright and precise projection chart operates remotely for superior examination comfort. Both physicians and patients benefit from this easy-to-use, fast-operating projection chart.
The sleek aesthetic design of the ECP-9000 uses a semi-permanent LED light source for brighter, clearer projection. Both compact and lightweight, this state-of-the-art projector is optimal for offices of any shape and size.
Ezer Chart Projector ECP-9000
REQUEST QUOTEor call toll-free (888) 881-1122Financing available — simple terms, no leasing. Ask about it in your quote request.
High-brightness, high-clarity LED technology
Uses a semi-permanent LED light source that provides brighter and sharper projections, ensuring well-defined details even in the smallest optotypes. Guarantees precise results in visual acuity and refraction testing.
40 chart variations for comprehensive examinations
Offers four different chart types with 40 total variations, including Snellen letters, Russian characters, pictograms, astigmatism test, red-green balance, and fixation dots. Enables comprehensive visual assessments at multiple distances.
Compact and lightweight design, 30% smaller
It is 30% more compact and 27% lighter than the average projector, adapting perfectly to offices of any size. Its modern aesthetics integrate harmoniously into technologically advanced examination rooms.
Efficient remote control with ultra-fast selection
Allows comfortable operation of the equipment from anywhere in the room through a remote control with intuitive pictograms. The chart switching speed is only 0.3 seconds, optimizing workflow.

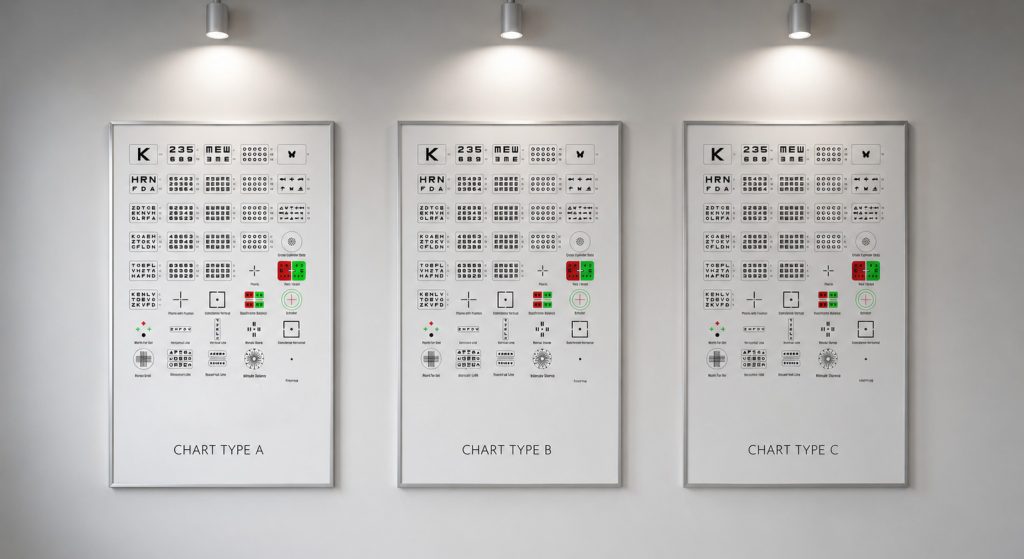

Multiple Charts to Maximize Every Examination
The ECP-9000 incorporates four types of charts with a total of 40 different variations, allowing visual assessments in metric and feet systems. The unit includes numeric optotypes, Snellen letters, special characters, pictograms, and Tumbling E tests. It also features red/green tests for binocular balance, Worth Dot, Schober, fixation targets, and astigmatism tests, providing a comprehensive solution for vision evaluation.

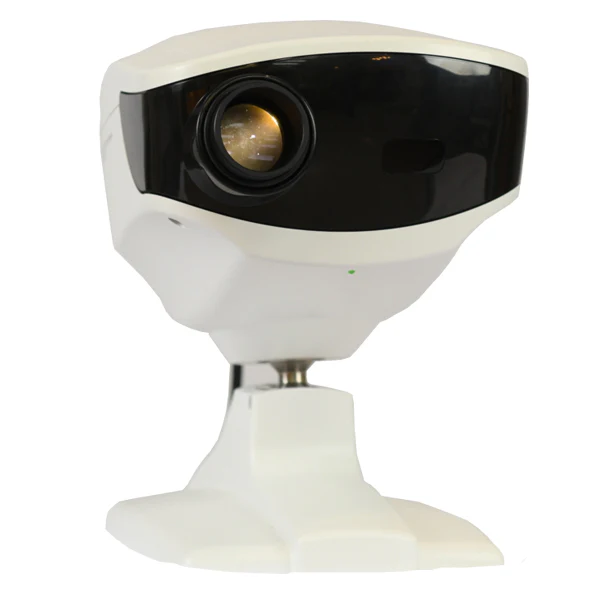

LED Technology for Superior Projection
The advanced LED illumination provides bright and perfectly defined images, even for the smallest optotypes. Its high-quality optical system ensures precise results in subjective visual acuity and refraction tests, regardless of the working distance or the type of chart used.

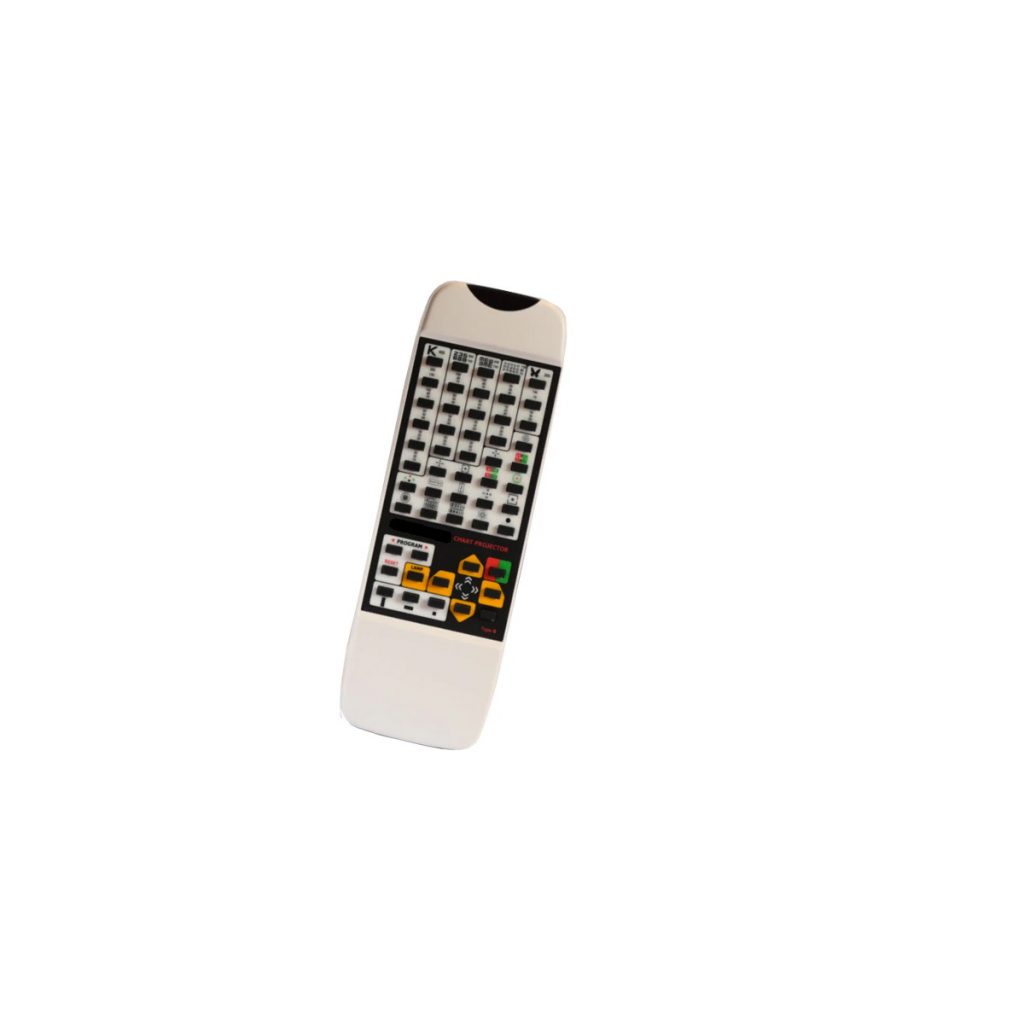

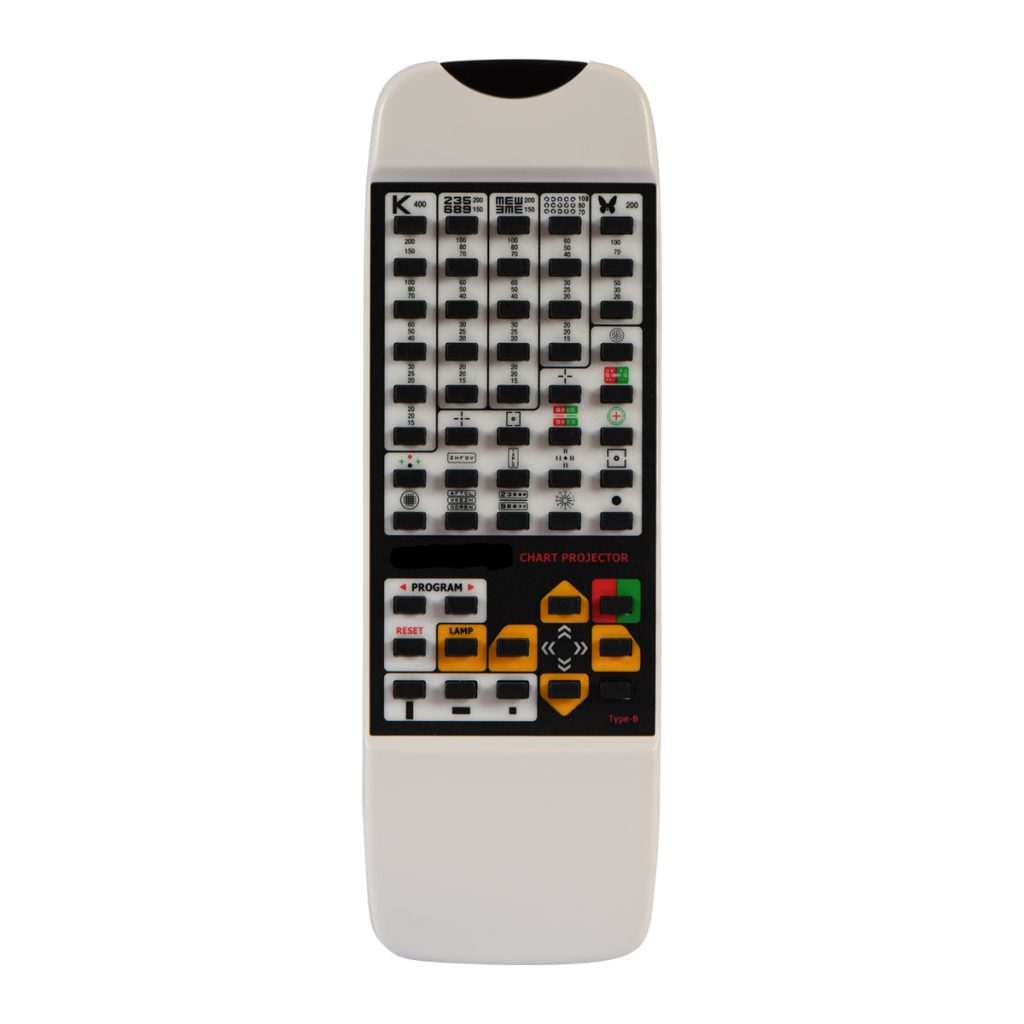

Efficient Control at Your Fingertips
The intuitive remote control allows you to select charts, filters, and functions quickly and easily from anywhere in the examination room. With a chart change speed of approximately 0.3 seconds, workflow remains agile and efficient throughout the entire consultation.
Accessories

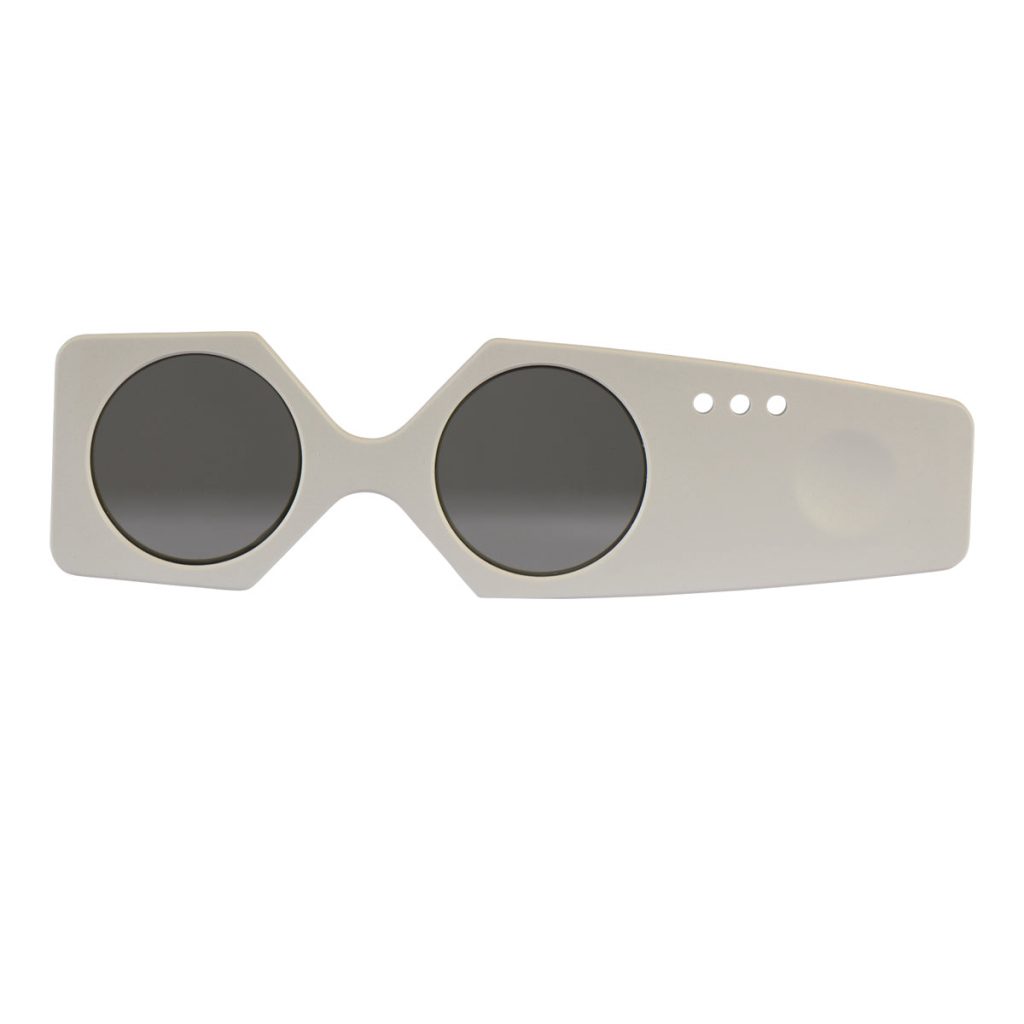

The ECP-9000 is supplied as standard with a dust protective cover, a polarized metal screen, a pair of polarized glasses, a pair of red/green glasses, two spare fuses and two batteries, providing everything needed for immediate installation and operation.

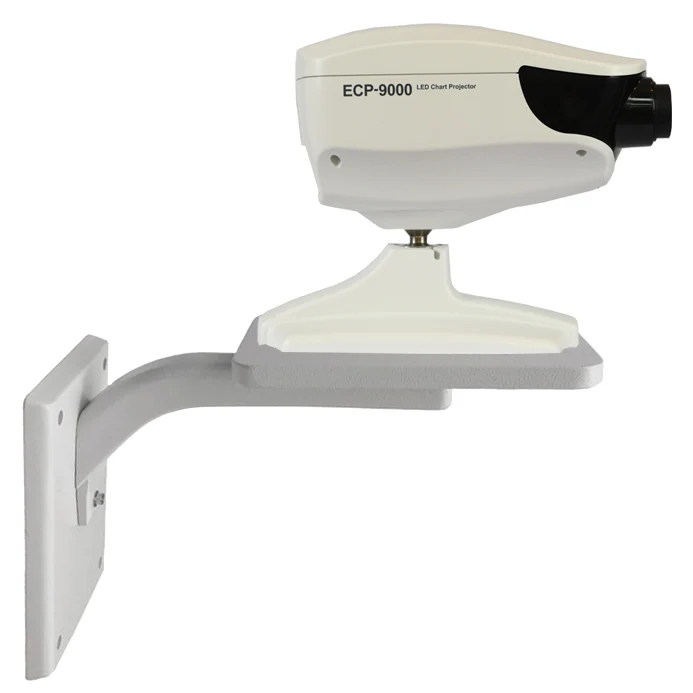

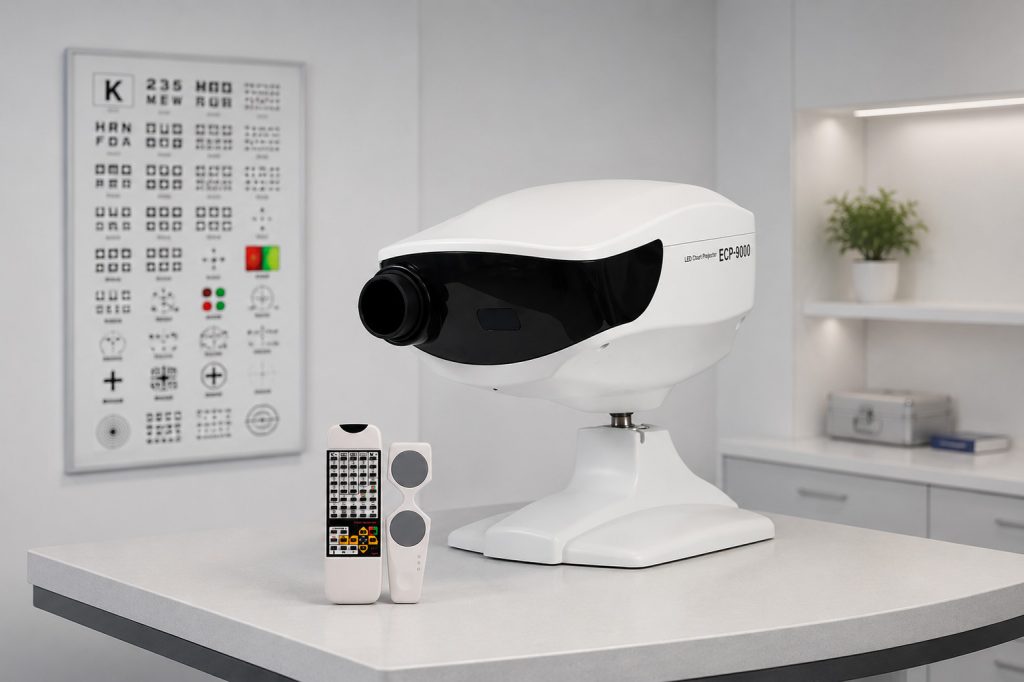

Compact and Lightweight for Any Practice
Its innovative and elegant design integrates seamlessly into modern clinical environments. The ECP-9000 is approximately 30% more compact and 27% lighter than conventional projectors, optimizing available space without sacrificing performance.

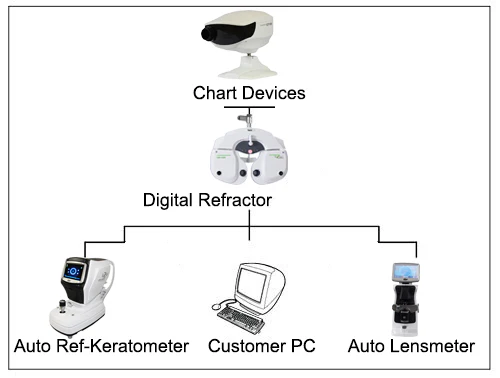

Connectivity for a Digital Practice
The ECP-9000 can be integrated with the Ezer 9000 series diagnostic equipment to create a fully digital vision examination solution. This connectivity allows for optimizing the clinical workflow, from preliminary testing to final prescription.
Specifications
| Chart | 40 Selections |
|---|---|
| Chart Selection Speed | Average 0.2 sec. |
| Mask | 1 Open 5 Horizontal Lines 8 Vertical Lines 21 Individual Letters |
| Filter | Red/Green |
| Projection Distance | 7.9in ~ 27.6in (11.8in is standard)(200mm ~ 700mm (300mm is standard)) |
| Projection Magnification | 30 x (at 19.7in / 500mm) |
| Tilt Angle | Ball joint (±15 degrees) |
| Lamp | 5V 4W(LED) |
| Power Supply | AC 100 ~ 240V 50/60Hz |
| Power Consumption | 45 VA |
| Auto Power-Off Function | 5~10 minutes later |
| Dimensions | Main Body: 11.41(H) x 7.32(W) x 8(D)in (290(H) x 186(W) x 198(D)mm) Table Stand: 7 x 15 x 3.22 in (169 x 365 x 82mm) Remote Control: 0.8(H) x 2.5(W) x 7.7(D)in (20(H) x 64(W) x 195(D)mm) |
| Net Weight | 8lbs / 3.62kg (body: 7lbs / 3.18kg + Stand: 1lb / 0.44kg) Remote control: 110g |
| Accessories | Dust cover: 1EA Metal screen (400mm x 350mm): 1EA Spare fuses: 2EA Batteries (AA size): 2EA Power cable: 1EA Allen keys (2.5mm and 5mm): 1EA Operation manual: 1EA |
| Optional Accessories | Red/green glasses Polarization glasses |

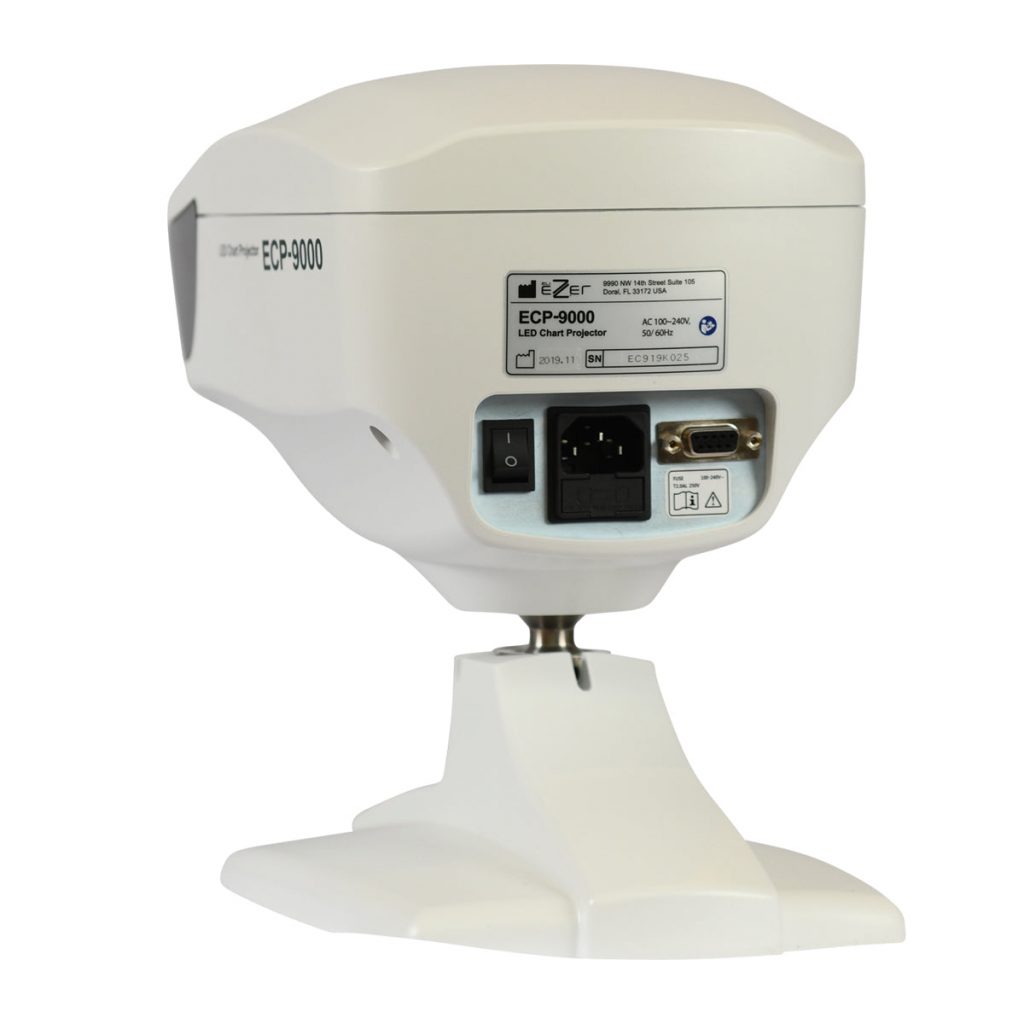

| Interface | RS-232 connector for simultaneous control of chart, mask, and R/G filter via the control unit of a motorized refractor. |
