With the Ezer EDC-2600P with polarization, you can enjoy enhanced clarity in virtually any examination space. It is a complete Visual Acuity System featuring a 24-inch LCD display and remarkable capabilities. Optotype size is automatically calibrated according to the working distance. This 24-inch LCD display loads optotypes and images quickly and silently. With the EDC-2600P, you can update the software whenever you choose. Masking functions and an explanatory eye diagram are features that both you and your patients will appreciate. With multiple mounting options and auto-shutoff, this is an indispensable addition to any modern practice. It provides a variety of basic optotypes for visual acuity measurement, along with aids such as binocular balance testing, horizontal/vertical aniseikonia testing, phoria testing, and color vision testing.

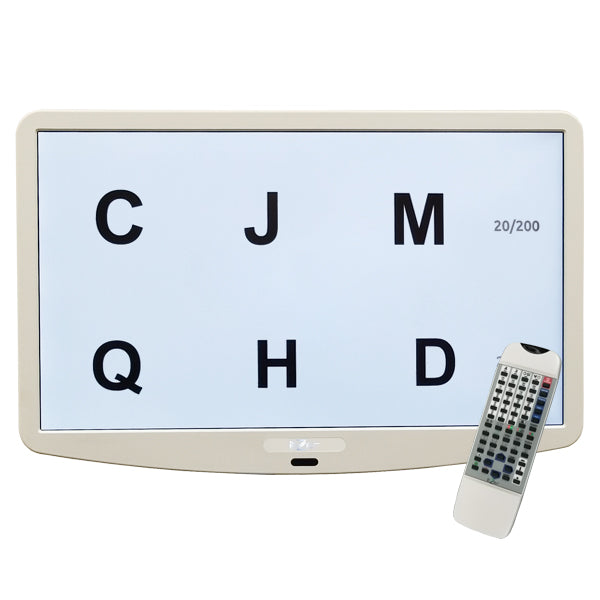

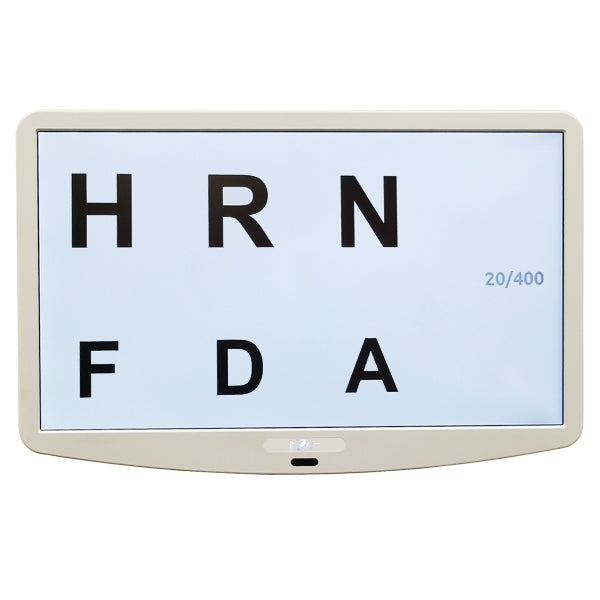

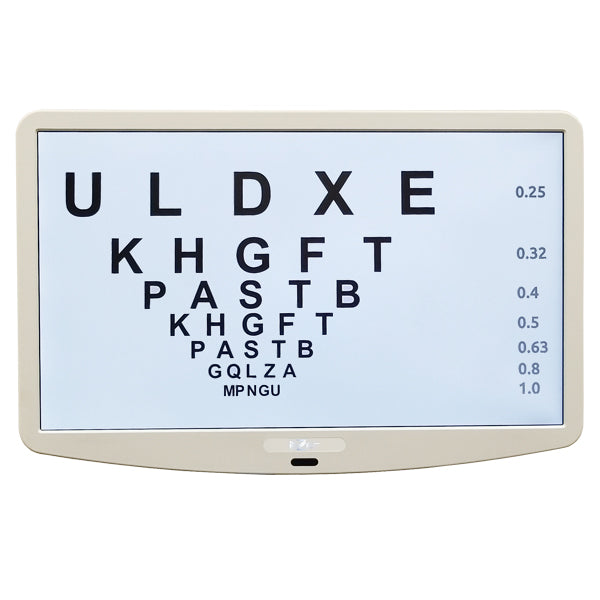

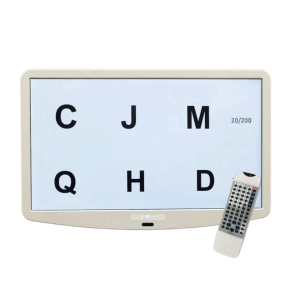

Ezer Digital Chart with Polarization EDC-2600P
Polarization technology for comprehensive diagnosis
Includes a polarization function that enables 3D depth perception testing, as well as binocular, stereoscopic, heterophoria, and suppression vision tests. Maximizes diagnostic capabilities with specialized lenses for more precise evaluations.
High-resolution 24-inch LCD display
24-inch TFT monitor with automatic calibration based on working distance and fast, silent optotype loading. Delivers exceptional clarity and multiple mounting options to optimize any examination space.
Advanced masking and randomization functions
Enables vertical, horizontal, and individual letter masking for improved patient concentration. The randomization function prevents optotype memorization during the examination.
Versatility for patients with special conditions
Includes black-and-white inversion for post-Lasik patients, contrast adjustment for cataract patients, and a wide variety of specialized tests. Features multiple chart options such as Landolt, Snellen, pediatric, and color blindness tests with seven types of charts.

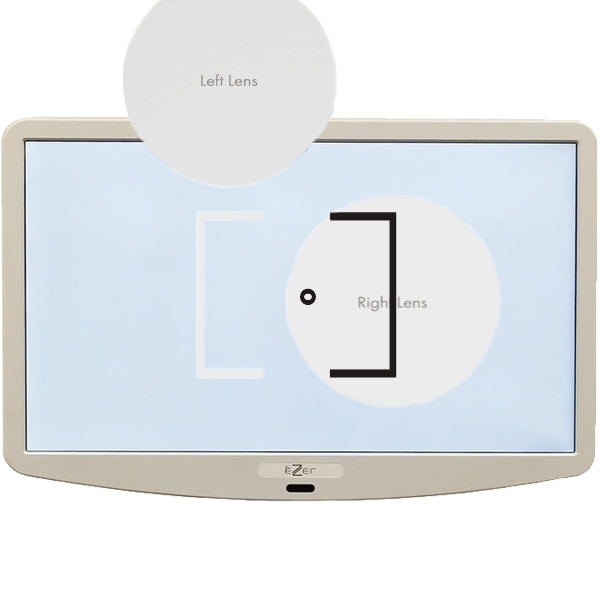

Includes Polarization Test

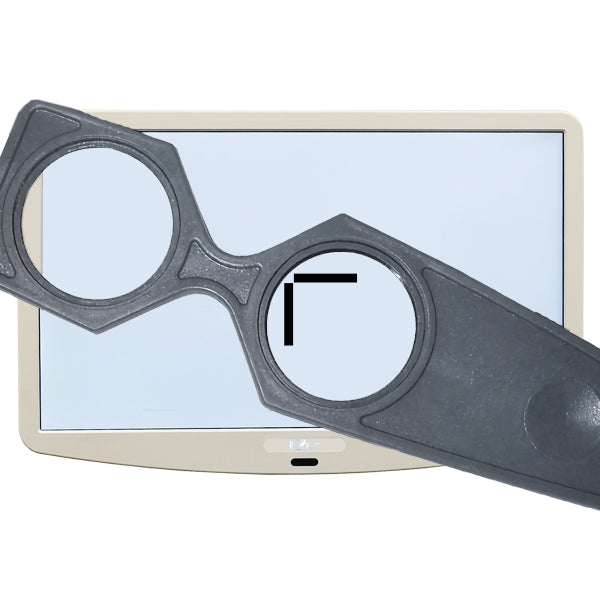

The Ezer EDC-2600P Polarized Digital Chart allows professionals to perform additional tests for a more comprehensive diagnosis. Since the polarized option provides a 3D Test (depth perception), the Ezer Digital Chart maximizes the use of a variety of polarized cards that can be applied to many types of tests using Cross Cylinder, Red/Green, Polarization, and other special lenses such as Binocular Vision Test, Stereoscopic Vision Test, Heterophoria/Heterotropia Test, Binocular Balance Test, Fusion and Suppression Test, Aniseikonia Test, among others.

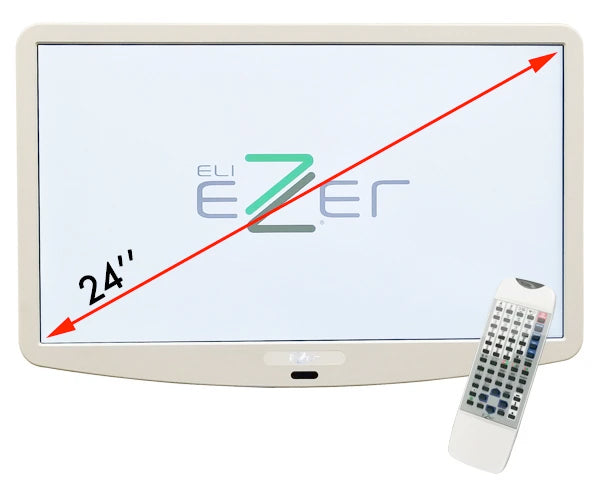

24″ LCD Panel
Simplify the examination process and enjoy high quality with exceptional clarity thanks to the 24″ TFT monitor with a high-resolution screen for a wider and sharper view. This monitor includes various installation methods to ensure sufficient space even in limited areas.
Masking
The EDC-2600P provides vertical and horizontal line masking, as well as individual letter masking, so you can show patients exactly which line or letter you want them to focus on.
Random The Random option allows the specialist to display random charts to the patient, preventing memorization.
Black-White
Includes Black-White inversion function. This function offers convenient testing for patients who have undergone Lasik surgery.
Contrast Adjustment
Contrast adjustment function for contrast sensitivity testing that facilitates visual acuity examination for all patients, especially patients with cataracts.

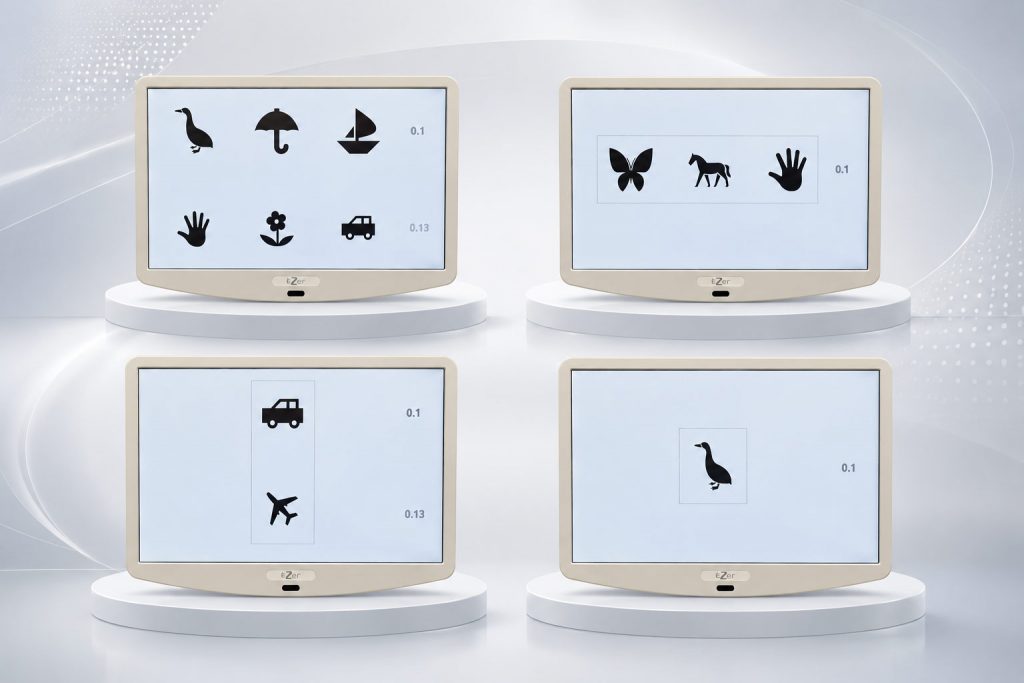

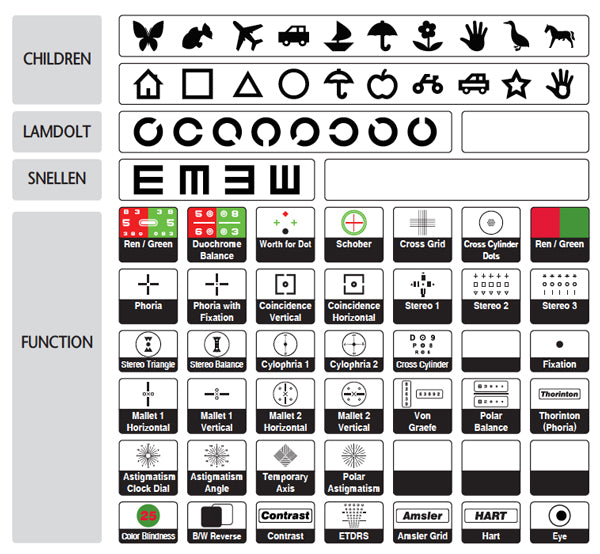

Different Tests and Charts

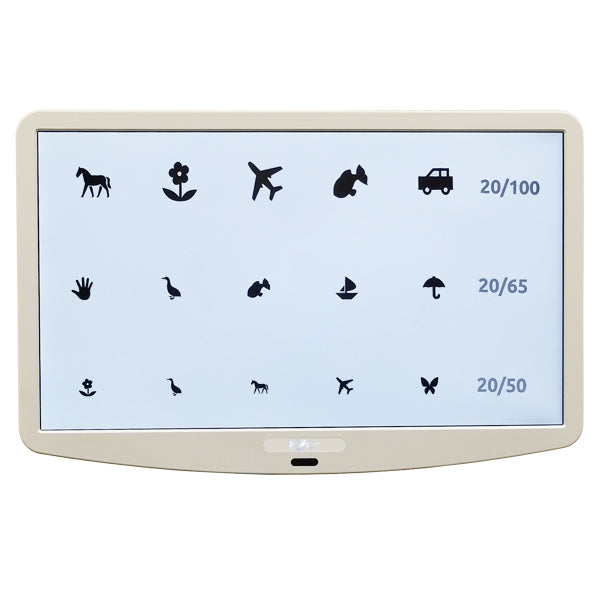

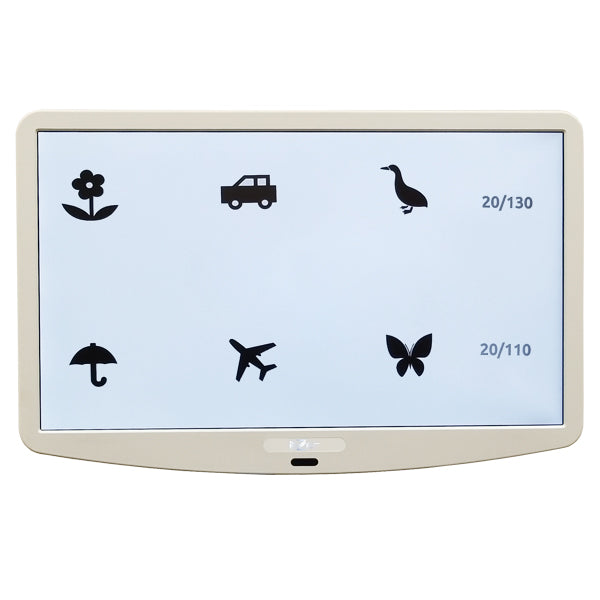

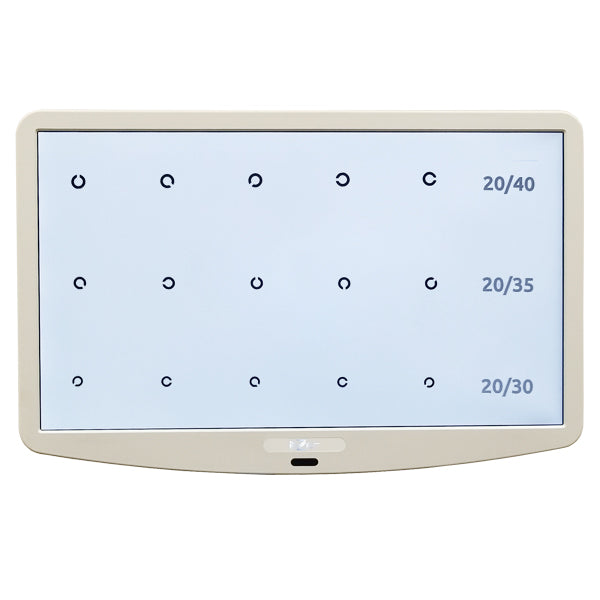

The EDC-2600P includes binocular balance test, astigmatism test, and stereoscopic photographs. It features different charts: Landolt Ring, Snellen, Child Chart, Cross chart, and more. It also includes visual and special functions for all types of patients, such as cataracts, strabismus, and more.
Color Blindness Test
Seven preset graphic types / Random selection function.
Specifications
| Monitor | |
|---|---|
| Type | 24" TFT, LED backlight |
| Resolution | 1920 (H) x 1080 (V) px |
| Viewing Area | 21 (H) x 12 (V) in (531.36 (H) x 298.89 (V) mm) |
| Features | |
| Optotypes | 1. Landolt Ring / Snellen 2. Numbers / Letters / Korean 3. Pediatric |
| Masking | 1. Letter / Horizontal Line / Vertical Line 2. Normal / Center |
| Filter | Red and Green |
| Visual Function | 1. Red and Green, Polar Separation, Polar 3D 2. Red and Green 3D, Color Blindness (Slide Mode) |
| Special Function | Mirror Mode / Contrast / Black and White Inversion |
| Distance | 59in ~ 296in (9.8in Step) (1.5m ~ 7.5m (0.25m Step)) |
| Control Device | Wireless IR remote control / Digital refractor |
| Screen Saver Function | Monitor off / Display optotype (5sec, 10sec, 30sec) |
| Screen Saver Wait Time | 3min / 5min / 10min / 30min |
| Specifications | |
| Body | 23(W) x 14(V) x 2(D) in / 8.8 lb (571(W) x 347(V) x 48(D) mm / 4 kg) |
| Remote Control | 3(W) x 8(V) x 1(D) mm / 0.35 lb (64(W) x 195(V) x 20(D) mm / 160 g) |
| Power Supply | DC 12V |
| Power Consumption | 26W |
| Accessories | |
| Mounting | Table / Floor (Optional) / Wall (Optional) |
| Spectacles | Polar (Optional) / Red and Green (Optional) |
| Remote Control | 1 pc |
| Battery | 2 pcs (AA 1.5V) |
| Adapter | 1 pc |
| Serial Cable | 1 pc |
| Power Cable | 1 pc |
| Monitor Cloth | 1 pc |
