$1,988.00

Hurry, only 1 item(s) left in stock!
10 visitors are looking this product!

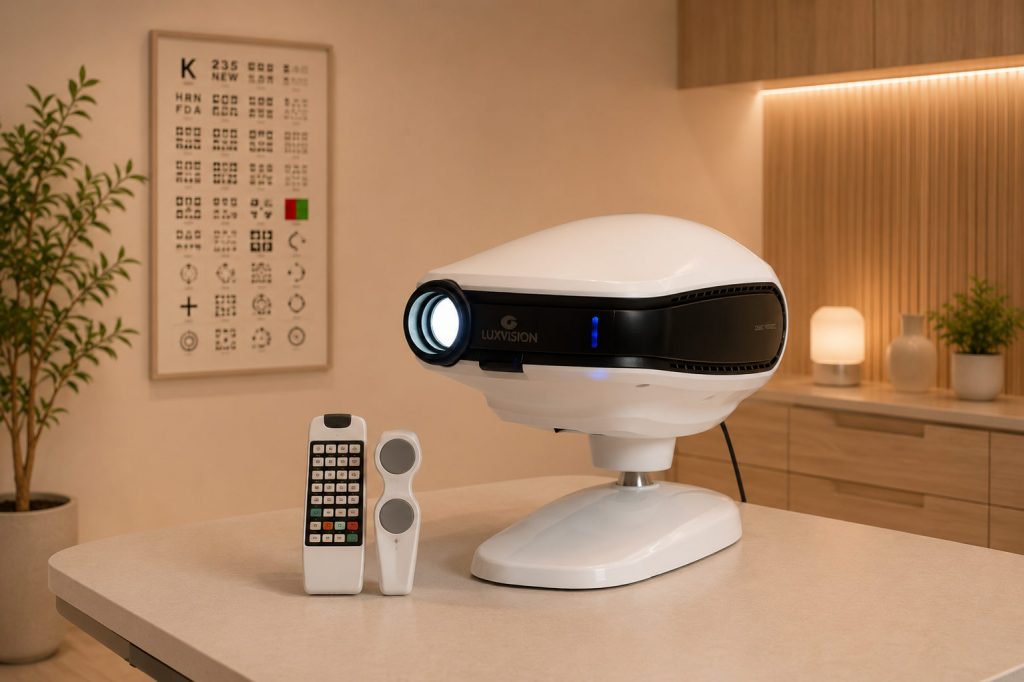

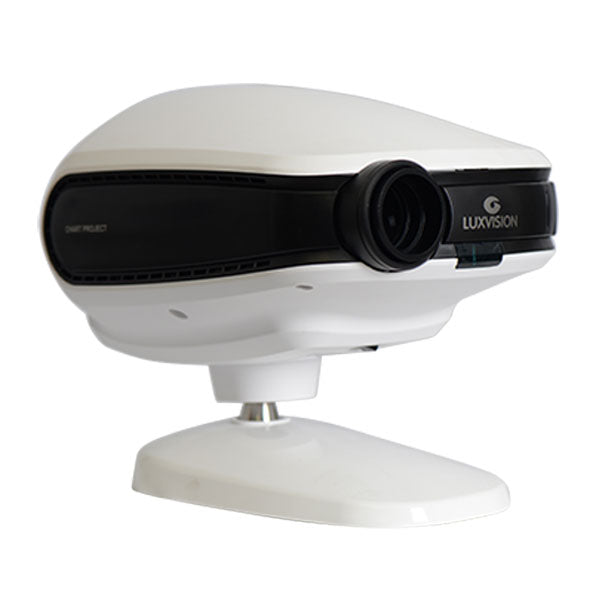

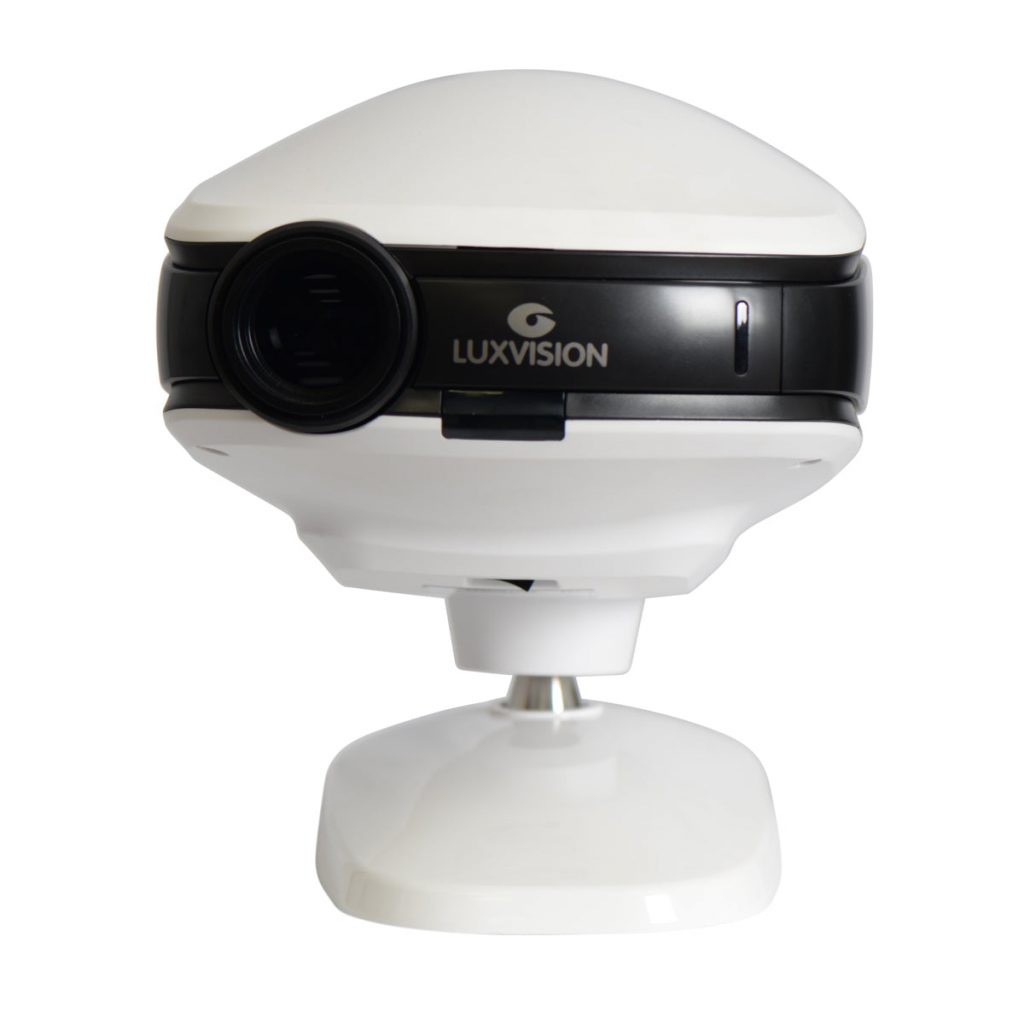

Chart Projector LCP-7800 Luxvision - US Ophthalmic

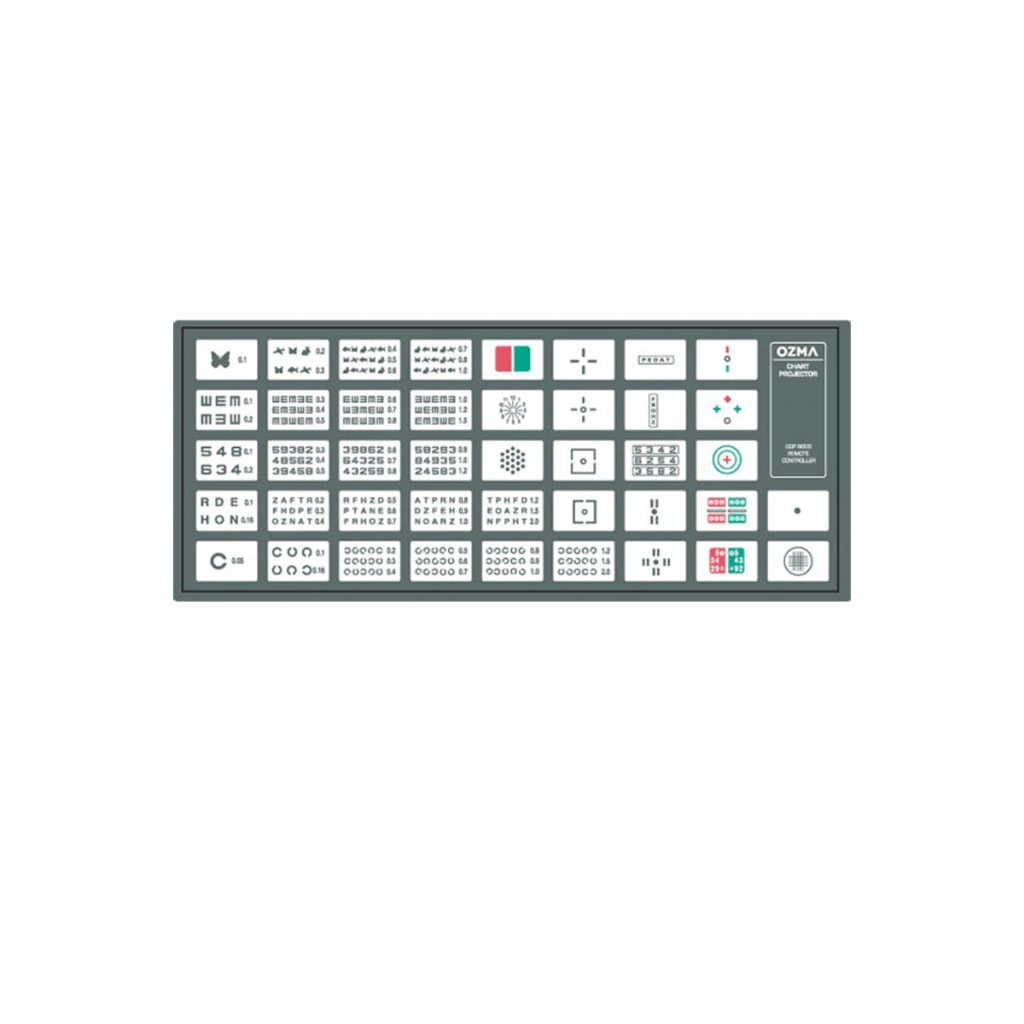

Numerous Charts and Flexible Sequences
Randomly select any of the 41 test charts or use the program feature to create two user-defined chart sequences.

Masking and Filters
The LCP-7800 includes 34 masks. The masking controls allow you to isolate horizontal and vertical lines or individual characters. Additionally, you can apply a red/green filter or polarizing filter.


Chart Projector LCP-7800 Luxvision - US Ophthalmic

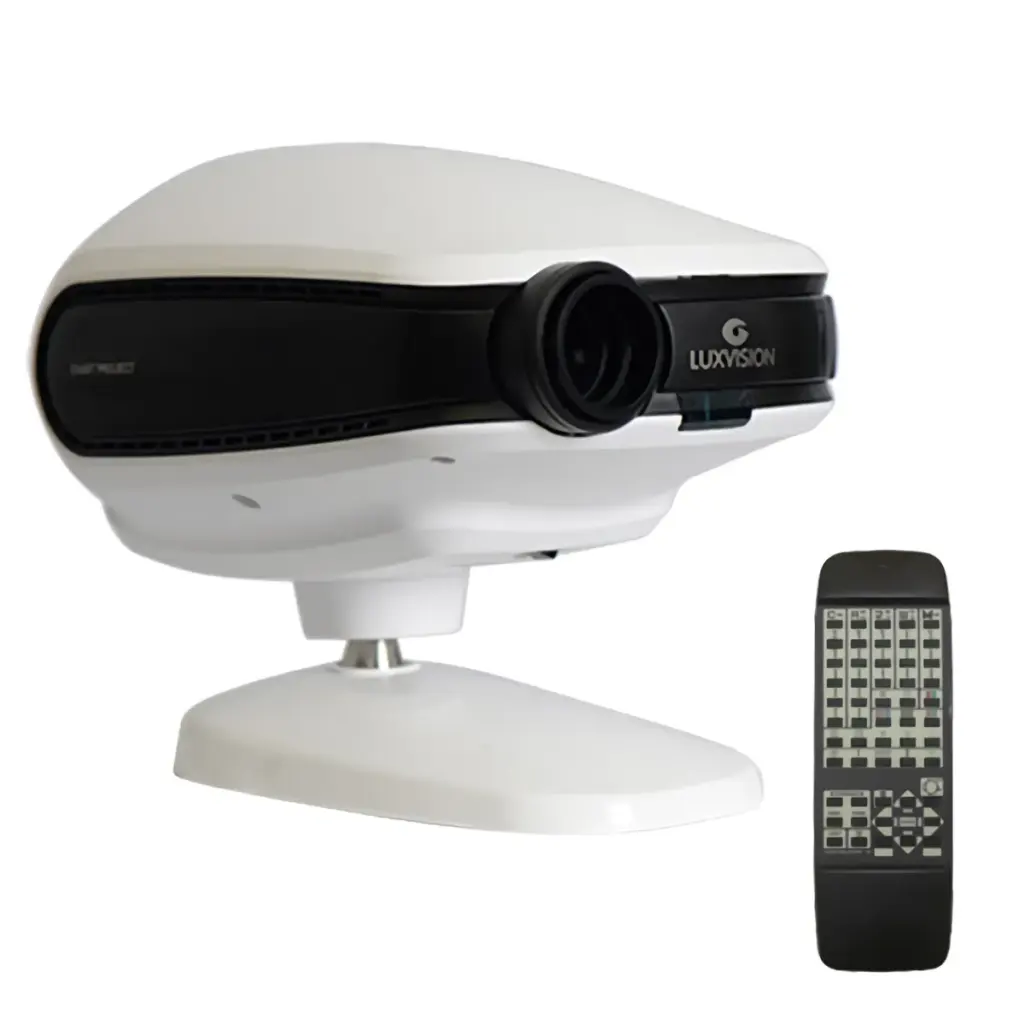

Programmable Remote Control
Fast and efficient refracting is as simple as the push of a button. With the LCP-7800, complete control is right at your fingertips.

LED Light Source
You will be amazed by the difference LED lighting can make. Semi-permanent lifetime LED light source is brighter and clearer than conventional bulb light.


Chart Projector LCP-7800 Luxvision - US Ophthalmic


Easy Network Capability
Combine the LCP-7800 with your other diagnostic instruments to form a truly Digital Practice. When connected to your digital refractor, lensmeter and autorefractor/keratometer, the LCP-7800 will allow you to perform a full digital vision exam, from pretest to Rx.

Charts 41 chart 34 mask, Red/Green & Polarization Filters
Projection Distance 2.5~8m (Optional: 8m screen)
Chart Rotation Speed Average 0.15 sec
Projection Magnification 30 x at 5m
Power Saving Automatic Switch off (10min)
Program 2 programs with a maximum of 30 charts each
Tilt Angle 15 °
Power Supply 100-120V@50Hz
200-240V@60 Hz
Power Consumption Max 0.6A
Lamp LED 4W
Dimension 10.63(W) x 7.16(D) x 9.05(H) in (270(W) x 182(D) x 230(H) mm)
Weight 7.70lb / 3.5kg
