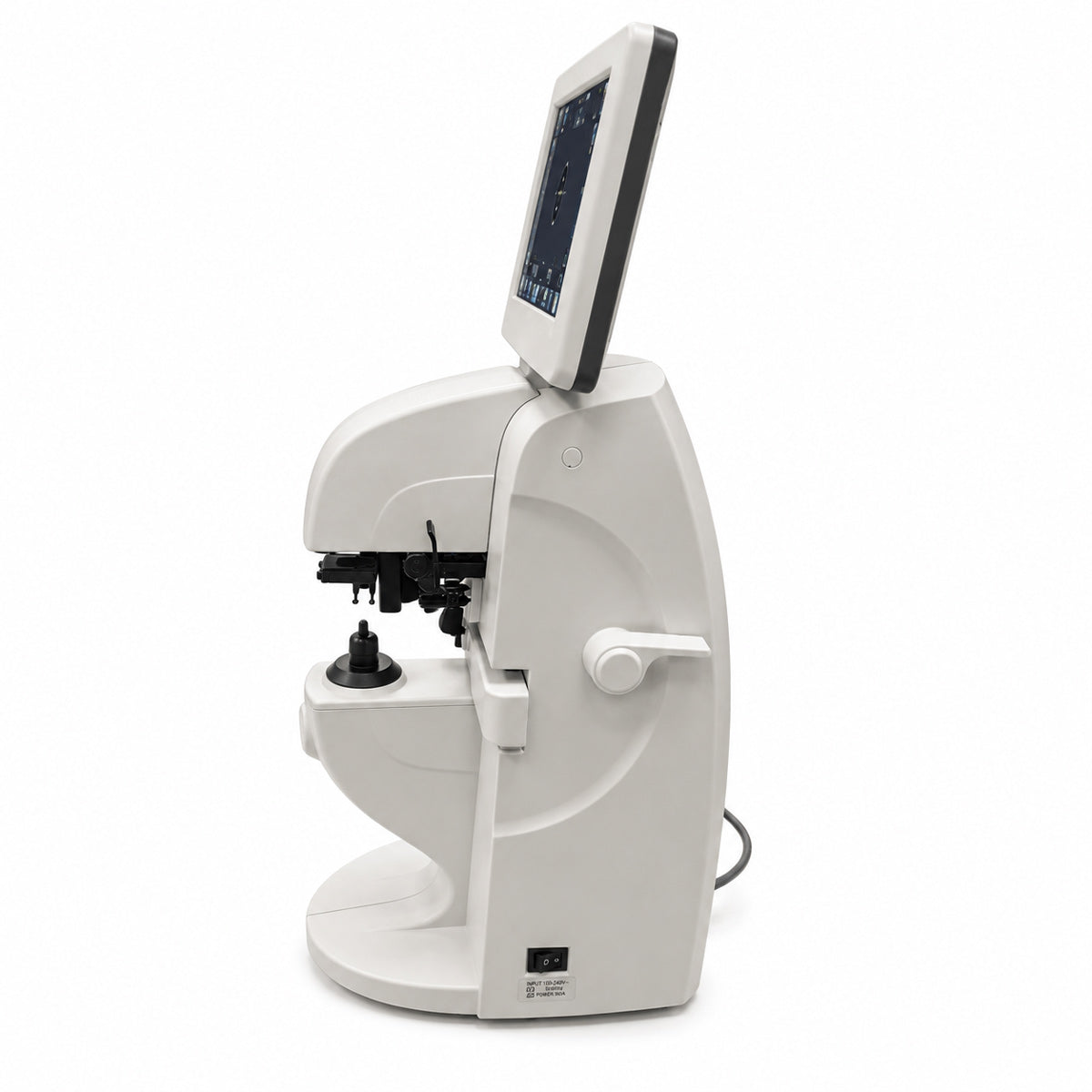

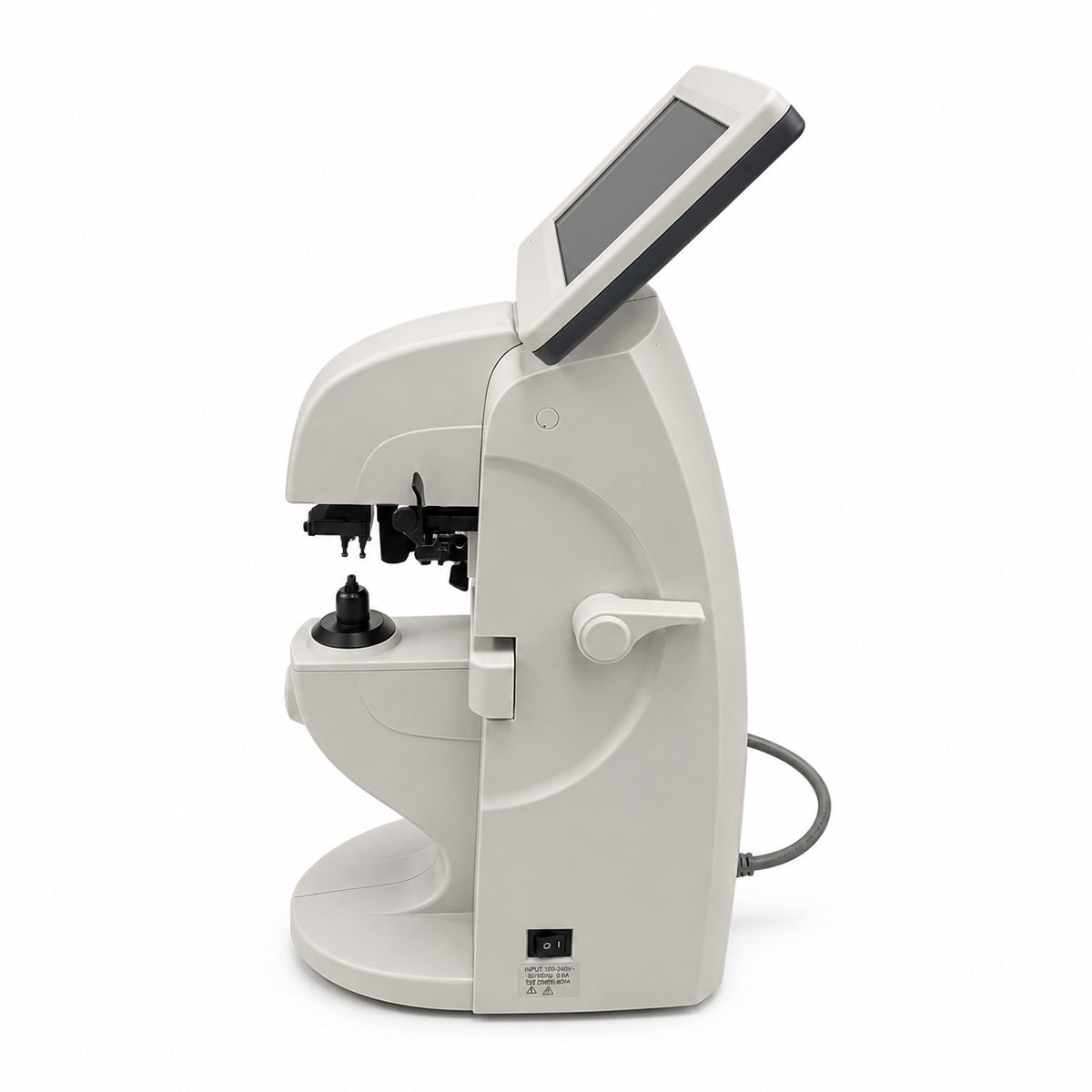

The ELM-770 Automatic Lensmeter is a state-of-the-art optical measurement instrument designed to deliver precise and rapid readings for all types of lenses. Featuring a 7-inch LCD/TFT touchscreen and a 108-point measurement system, it measures right and left eye lenses simultaneously and includes UV and green light transmittance testing. Its intuitive design and automatic lens recognition make it an ideal tool for optical shops and ophthalmology practices seeking efficiency and precision.
Ezer Digital Lensmeter ELM-770
REQUEST QUOTEor call toll-free (888) 881-1122Financing available — simple terms, no leasing. Ask about it in your quote request.
Simultaneous measurement of both eyes
108-point system that measures right and left eye lenses simultaneously. Delivers complete results on a 7-inch touchscreen in just 0.1 seconds.
Automatic lens type recognition
Automatically identifies monofocal, bifocal, trifocal, progressive, and contact lenses without complex configuration. Streamlines the measurement process and eliminates manual selection errors.
Integrated UV transmittance test
Directly evaluates UV and green light protection of lenses on screen. Allows verification of the quality of protective coatings on clear and tinted lenses.
Full USB, RS-232 and WiFi connectivity
Integrated thermal printer and multiple connectivity interfaces for data transfer. Facilitates integration with modern ophthalmology practice management systems.
The ELM-770 is a versatile automatic lensometer capable of measuring single vision, bifocal, and trifocal lenses, progressive lenses (PPL), and contact lenses. Thanks to its automatic lens recognition system, the instrument identifies the lens type and streamlines the measurement process without complex configurations.
Advanced Display and Interface

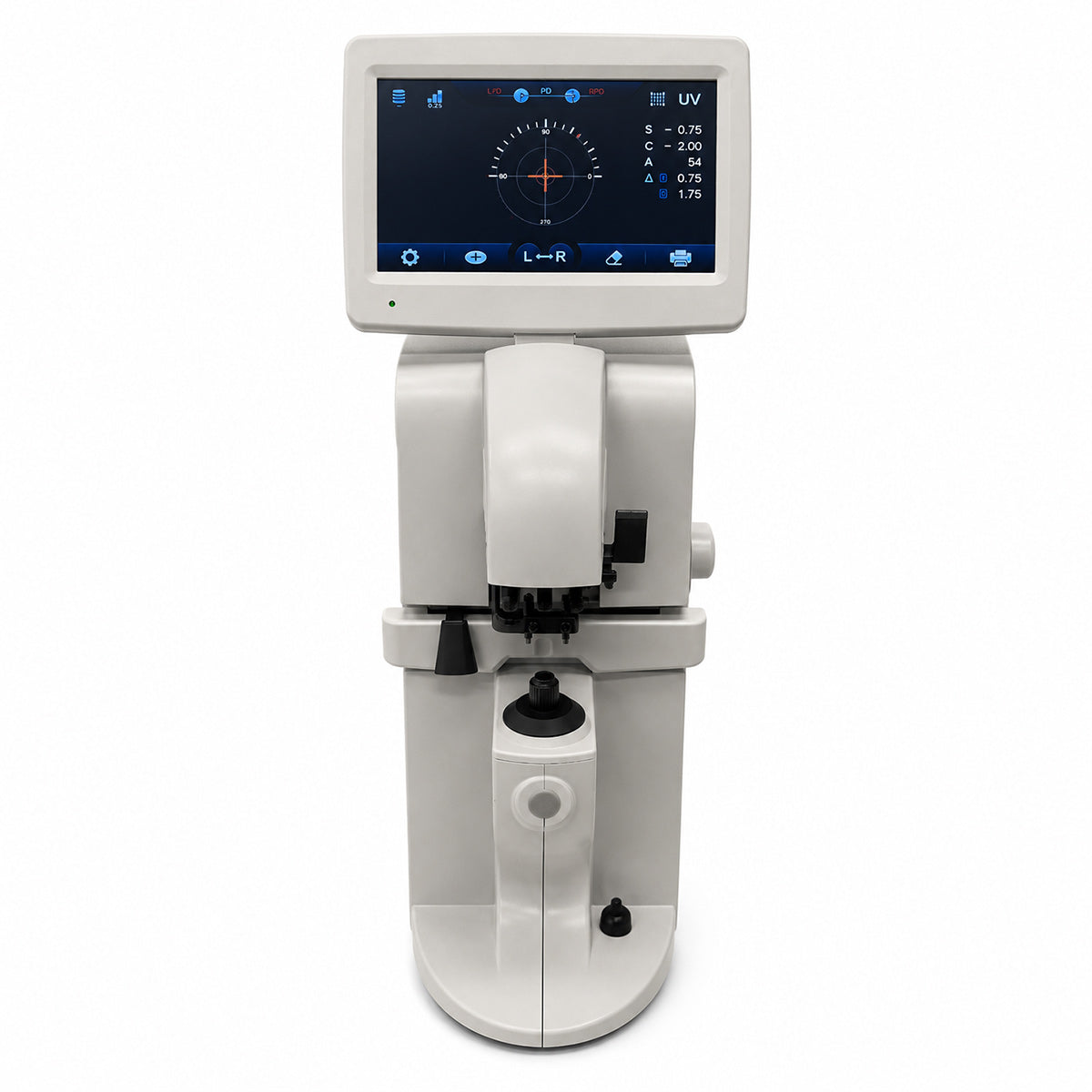

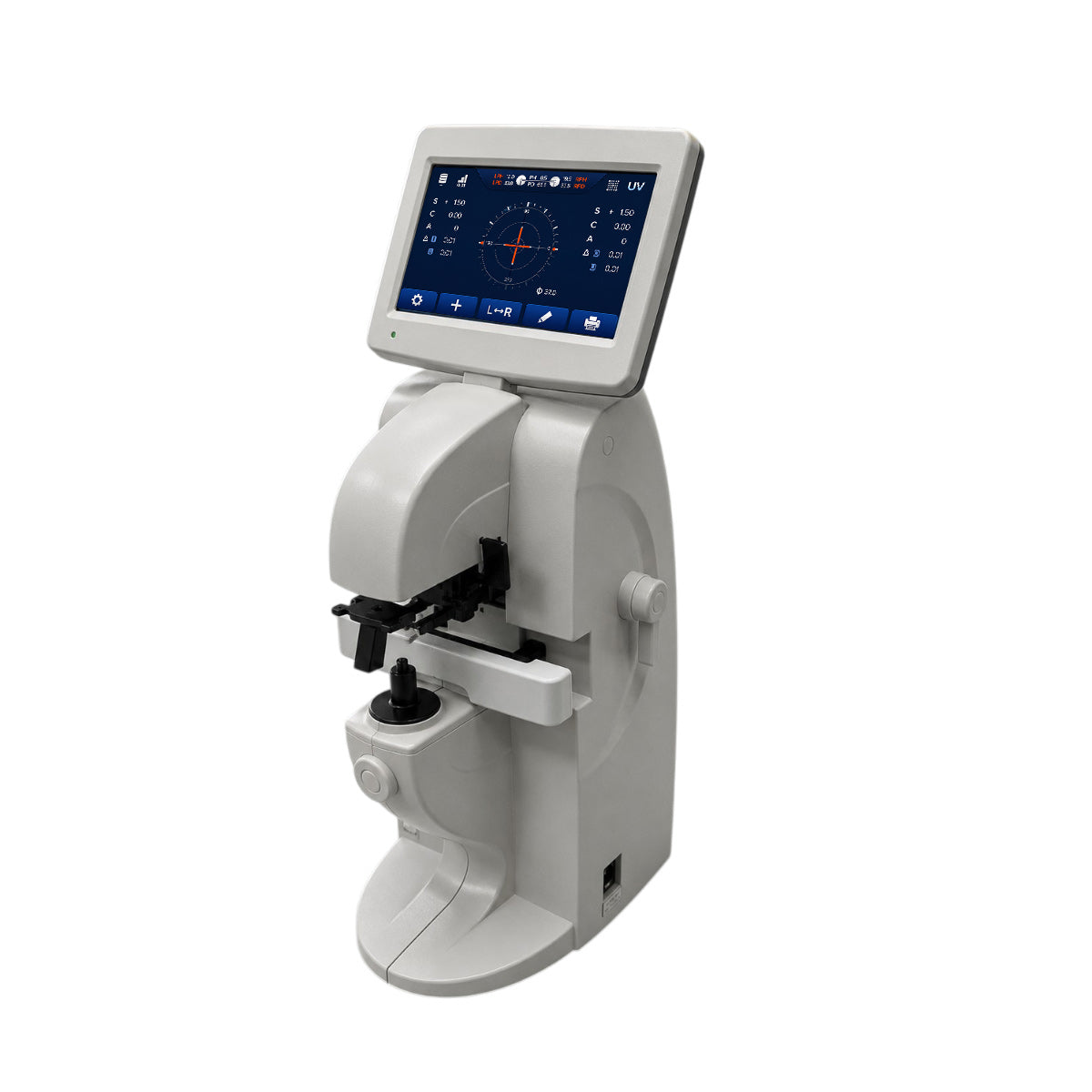

The 7-inch LCD/TFT touchscreen with full graphics displays the measured values for both lenses simultaneously, while graphically representing the alignment condition in target format. Conveniently located on-screen icons and a clear, simple menu allow operators to switch between measurement modes, adjust the cylinder sign, set precision steps (0.01 / 0.12 / 0.25), and verify the light path with ease.
Comprehensive Measurement Capabilities

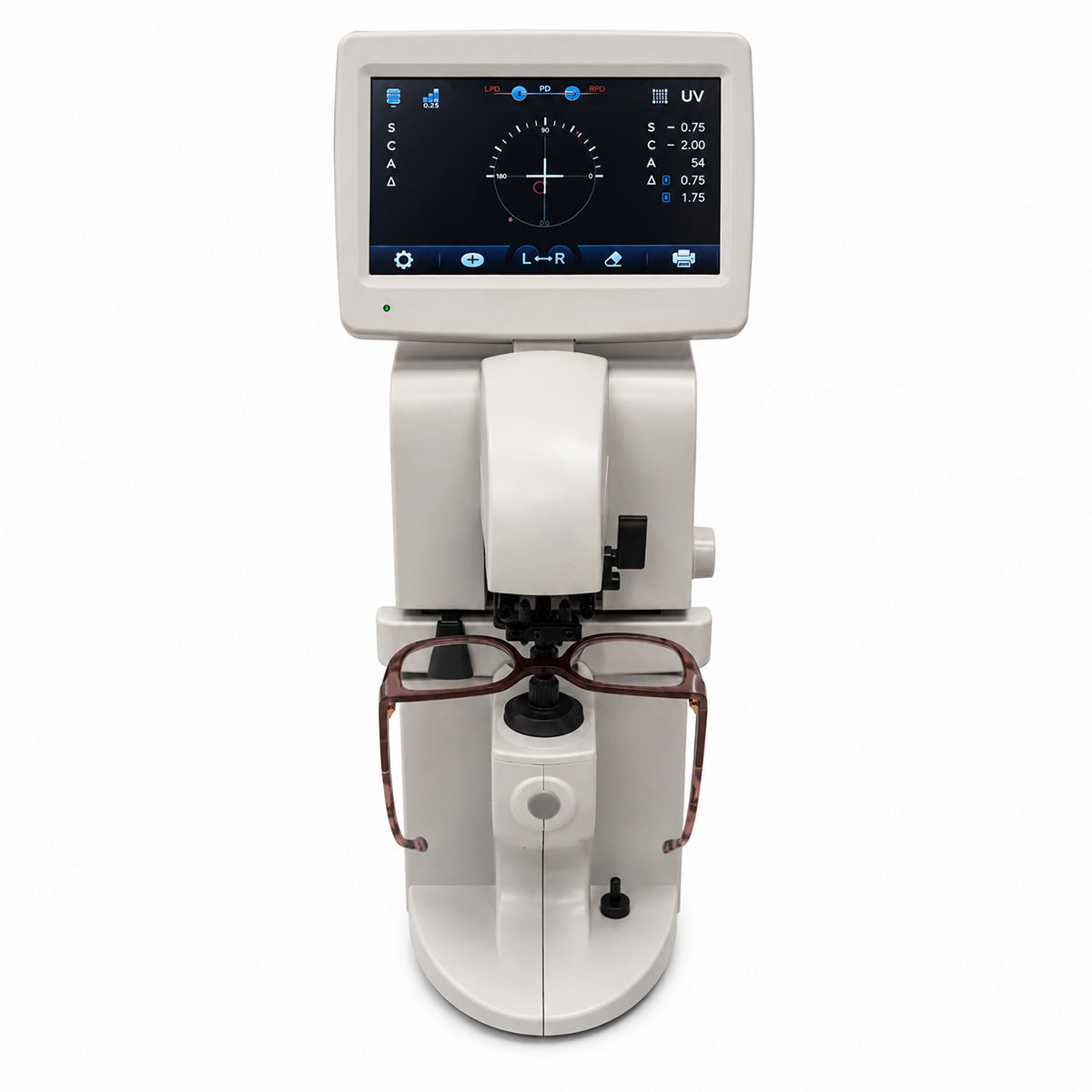

The ELM-770 measures sphere, cylinder, axis, addition (ADD), and prism, with a measurement range of up to ±25.00 D. It accurately determines pupillary distance (PD), including monocular values (LPD, RPD) and total PD, through lens edge detection via the nasal slider. The pupillary height (PH) function further facilitates precise frame adjustment. With a measurement speed of just 0.1 seconds, the instrument enables a high-throughput workflow.
UV and Green Light Transmittance
An integrated transmittance tester allows operators to evaluate the UV and green light protection of a lens directly on screen, helping to verify the quality and protective coatings of both clear and tinted lenses.
Integrated Marking and Printing
The device includes a marking lever to indicate the optical center and horizontal axis for precise frame mounting, and a built-in thermal printer to instantly print measurement results, including SPH, CYL, AXS, prism, ADD, and PD values.
Connectivity
The ELM-770 offers USB and RS-232 connectivity, along with WiFi configuration options, enabling data transfer and integration into modern practice management systems.
Specifications
| MEASUREMENT RANGE | |
|---|---|
| Sphere (SPH) | -25.00 ~ +25.00D (Increments: 0.01/0.12/0.25D) |
| Cylinder (CYL) | 0.00 ~ ±10.00D (Increments: 0.01/0.12/0.25D) |
| Axis | 0 ~ 180° (Increments: 1°) |
| Addition (ADD) | 0.00 ~ ±10.00D (Increments: 0.01/0.12/0.25D) |
| Prism | 0.00 ~ 15Δ (Increments: 0.01/0.12/0.25Δ) |
| MEASUREMENT MODE | |
| Lens Recognition | Automatic |
| Measurement System | 108-point measurement system |
| Cylinder Form | Plus, Minus, Plus/Minus |
| Prism Form | X-Y, P-B |
| Pupillary Distance (PD) | 40 ~ 90mm (Increments: 0.5mm) |
| Lens Diameter | 12 ~ 112mm |
| Measurement Speed | 0.1 second |
| OTHER | |
| Contact Lens | Soft / hard lens |
| Light Transmittance | Measurement of UV and green light transmittance |
| Display | 7" LCD/TFT Touchscreen |
| Printer | Thermal printer |
| Interface | USB, RS-232, WiFi |
| Power Supply | 100 ~ 240V, 50/60Hz, 25VA |
| Dimensions | 180 × 455 × 255mm |
| Package Dimensions | 620 × 390 × 390mm |
| Net Weight | Approx. 5kg |
| Gross Weight | Approx. 12kg |
