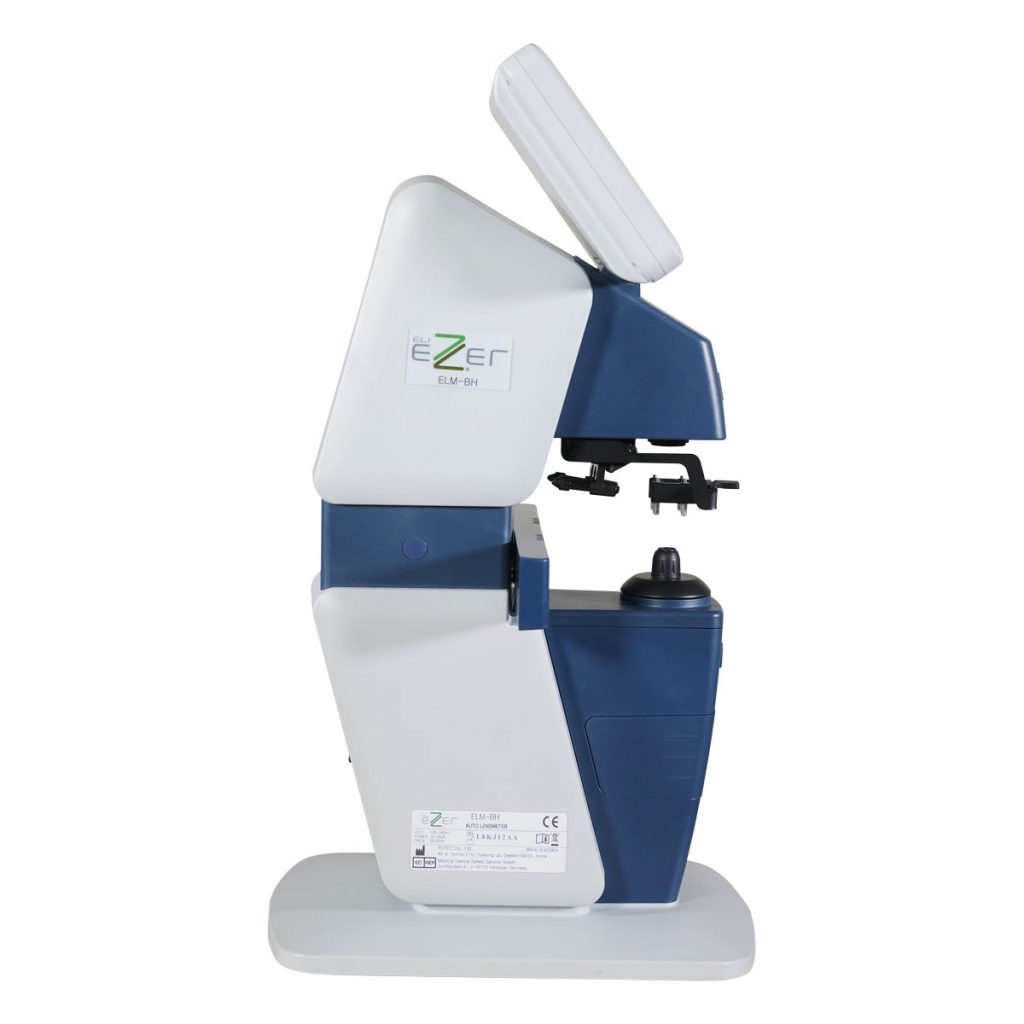

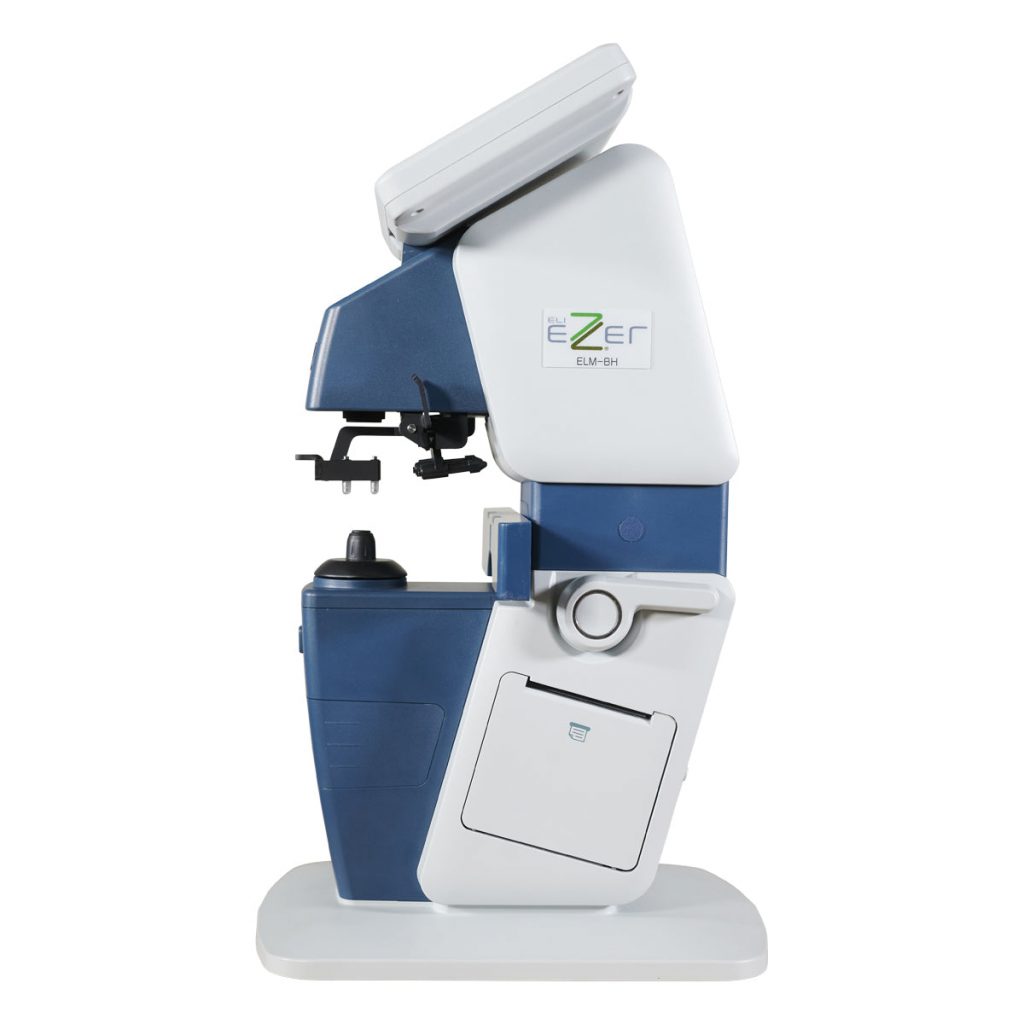

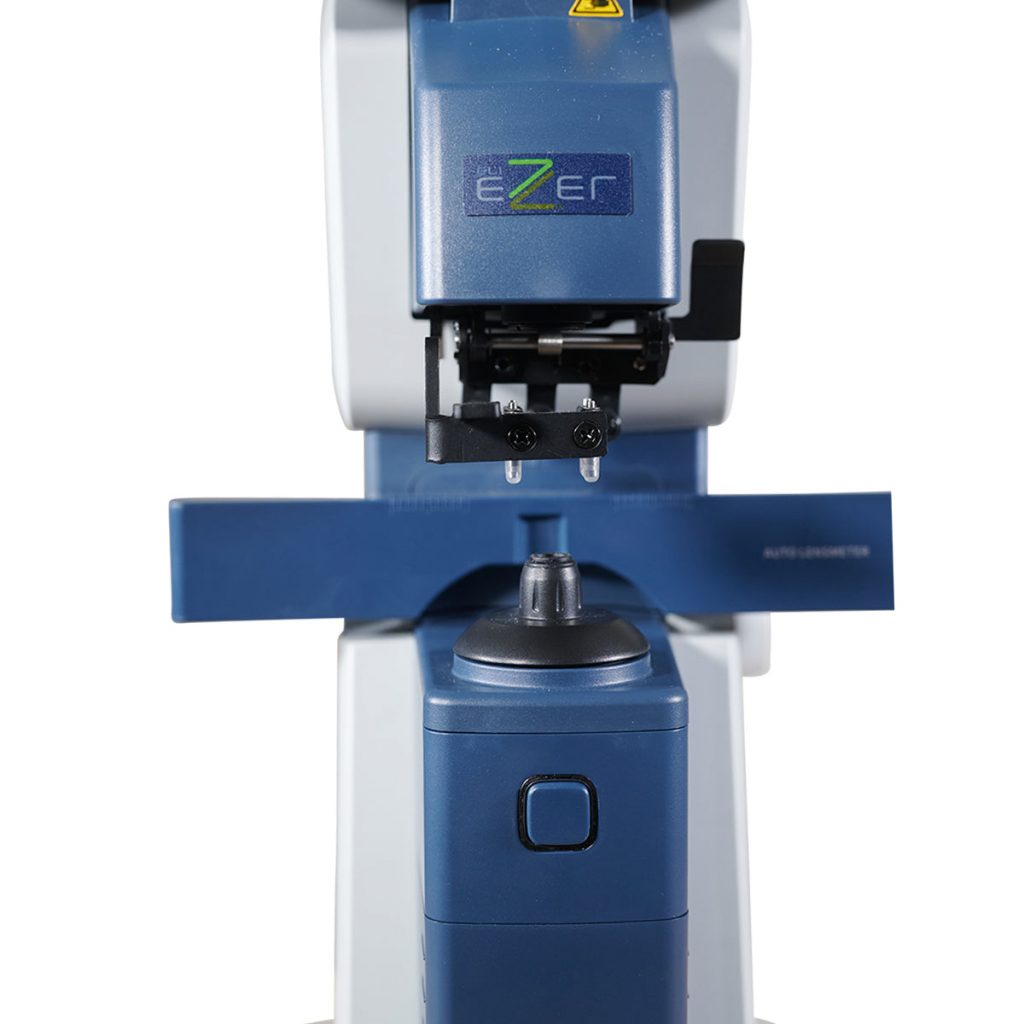

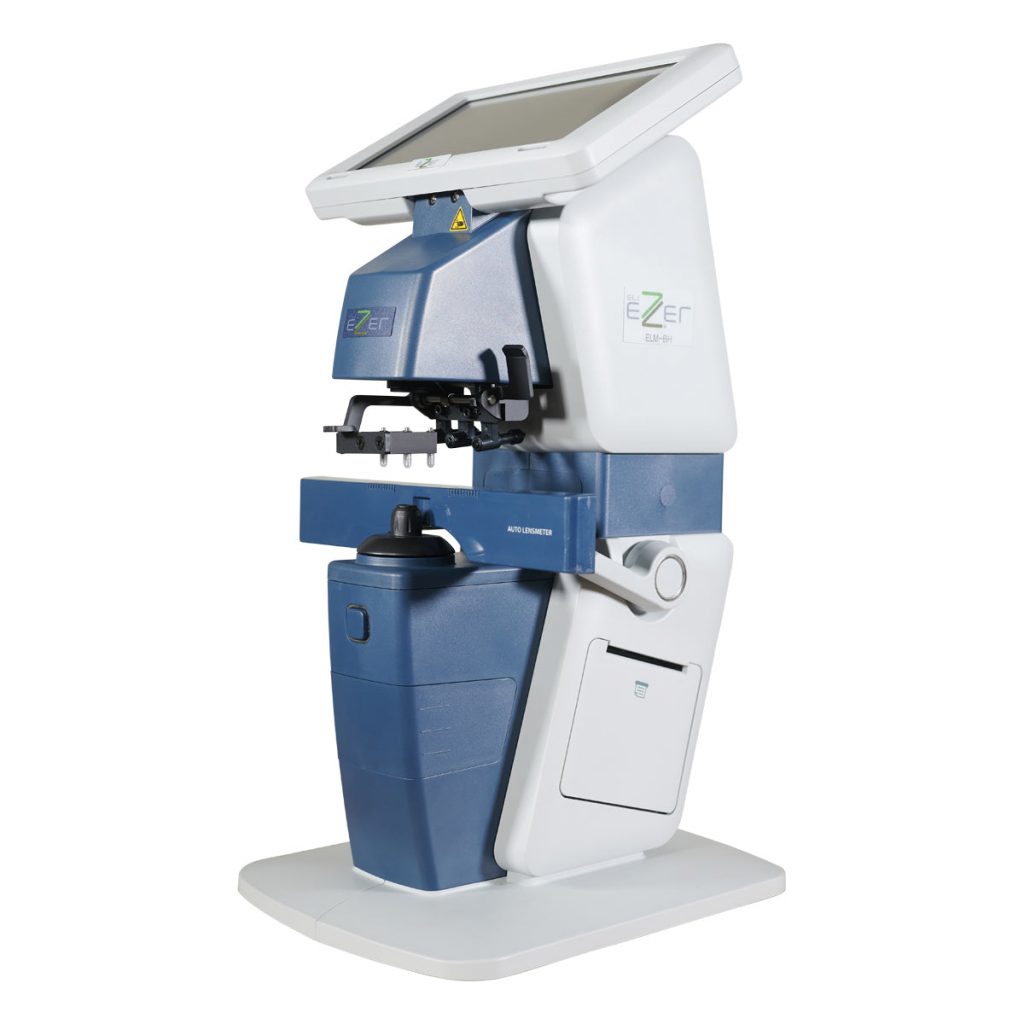

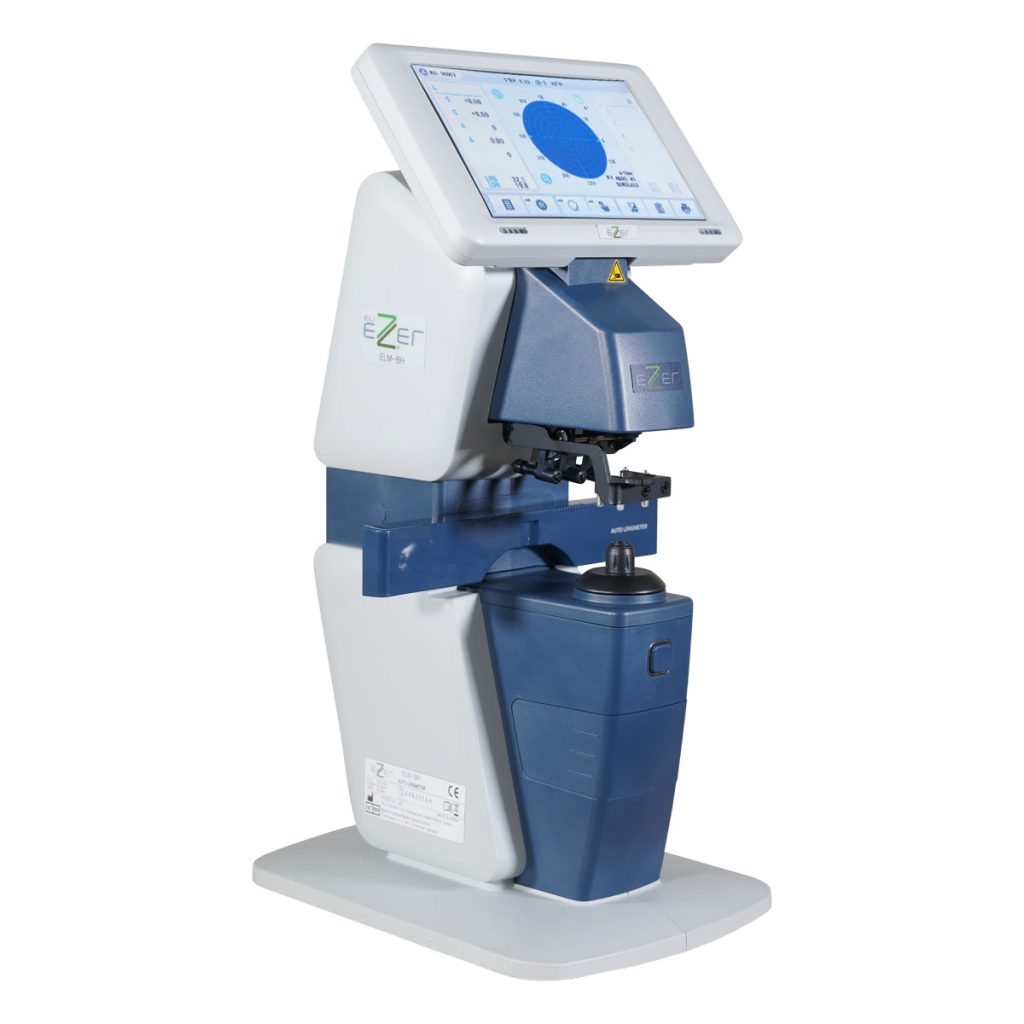

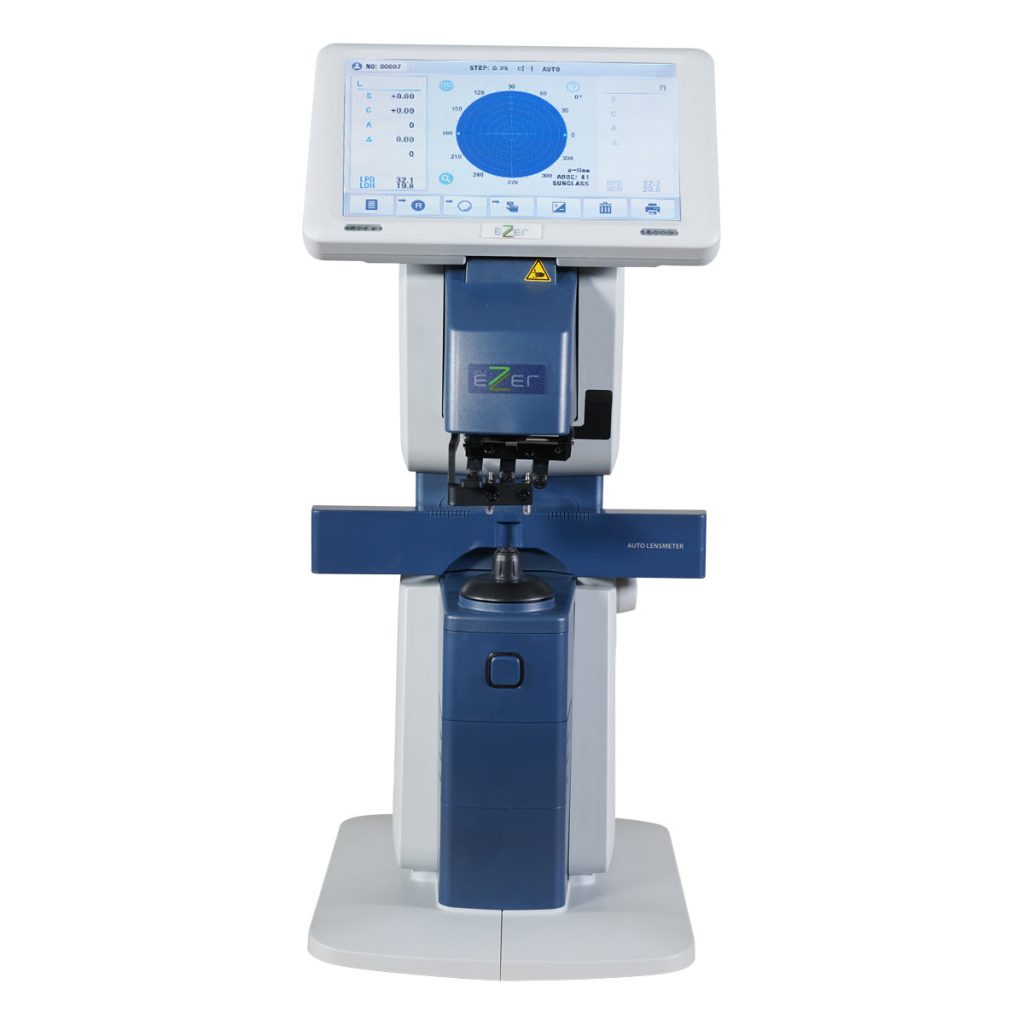

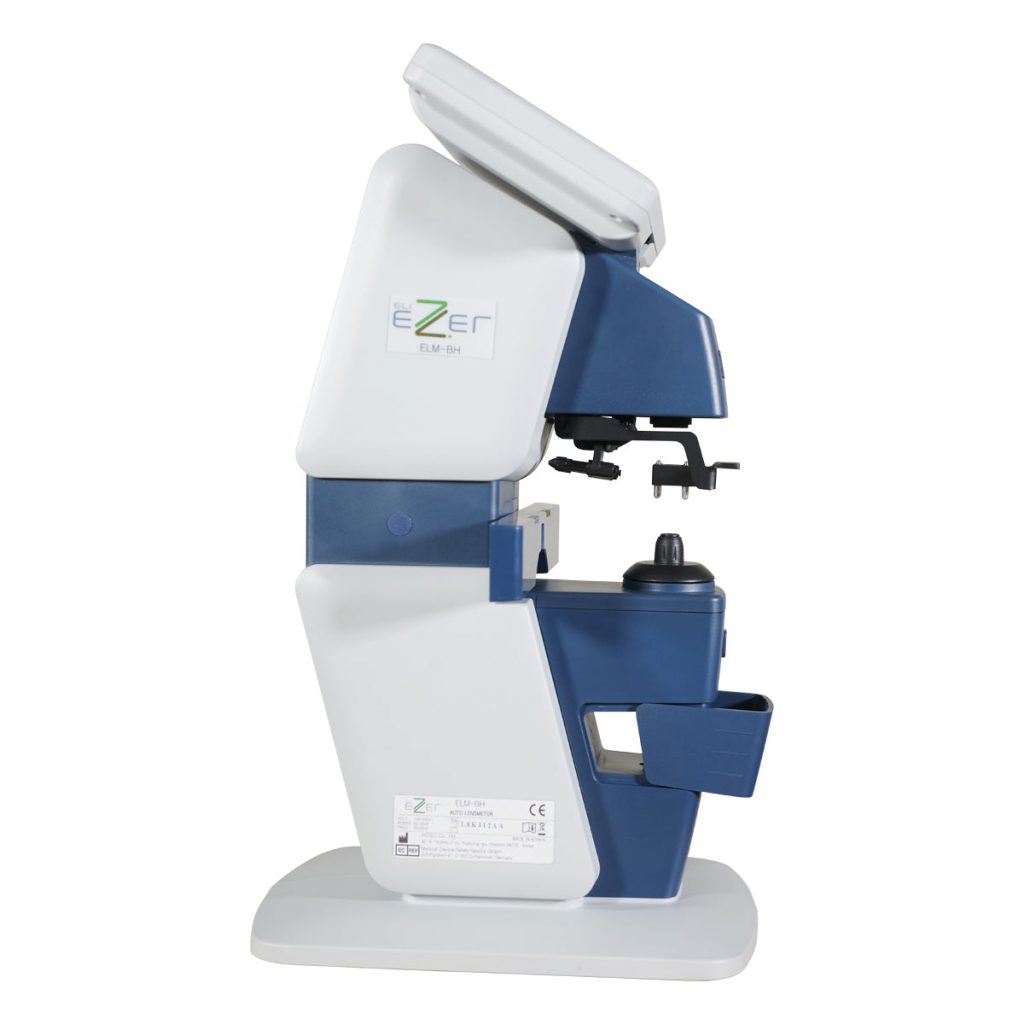

Equipped with excellent features, the ELM-BH Lensmeter is a great choice for any vision care professional. This model is not only cost-effective, but also equipped with one of the fastest and most accurate measurement systems available. Perform your lens measurements with confidence and ease with the Ezer ELM-BH digital lensometer. This instrument optimizes workflow without sacrificing precision or the breadth of testing modalities.

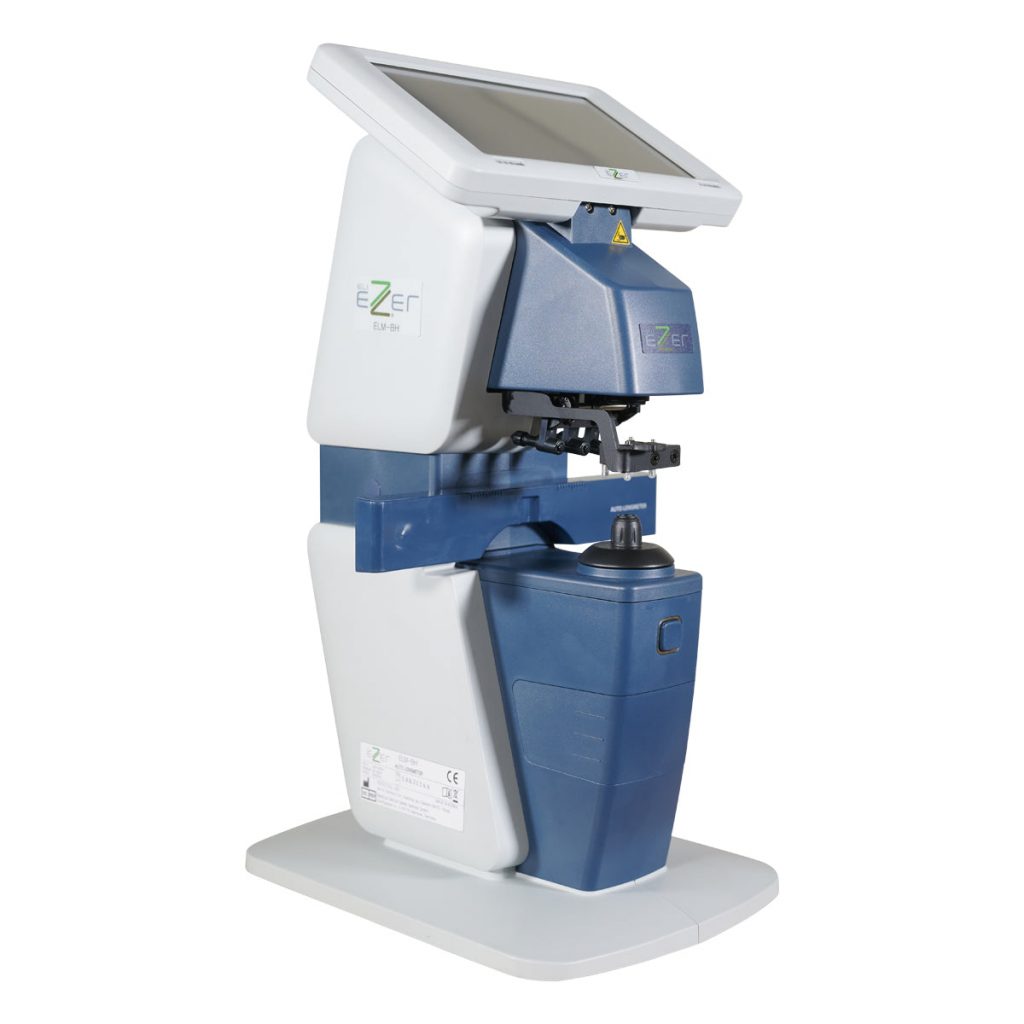

Ezer Digital Lensmeter ELM-BH
REQUEST QUOTEor call toll-free (888) 881-1122Financing available — simple terms, no leasing. Ask about it in your quote request.
Fast and accurate measurement with HWFS technology
Utilizes Hartmann Wavefront Sensor technology that compensates for light loss and reduces errors. Ensures reliable results in every lens measurement.
Versatile for all lens types
Measures monofocal, bifocal, trifocal, progressive, and contact lenses. Includes an automatic detection mode that identifies the lens type without manual selection.
UV and blue light transmittance measurement
Evaluates UV light and blue light transmittance of digital devices with a 525 nm green light source. Displays both data points in a single graph for quick analysis.
Adjustable 7-inch LCD touchscreen
TFT-LCD monitor with tilt function for seated or standing operation. Prevents cervical fatigue and enables comfortable use through an intuitive touch interface.

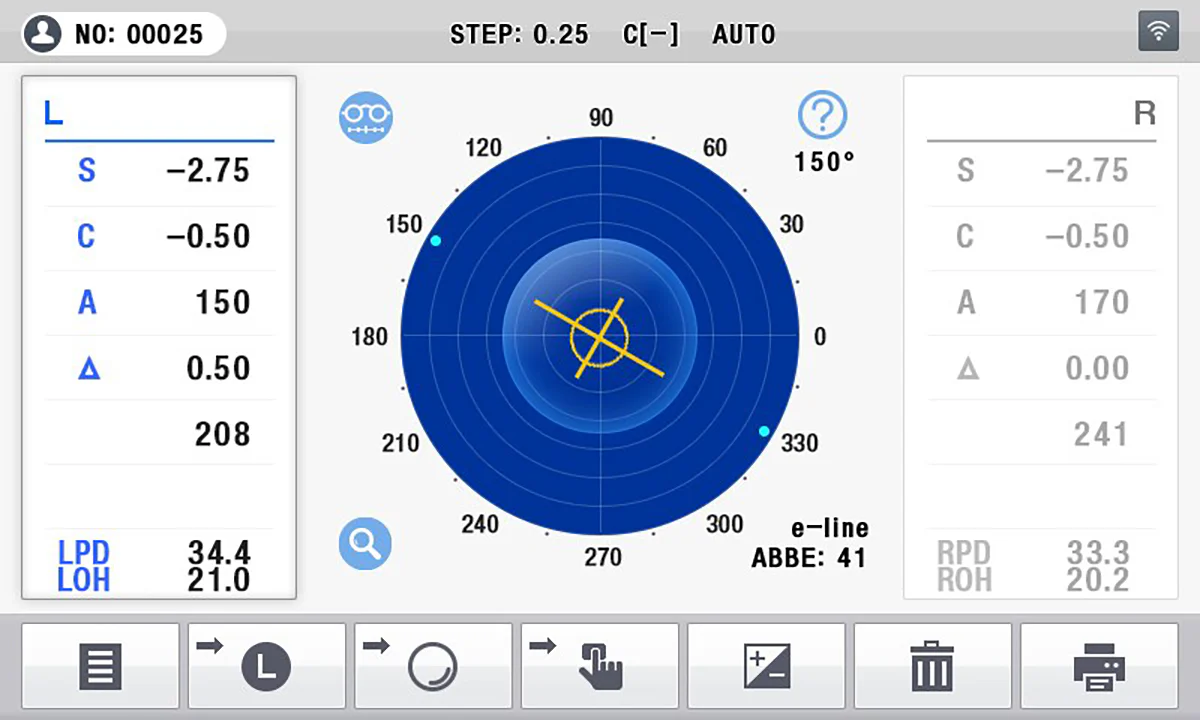

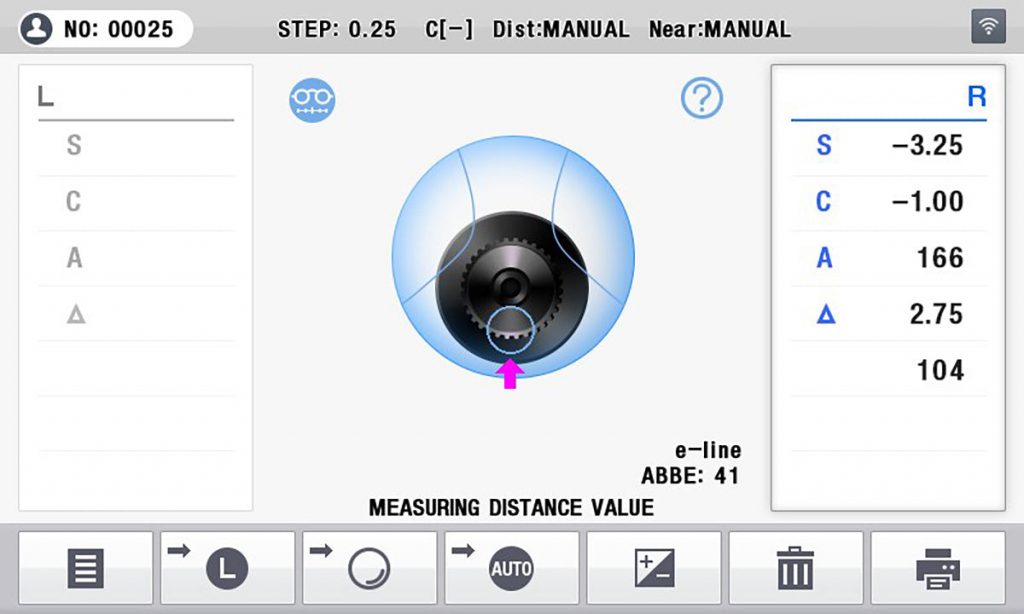

Measurement Display
The ELM-BH Measurement Display offers a clear and intuitive interface that brings together all essential information in a single view. It shows real-time refractive data for the lens — sphere value (S), cylinder (C), axis (A), prism (P), progressive addition (ADD), and pupillary distance (RPD/LPD) — along with a central target indicating the optical center of the lens and a concentric circle system for precise prism reading. The display automatically identifies the lens type, distinguishes between right and left lenses, and allows switching between automatic and manual measurement modes. With shortcuts for printing, resetting values, and configuring preferences, the ELM-BH display streamlines workflow and ensures reliable readings with every measurement.
Measurement Data
Displays the following data:
S: Sphere Value
C: Cylinder Value
A: Cylinder Axis
P: Prism Value
ADD: Progressive Addition Value
RPD, LPD: PD Value
Displays the following data:
S: Sphere Value
C: Cylinder Value
A: Cylinder Axis
P: Prism Value
ADD: Progressive Addition Value
RPD, LPD: PD Value
Prism Concentric Circle
In the blue zone, from the center to the edge, there are 7 concentric circles of different sizes. Each circle indicates 1 prism unit. That is, it displays from 1 to 7 prisms.
In the blue zone, from the center to the edge, there are 7 concentric circles of different sizes. Each circle indicates 1 prism unit. That is, it displays from 1 to 7 prisms.
Measured Lens
Indicates whether the lens being measured is a monocle or a right/left lens.
Indicates whether the lens being measured is a monocle or a right/left lens.
Measured Lens
Indicates whether the lens being measured is a monocle or a right/left lens.
Indicates whether the lens being measured is a monocle or a right/left lens.
Cylinder Mark
The cylinder mark is displayed as ‘+’ or ‘-‘ according to the CYLINDER setting in the user menu.
The cylinder mark is displayed as ‘+’ or ‘-‘ according to the CYLINDER setting in the user menu.
Measurement Steps
Displays steps of 0.01, 0.06, 0.12, or 0.25.
Displays steps of 0.01, 0.06, 0.12, or 0.25.
Auto Measurement
Indicates whether the measurement is performed automatically or manually.
Indicates whether the measurement is performed automatically or manually.
Lens Type
Indicates the type of lens currently being measured.
Indicates the type of lens currently being measured.
PD/AO Mode
Target
Indicates the optical center of the lens being measured.
Indicates the optical center of the lens being measured.
Zoom
Zoom Mode: the target indicates the distance and direction from the center of the support nose piece.
Prism Mode: the target moves according to the prisms, as in an ocular or projection type lensometer.
Zoom Mode: the target indicates the distance and direction from the center of the support nose piece.
Prism Mode: the target moves according to the prisms, as in an ocular or projection type lensometer.
Button to select a user configuration mode.
For a single lens, allows toggling between left and right selection of the mounted lens, or choosing the left/right lens.
Switches the display to the normal measurement screen.
Press this button to start manual measurement.
Press this button to change CYL (-).
Button to reset the measured data value to ‘0’.
Button to print the measured value.
- Measurement Data Displays: S (Sphere), C (Cylinder), A (Cylinder Axis), P (Prism), ADD (Progressive Addition), RPD/LPD (PD Value).
- Prism Concentric Circle: In the blue zone there are 7 concentric circles; each one indicates 1 prism unit (from 1 to 7 prisms).
- Measured Lens: Indicates whether the measured lens is a monocle or a right/left lens.
- Cylinder Mark: Displayed as ‘+’ or ‘-‘ according to the CYLINDER setting in the user menu.
- Measurement Steps: Displays steps of 0.01, 0.06, 0.12, or 0.25.
- Auto Measurement: Indicates whether the measurement is automatic or manual.
- Lens Type: Indicates the type of lens being measured.
- PD/AO Mode
- Target: Indicates the optical center of the lens being measured.
- Zoom Zoom Mode: distance and direction from the center of the support. Prism Mode: the target moves according to the prisms.
- Bottom Buttons: User mode selection, toggle left/right lens, return to normal screen, start manual measurement, change CYL (-), reset to ‘0’, and print the measured value.
Measurement of Various Lenses
This automatic lensometer can measure single vision lenses, bifocal (trifocal) lenses, progressive power lenses, and contact lenses.
Measurement of PD and Pupillary Height of Eyeglass Frames
Adjusting the central area of the lens with the direction indicator icon allows you to measure the distance between the centers of the left and right lenses and the pupillary height of the eyeglass frame.

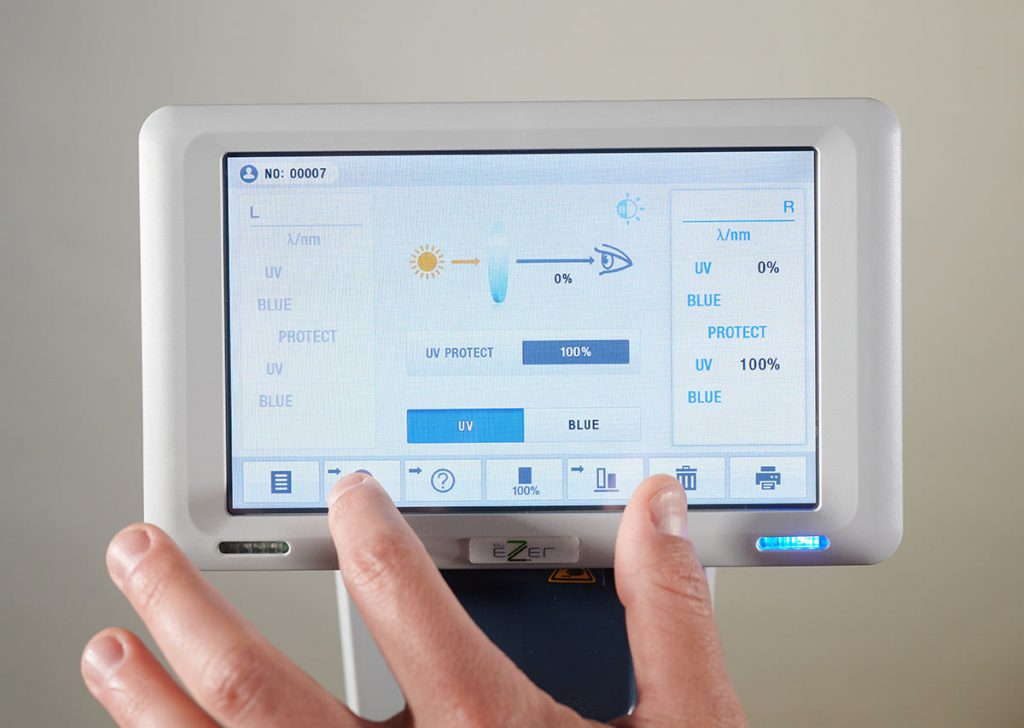

UV/Blue Light Transmittance Measurement

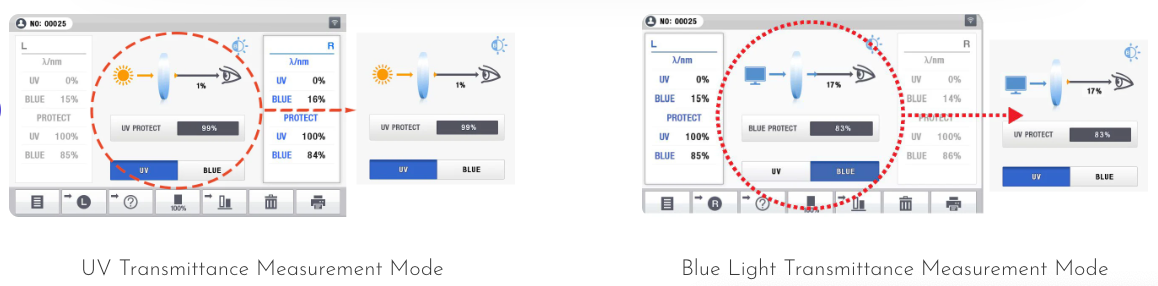

The measurements performed by the ELM-BH include UV and blue light transmittance, pupillary distance, pupillary height in spectacle frames, and other standard lens measurements. This model uses a 525 nm green light source, close to the international standard wavelength. With this equipment, you can also measure the transmittance of lenses that block blue light from digital devices such as smartphones and LCDs. Two types of display modes are available: UV Transmittance Measurement Mode and Blue Light Transmittance Measurement Mode.

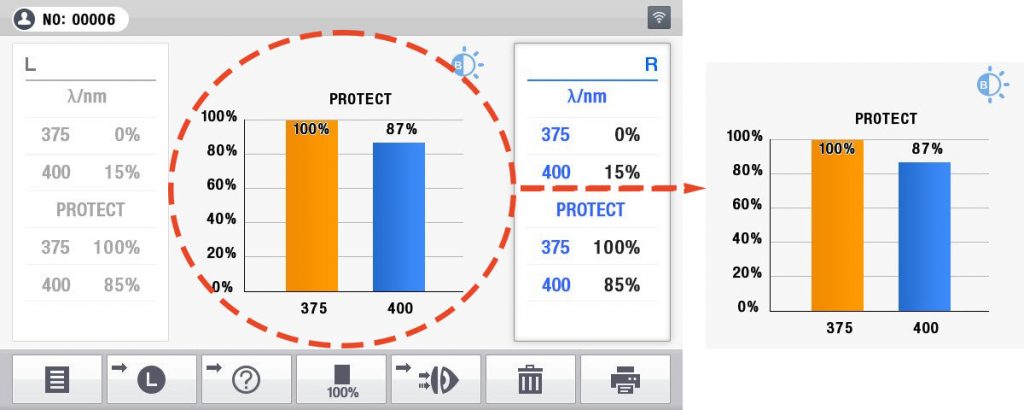

The UV and BLUE data can be displayed in a single graph, allowing the professional to view both trends at a glance.
Hartmann Wavefront Sensor (HWFS) Technology
The ELM-BH uses cutting-edge Hartmann Wavefront Sensor (HWFS) technology to reduce errors through light loss compensation, providing accurate results you can rely on.
Automatic Lens Detection Mode
The lensometer can measure double and triple lenses in normal lens mode and includes an automatic lens detection mode. This mode simplifies operation; the ELM-BH automatically determines the lens type and instantly performs the appropriate measurement; no mode selection is required.

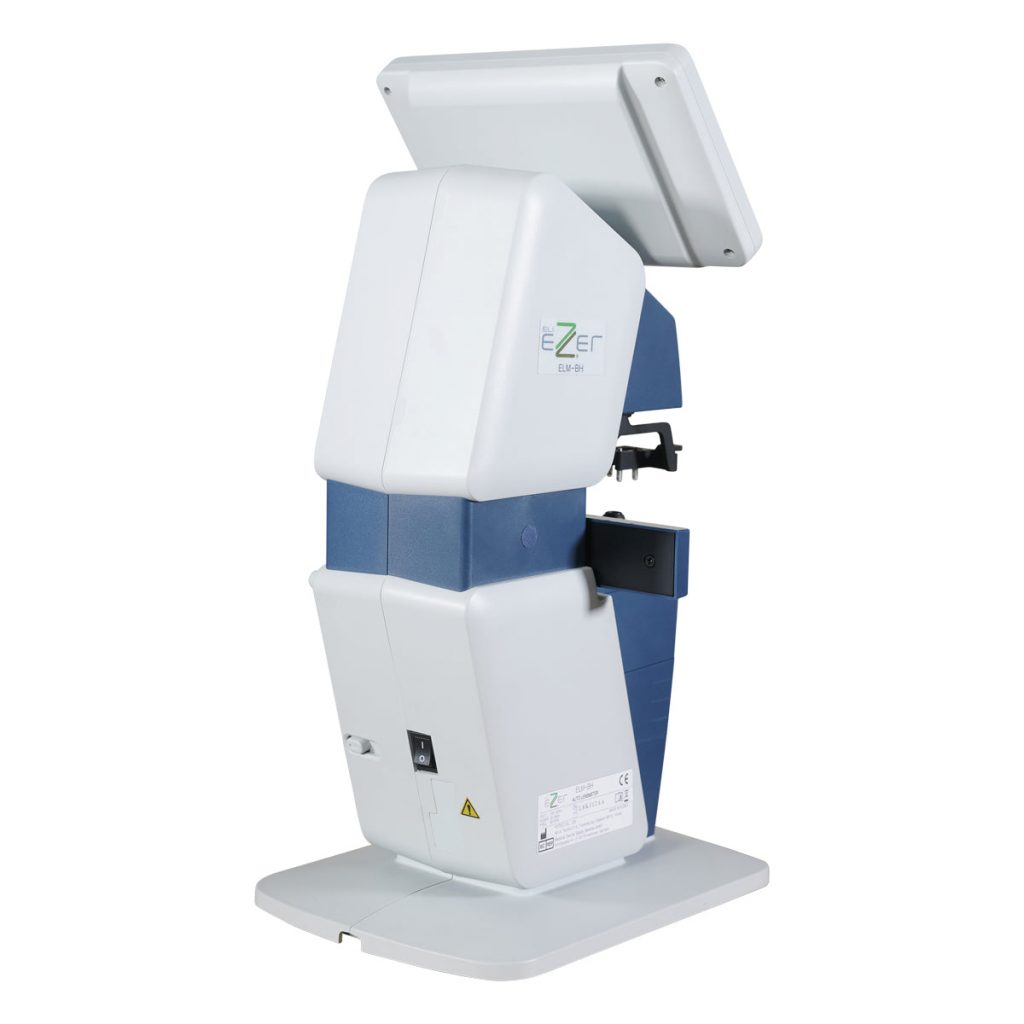

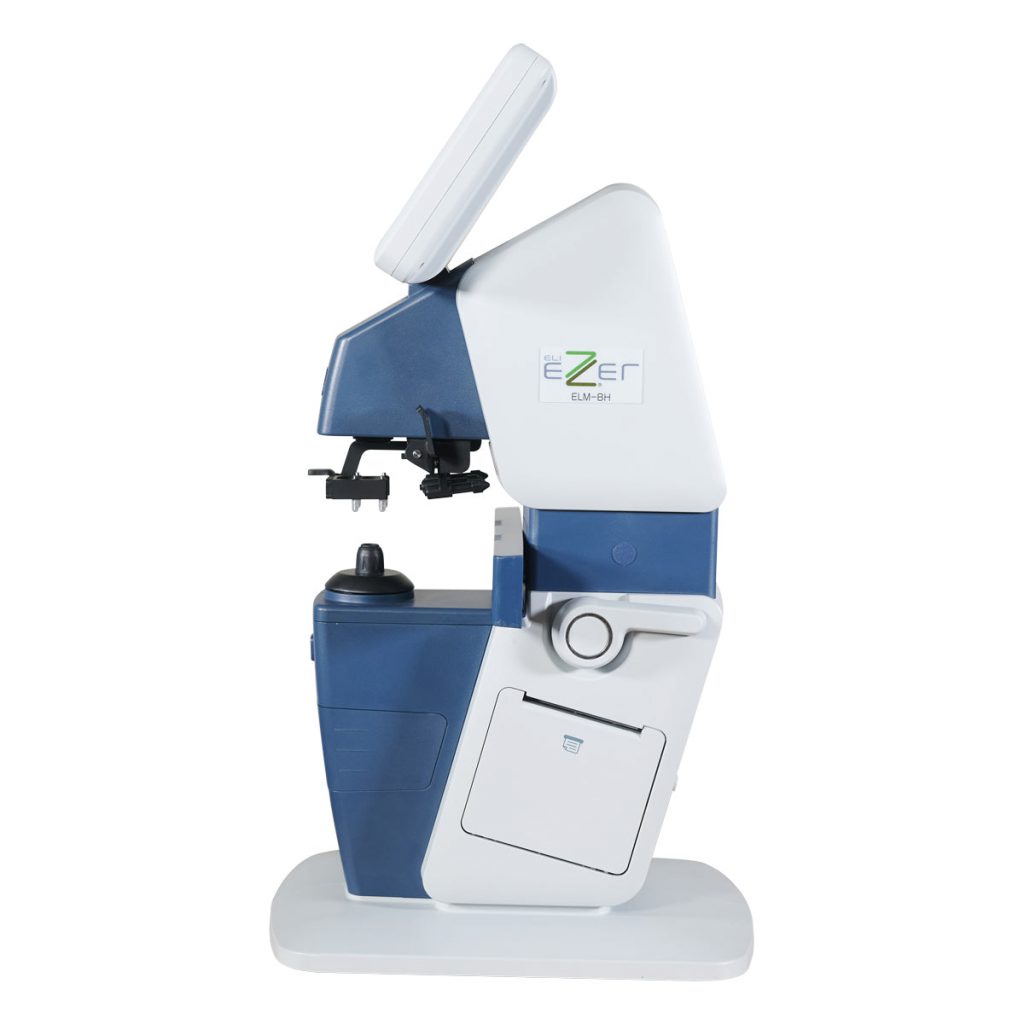

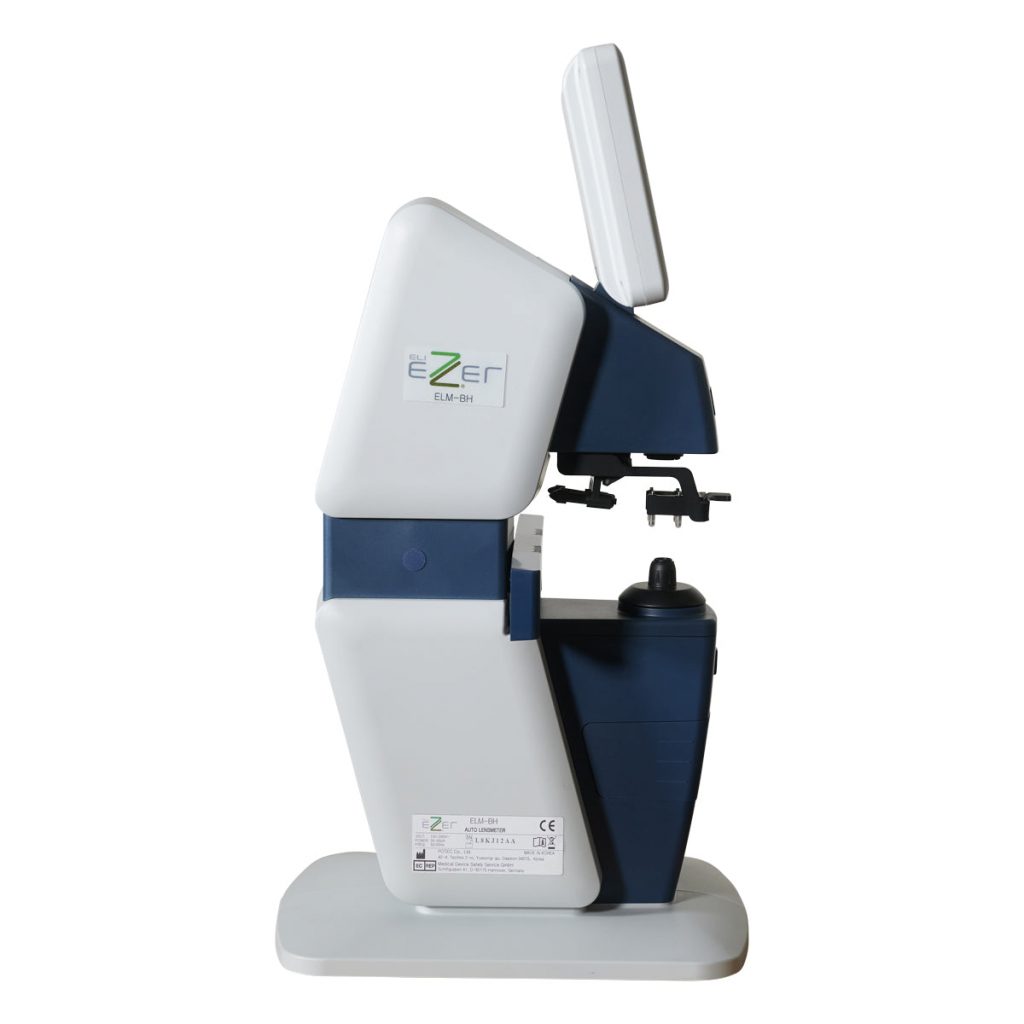

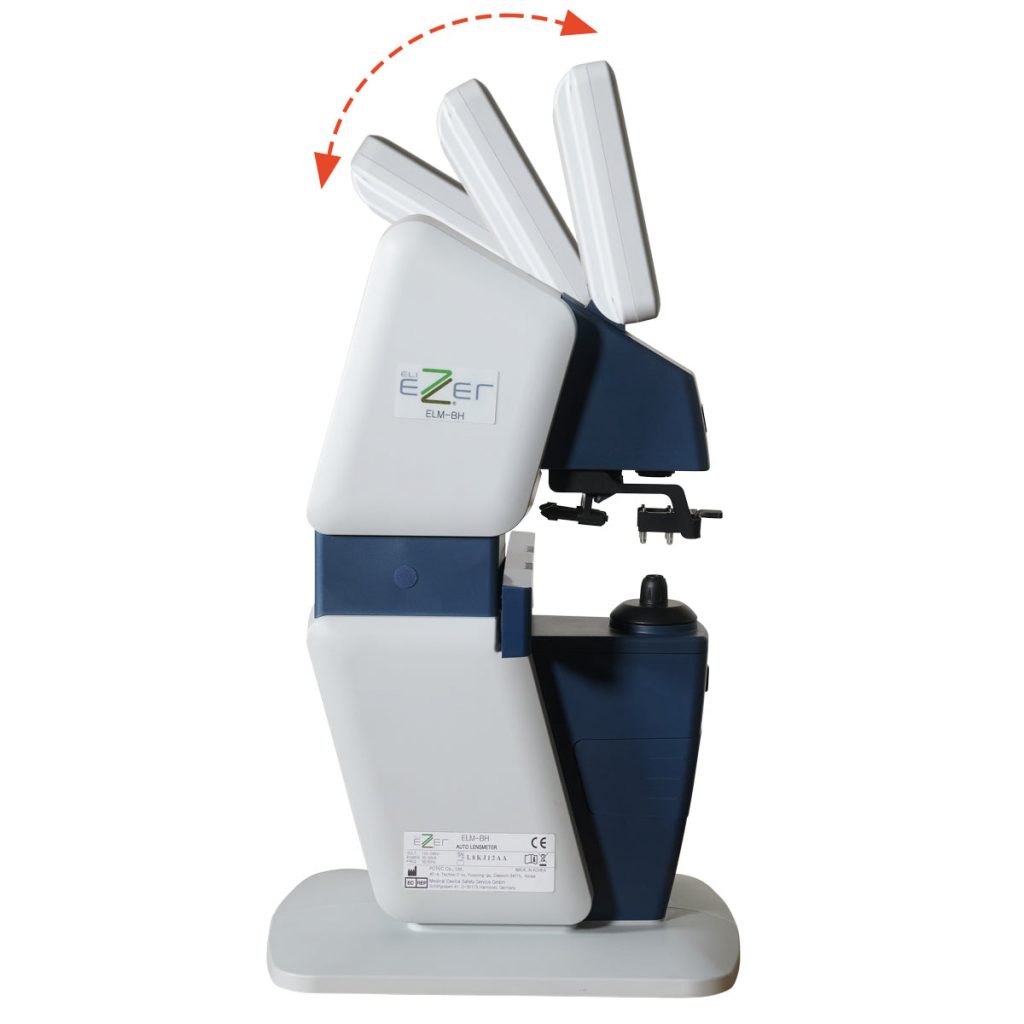

LCD Tilt Function
The sharp, well-lit display can be tilted forward and backward to ensure comfort whether seated or standing, preventing neck and back strain caused by leaning over the device.

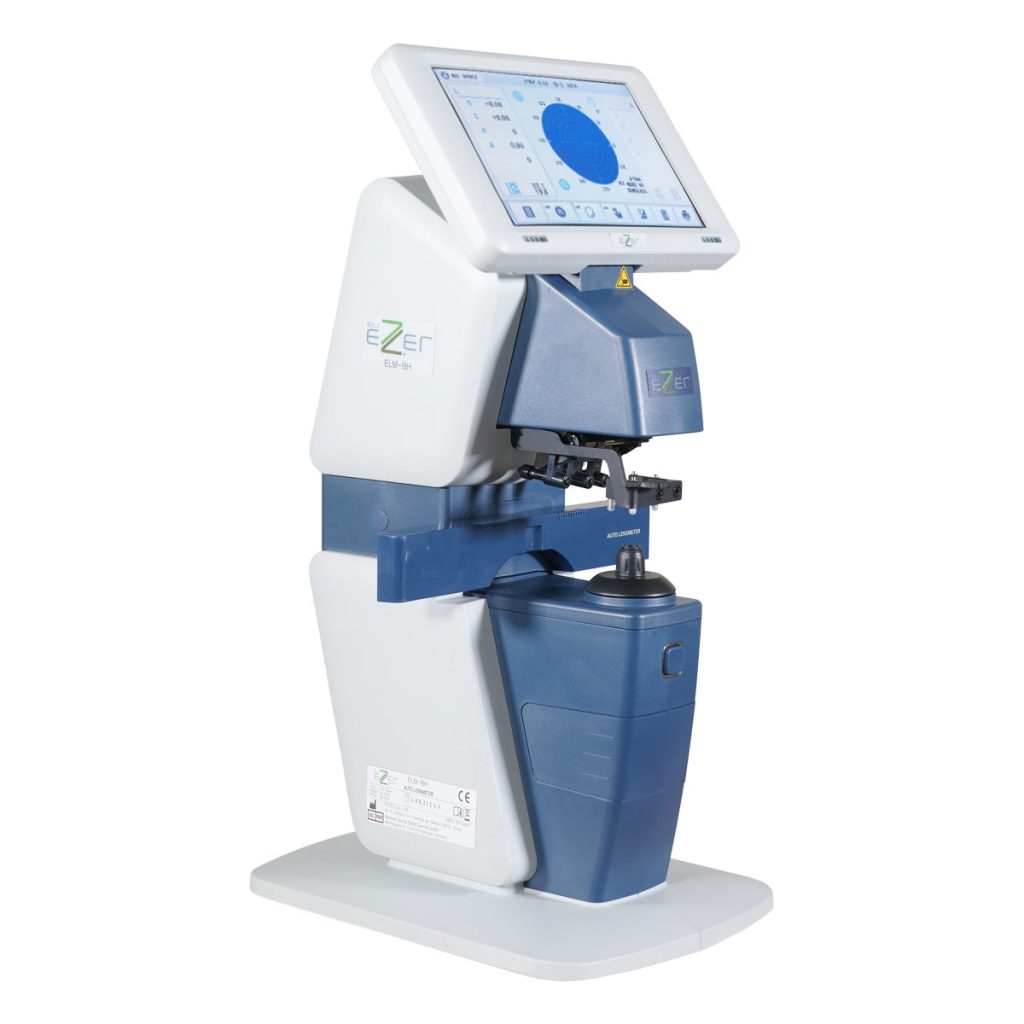

7-Inch LCD Touch Screen
The 7-inch TFT-LCD touch screen monitor (800 x 480) is used to perform all operations, allowing test selection with just a few taps on the screen. Once measurements are complete, the results are displayed on the touch screen, and UV and blue light data are presented in a graph for quick evaluation.
Multilingual Support
The system supports six languages: English, French, Portuguese, Chinese, Japanese, and Arabic.

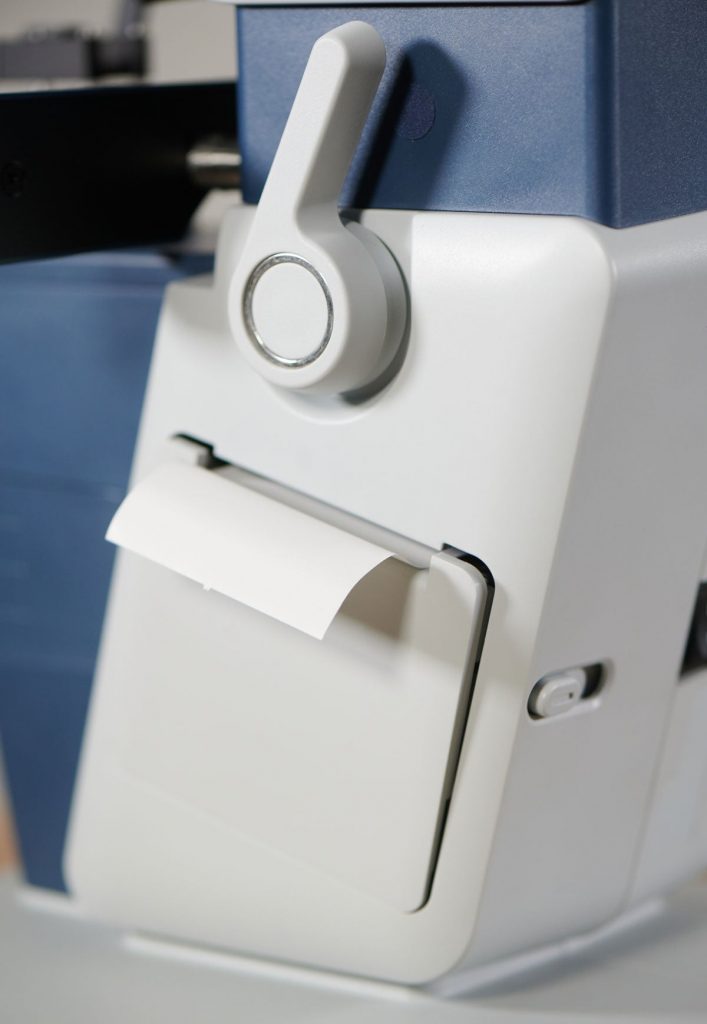

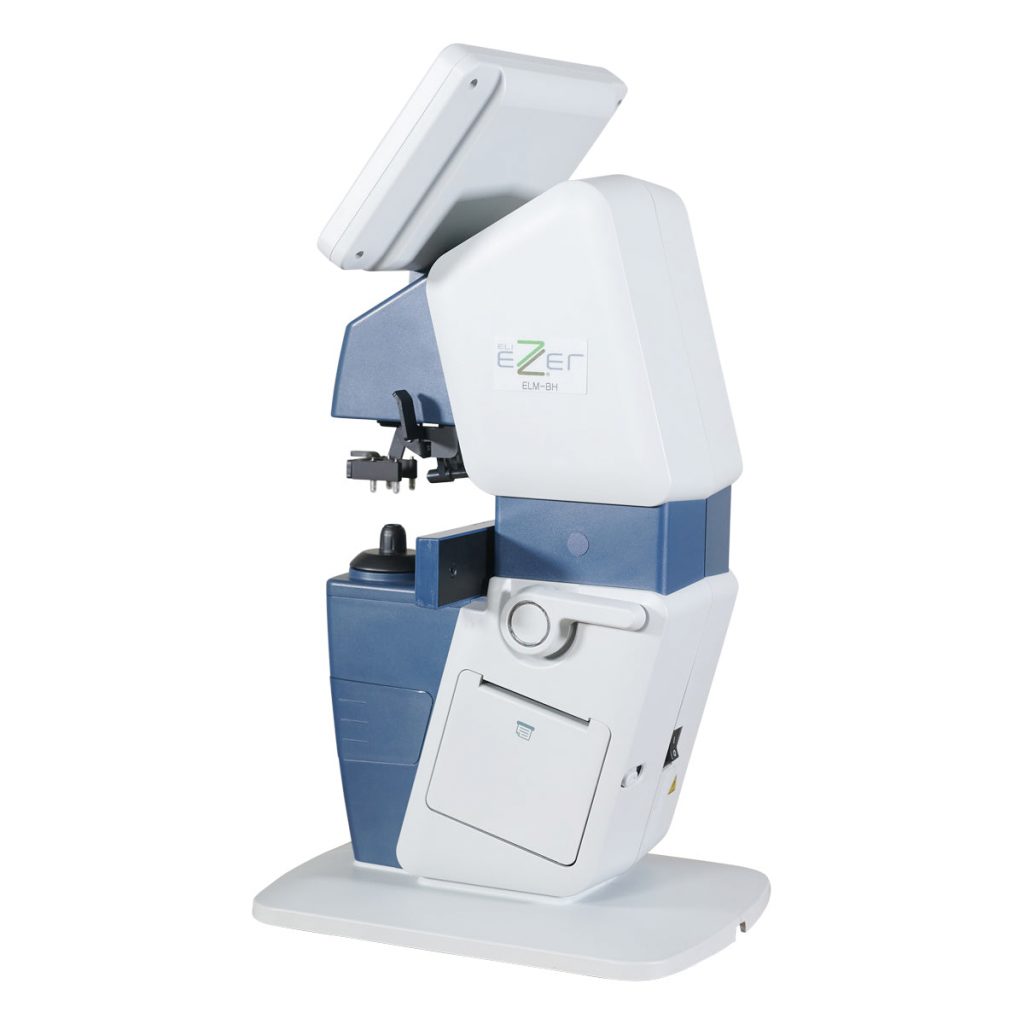

Auto Cutting Printer
Data is stored for future review and can be printed with the integrated automatic cutting thermal printer.
Multiple Interfaces Available (RS-232, Wi-Fi)

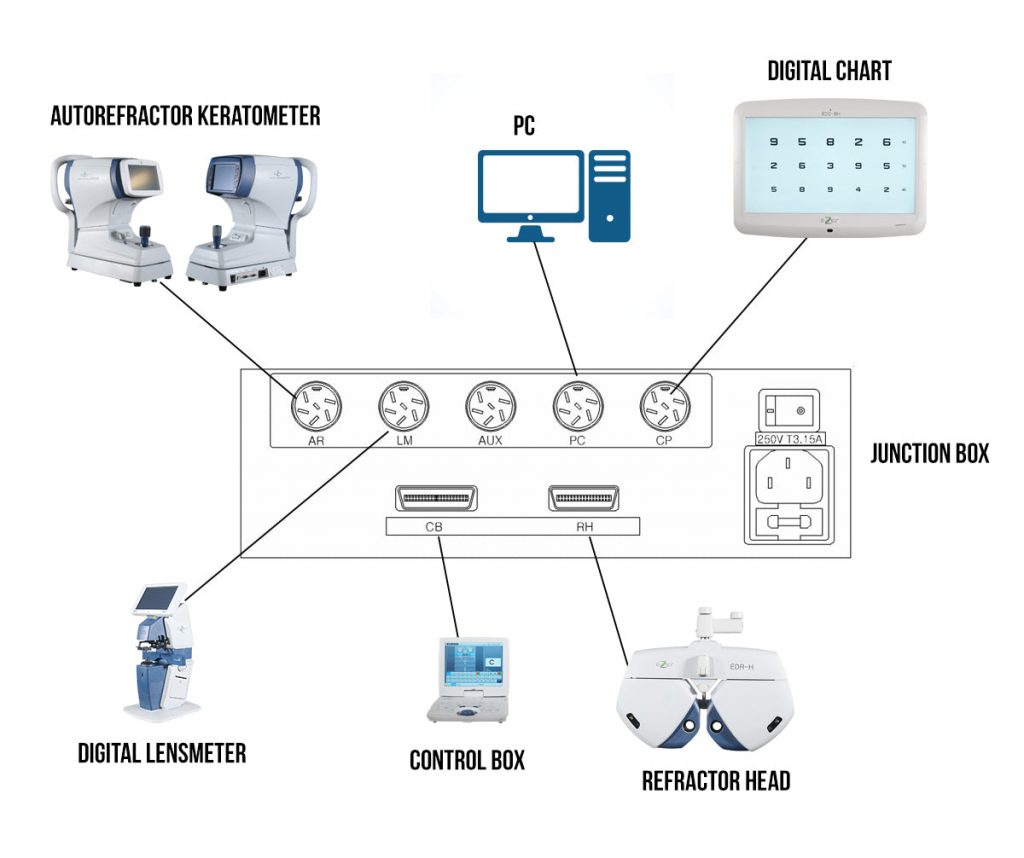

The ELM-BH features robust connectivity; users can share data between the lensometer and other Ezer digital ophthalmic instruments using the optional Wi-Fi connectivity module. By connecting the ELM-BH to instruments such as the EDR-BH Auto Digital Refractor and the ERK-BH Auto Ref-Keratometer, clinics can leverage device synergy to save time and effort in data entry and testing.
DIGITAL CLINIC
With the ELM-BH by Ezer, physicians and technicians obtain fast and accurate results with the utmost confidence, ensuring that patients receive the lenses they need.
What is an EMR? Electronic Medical Records, commonly abbreviated as “EMR,” are a technological tool widely used in modern medical practices. EMR systems were designed to replace obsolete paper-based recording methods and to streamline the collection and tracking of patient data over time. EMR platforms integrate the various components of a medical office visit, including admission demographic data and medical history, prescription information, laboratory data, practice management software, examination notes, and more. In general, EMR systems are used to promote economic efficiency and improve patient care through seamless coordination of data collection and storage. EMR platforms also enhance patient transparency through the use of portals where patients can view important results and communicate securely with physicians.
In the ophthalmic industry, EMR systems are becoming increasingly important and more popular than ever. The ability to store critical laboratory data related to prescriptions and diagnoses while maintaining quick access to that information is key to reducing consultation time and improving patient outcomes and satisfaction. With Ezer Digital Practice, sharing information is easier than ever! The ELM-BH Lensometer, the ERK-H/BH Autorefractor, the EDR-H Phoropter, and the EDC-BH Visual Acuity Chart interact via Wi-Fi to streamline communication between your pre-examination and examination rooms.
We know it can be intimidating to introduce new technology into your practice, but with Ezer Digital Practice equipment and the superior technical support of US Ophthalmic, your practice will save time and money with seamless EMR integration.
Our EMR Partners
| Our EMR Partners |
|
|
Specifications
| Measurement Range | |
|---|---|
| Spherical Power (SPH) | -25 ~ ±25D (steps of 0.01/0.06/0.12/0.25D) |
| Cylindrical Power (CYL) | 0 ~ ±10D (steps of 0.01/0.06/0.12/0.25D) |
| Axis (AX) | 0 ~ 180° (1° steps) |
| Addition | 0 ~ 10D (steps of 0.01/0.06/0.12/0.25D) |
| Prism | 0 ~ 20△ (steps of 0.01/0.06/0.12/0.25△) |
| Measurement Range | |
| Cylinder Mode | -, +, ± |
| Prism Mode | Rectangular / Polar |
| LED Wavelength | 525nm (Green) |
| Wave | e-Line, d-Line |
| UV Mode, BLUE | 0~100% |
| Interface | RS-232C / Wi-Fi (Optional) |
| Interpupillary Distance (PD) | 45 ~ 90mm |
| Other | |
| Marking System | Pen type |
| Display | 7-inch TFT-LCD (800 x 480 px) Touch Panel |
| Internal Printer | Thermal line printer with Automatic Cutter function |
| Power Supply | AC100-240V~, 50/60Hz |
| Power Consumption | 15~53VA |
| Size | Approx. 8(W) x 10(D) x 171(H) in (98(W) x 245(D) x 420(H)mm) |
| Weight | Approx. 11lb / 5Kg |
