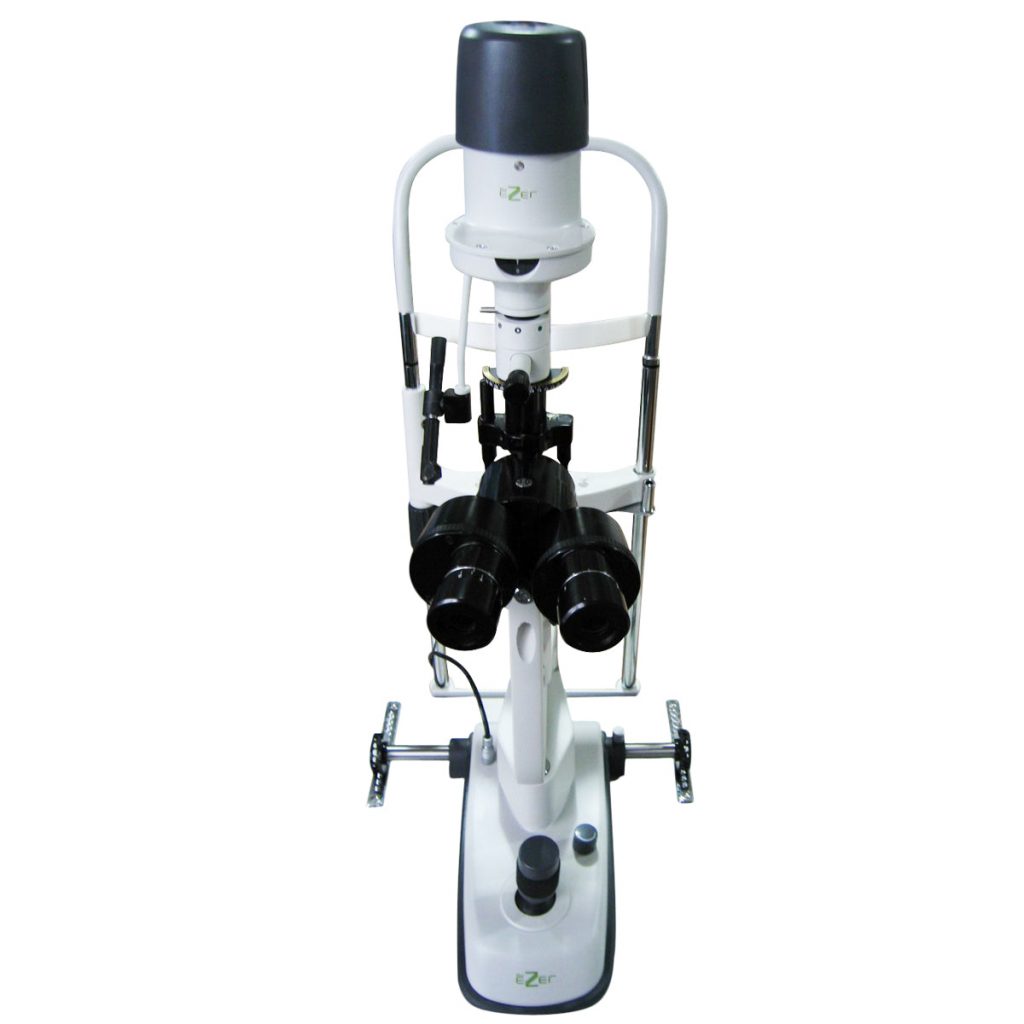

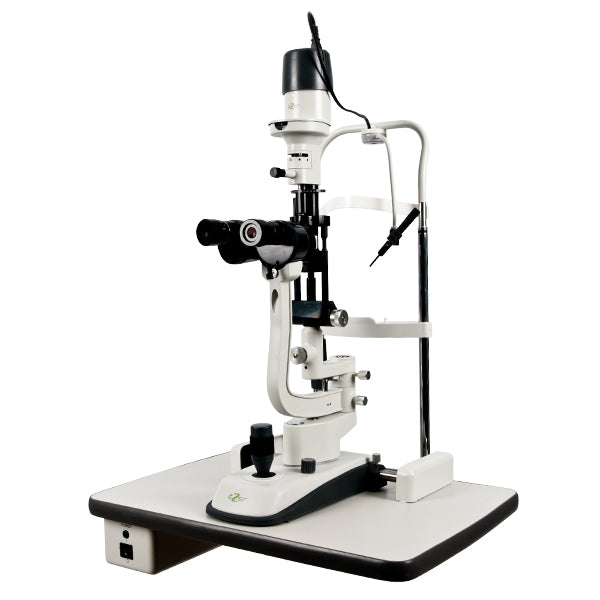

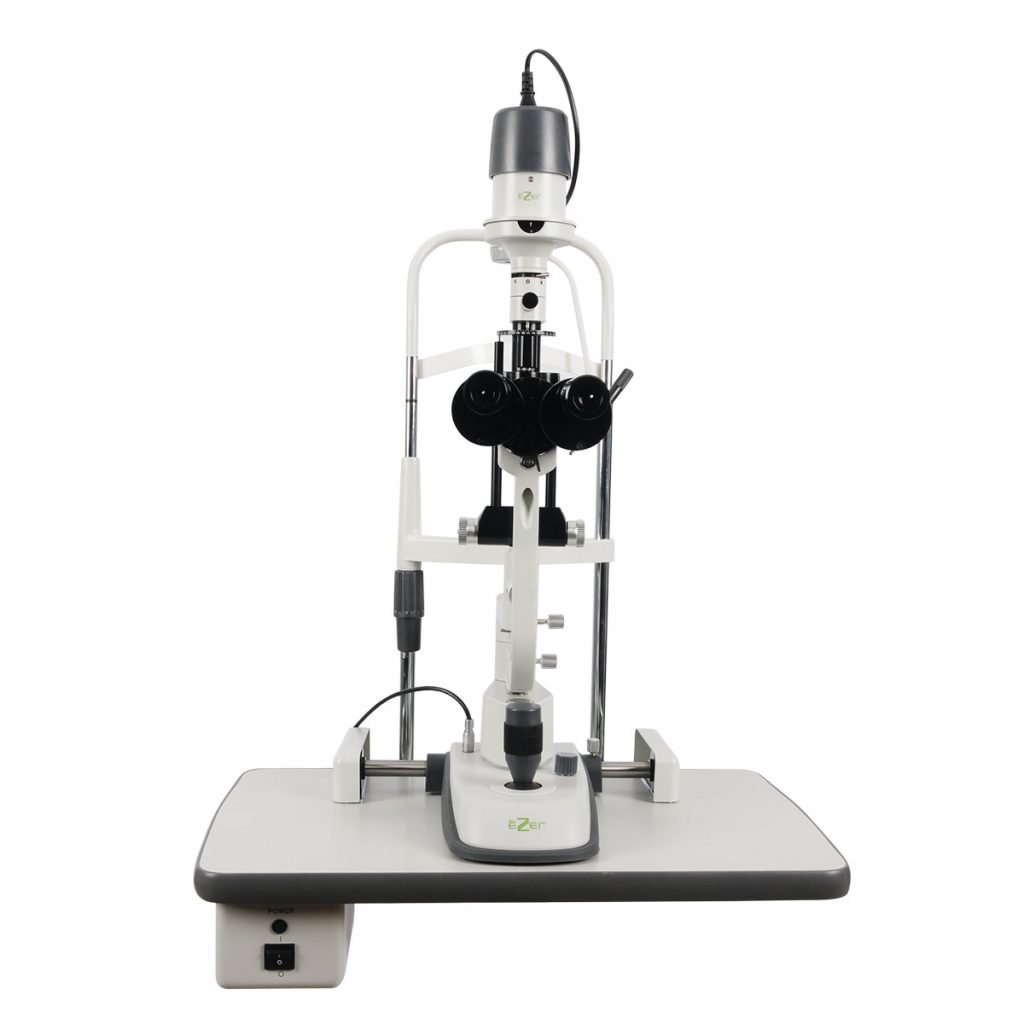

Ezer Slit Lamp ESL-2600
The Ezer ESL-2600 Slit Lamp Microscope features outstanding wide-field optical performance, great features and quality design.
The Ezer ESL-2600 Slit Lamp features outstanding wide-field optical performance, great features and quality design. The ESL-2600 offers Haag-Streit style tower illumination in a Cross-Angle Stereovision Converging Binocular Optical System. The ESL-2600 features well-placed controls and two-step magnification that can be easily changed between 1x and 1.6x, using a conveniently located lever. Final magnification ratios are equivalent to 10x (Ø18mm) and 16x (Ø14.5mm) with the 10x eyepiece. Conveniently placed controls combined with fantastic optics make diagnostic procedures and contact lens fittings even easier. A high luminance lamp provides incredible clarity, and four built-in Illumination Pathway Filters can be effortlessly switched out. The ESL-2600 also can be equipped with a Goldman applanation tonometer. Great features, quality design, outstanding performance and affordable price make Ezer's ESL-2600 Slit Lamp a smart choice at an outstanding value.
 |

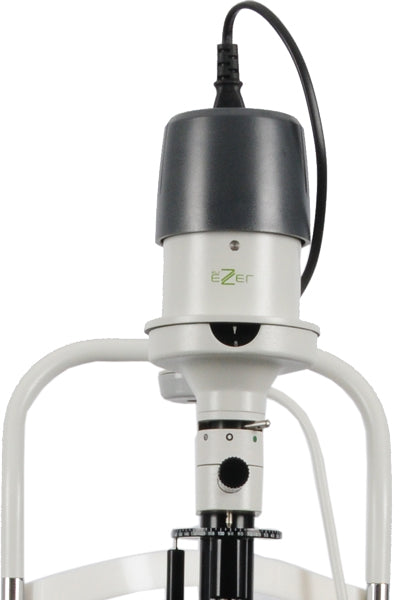

Haag-Streit Style Tower Illumination The ESL-2600 utilizes a Haag-Streit Style Tower Illumination System that sits above the observation system, allowing the illumination column to be decoupled in the vertical meridian. This allows greater flexibility when minimizing unwanted reflections during gonioscopy and increases the peripheral field of view during indirect ophthalmoscopy. |
|
|
Cross-Angle Stereovision Converging Binocular Ocular System Ezer's ESL-2600 advanced Cross-Angle Stereovision Converging Binocular Optical System offers practitioners innovative optics at a short observer-to-patient distance, providing unsurpassed clarity and sharpness, while delivering crisp images with excellent resolution. |
||
 |
Two-Step Magnification Advanced optics in the ESL-2600 offer a two-step magnification that can be easily changed throughout the exam between 1x to 1.6x, using the instrument's conveniently located lever. Final magnification ratios are equivalent to 10x (Ø18mm) and 16x (Ø14.5mm) with the 10x eyepiece. |
|
|

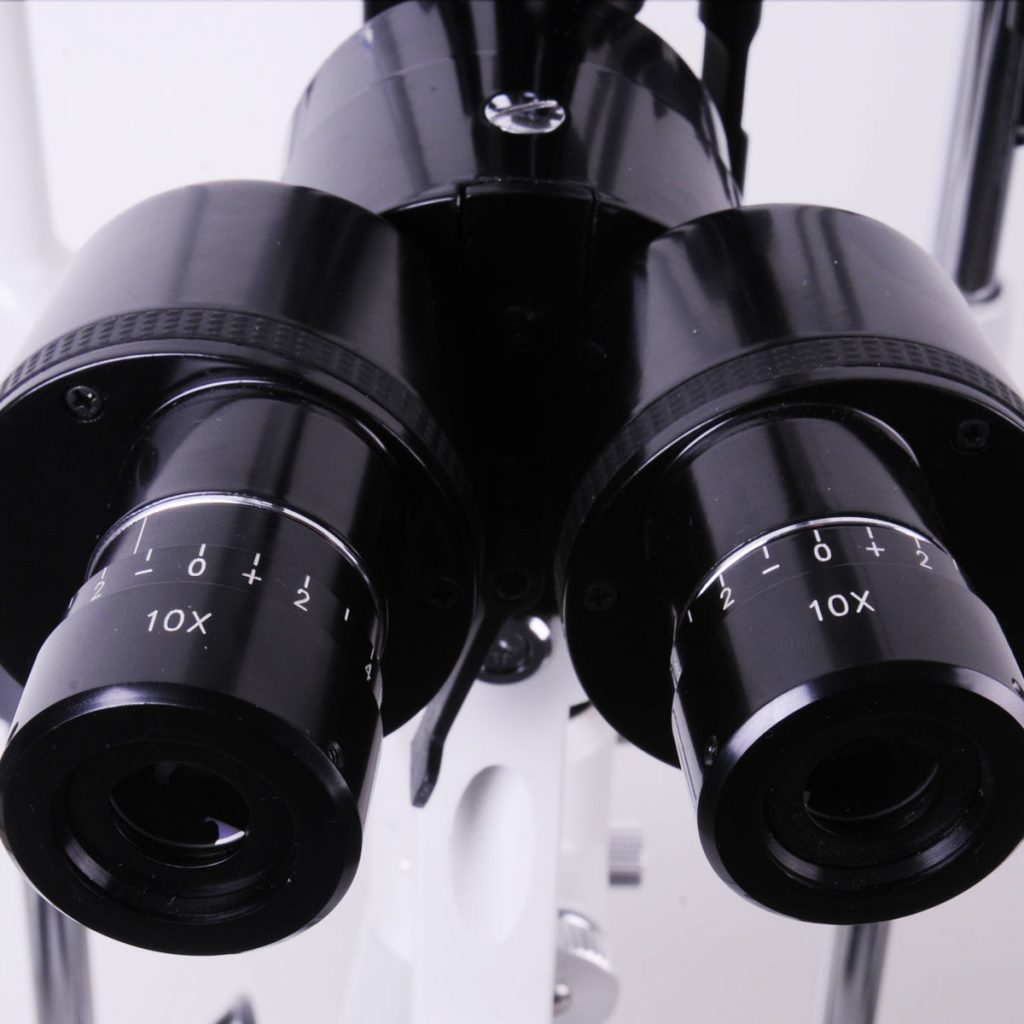

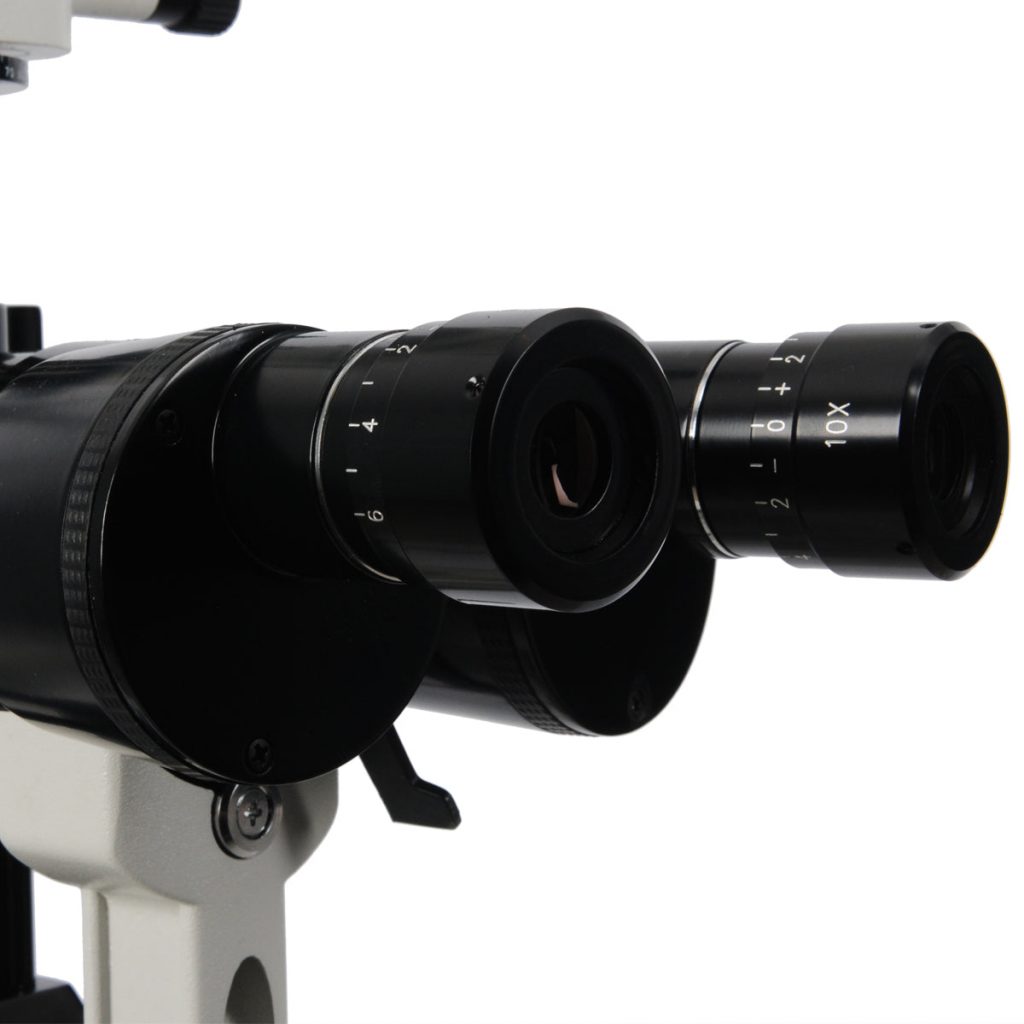

Large Binocular Field of View for Pupil Distance Adjustment Ezer's ESL-2600 offers a very large binocular field of view of Ø18mm and Ø14.5mm, with high resolution and a 55mm-82mm range of PD adjustment and diopter adjustment up to ±5D. |
||
 |
High Clarity Luminance and Built-in Filters The ESL-2600 utilizes a bulb that provides incredible clarity. Four built-in Illumination Pathway Filters can be effortlessly inserted into the illumination pathway using the selection lever. Options include a heat absorption filter that aids in patient comfort during lengthy exams, a red-free filter that enhances structural contrast, a cobalt blue filter for use in fluorescein assessment, and a grey filter. |
|
|

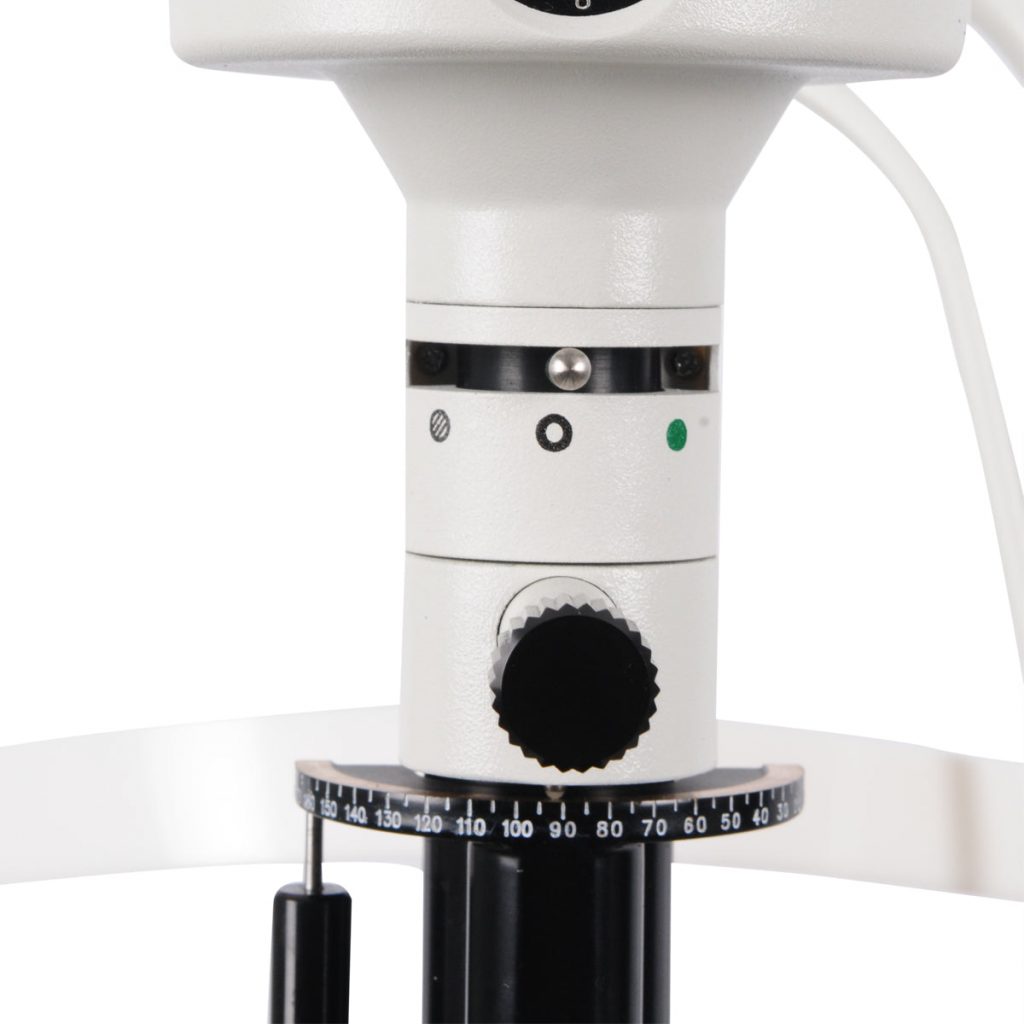

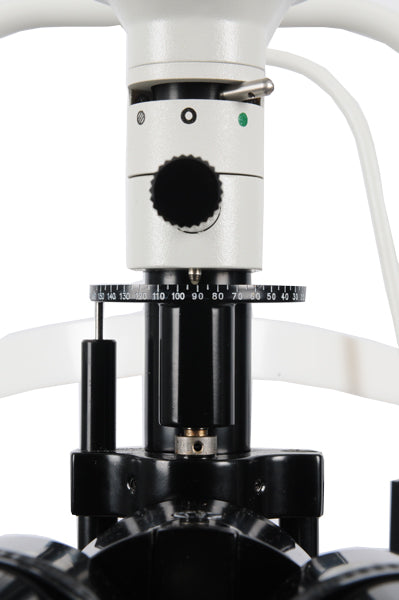

Continuous Slit Rotation and Aperture Adjustment The ESL-2600 features 2/3x slit projection magnification and enables users to modify slit width continuously from 0mm to 9mm. The slit becomes a circle at 9mm. The slit height also can be changed continuously, from 1mm to 8mm. Aperture diameters are Ø9mm, Ø8mm, Ø5mm, Ø3mm, Ø2mm, Ø1mm, and Ø0.2mm. The slit angle is continuously adjustable from vertical to horizontal from 0° to 180°. |
||
 |
Ergonomically Designed Illumination Control The smooth classic design of the ESL-2600 allows for precise movements and easy operation of the joystick and knobs. For example, the illumination lever is conveniently located next to the joystick. The brightness control switch can be set to High or Normal, making diagnostic procedures even easier. |
|
 |

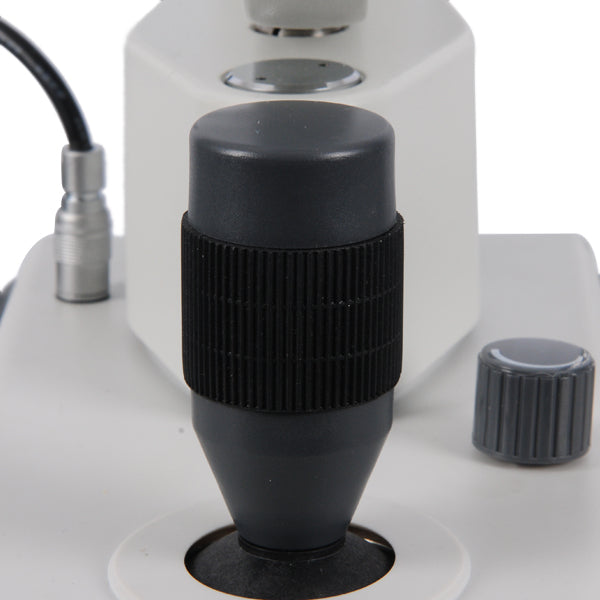

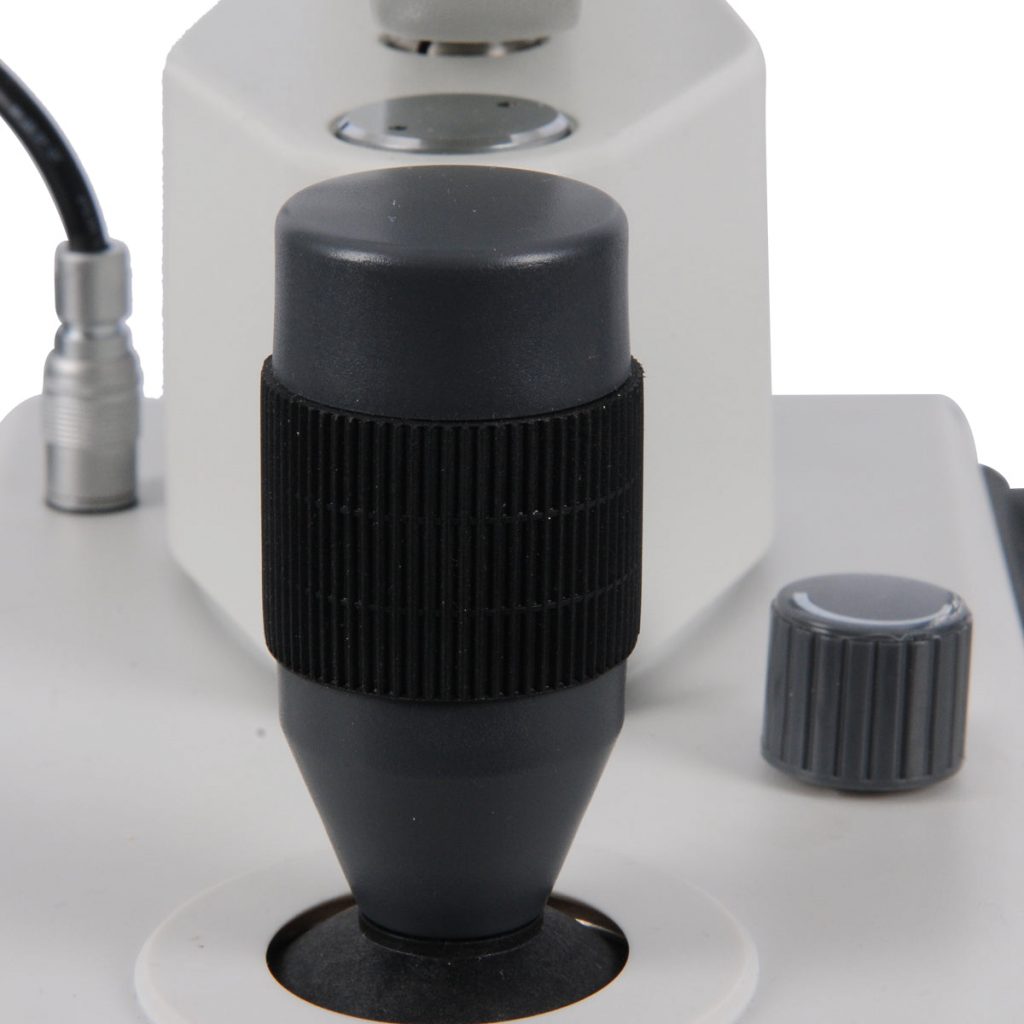

Integrated Control Joystick The integrated Joystick is simple to control and allows operators to acquire sharp images. The base operation of the ESL-2600 offers the following movements to provide flexibility, comfort and precision—forward and back movement to 90mm; left and right movement to 100mm, fine movement to15mm and vertical movement to 30mm. The joystick moves horizontal for fine-tuning and vertical for height and target alignment. Once you achieve the proper alignment, the base can be locked to prevent sliding. |
|
 |

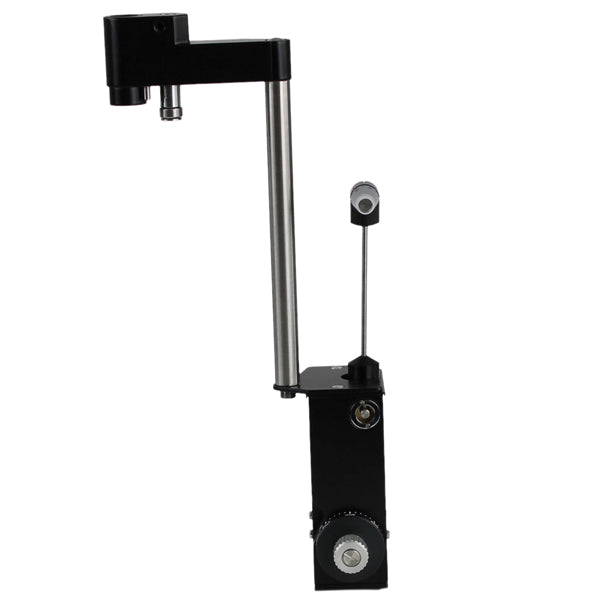

Optional Accessories Ezer's ESL-2600 slit lamp can be equipped with the TN-150 / TN-150B applanation tonometer or the Haag-Streit AG Model R-900 or Model T-900 applanation tonometer for measuring intraocular pressure. |
|
| Microscope | |
| Type | Cross-angle stereovision |
| Model of Magnifying | Change the objective for 2-grade magnification |
| Eyepiece | 10X |
| Total Magnification Rate | Objective x Eyepiece = magnification rate / vision field 1x 10x 10x Ø18mm 1.6x 10x 16x Ø14.5mm |
| Range of P.D. Adjustment | 10x eyepiece 2.16 to 3.22 in (55 to 82 mm) |
| Diopter Adjustment | 10x eyepiece ±5D |
| llumination | |
| Slit Projection Magnification | 2/3x |
| Slit Width | Continuous from 0mm to 0.35 in / 9 mm (at 0.35 in / 9mm, slit becomes a circle) |
| Slit Height | Continuous from 0.04in / 1mm to 0.31in / 8mm |
| Aperture Diameter | Ø0.35in, Ø0.31in, Ø0.2in, Ø0.12in (Ø9mm, Ø8mm, Ø5mm, Ø3mm) Ø0.08in, Ø0.04in, Ø0.008in (Ø2mm, Ø1mm, Ø0.2mm) |
| Slit Angle | 0° to 180°continuously adjustable from vertical to horizontal |
| Filter Piece | Heat-Absorption, Gray, Red-Free and Blue |
| Illumination Bulb | 6V 20W Halogen Bulb |
| Movement Base | |
| Fore and Back Movement | 3.54in / 90mm |
| Left and Right Movement | 3.94in / 100mm |
| Fine Movement | 0.6in / 15mm |
| Vertical Movement | 1.2in / 30mm |
| Chin-rest Parts | |
| Vertical Movement | 3.15in / 80mm |
| Fixation Target | Red LED |
| Power Source | |
| Input Voltage | 110V/220V ~ ±10% |
| Input Frequency | 50/60 Hz ±1Hz |
| Input Power | 30VA |
| Output Voltage | Illumination Bulb 0V ~ 6V Fixation Target 6V |
| Electric Safe Standard | Conform to Standard IEC601 -1, Class I Type B |
| Dimension and Weight | |
| Packing Box | 26.4 x 22.4 x 20.08 in(670 x 570 x 510 mm) |
| Total Weight | 50.6lb / 23Kg |
| Net Weight | 44lb / 20 Kg |
