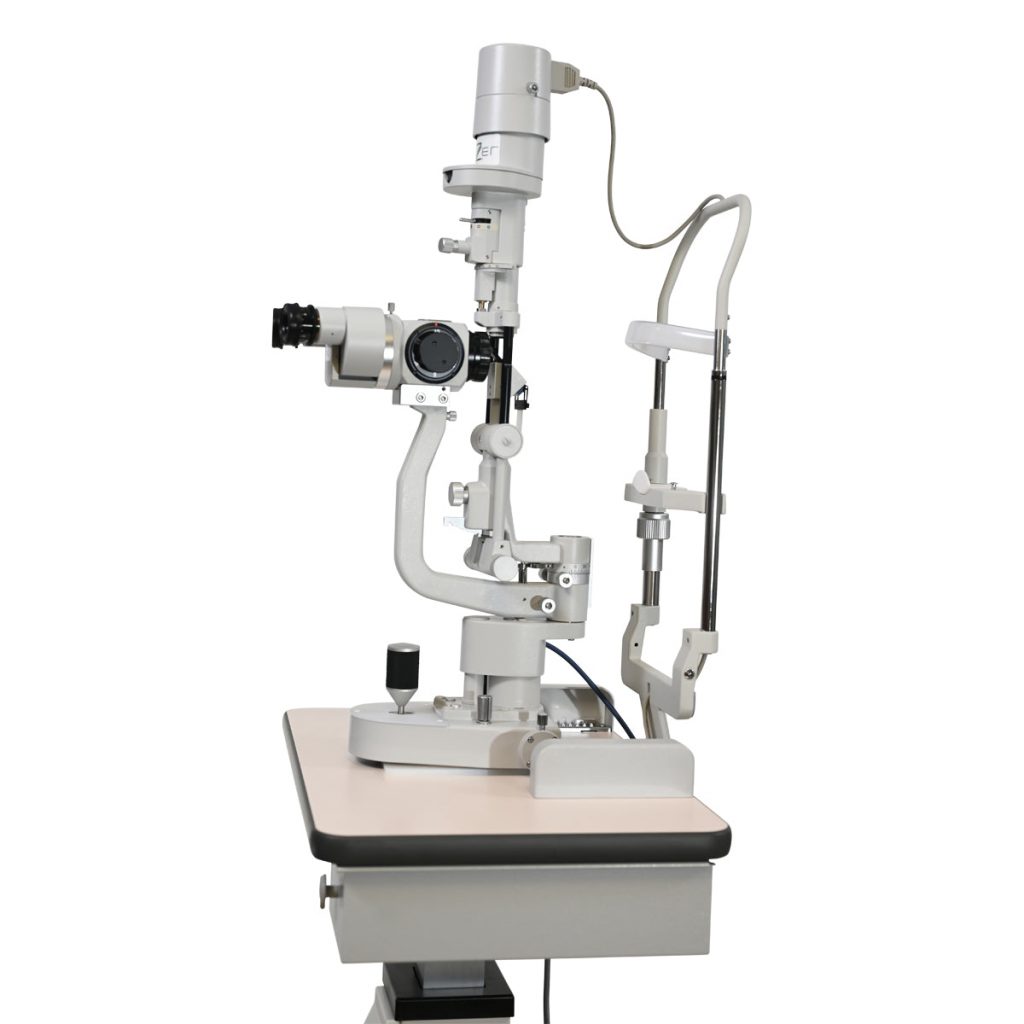

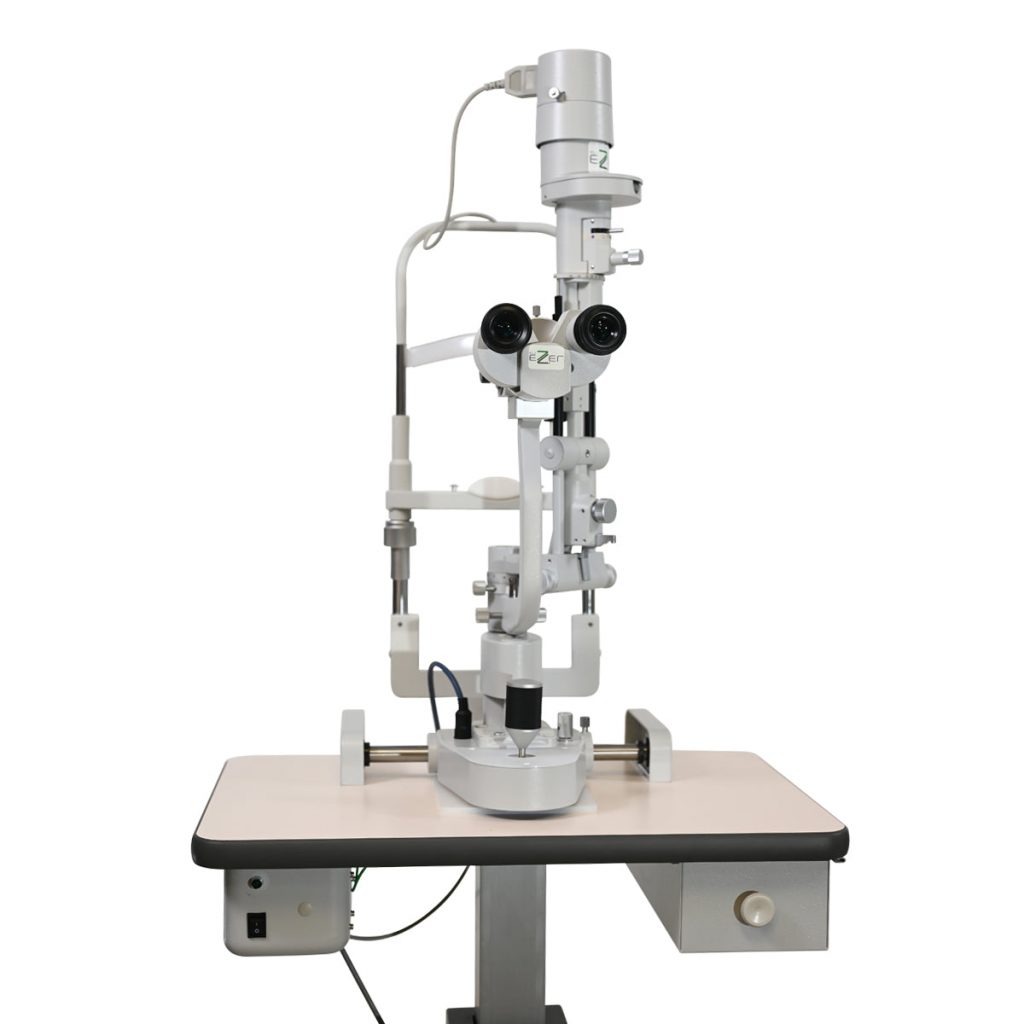

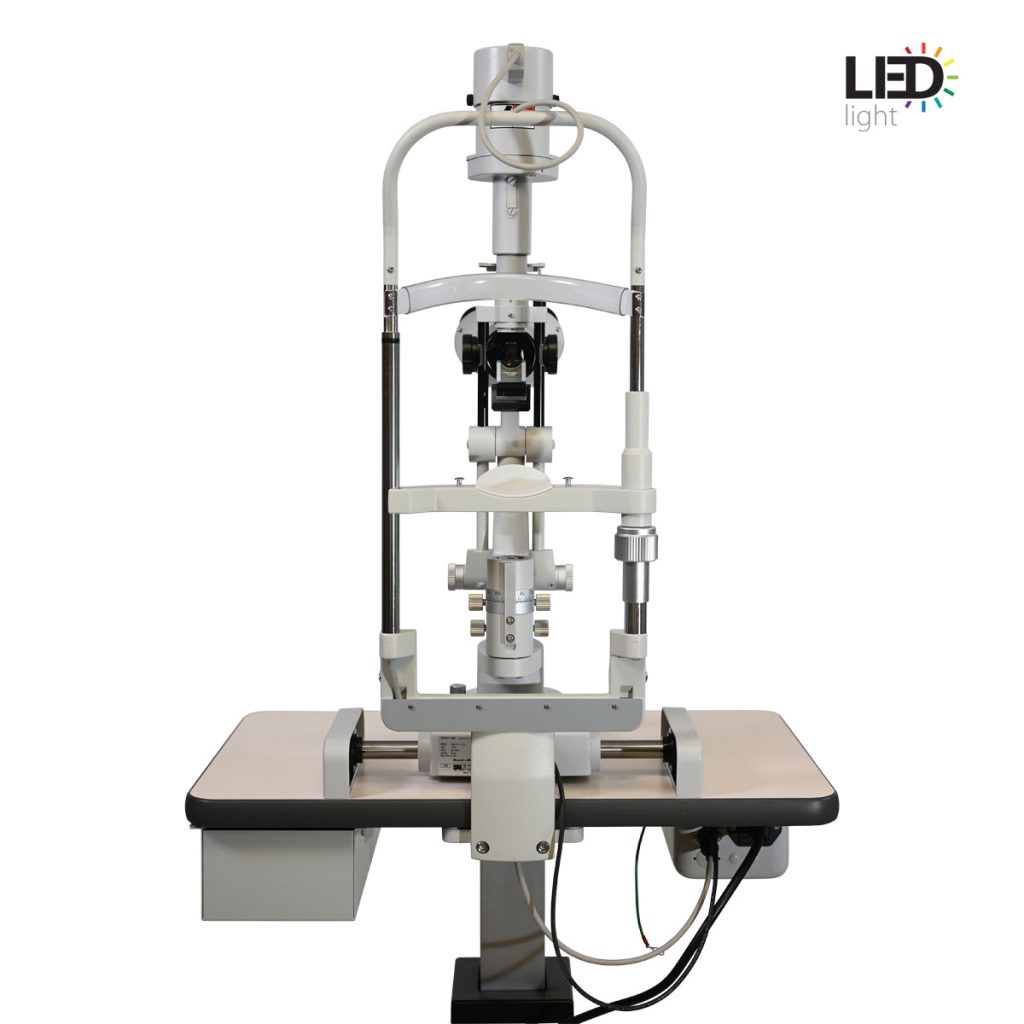

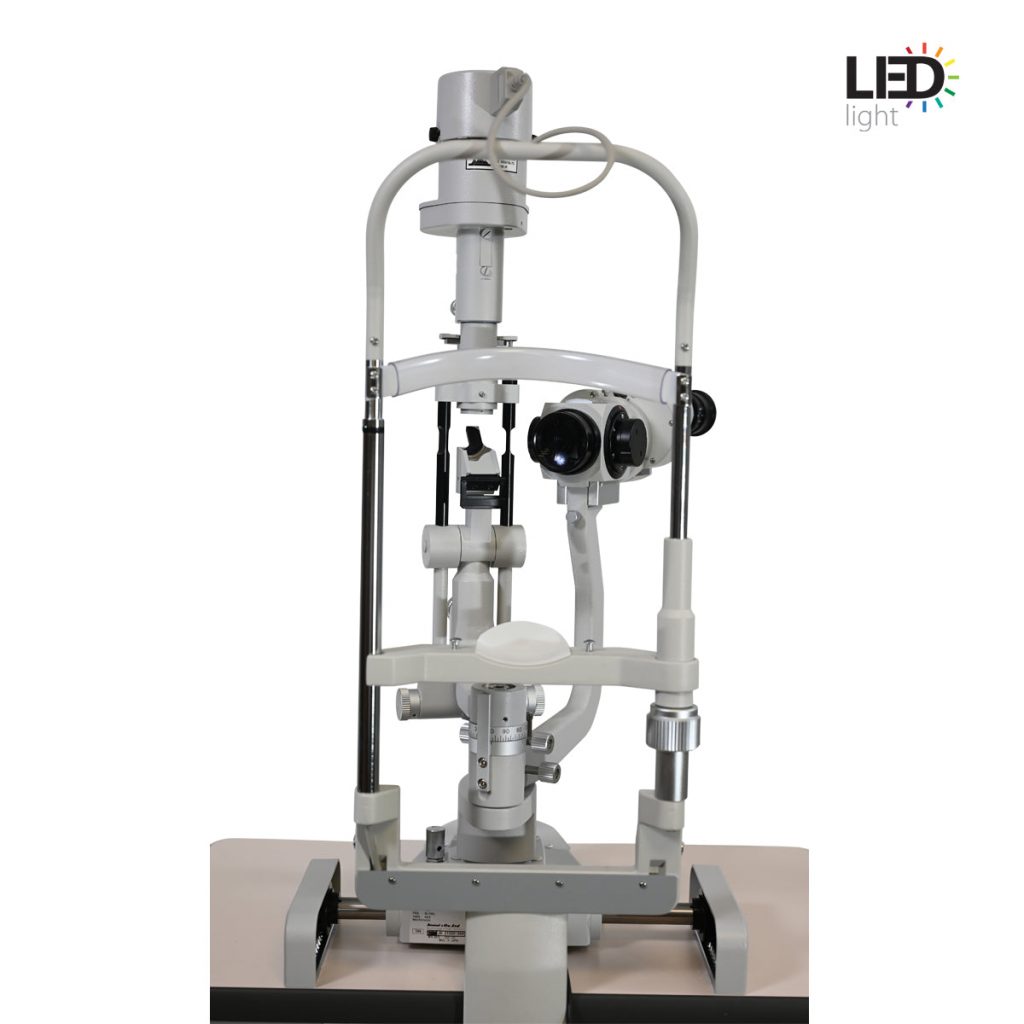

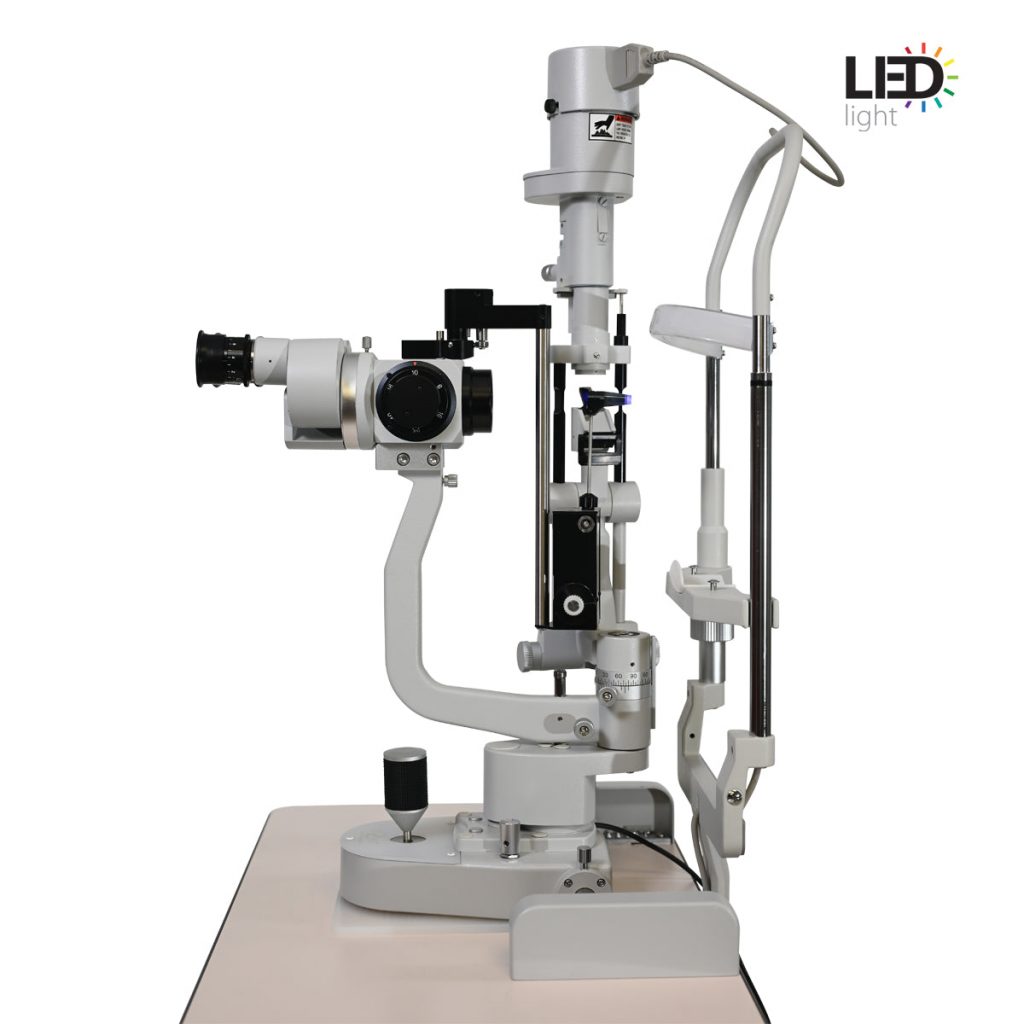

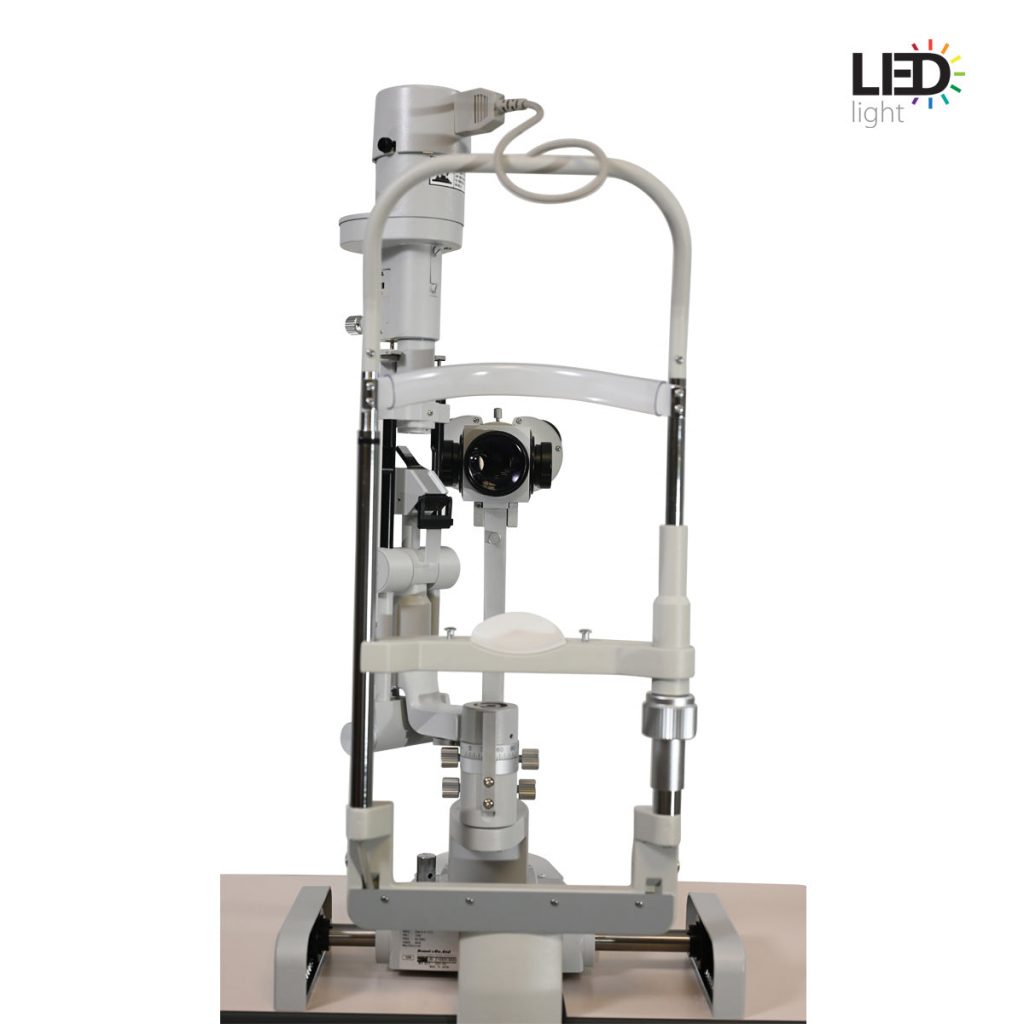

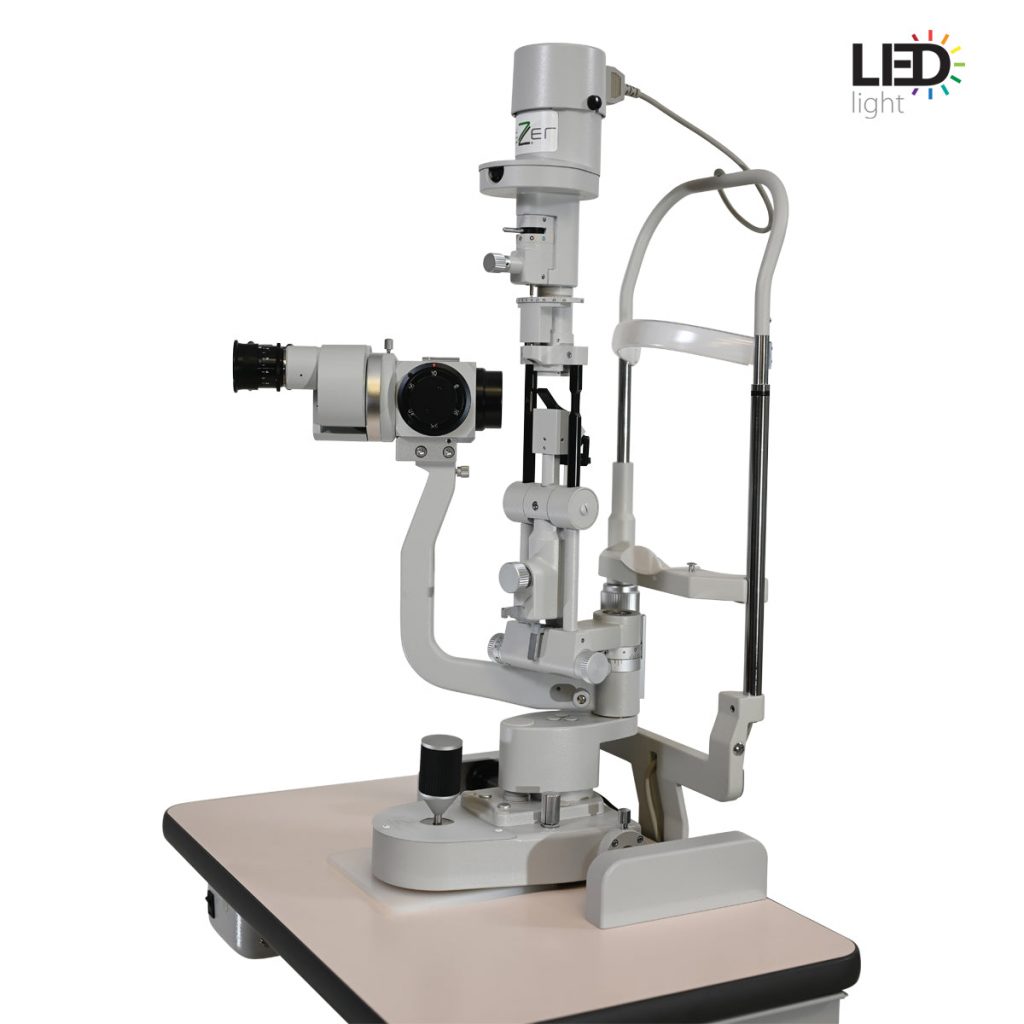

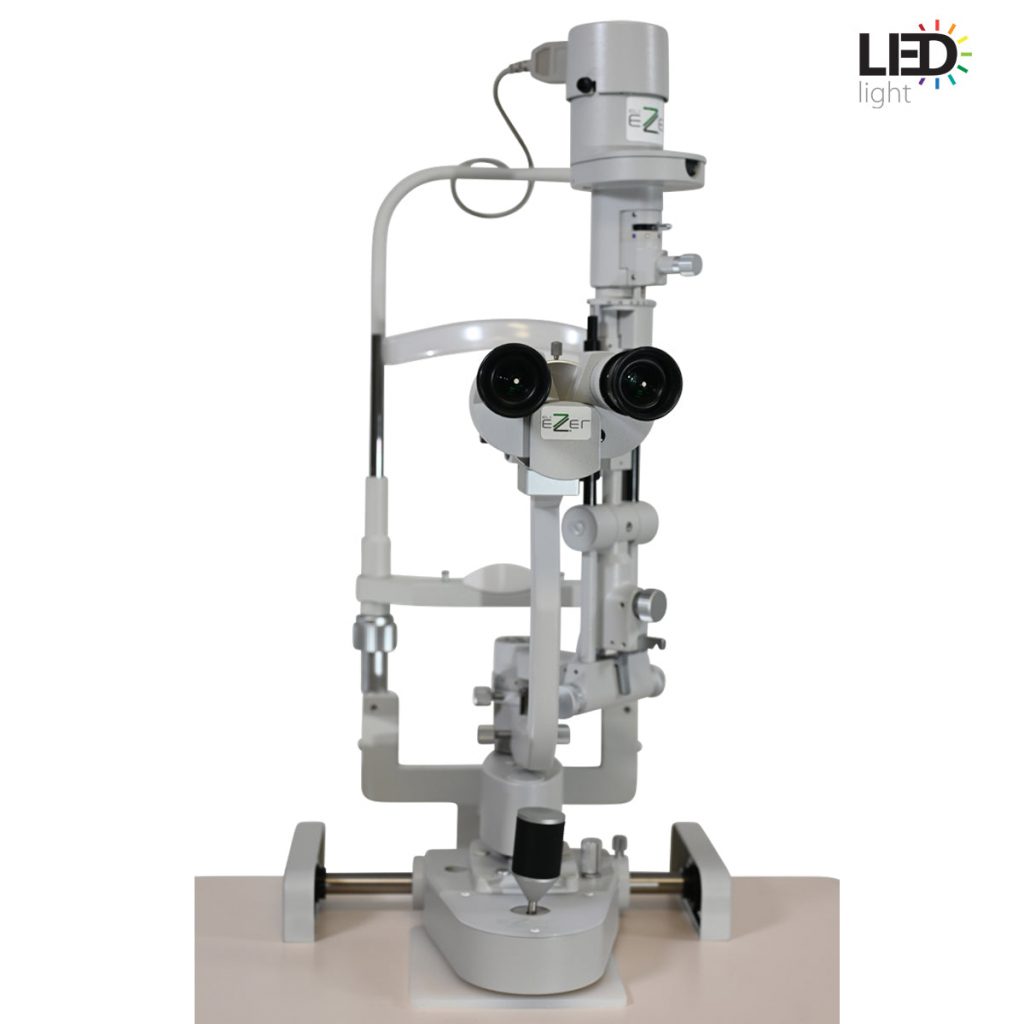

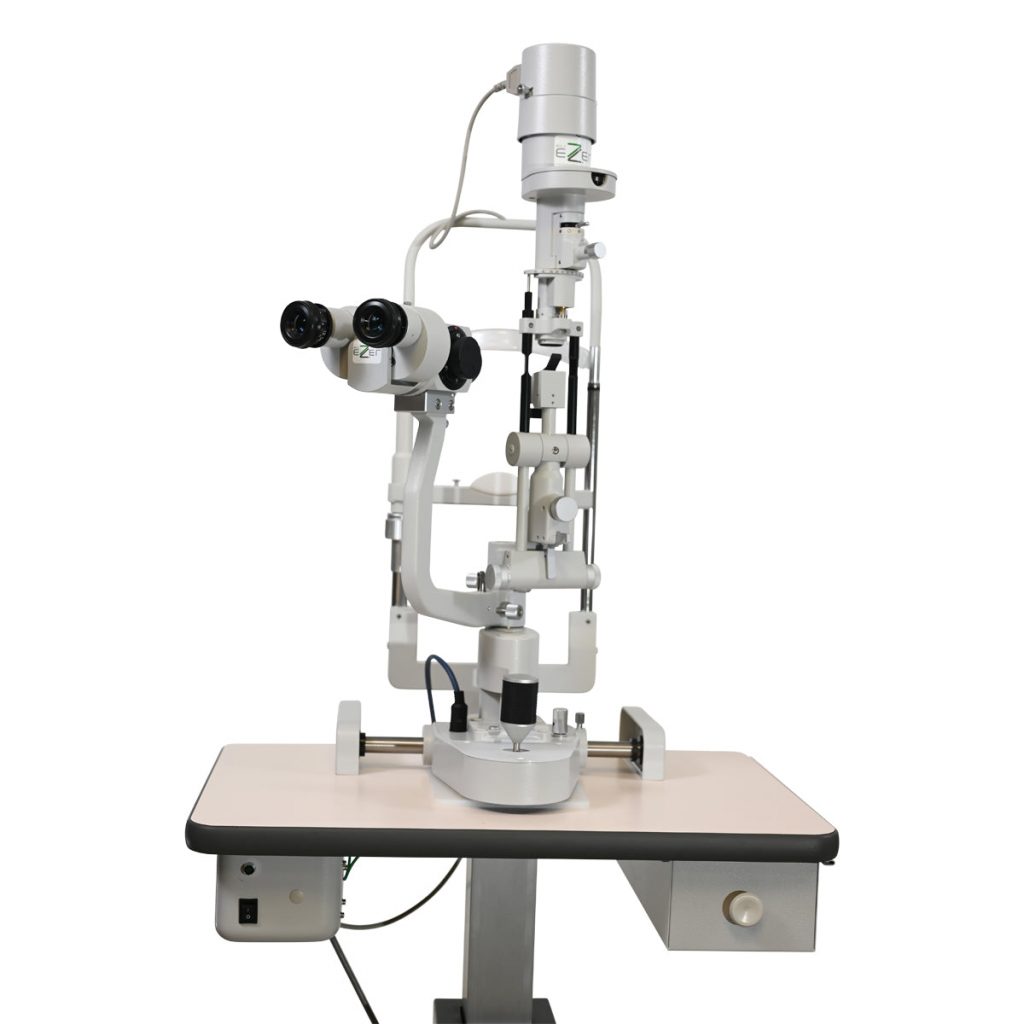

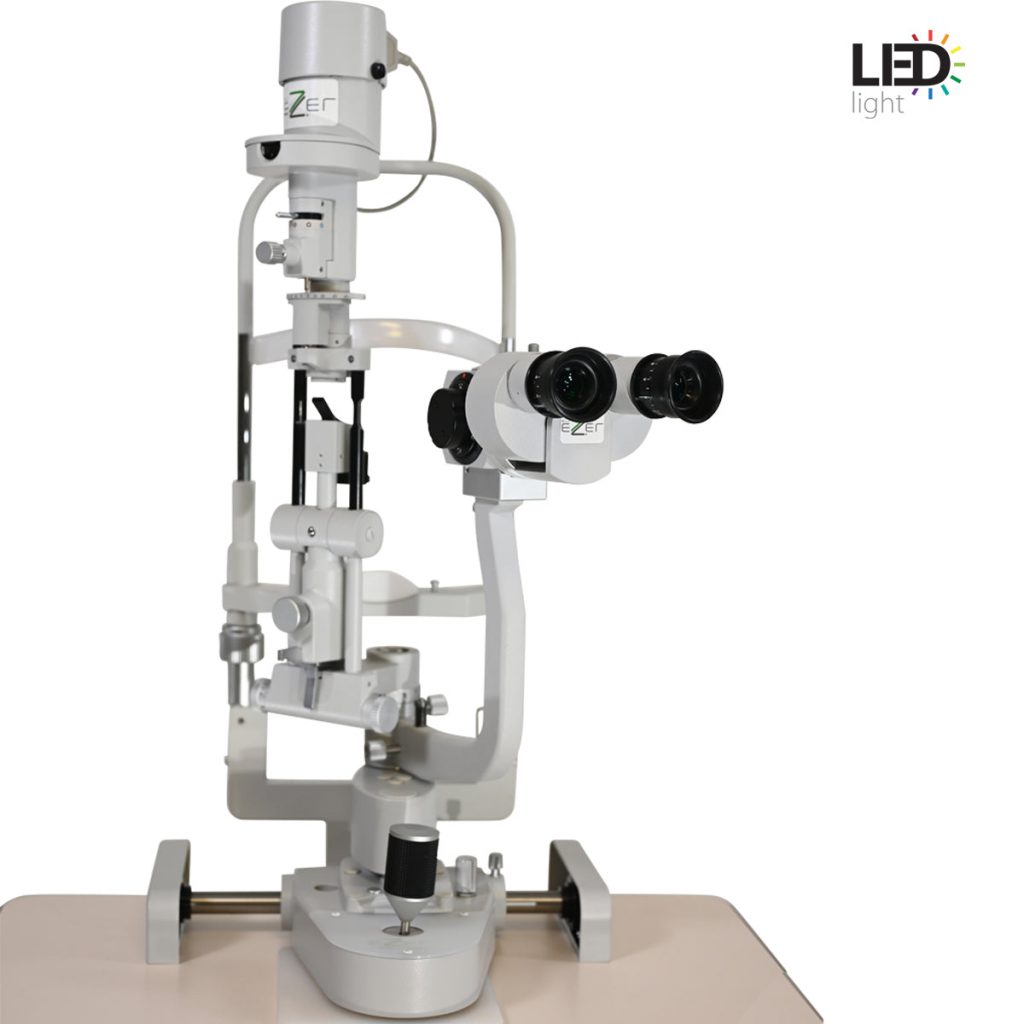

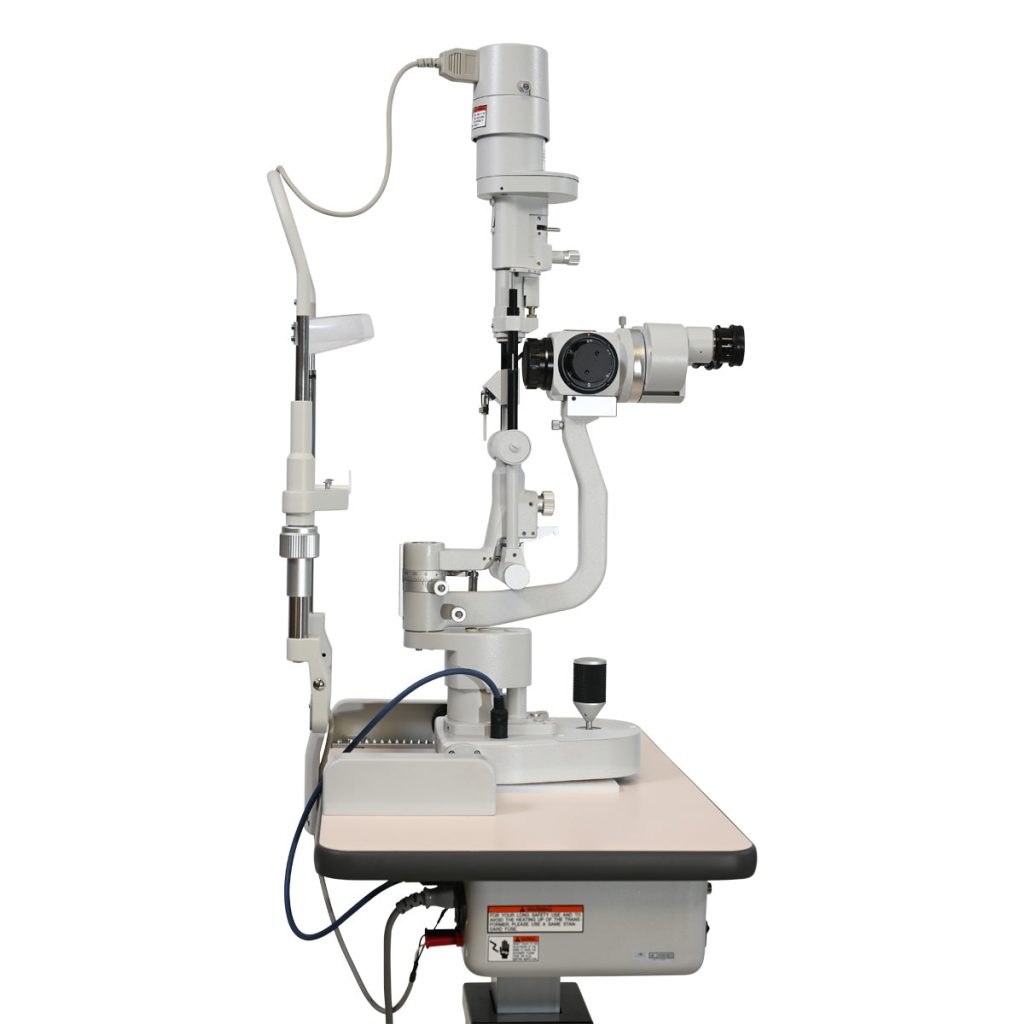

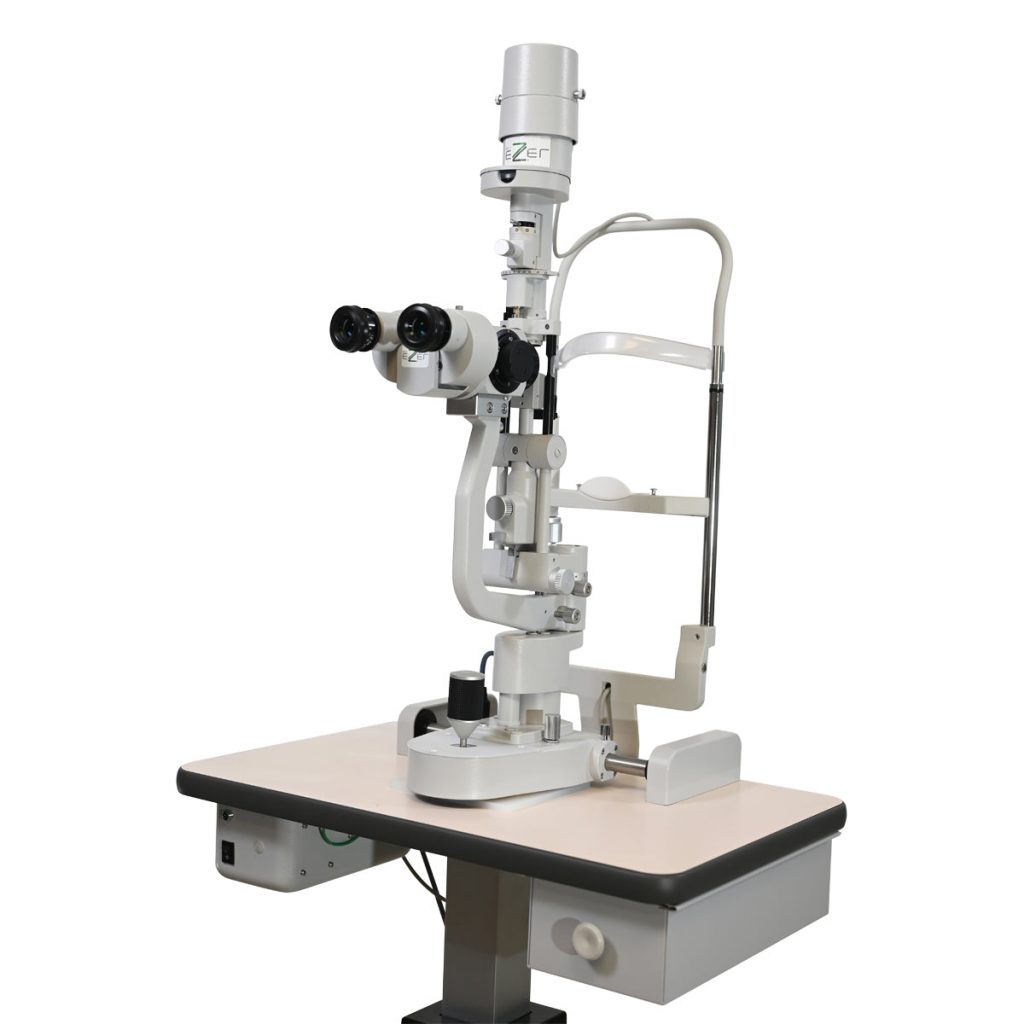

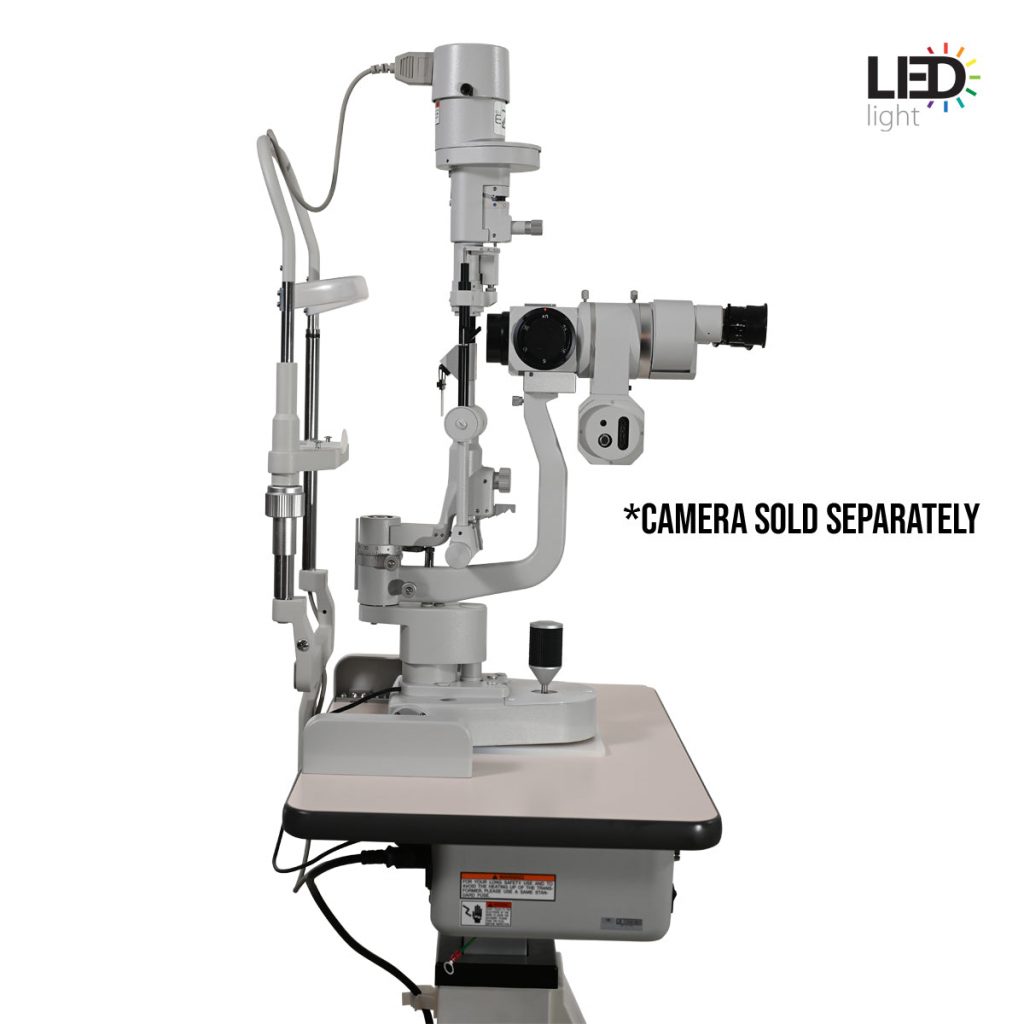

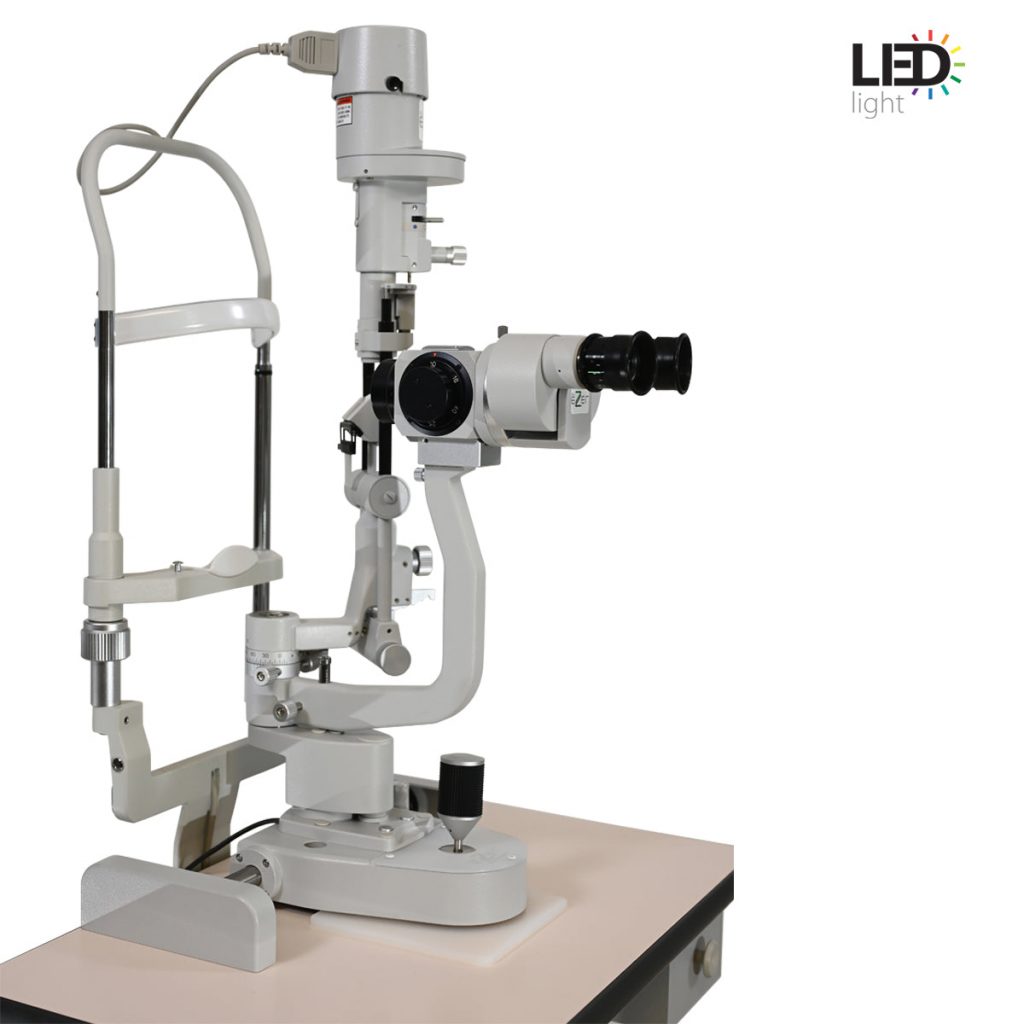

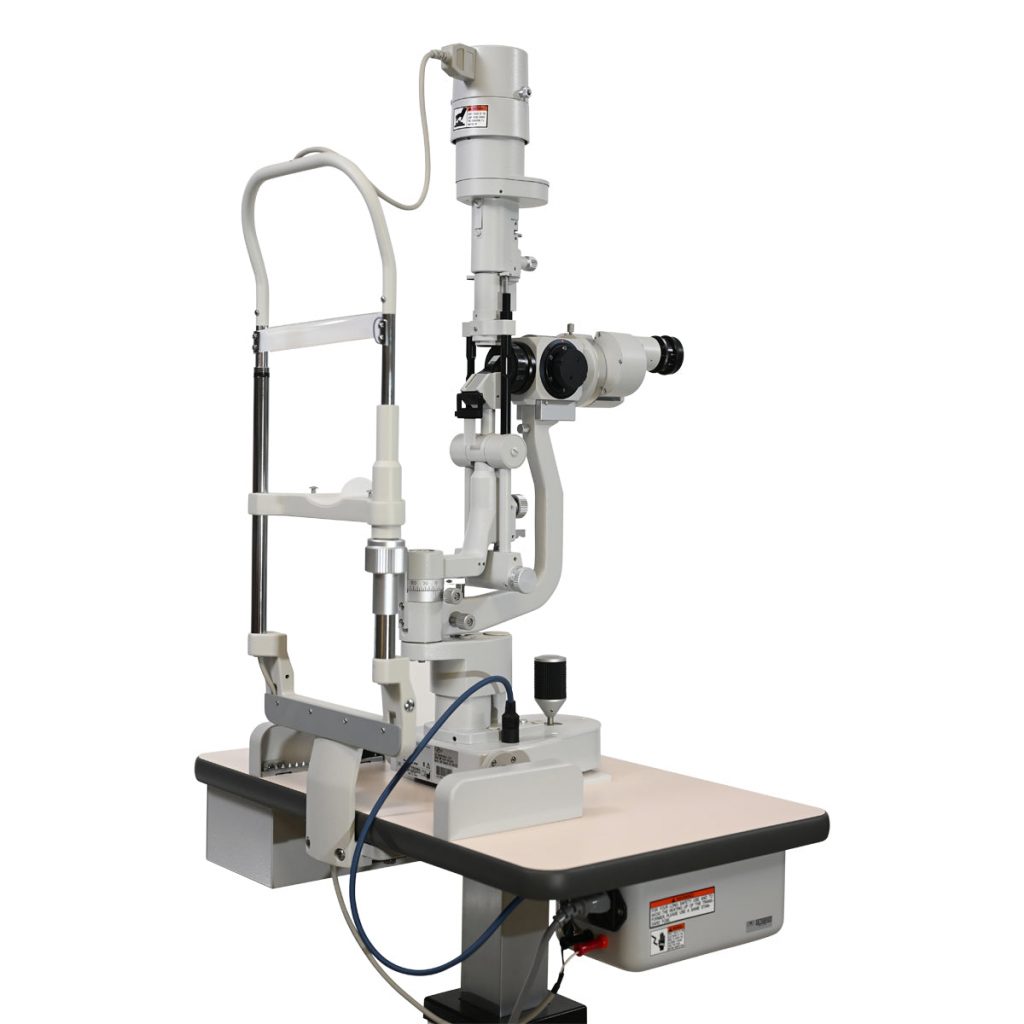

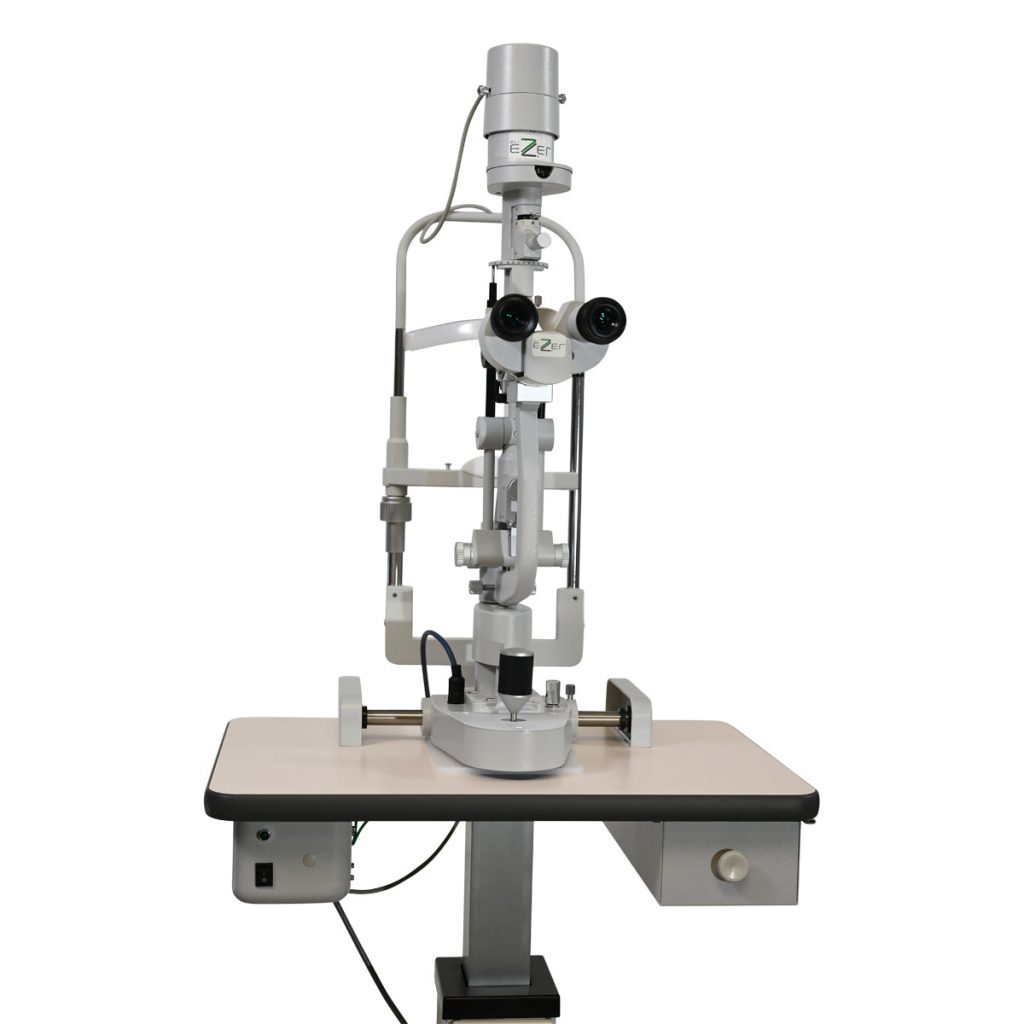

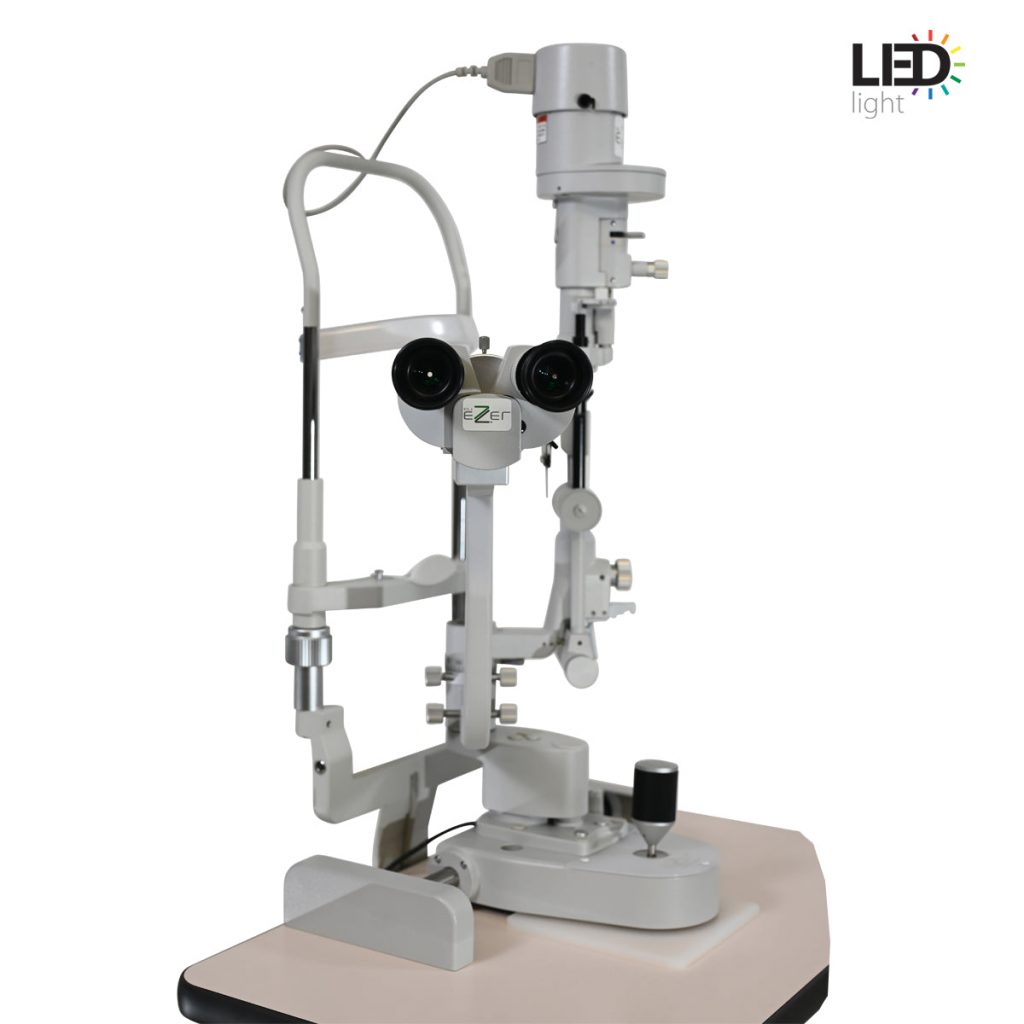

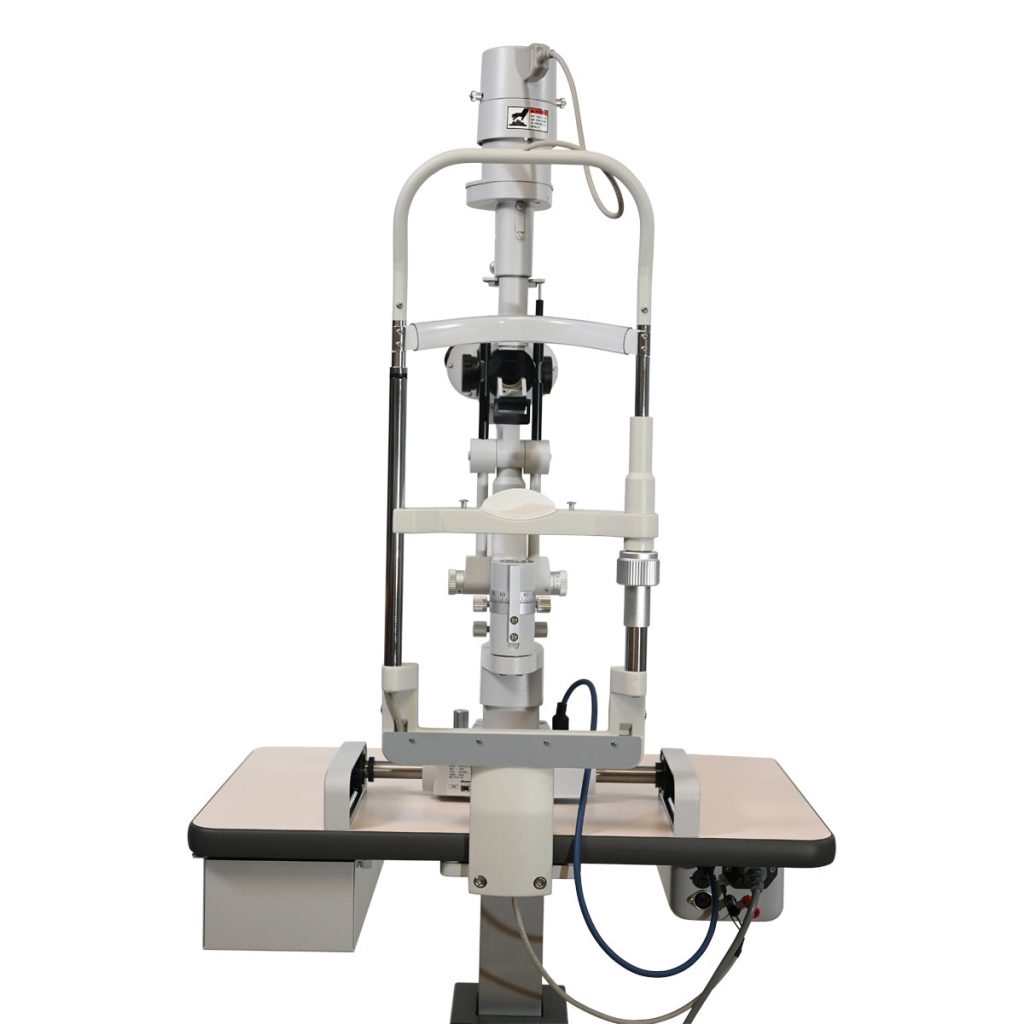

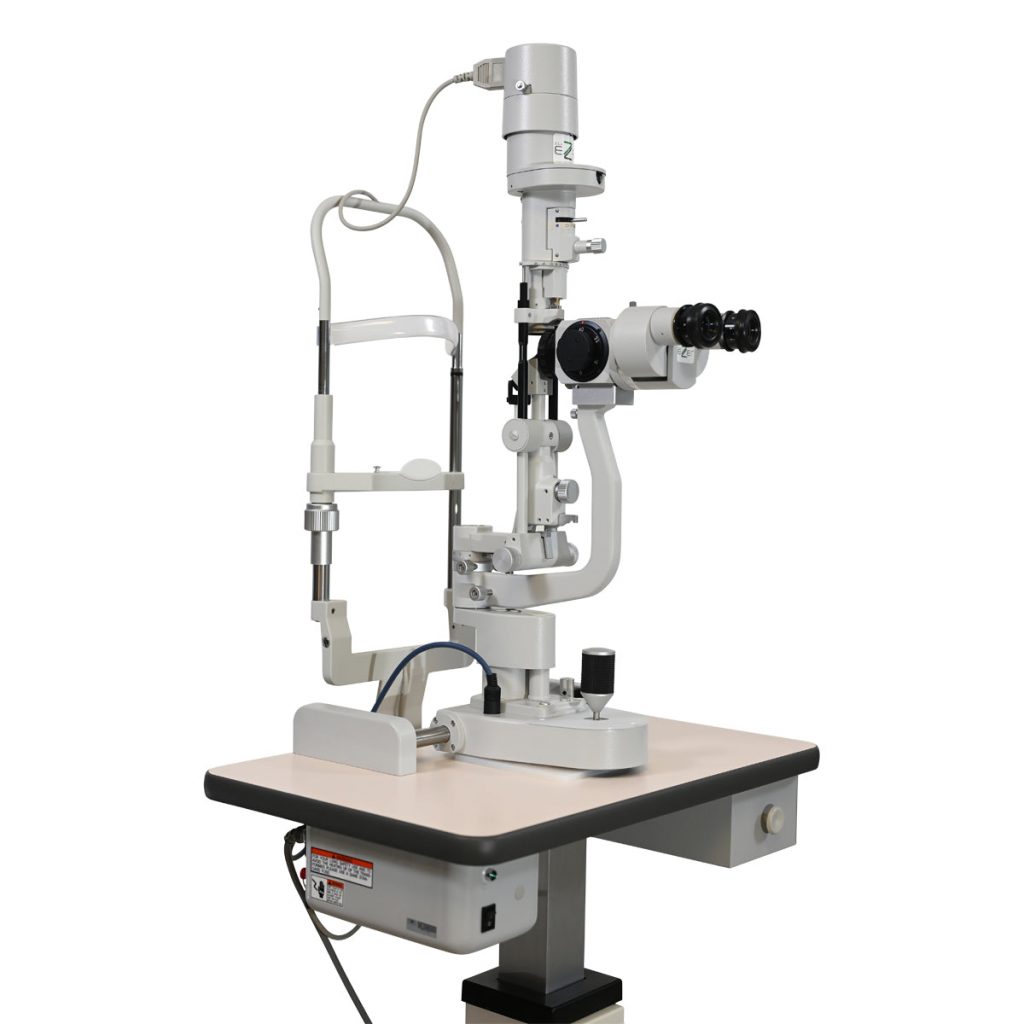

Ezer Slip Lamp ESL-Emerald-12 5X
Exceptional optical performance, quality and helpful features make the ESL-Emerald-12 LED/Halogen a competitive slit lamp for the detection of ocular infections, complications and other disorders. The basic features and user-friendly operation of the ESL-Emerald-12 LED/Halogen, along with top-quality Japanese build, make it the standard slit lamp for every practice.
| *Made in Japan |  |

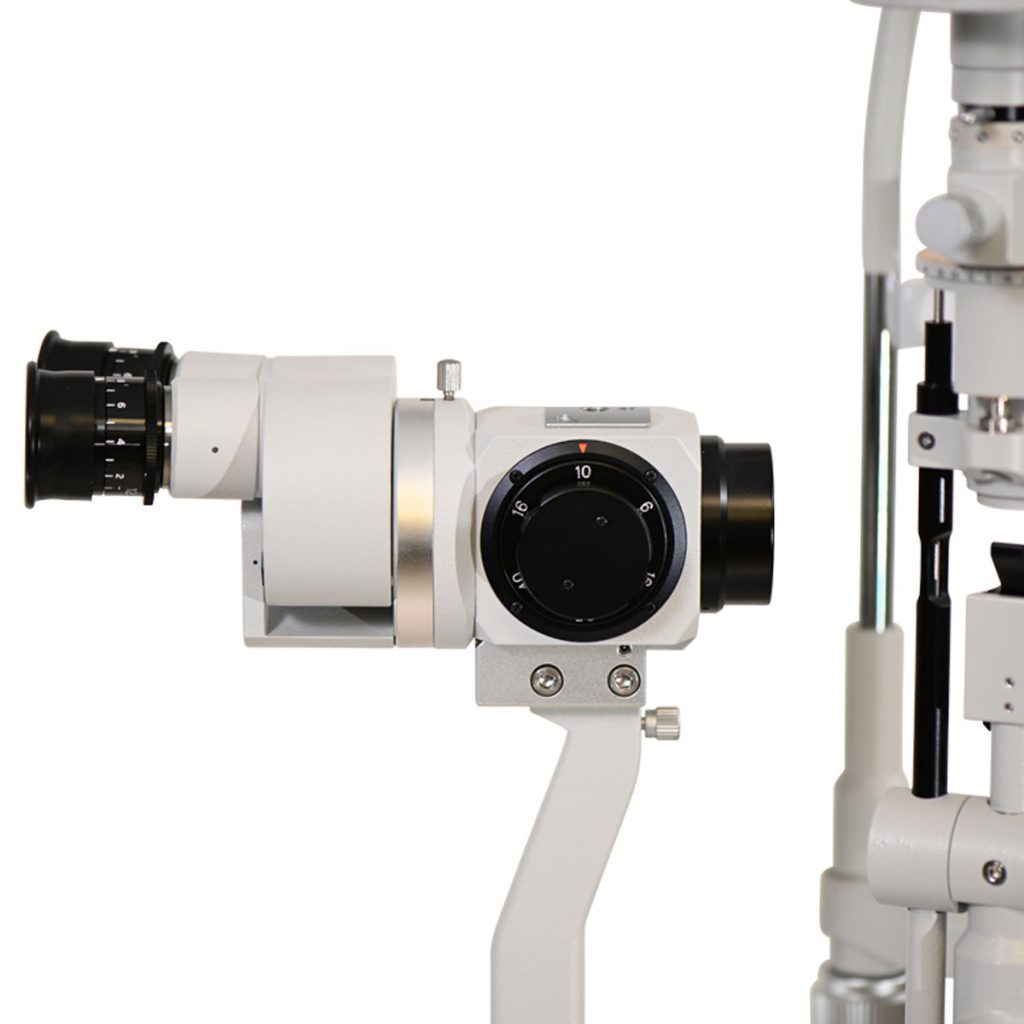

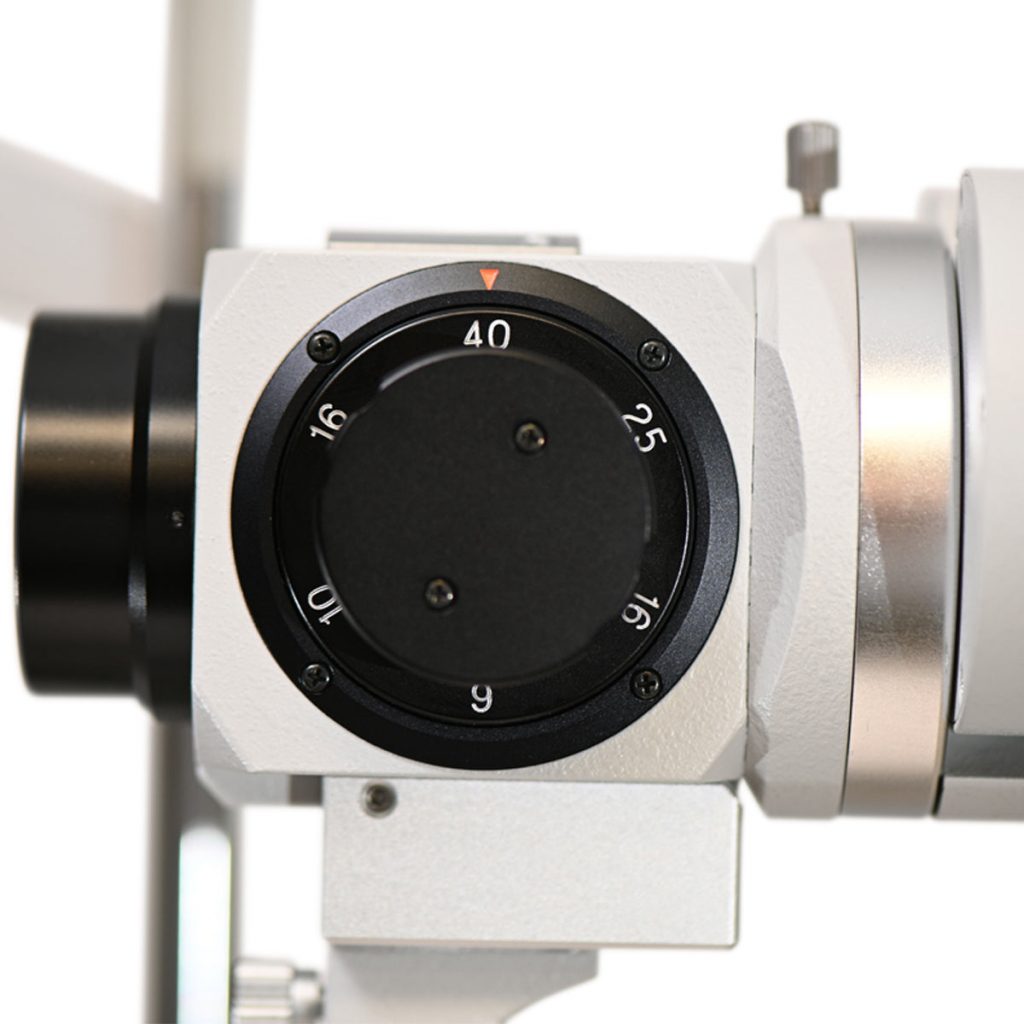

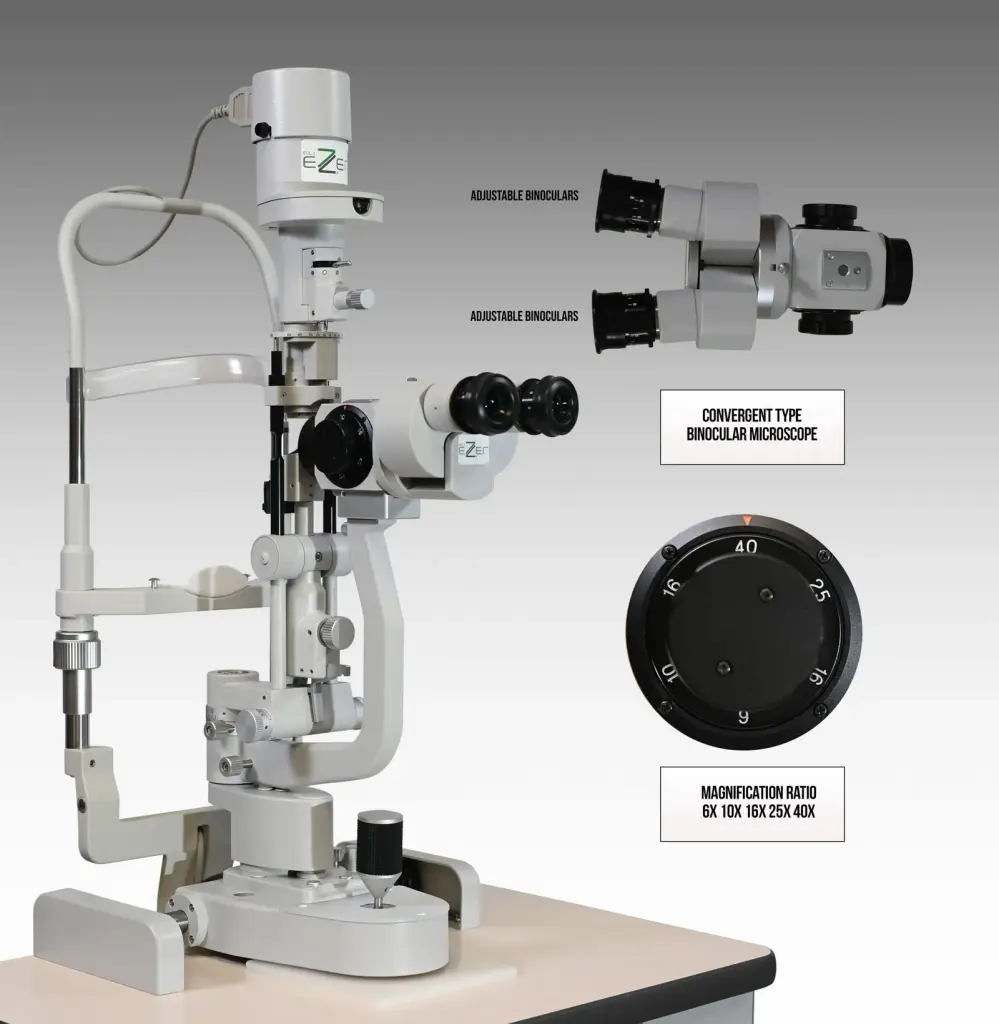

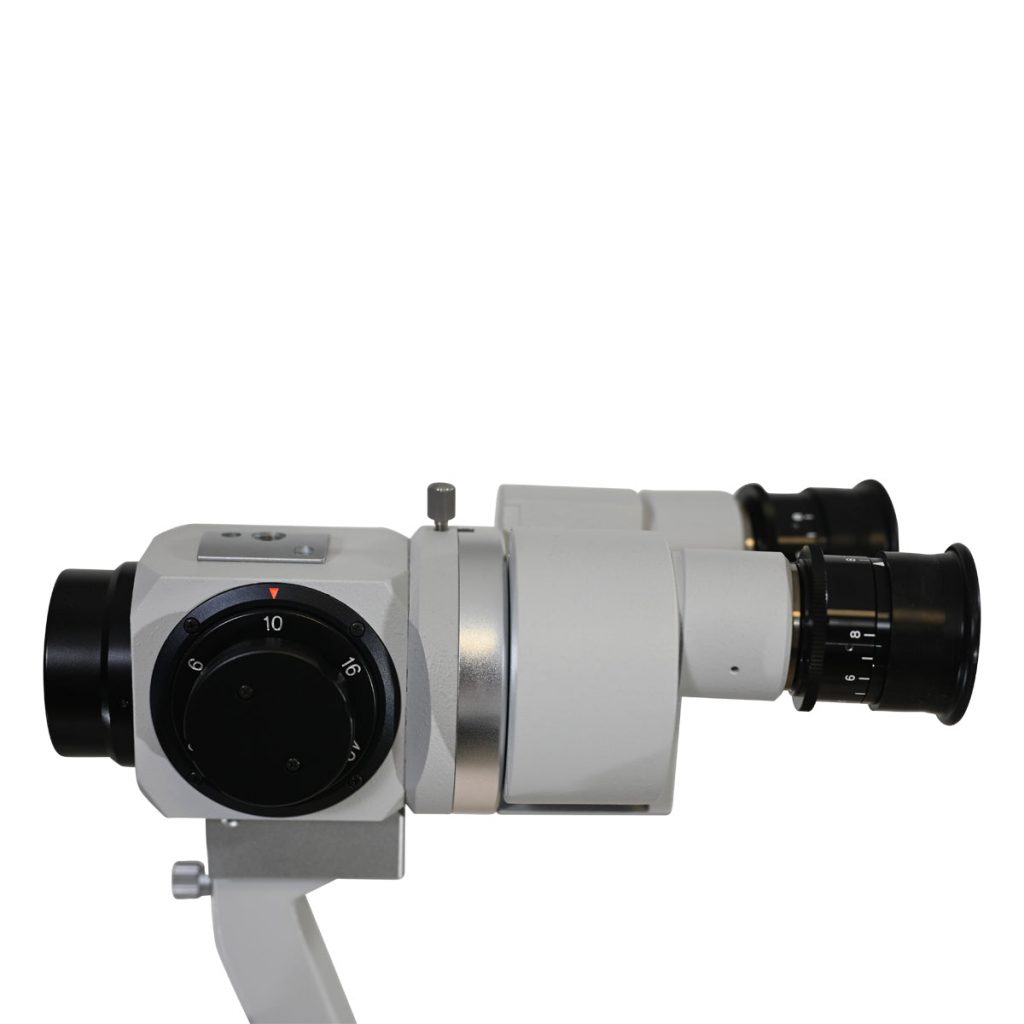

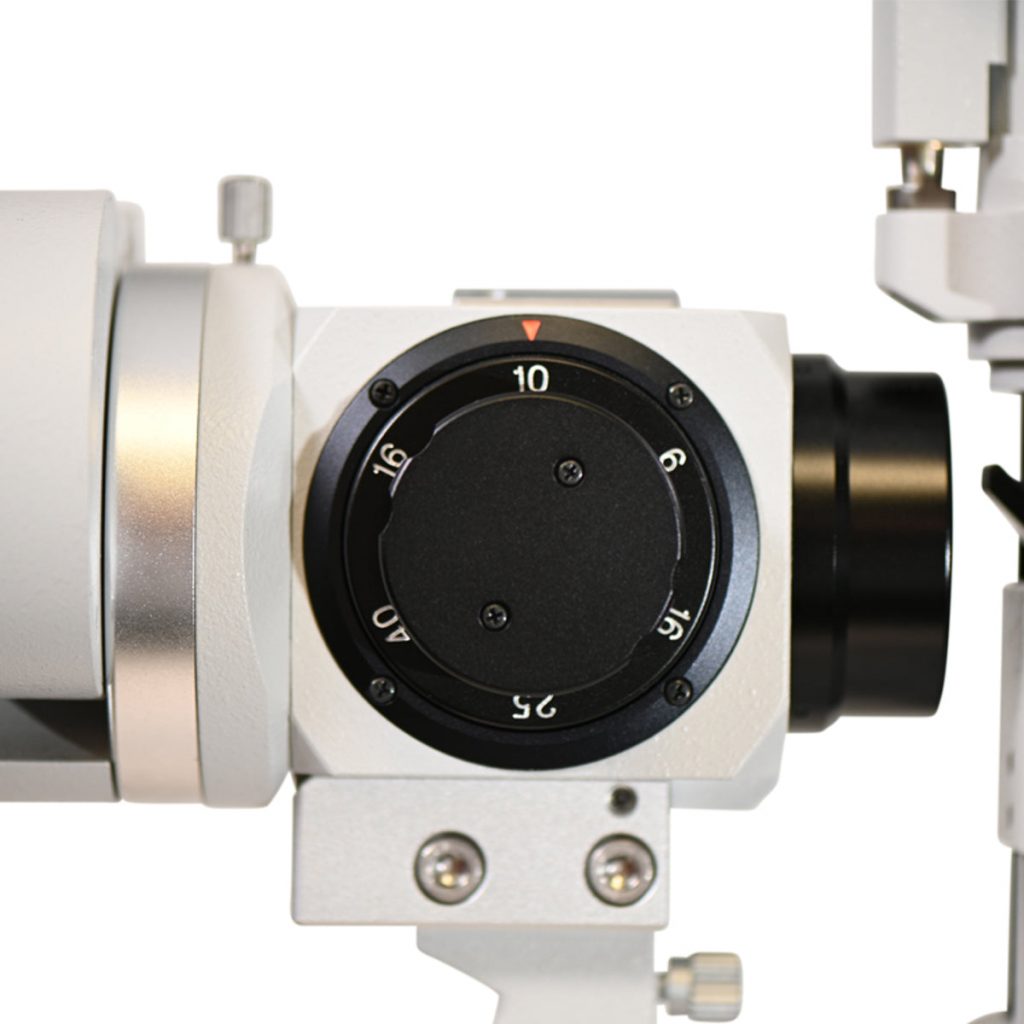

Rotation of a drum provides easy manipulation of magnification power for the largest range of objectives out of any Ezer slit lamp instrument (6x, 10x, 16, 25, 40x). This 5-step magnification changer, the most distinctive feature of the ESL-Emerald-12, supports the largest field of view and gradually allows increased magnification power for a comprehensive ocular examination.

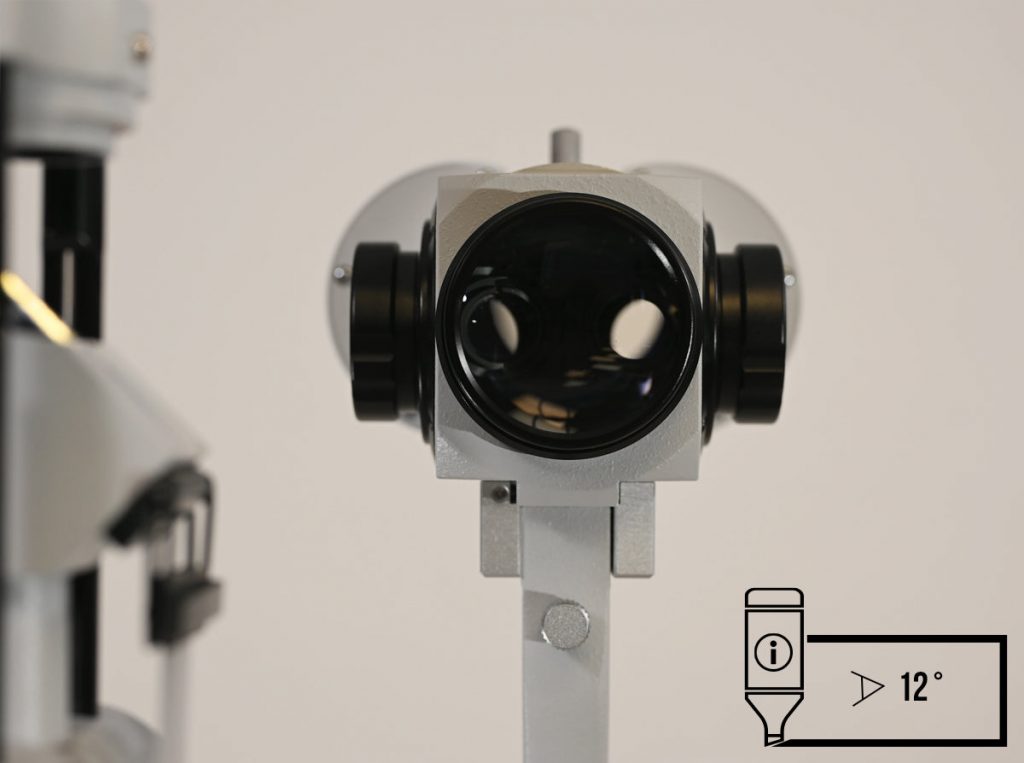

This slit lamp model offers a 12° convergent stereo view with high resolution. The pupillary distance is adjustable to a wide range (53 - 83 mm) compared to other models allowing for a more pleasant patient experience.

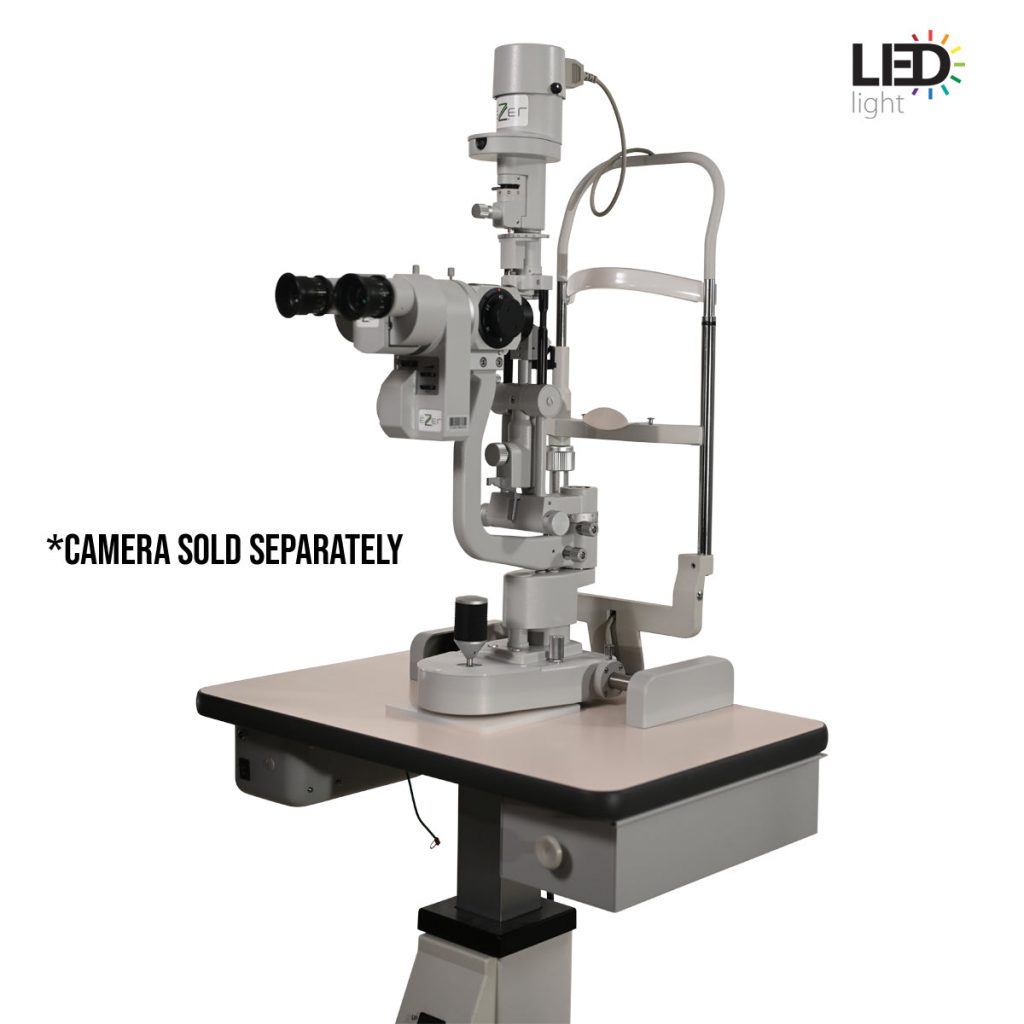

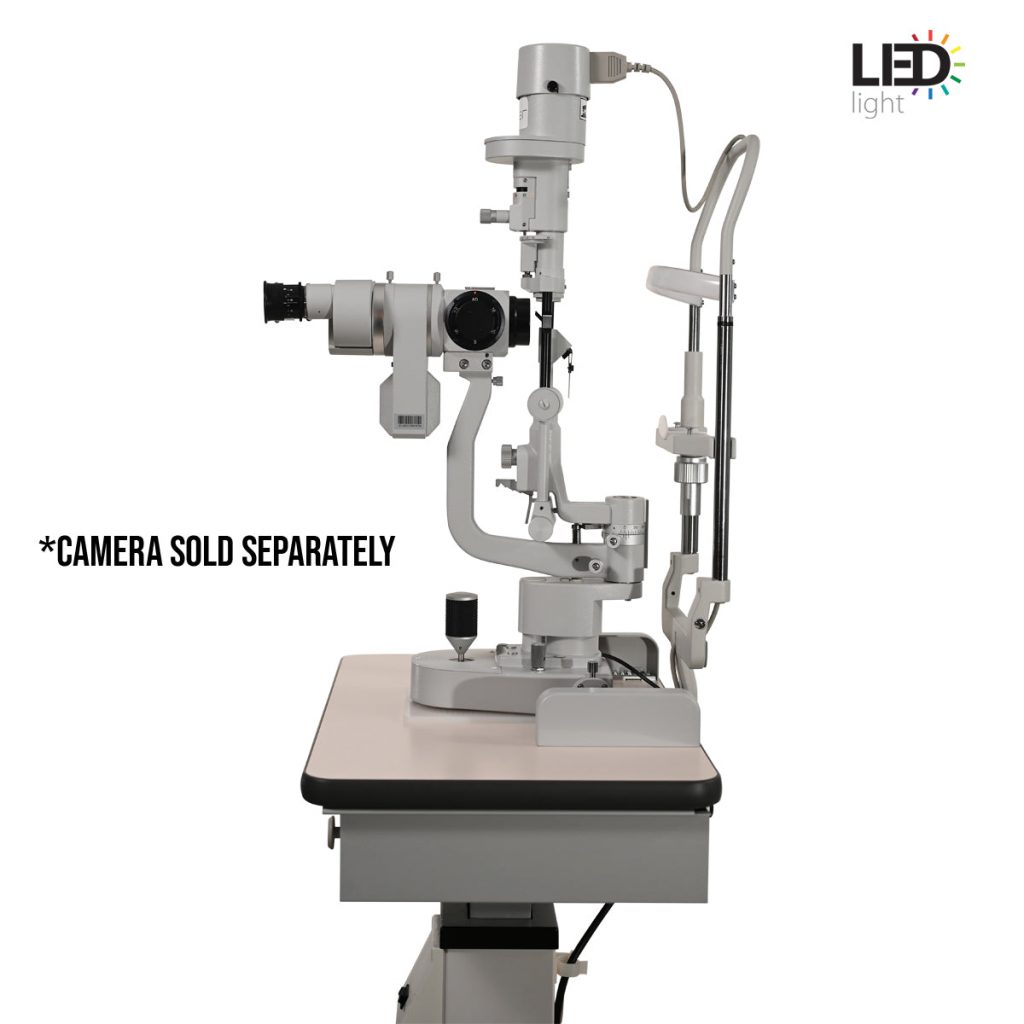

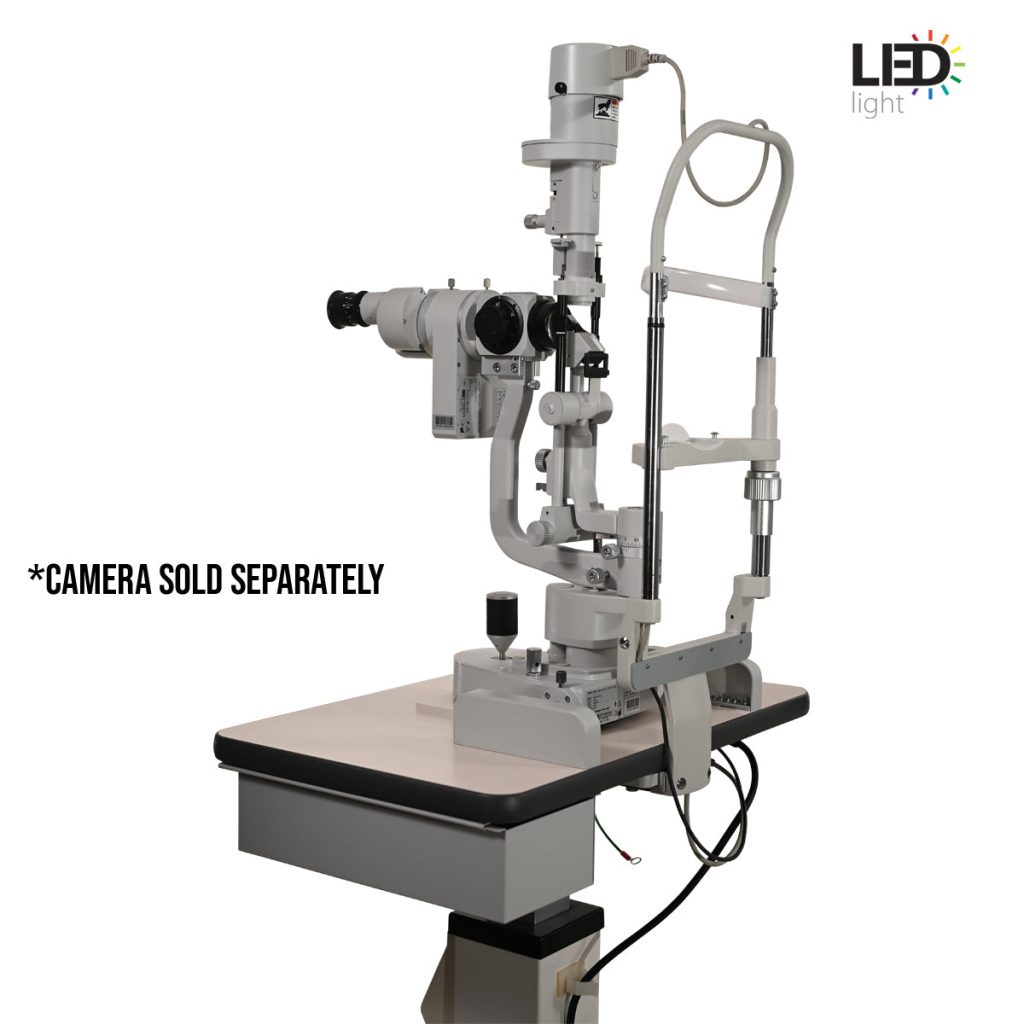

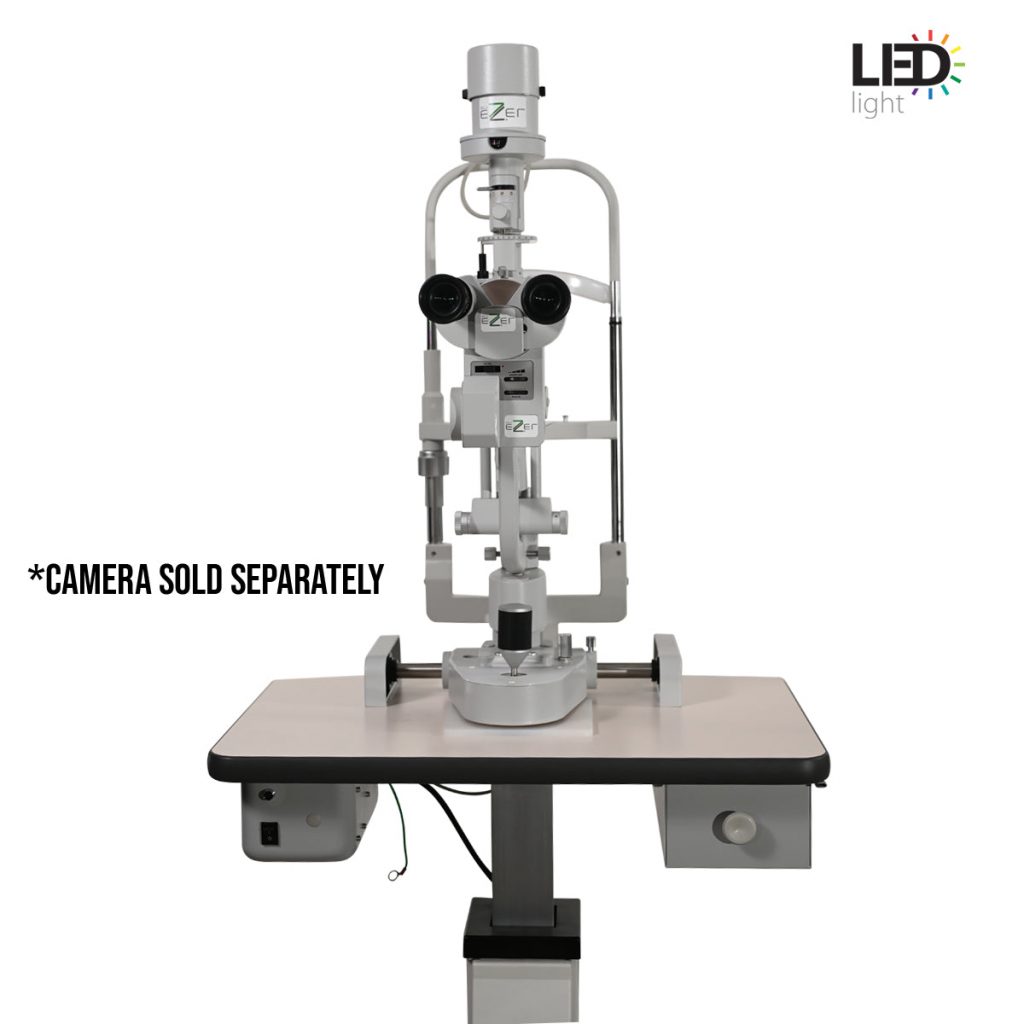

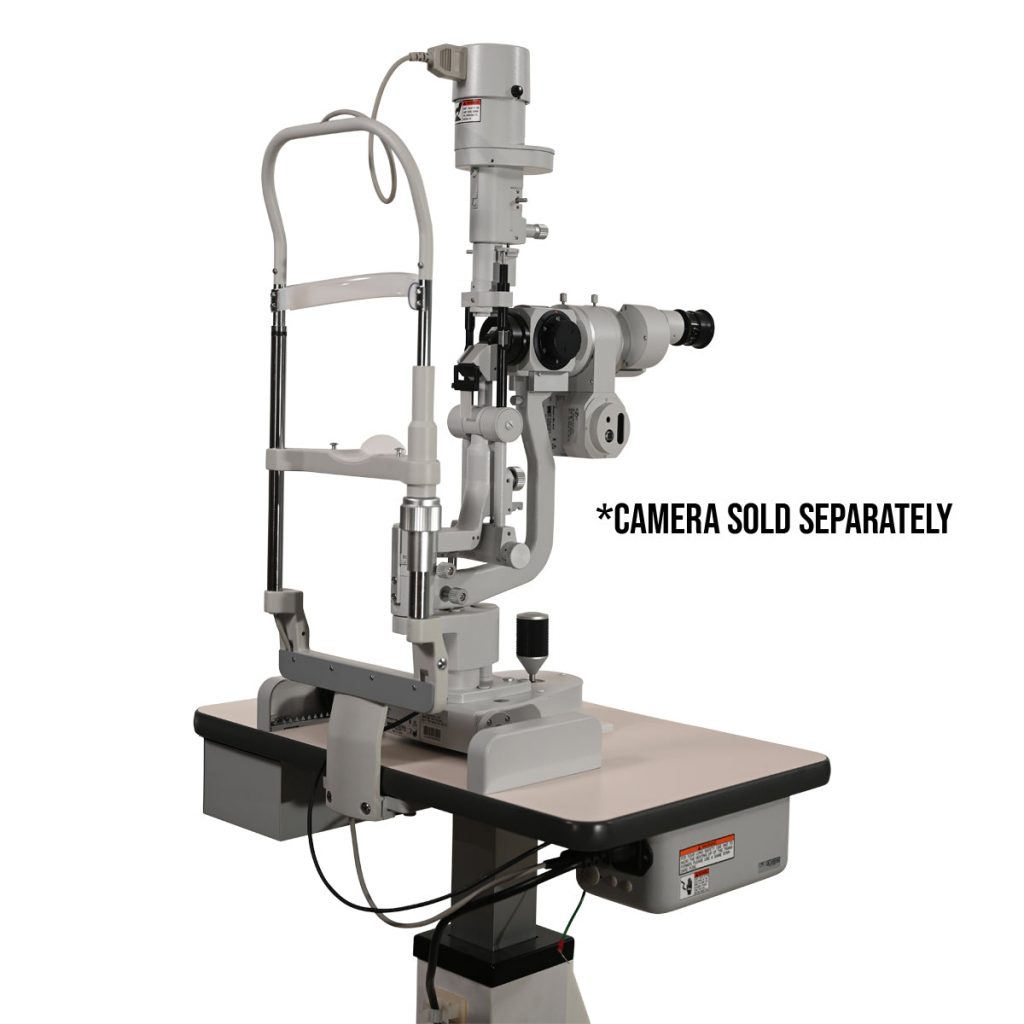

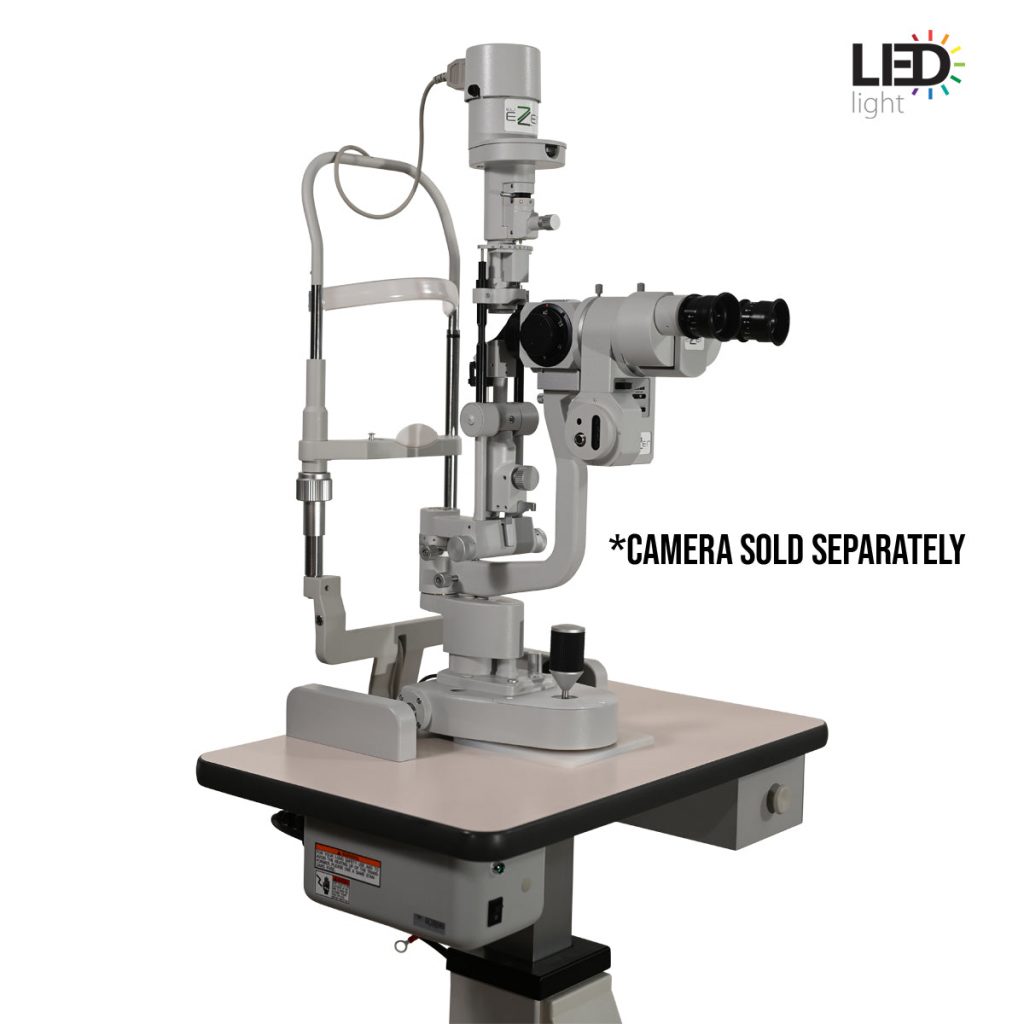

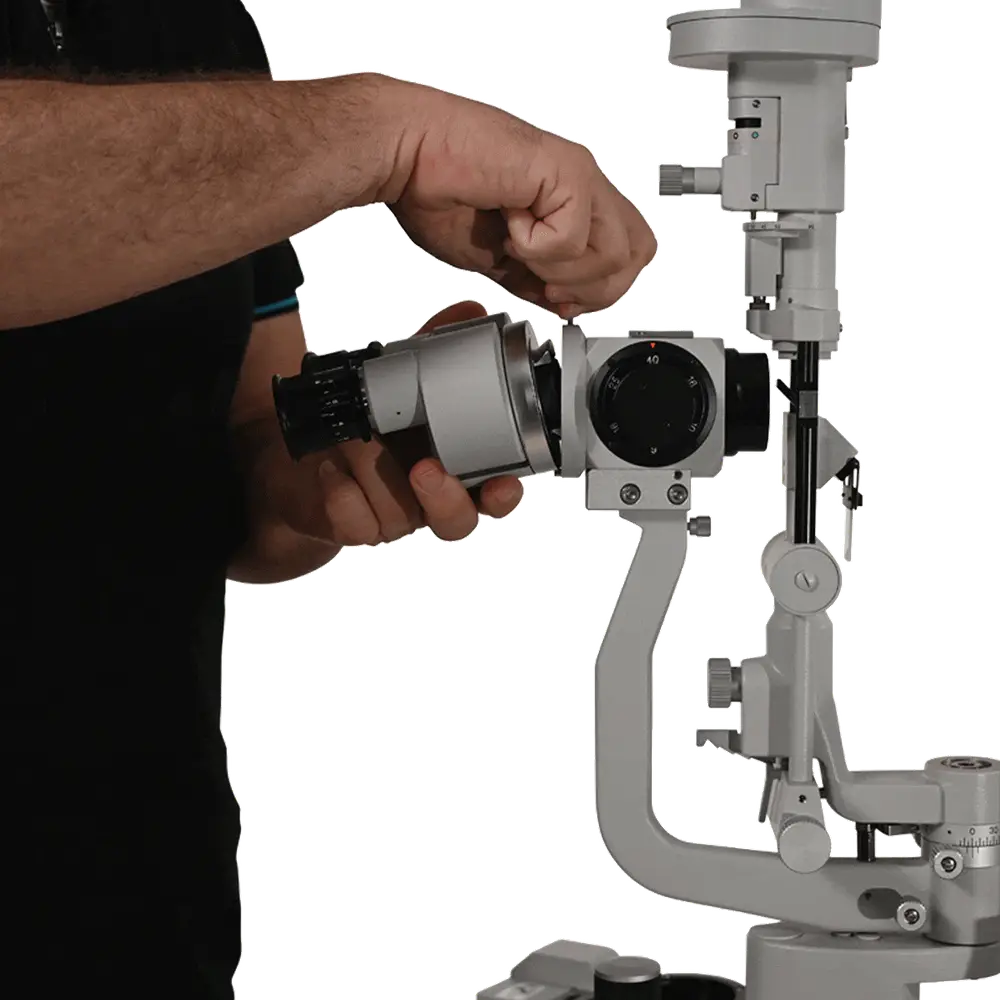

The efficient design of the instrument incorporates a built-in C-mount where a camera can be attached for capture of observed abnormalities and easier record keeping.

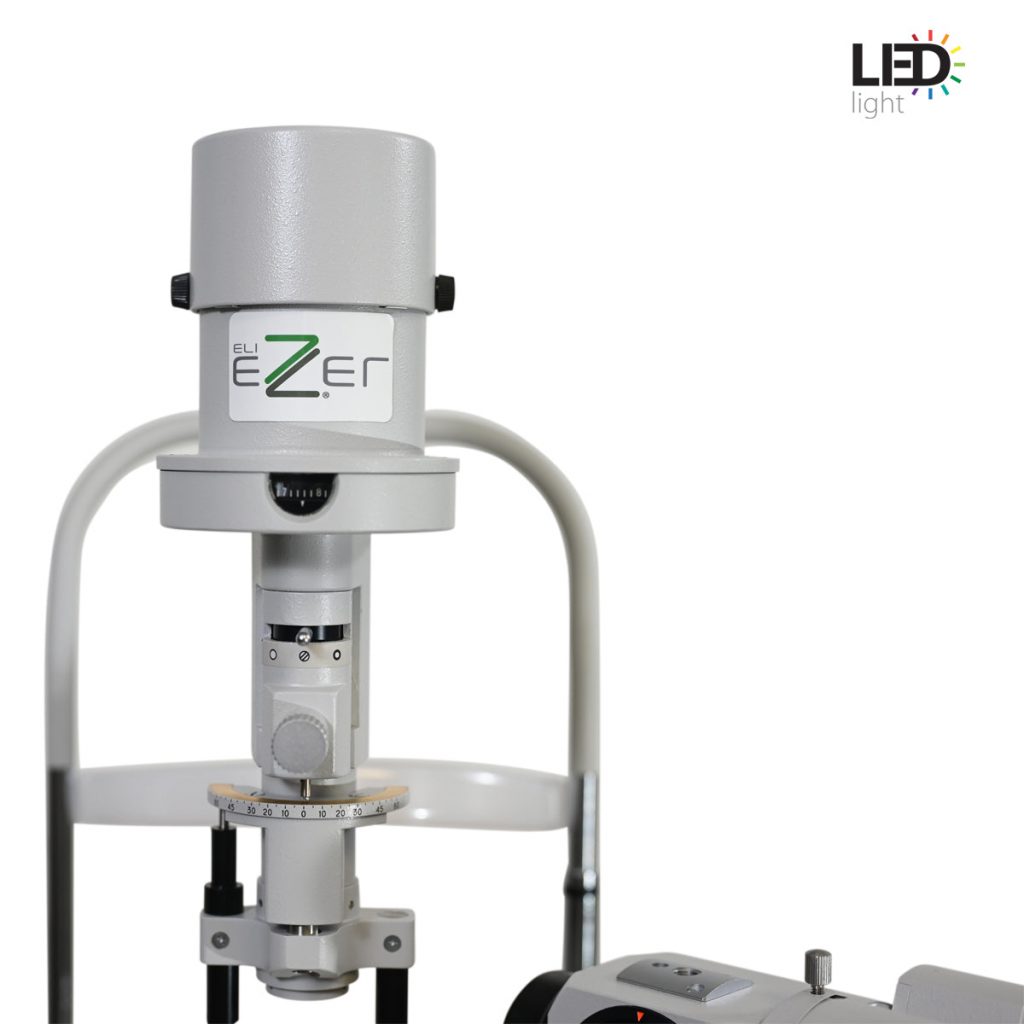

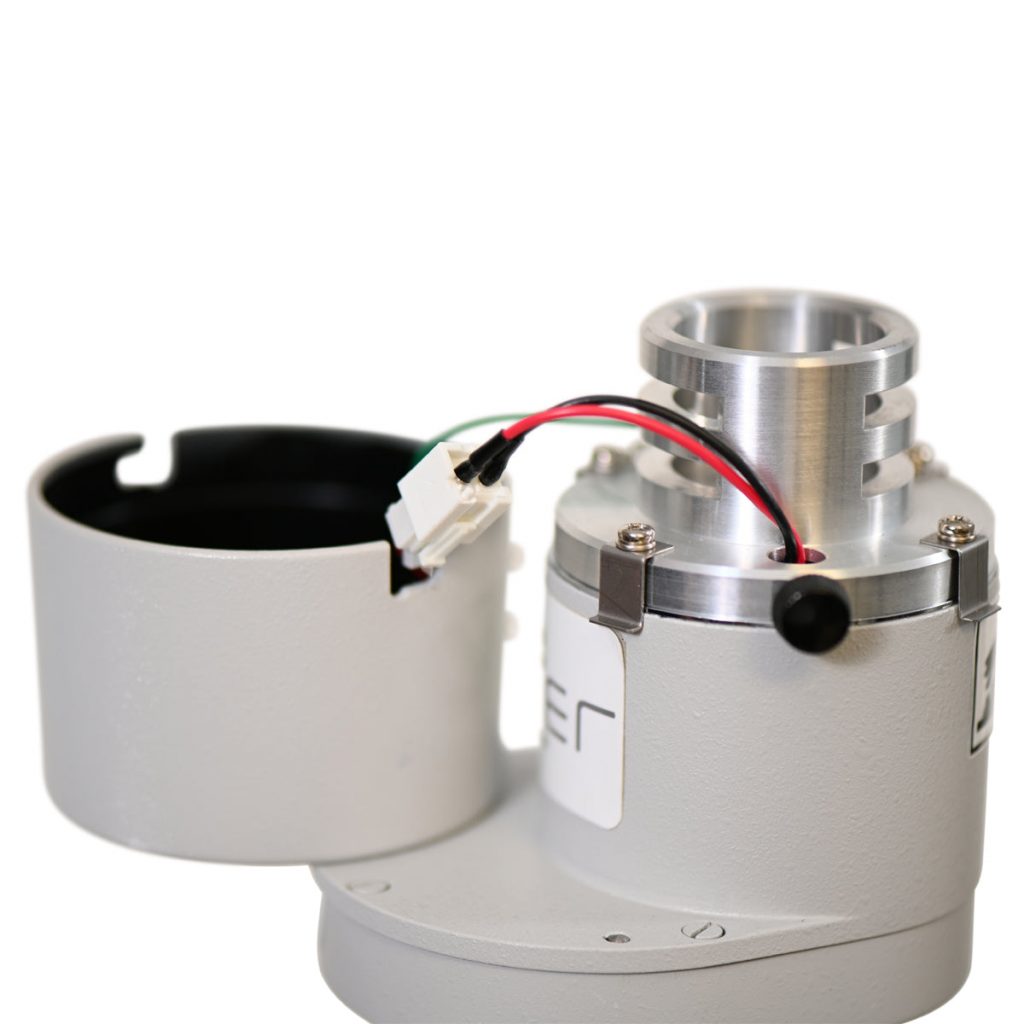

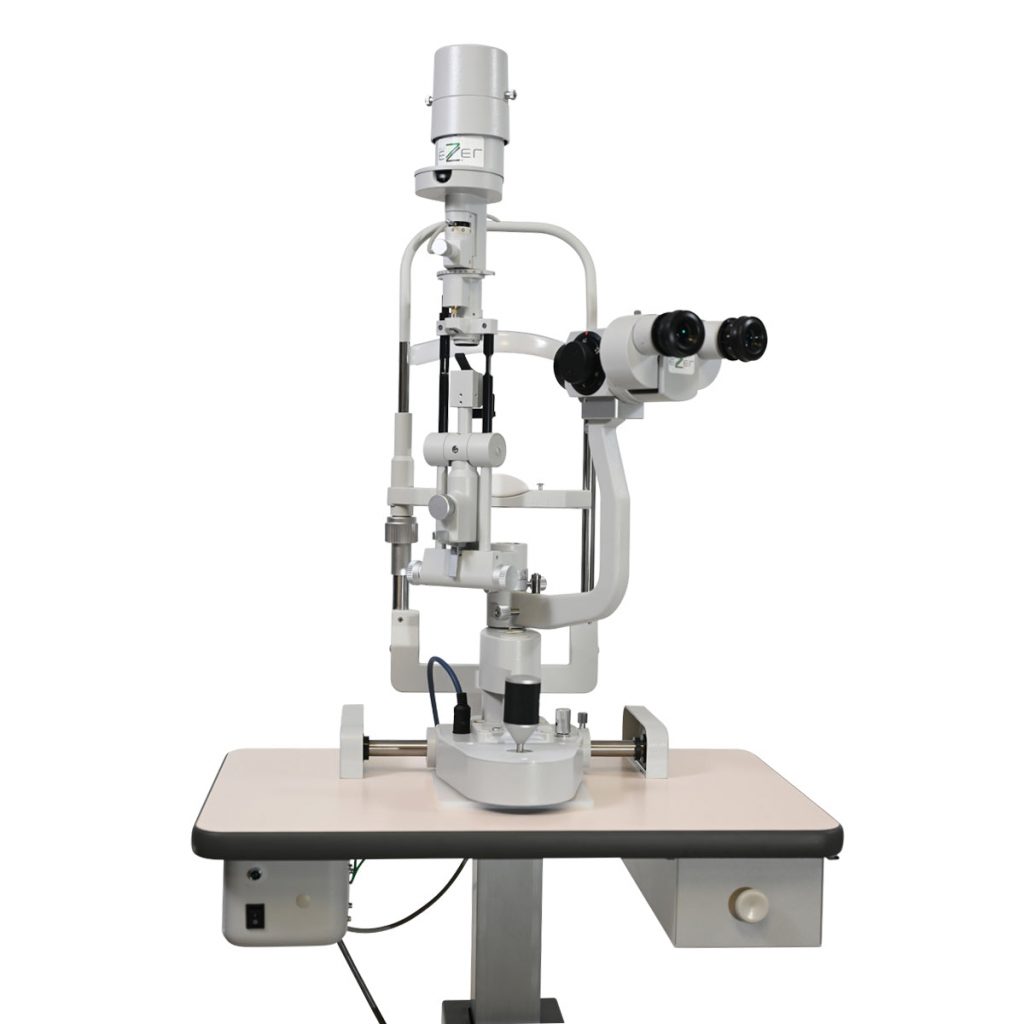

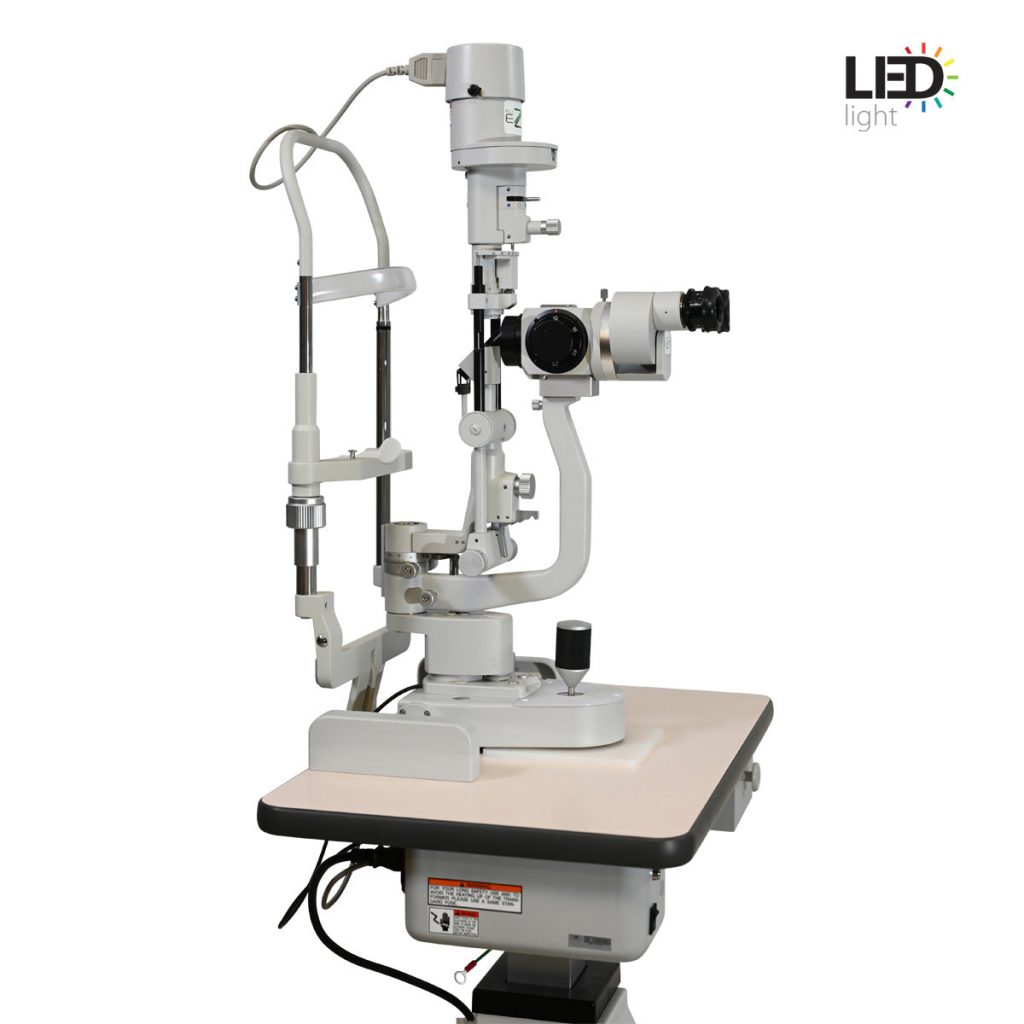

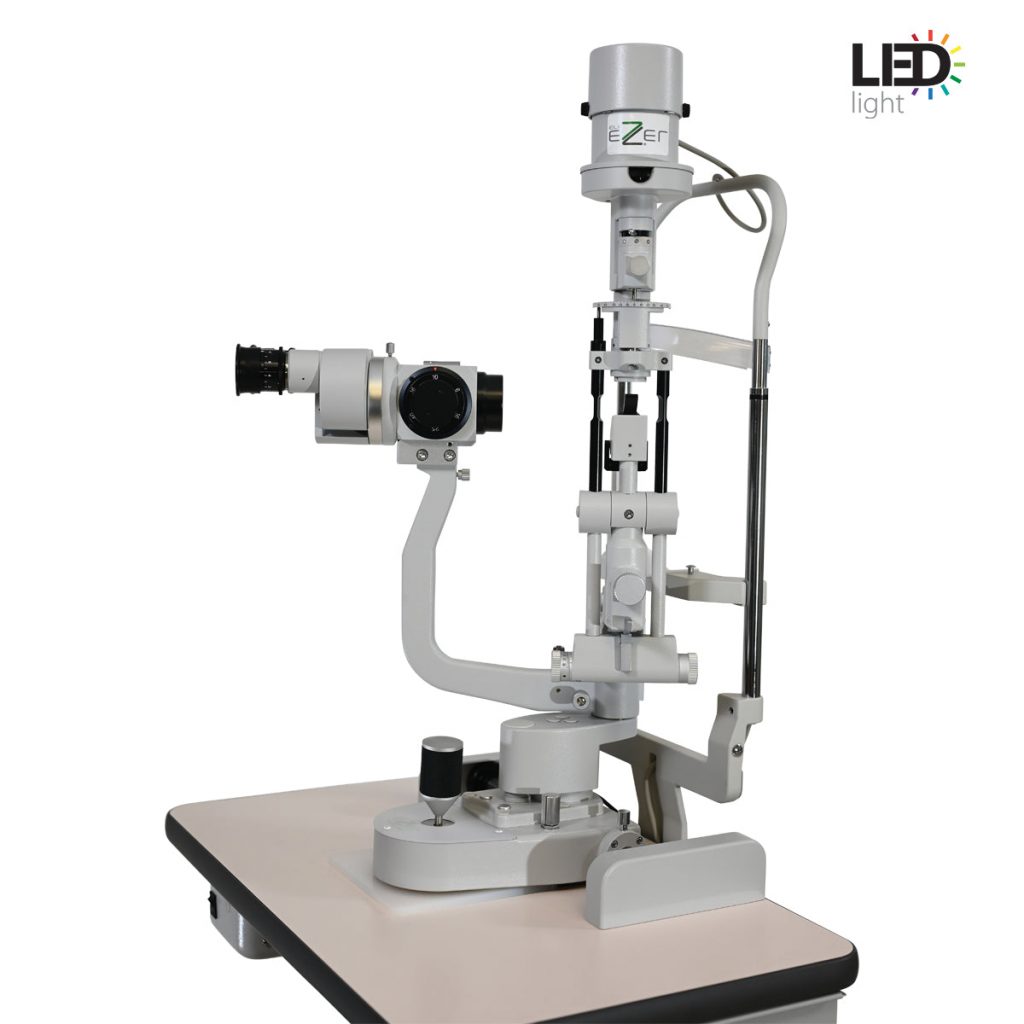

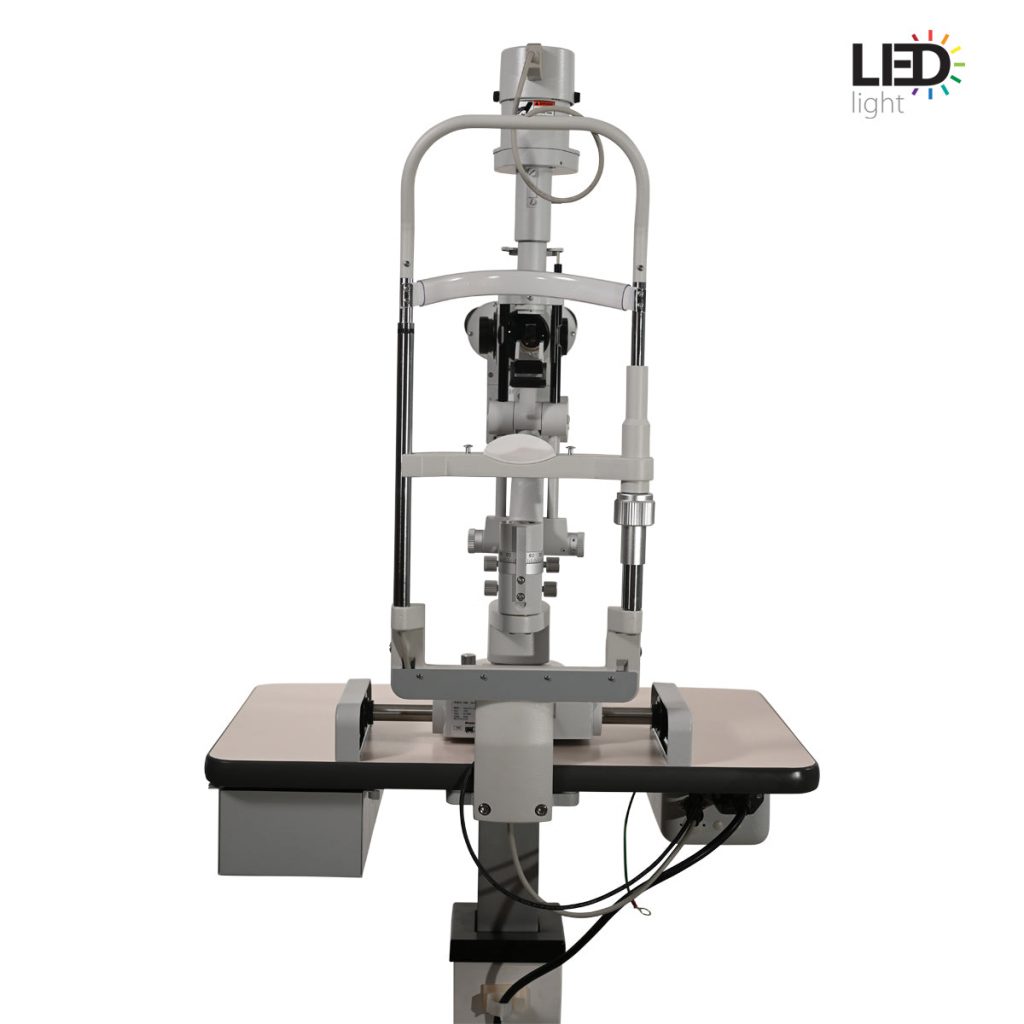

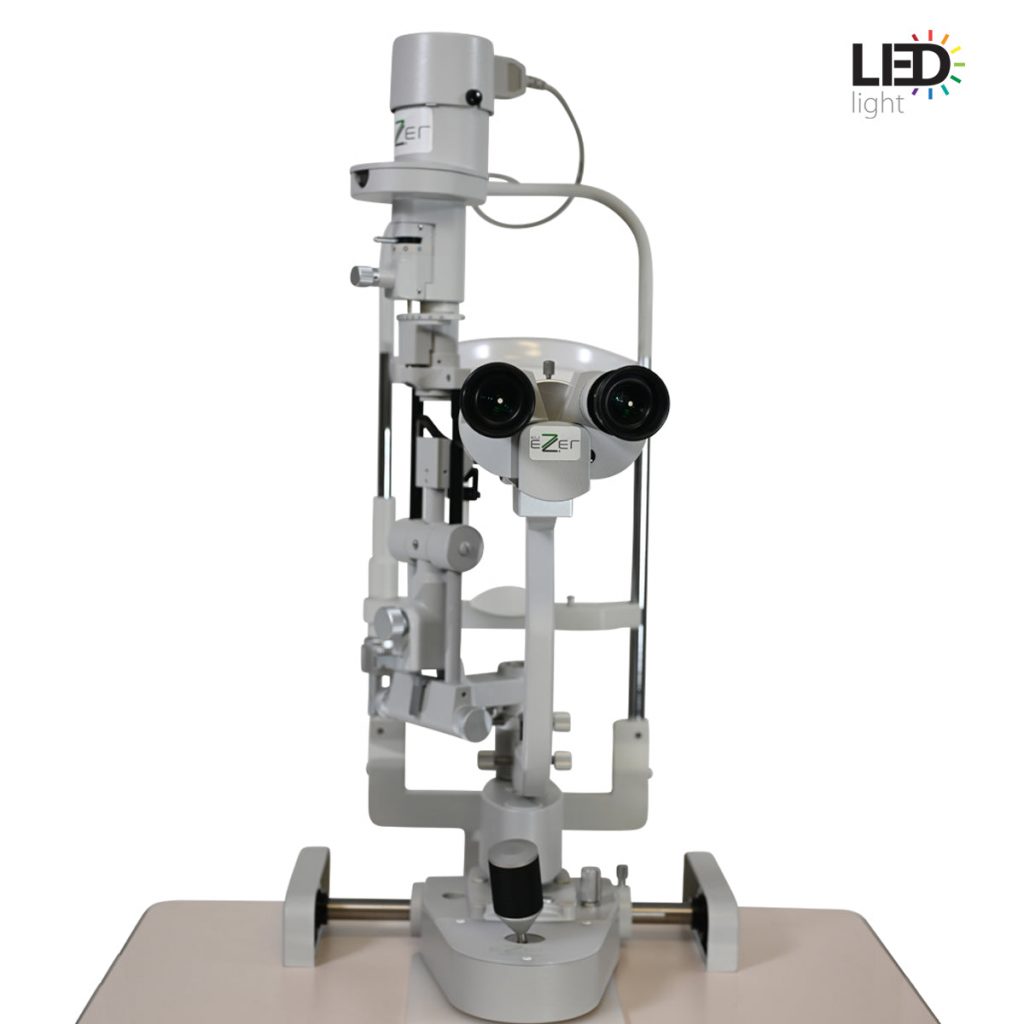

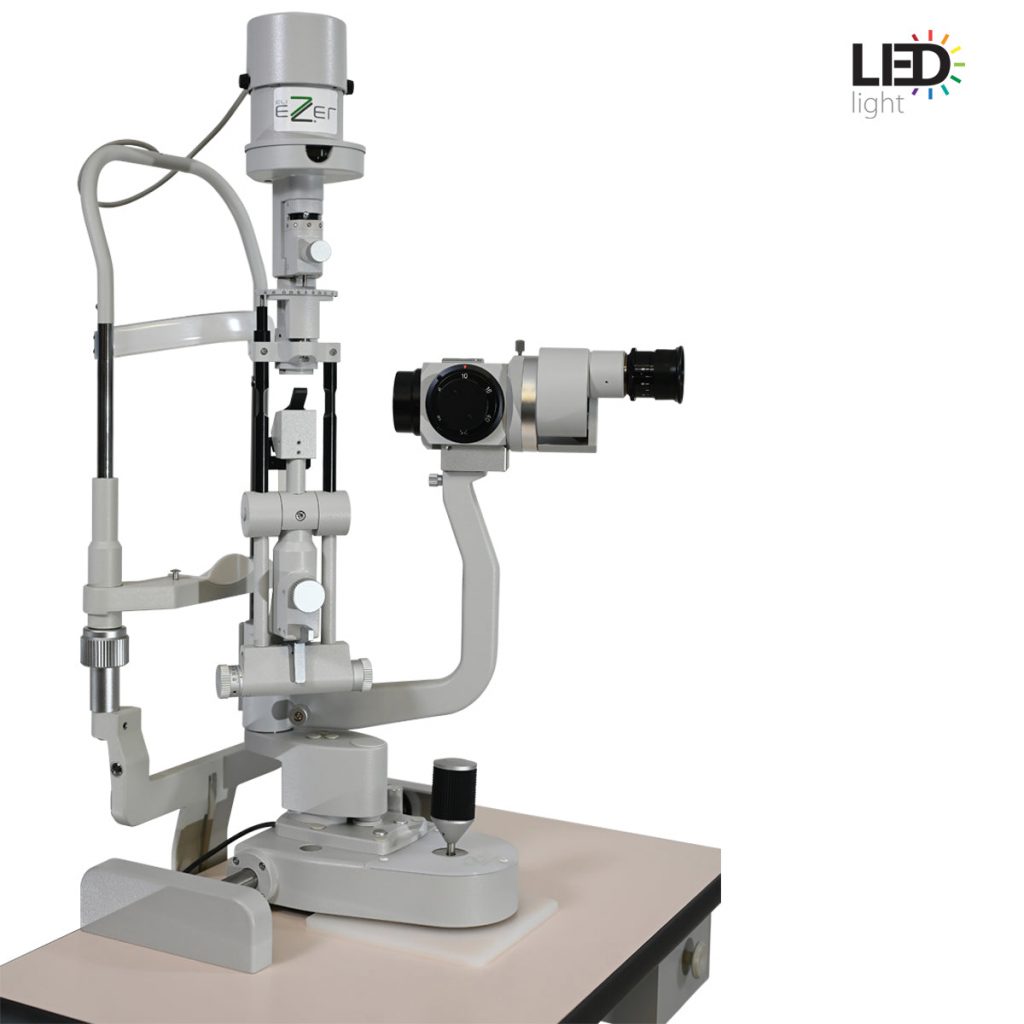

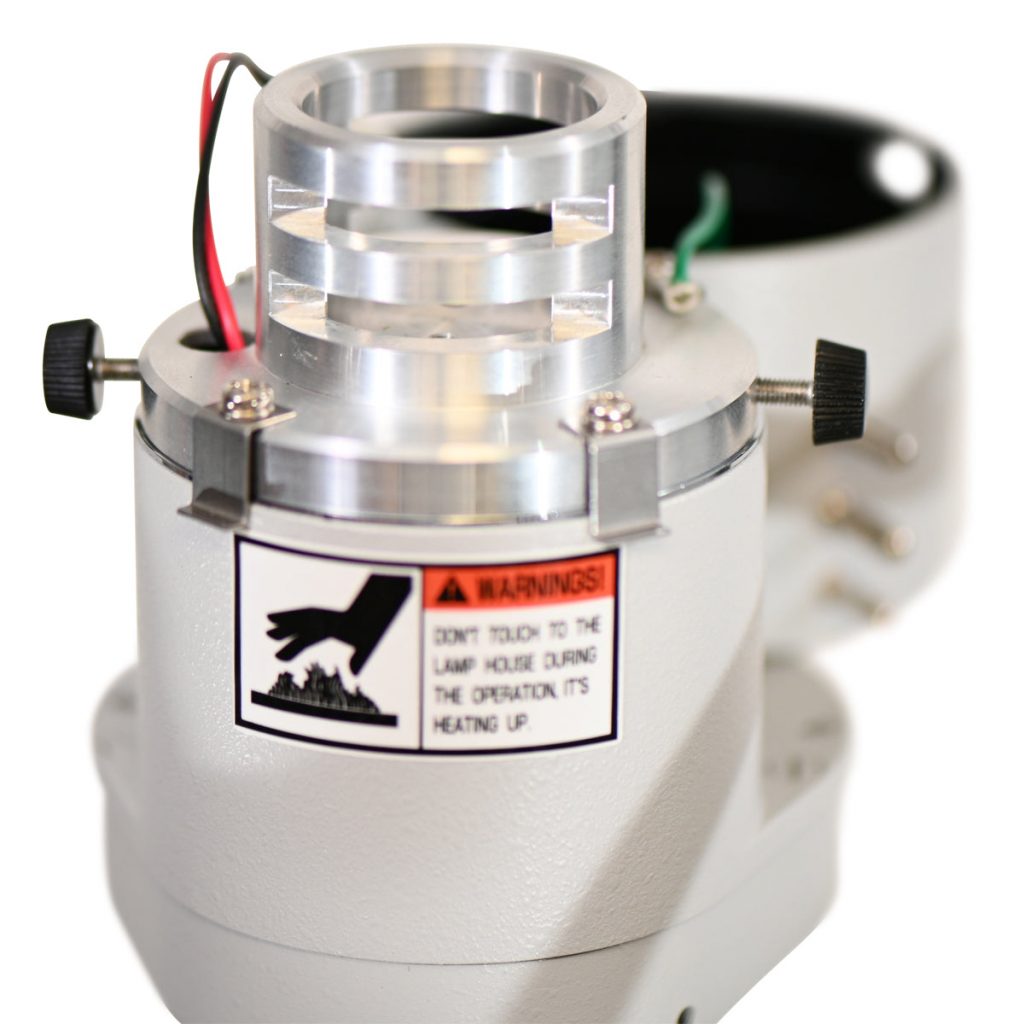

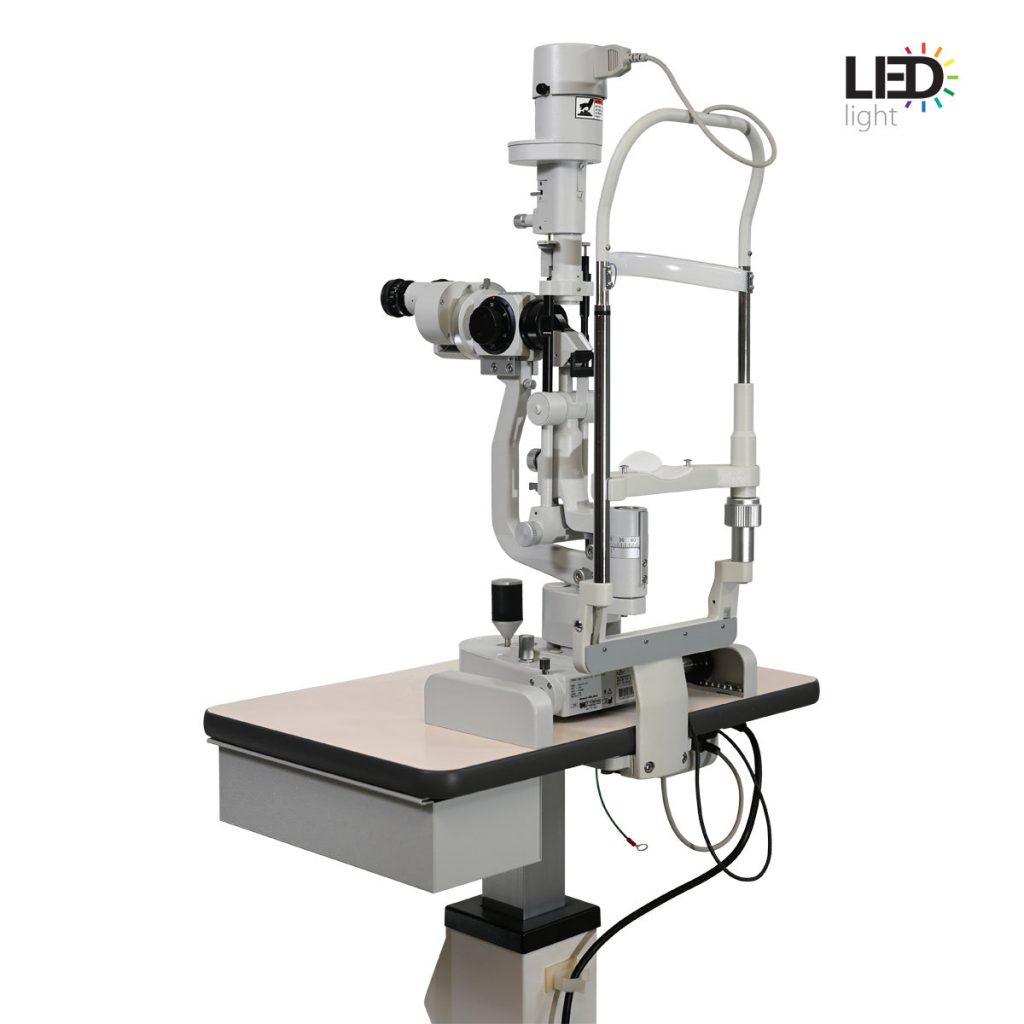

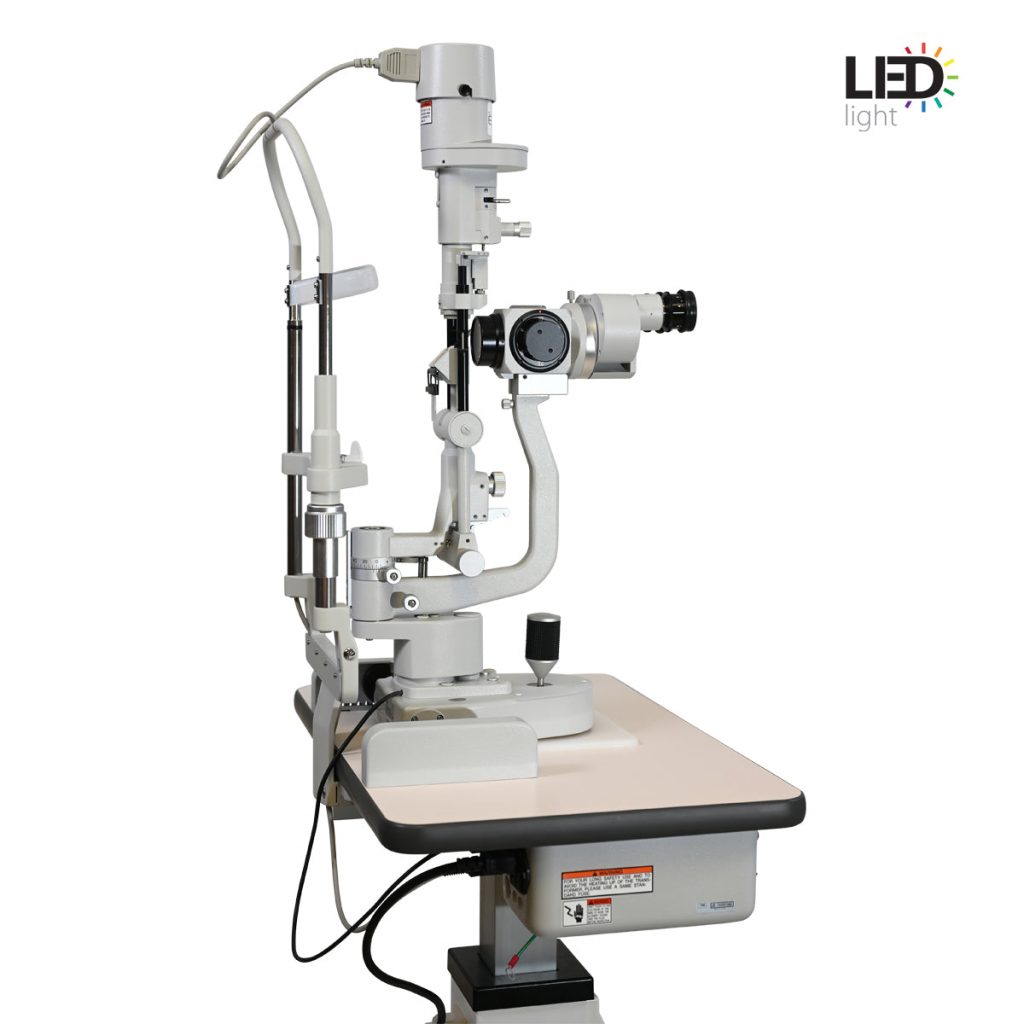

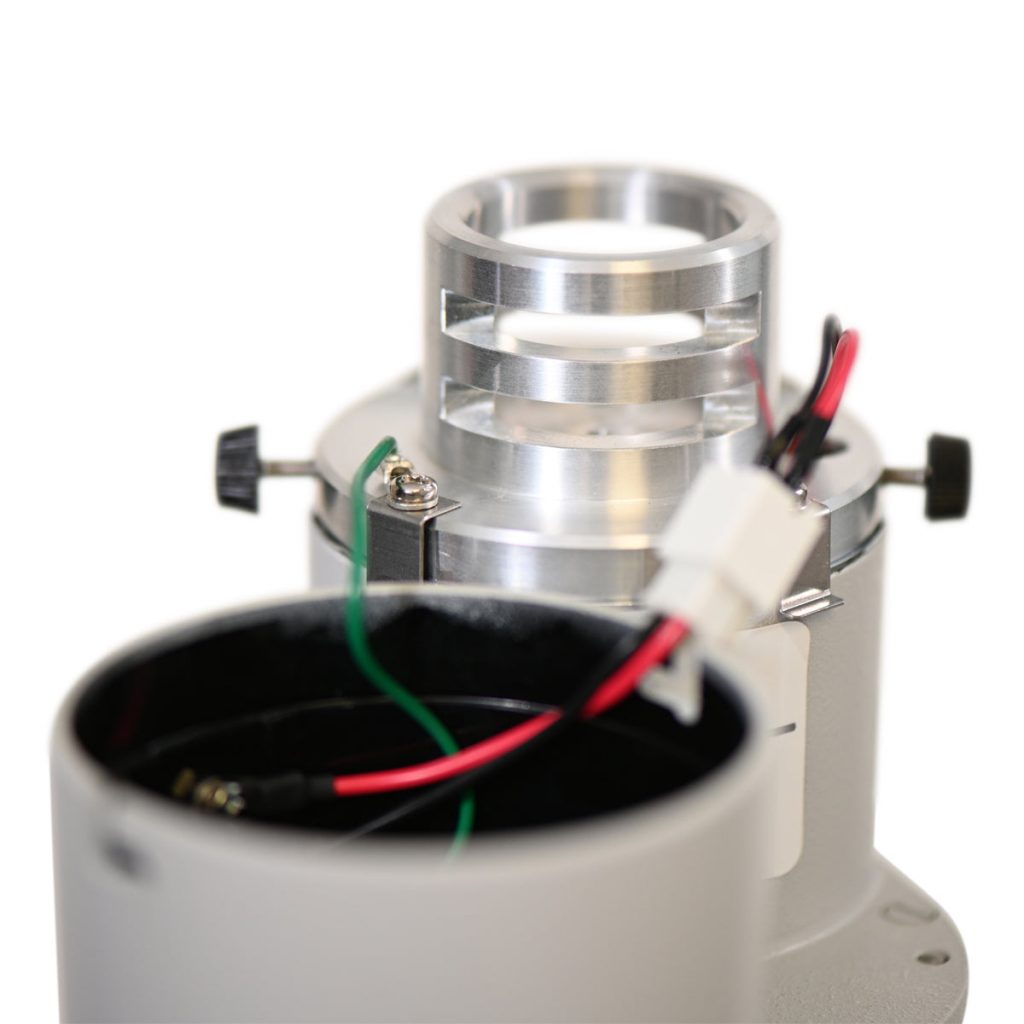

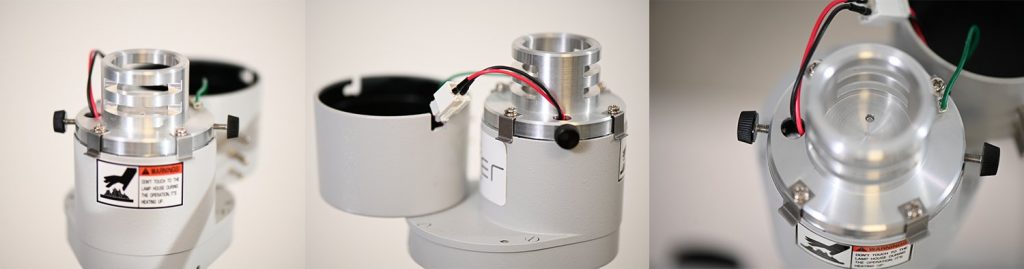

The ESL-Emerald-12 supports tower illumination from either halogen or durable Ezer LED sources. This reliable and durable Japanese instrument incorporates precise illumination, premium optics and superb versatility to provide quality contrast-rich images for reliable diagnosis and detailed monitoring of disease progression. Incorporating the latest LED Technology to ensure the best spectrum of light for slit lamp observation to identify eye diseases at early stages. The high illumination LED is built for longevity and decreases the energy consumption of the instrument making it the most dependable choice for daily use over many years. Even if the LED lamp house needs to be changed someshow, users do not have to change the whole column part since the lamp house assembly itself is replaceable. This energy saving light source generates no UV and less heat, which reduces the stress to patient’s eye. The illumination LED have the same color as the ilumination Halogen.
The ergonomic design allows for easy light volume control as the illumination control knob is at the base of the device and in close proximity to the joystick. The visual health doctors can make light intensity adjustments without moving their hand away from the joystick.

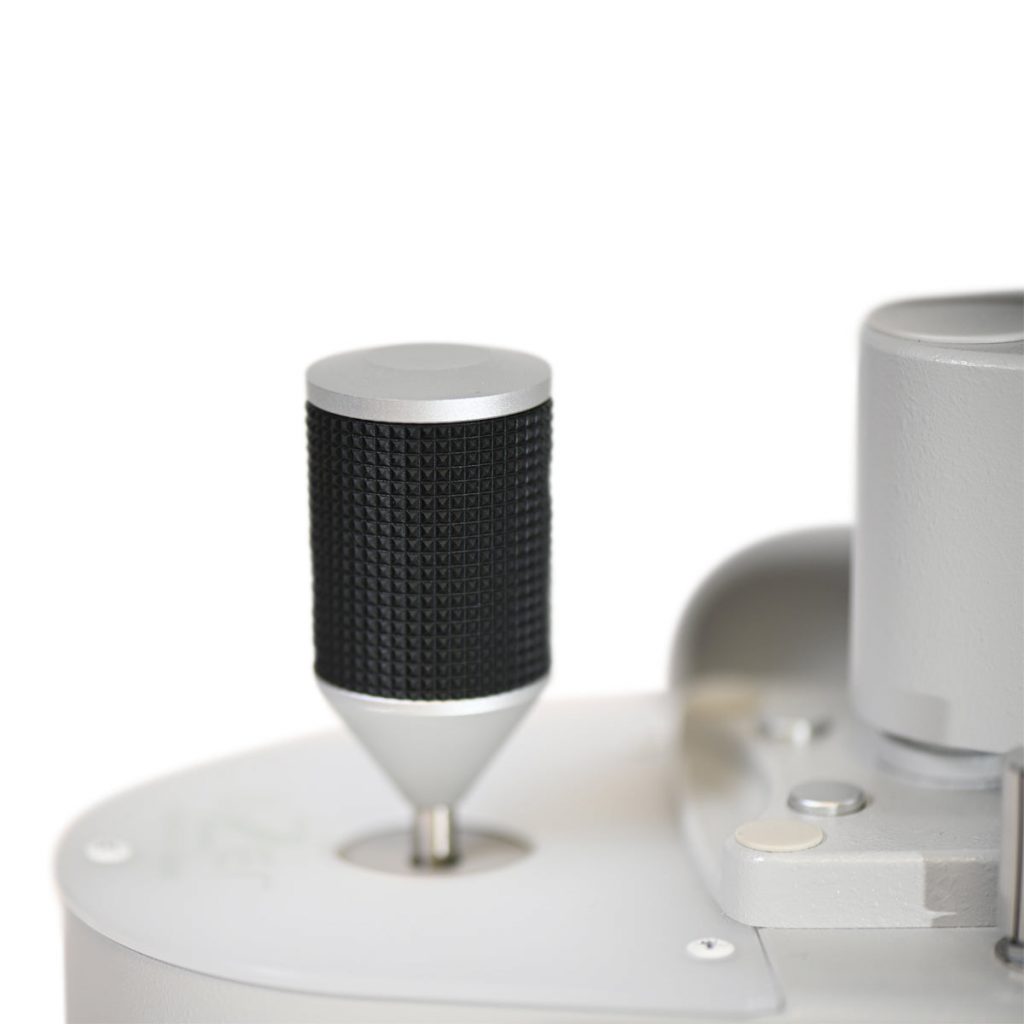

The base of the device houses the joystick, and its color is selectable from a variety of cover options to match your theme.

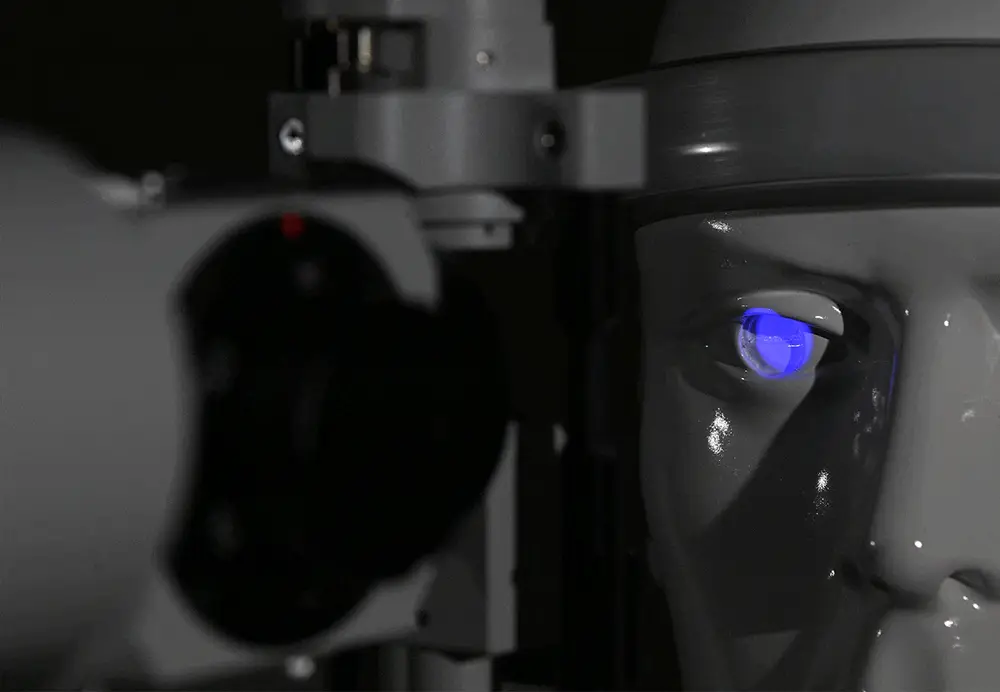

A variety of filters such as cobalt blue, heat absorption, red free and ½ neutral density, aid the practitioner in early diagnosis of disease. The versatility of the ESL-Emerald-12 allows for the easy upgrade of filters to support other various functions. To record tissue appearance, a digital video camera beam splitter can be attached which facilitates both still image and video capture.

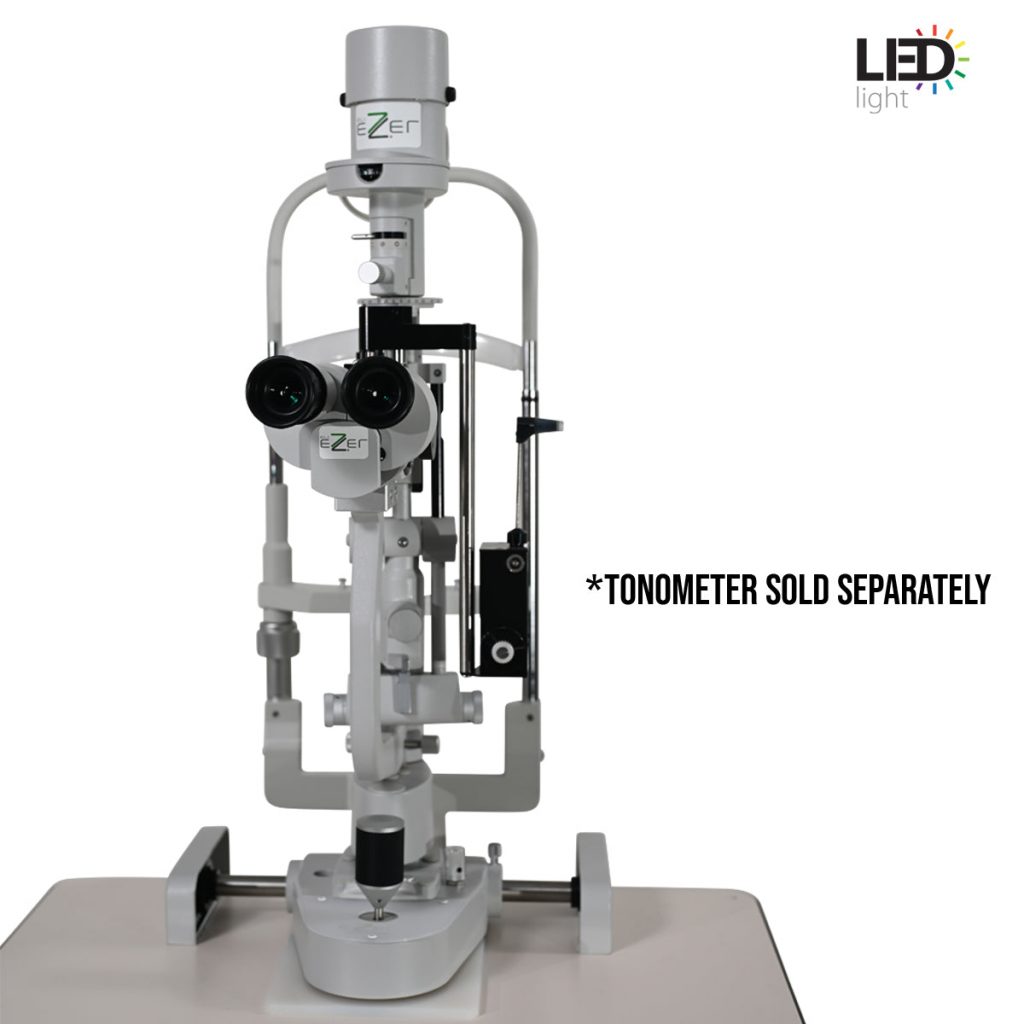

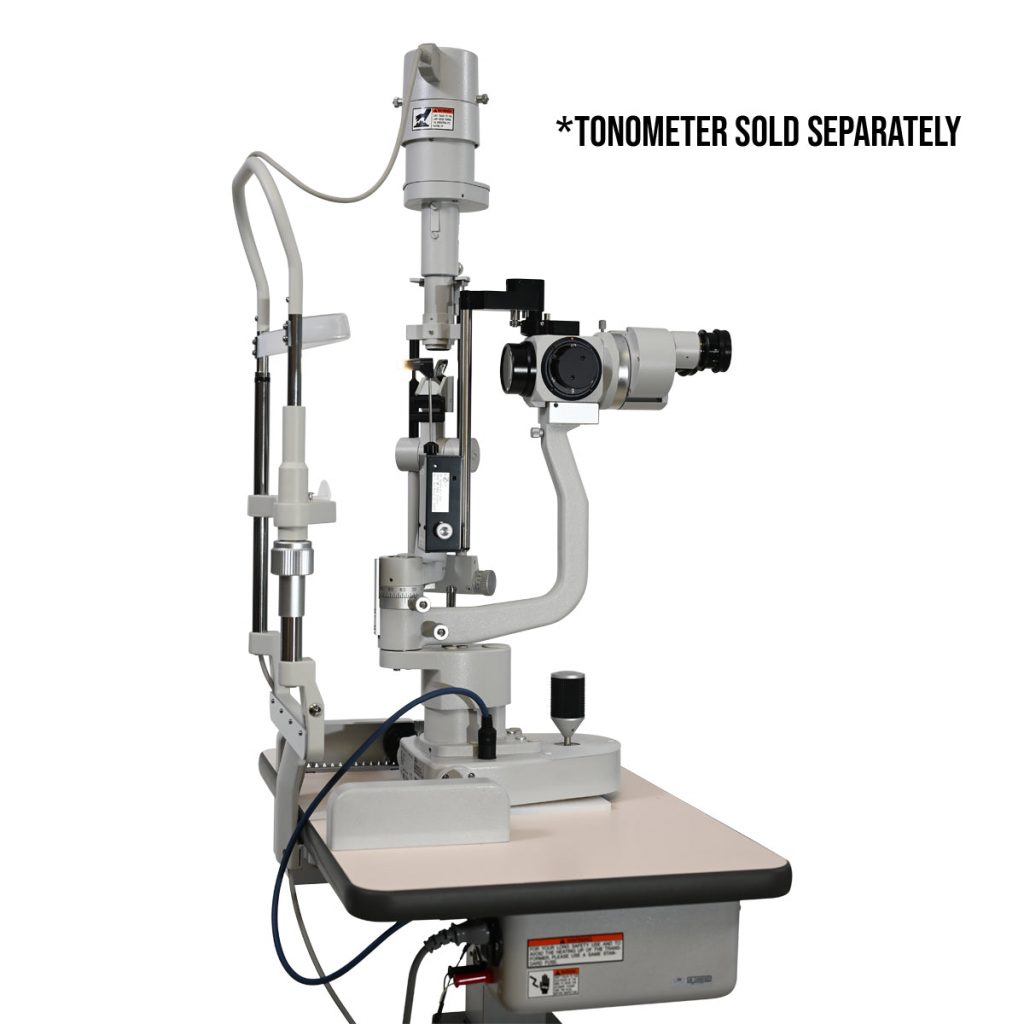

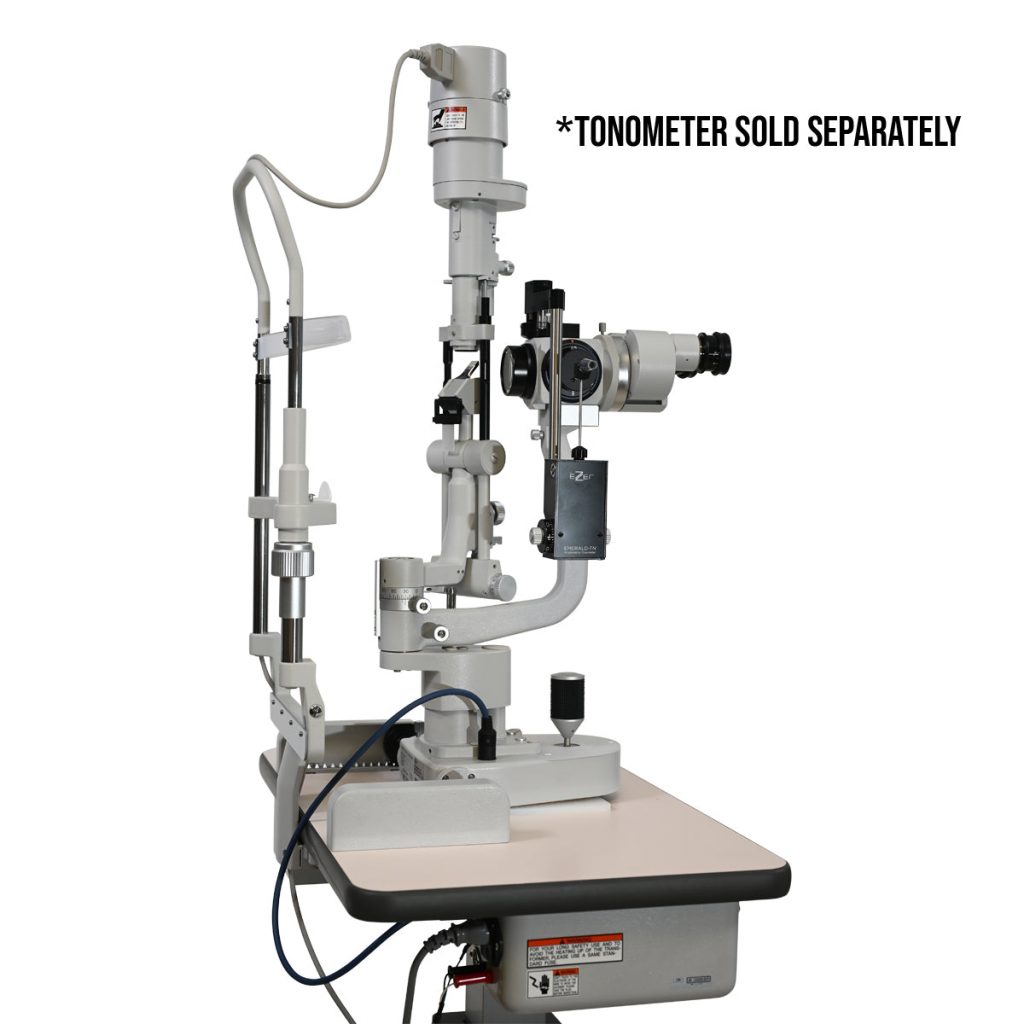

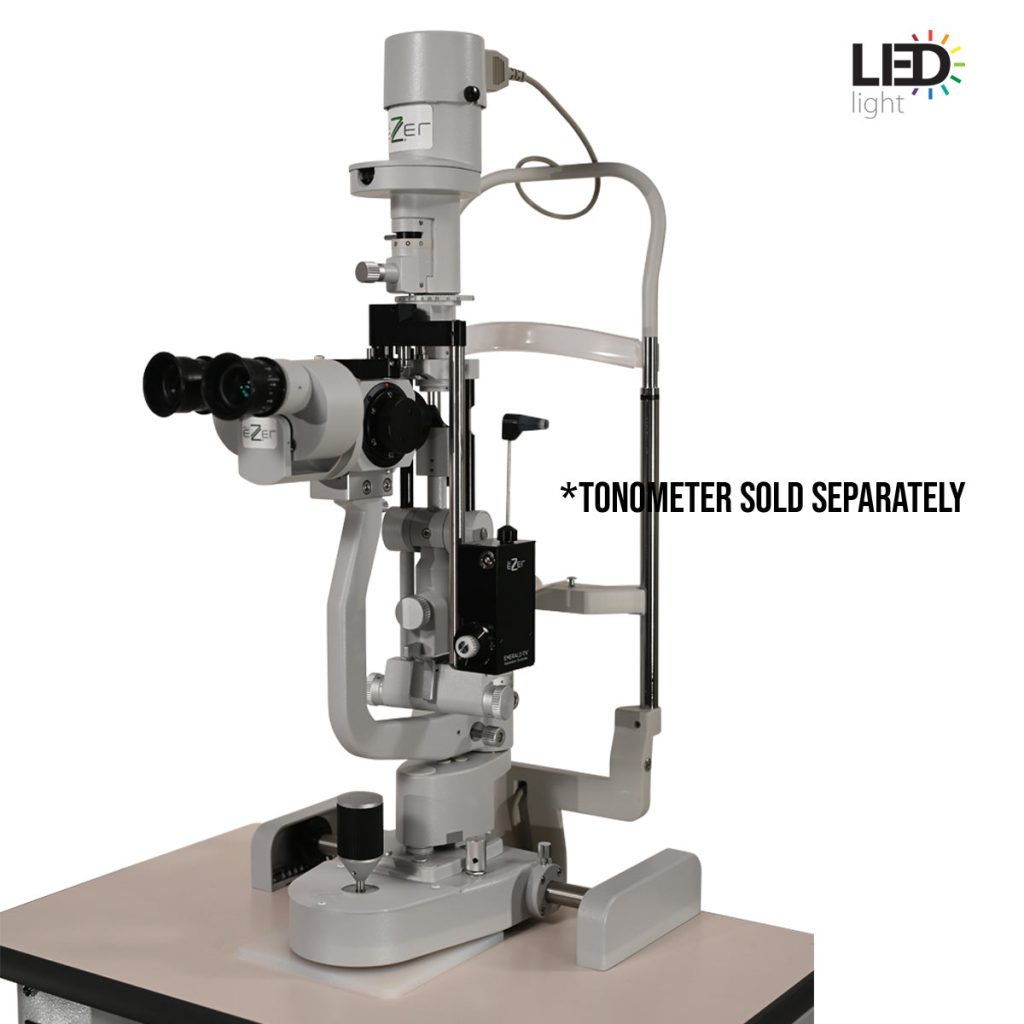

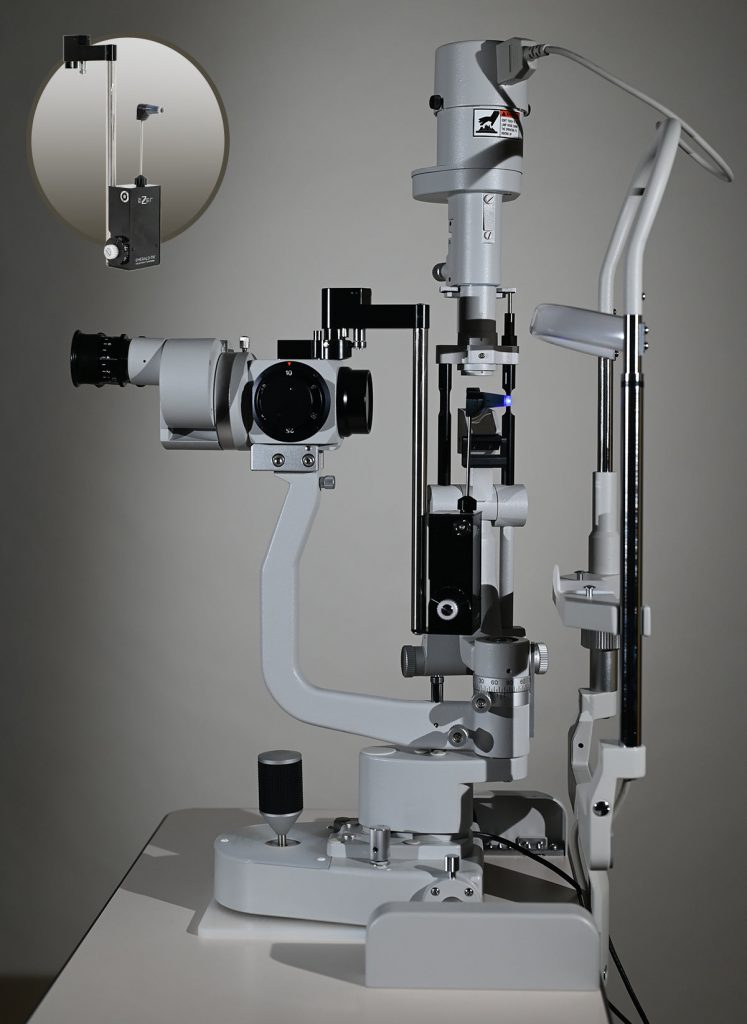

The Japanese ESL-Emerald-TN tonometer(sold separately) is a precision application tonometer designed to mount onto slit lamp equipped stereomicroscopes used for measuring intraocular pressure (IOP). The ESL-Emerald-TN works by contacting the applanation measuring cone to the eye and slowly applying pressure to the corneal surface using the measurement until it temporarily flattens.

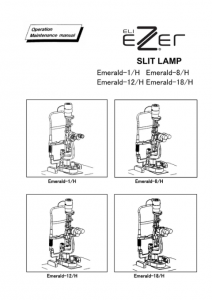

Click here to see the manual
Click here to see the manual
| Microscope | |
| Type | Convergent Type Binocular Microscope |
| Magnification Changer | 5 Steps by Drum Rotation |
| Stereo Angle | 12° |

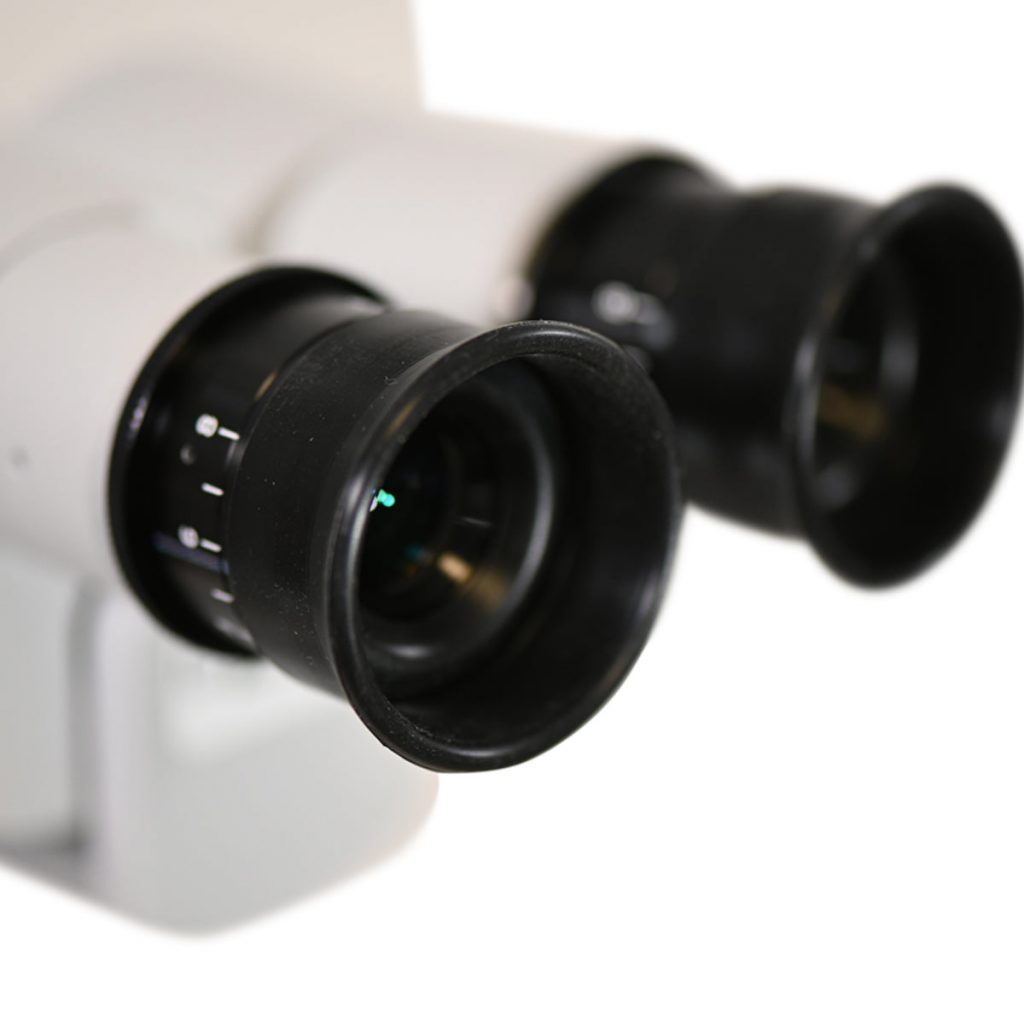

| Eyepiece | 12.5x |
| Magnification Ratio (Field of View) | 6x (38mm), 10x (24mm) 16x (15mm) 25x (9mm), 40x (6mm) |
| Pupilary Adjustment | 53 - 83 mm |
| Focus Distance | 106 mm |

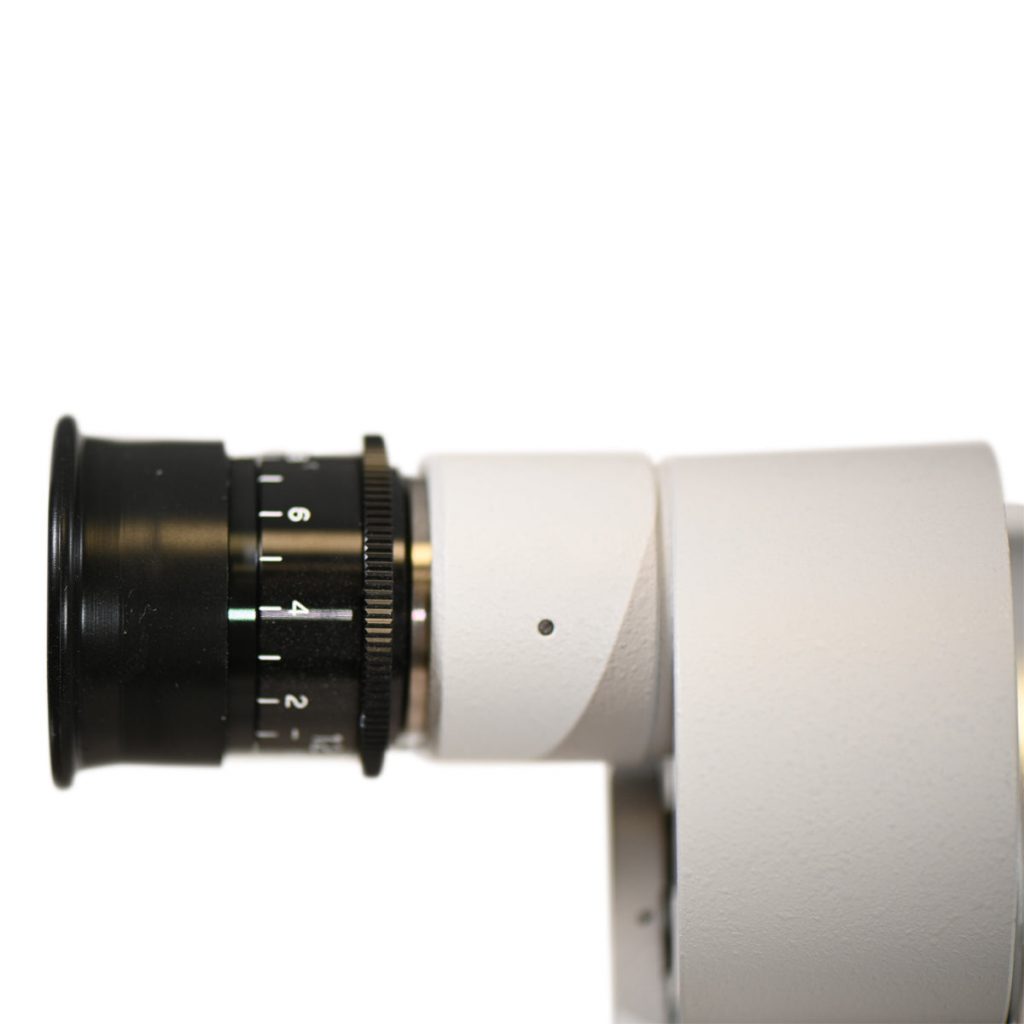

| Diopter Adjustment | +8 to -8 diopters |
| Slit Illumination | |
| Slit Width | 0 - 10mm |
| Aperture Diameter | 0.2, 1, 3, 4, 6, 10 mm |
| Slit Length | 0 - 10 mm |
| Slit Rotation | ± 90° |
| Filters | Standard: Cobalt Blue, Heat Absorption, Red-free, 1/2 ND Option: UV, IR, 1/10 ND (to be replaced with standard filters) Binoculars yellow filter (Optional) |
| Slit Inclination | 5° 10° 15° 20° |
| Light Source | LED: (Orange) 14VDC 1A Halogen: Lamp bulb (12V/50W) |
| Max. Intensity (Lux) | 45,000Lux |
| Base | |
| Vertical Movement | 30 mm |
| Longitudinal Movement | 79 mm |
| Lateral Movement | 115 mm |
| Fine Base Movement | ±10 mm |
| Colour Selectable Base | Selectable |
| Chinrest | |
| Vertical Movement | 75 mm |
| Fixation Target | LED: LED 3V 0.01A (Option) Halogen: Halogen 6.3V 0.14A |
| Input Voltage | AC100, 120V, 220V, 240V 50/60 Hz |
| Power Consumption | LED: 25VA Halogen: 65VA |
| Size and Weight (without table top) | |
| Weight | 40 lbs (18.5 Kgs) |
| Dimension | LED: 22 in(W) X 16 in(D) X 26 in(H) Halogen: 22 in(W) X 16 in(D) X 28 in(H) |
