The Ezer EDC-2600 is a modern digital chart with a 24-inch LCD screen and outstanding features. It is a digital optotype that provides the necessary charts for visual acuity measurement and images for additional explanations.
Say goodbye to complicated mirror systems. With the EDC-2600, you can enjoy superior clarity in virtually any examination space. The optotype size is automatically calibrated according to the working distance. This 24-inch LCD screen loads charts and images quickly and silently. With the EDC-2600, you can update the software whenever you wish. Masking functions and an explanatory eye diagram are features that both you and your patients will appreciate. With multiple mounting options and an auto-shutoff function, this is an indispensable item in any modern practice. It provides a variety of basic charts for visual acuity measurement, as well as aids such as binocular balance testing, horizontal/vertical aniseikonia testing, phoria testing, and color vision testing.

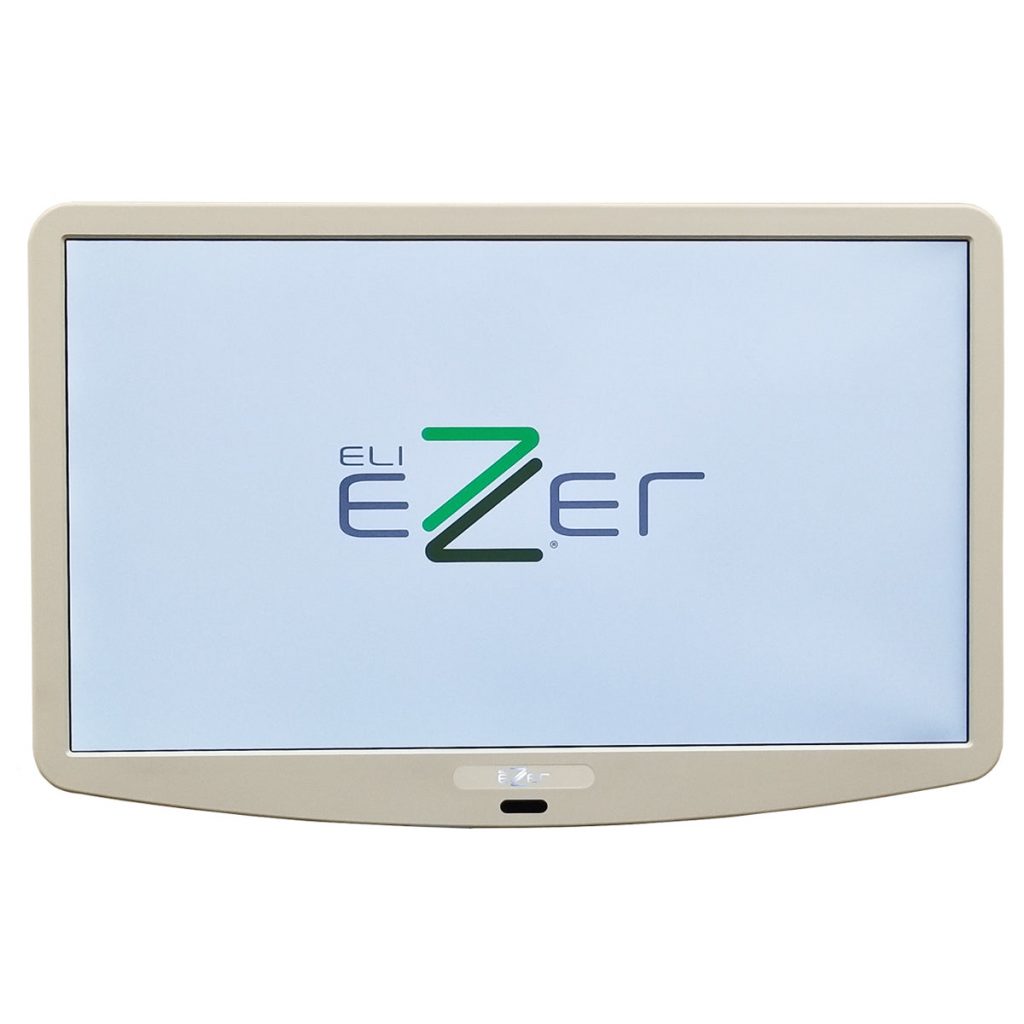

Ezer Digital Chart EDC-2600
High-resolution 24-inch LCD screen
24-inch TFT monitor delivering wider, clearer images with excellent sharpness. Eliminates complex mirror systems and adapts to compact examination spaces.
Random function to prevent optotype memorization
Allows random charts to be displayed to the patient, preventing letter or symbol memorization. Ensures more accurate and reliable visual acuity measurements.
Multiple specialized tests and chart types

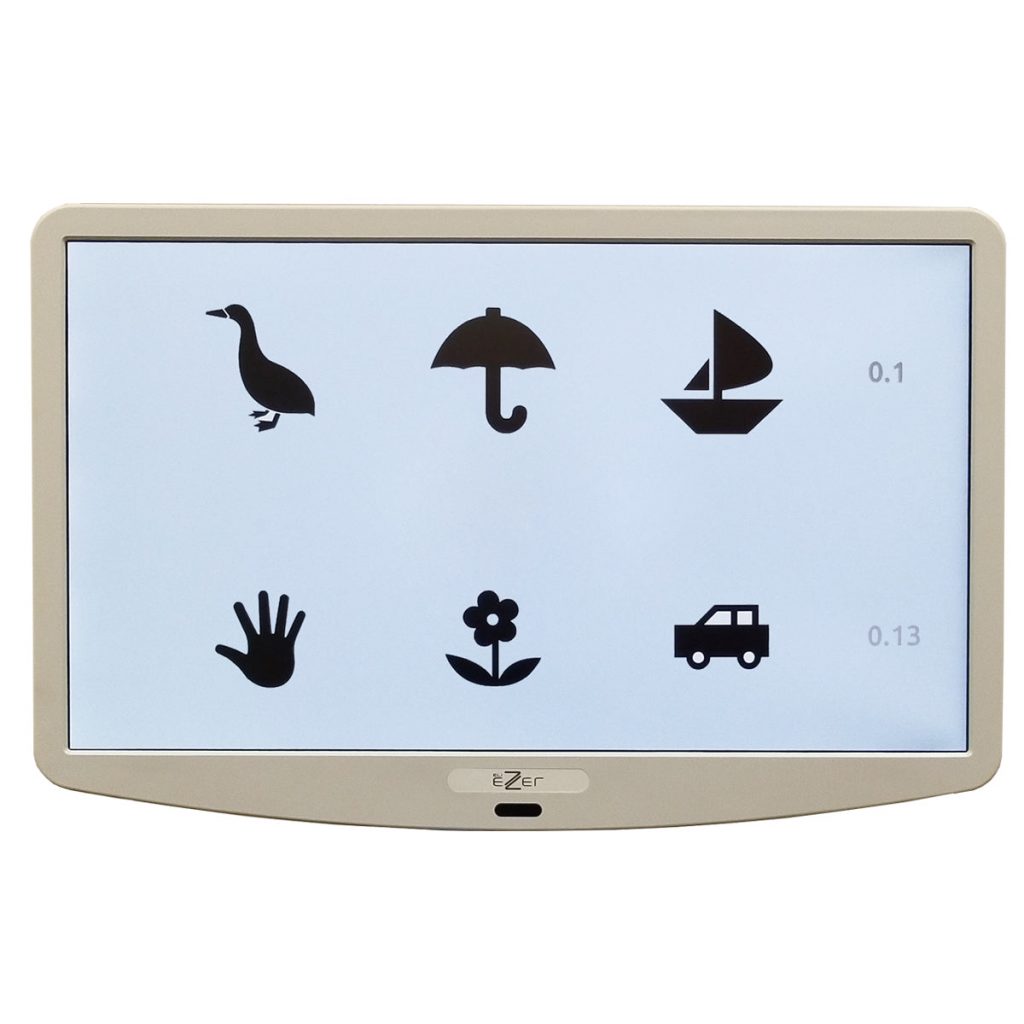

Includes binocular balance, astigmatism, color vision, and contrast sensitivity tests. Offers a variety of optotypes such as Landolt, Snellen, and pediatric charts for all patient types.
Vertical, horizontal, and individual masking functions
Allows isolating complete lines or individual letters to facilitate patient concentration. Significantly improves accuracy during visual acuity examination.

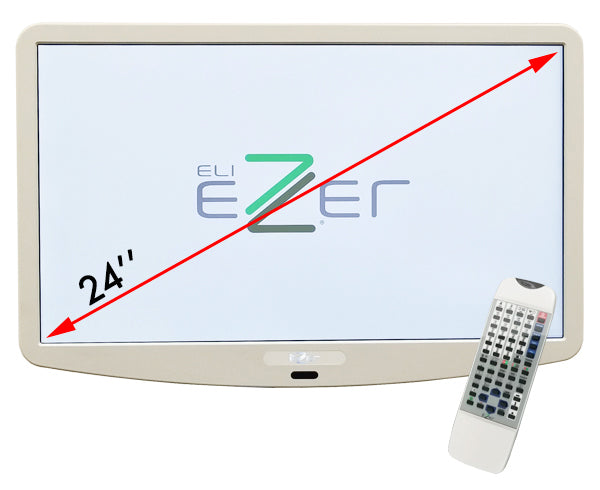

24″ LCD Panel
Simplify the examination process and enjoy high quality with exceptional clarity with a 24″ TFT monitor featuring a high-resolution display for a wider and clearer view. This monitor includes various installation methods to ensure sufficient space even in limited areas.
Random
The Random option allows the specialist to display random charts to the patient, so that the patient cannot memorize them.
Masking
The EDC-2600 provides vertical and horizontal line masking, as well as individual letter masking, so you can show patients exactly which line or letter you want them to focus on.
Black-White
Includes Black-White inversion function. This function offers a convenient test for patients who have undergone Lasik surgery.
Contrast adjustment
Function of contrast adjustment for contrast sensitivity testing that facilitates visual acuity examination for all patients, especially patients with cataracts.

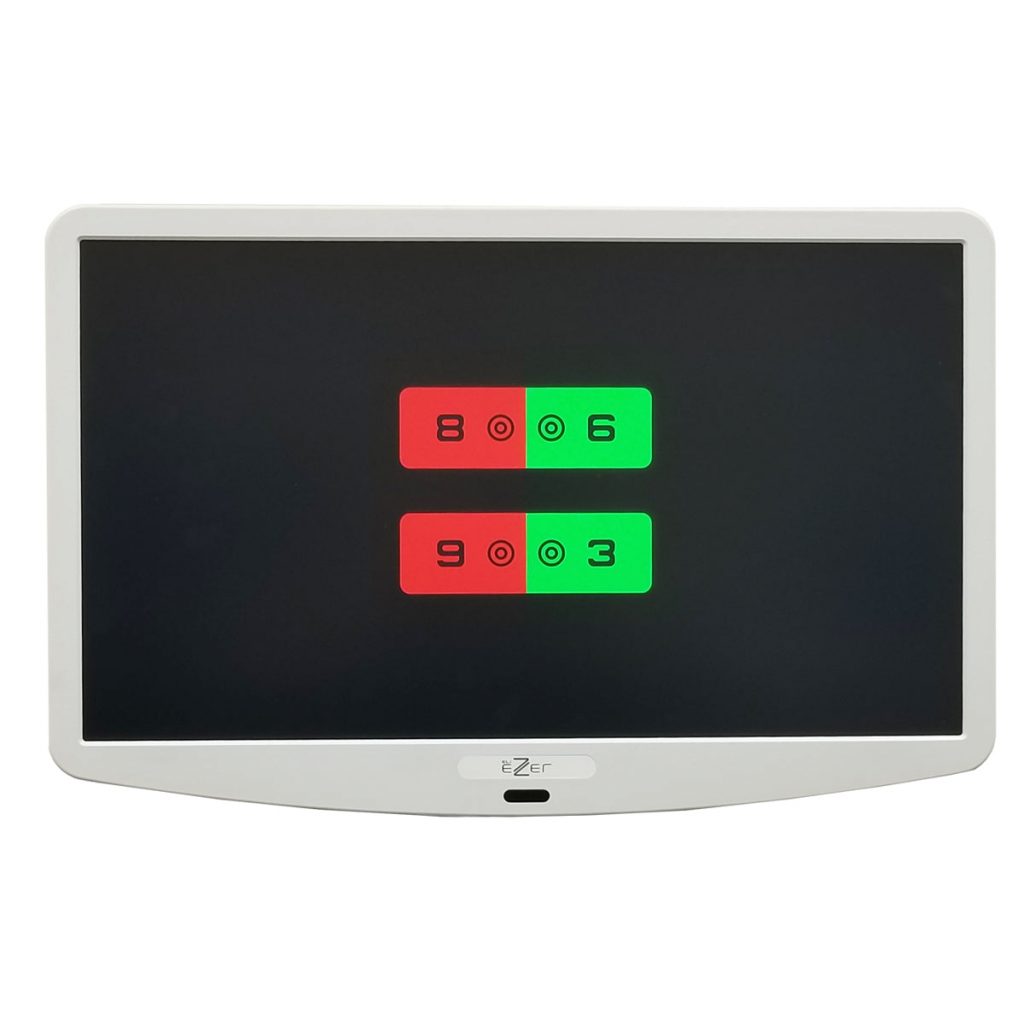

Different Tests and Charts

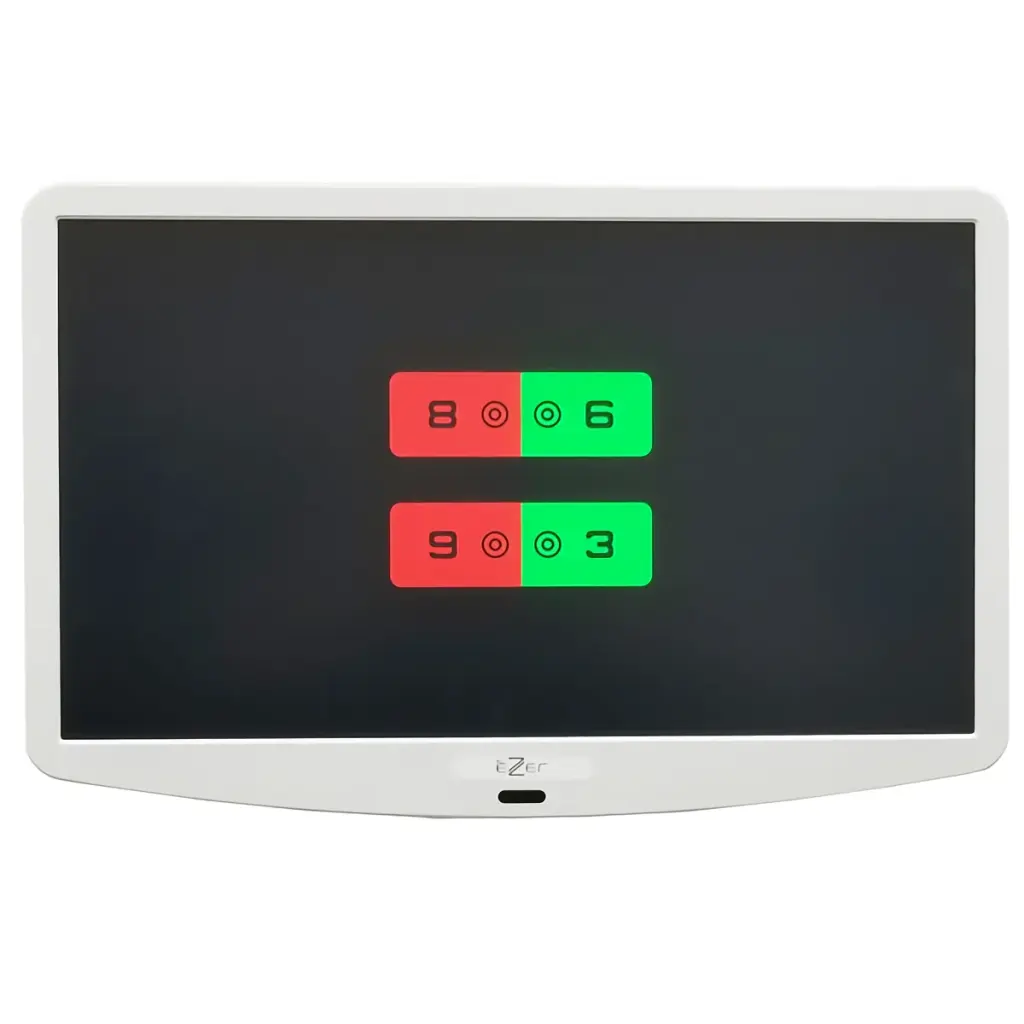

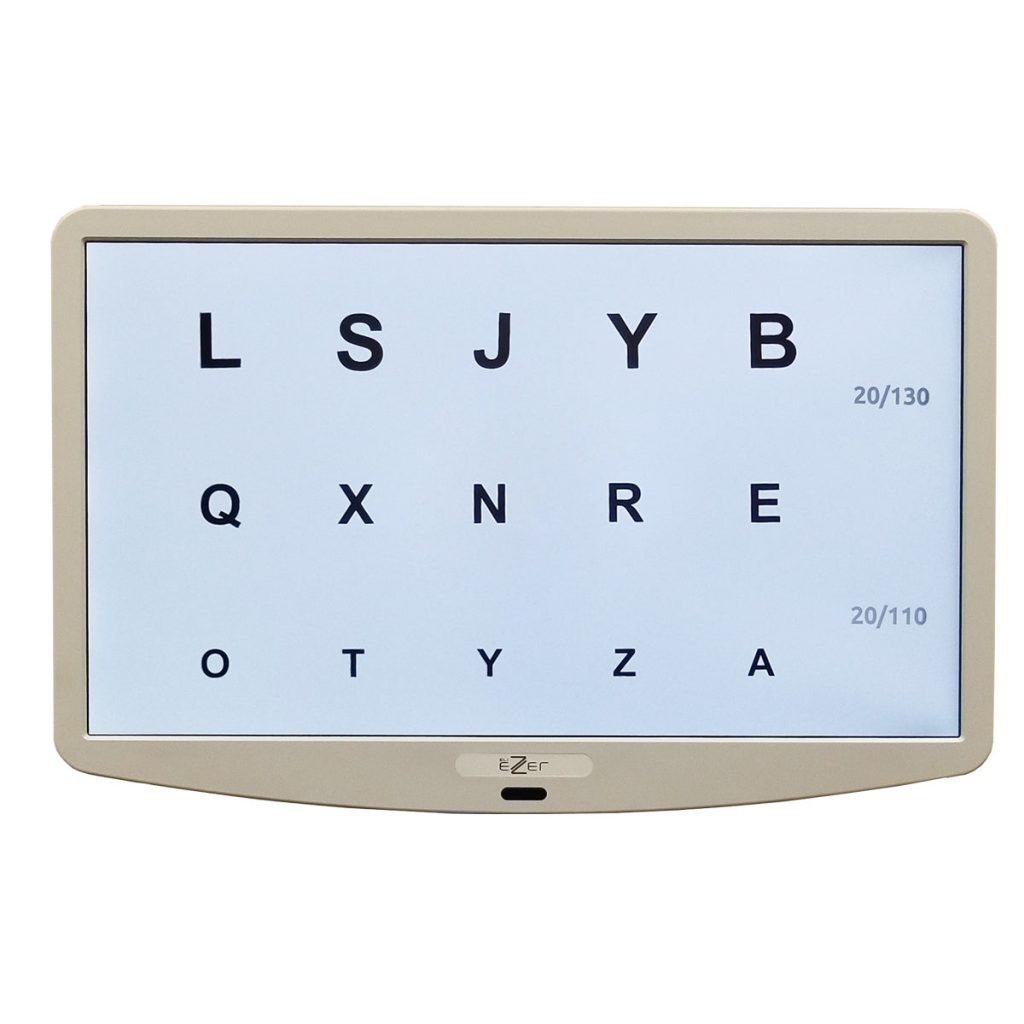

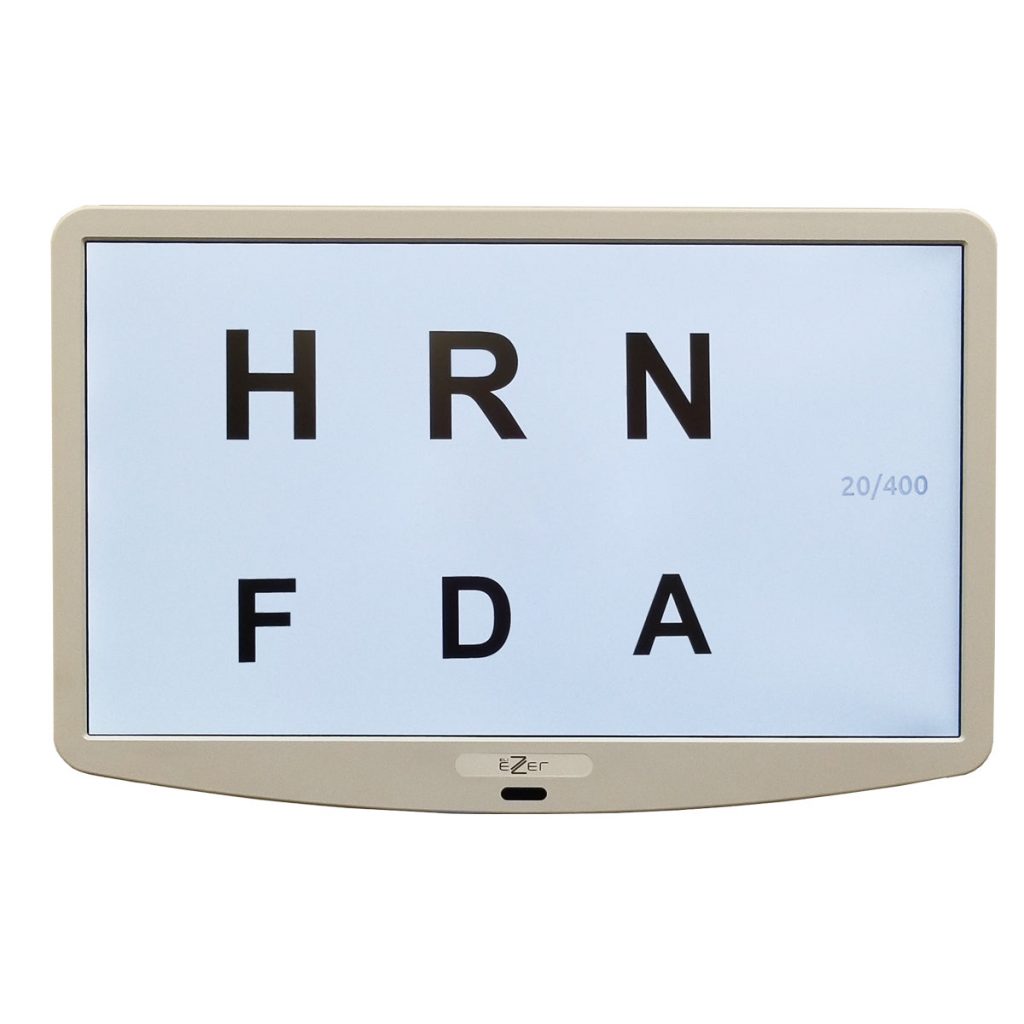

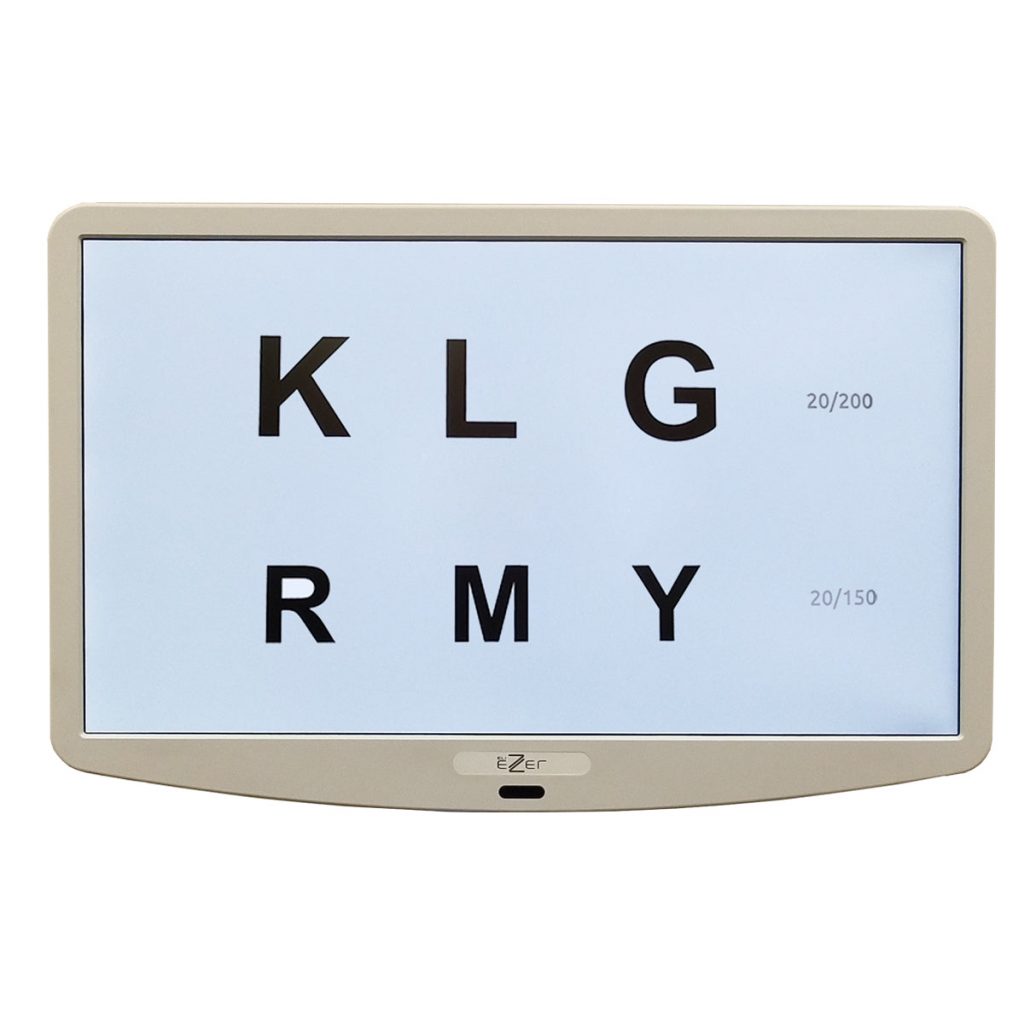

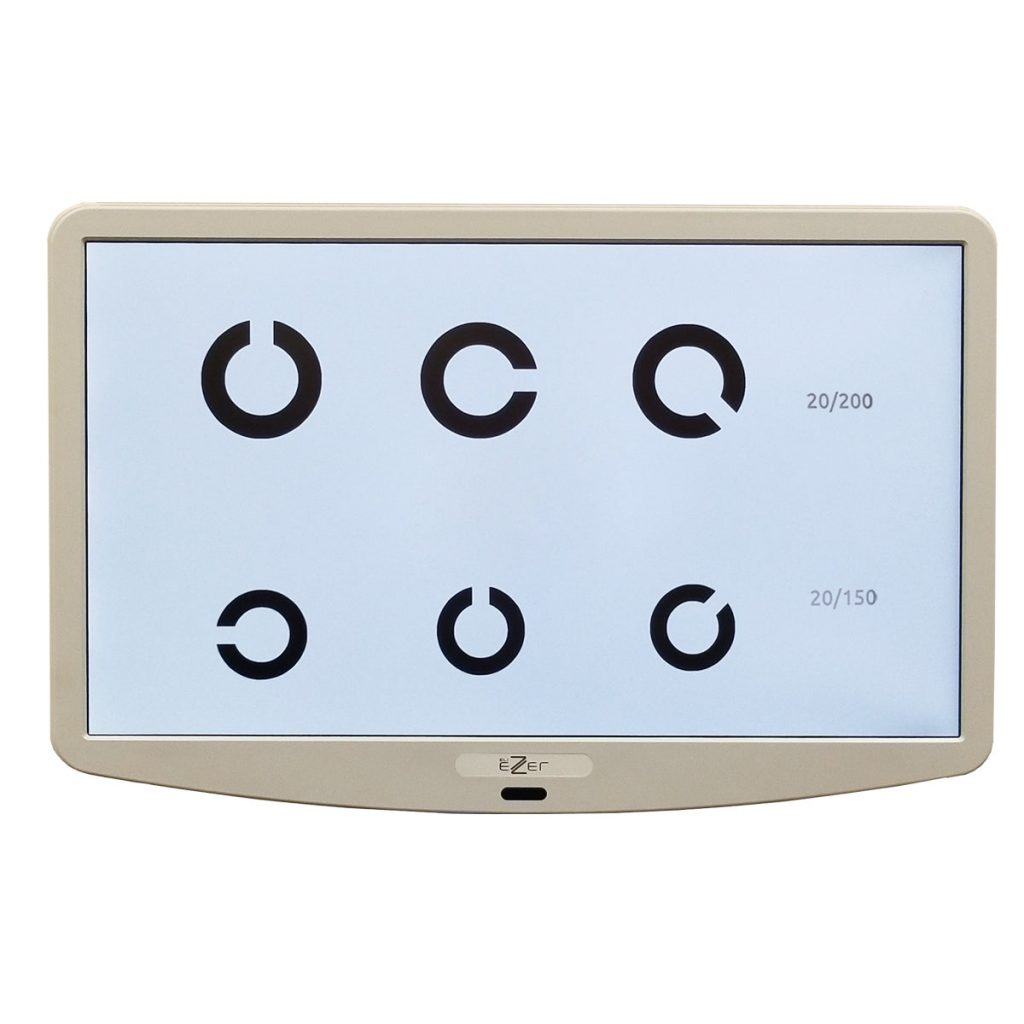

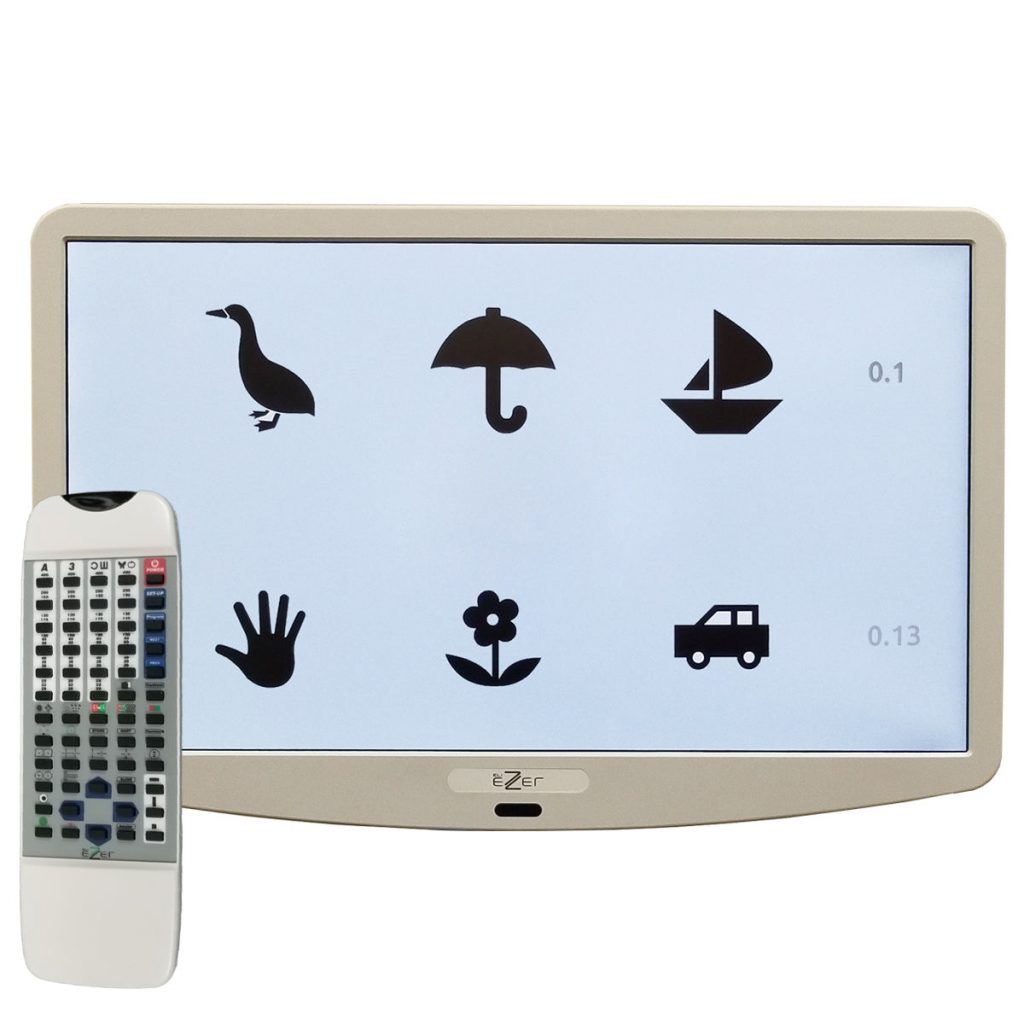

The EDC-2600 includes binocular balance test and astigmatism test. It features different charts: Landolt Ring, Snellen, Child Chart, Cross chart and more. In addition to visual and special functions for all types of patients, such as cataracts, strabismus and more.
Color blindness test
Preselection of seven optotype types / Random selection function.
Specifications
| Monitor | |
|---|---|
| Type | 24" TFT, LED backlight |
| Resolution | 1920 (H) x 1080 (V) px |
| Viewing Area | 21 (H) x 12 (V) in (531.36 (H) x 298.89 (V) mm) |
| Features | |

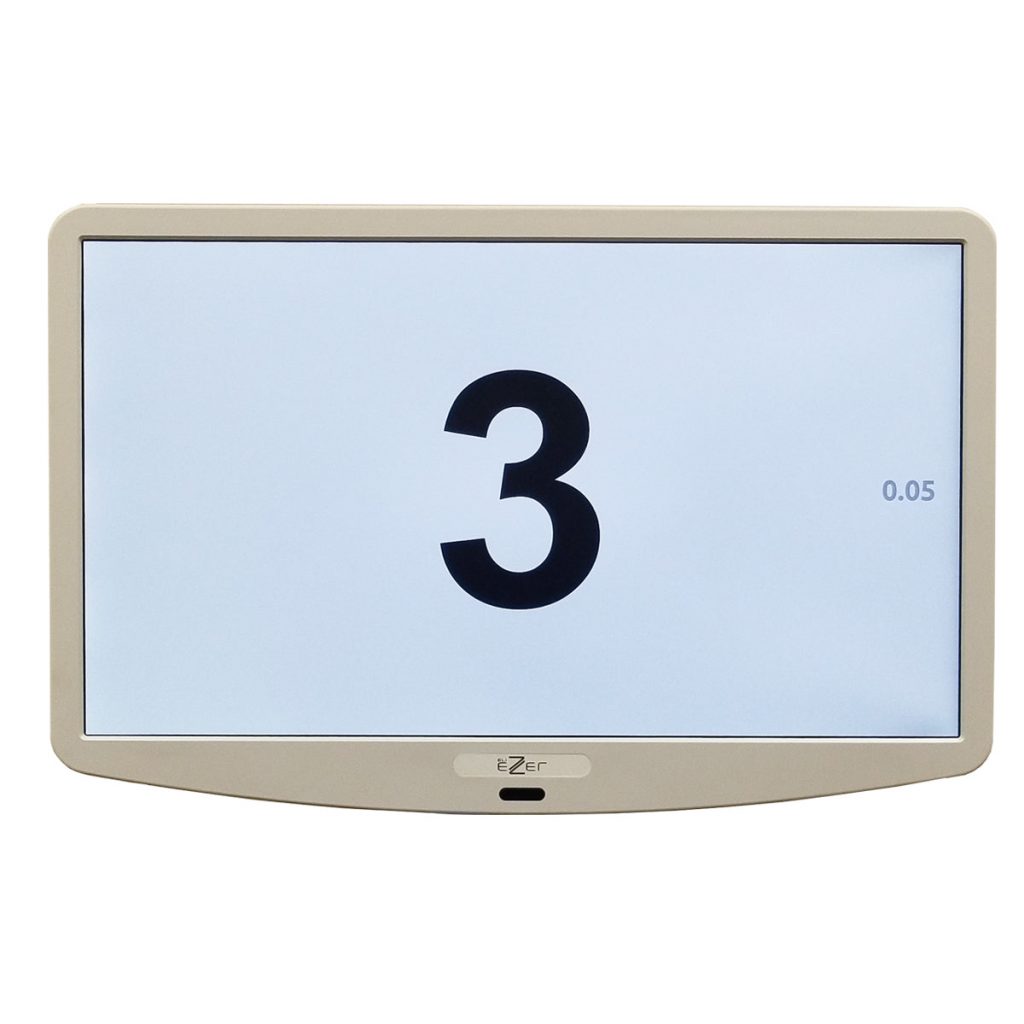

| Optotypes | 1. Landolt Ring / Snellen 2. Numbers / Letters / Korean 3. Pediatric |
| Masking | 1. Letter / Horizontal Line / Vertical Line 2. Normal / Center |

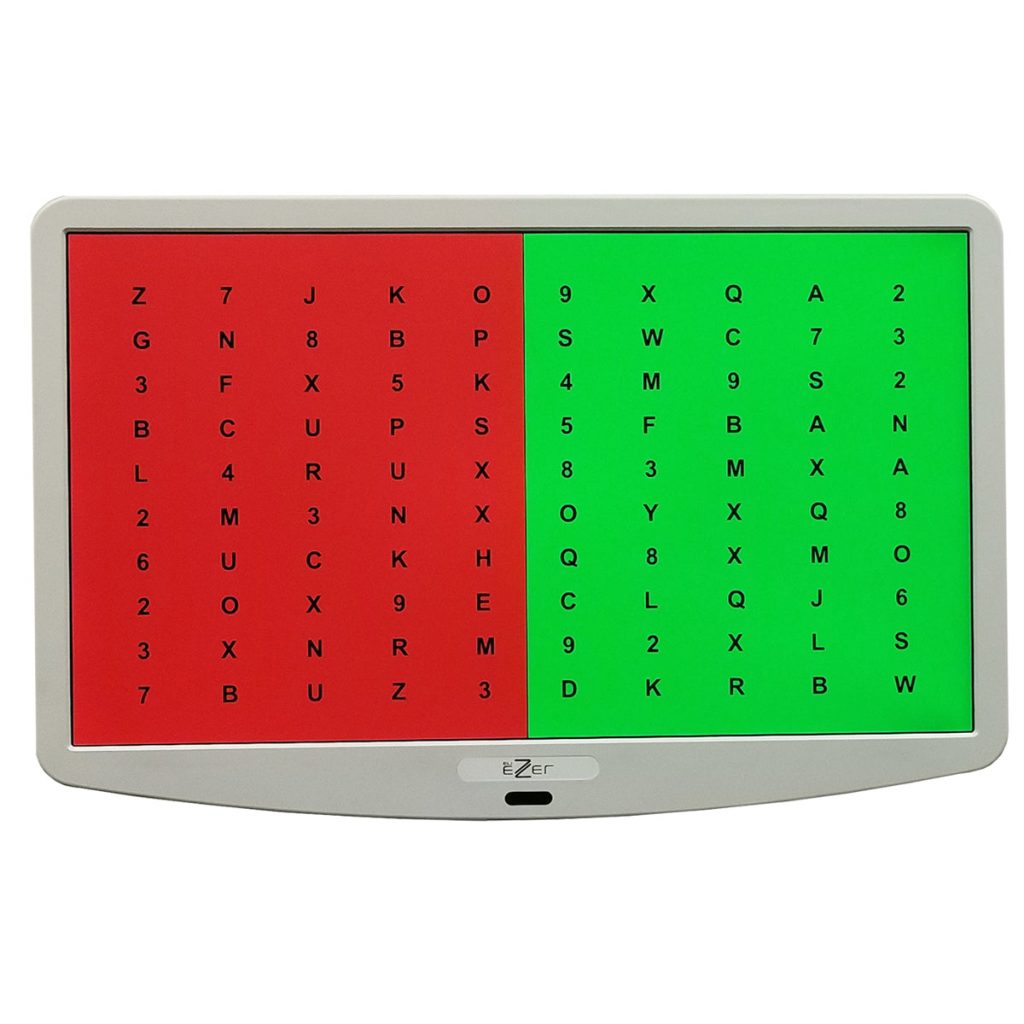

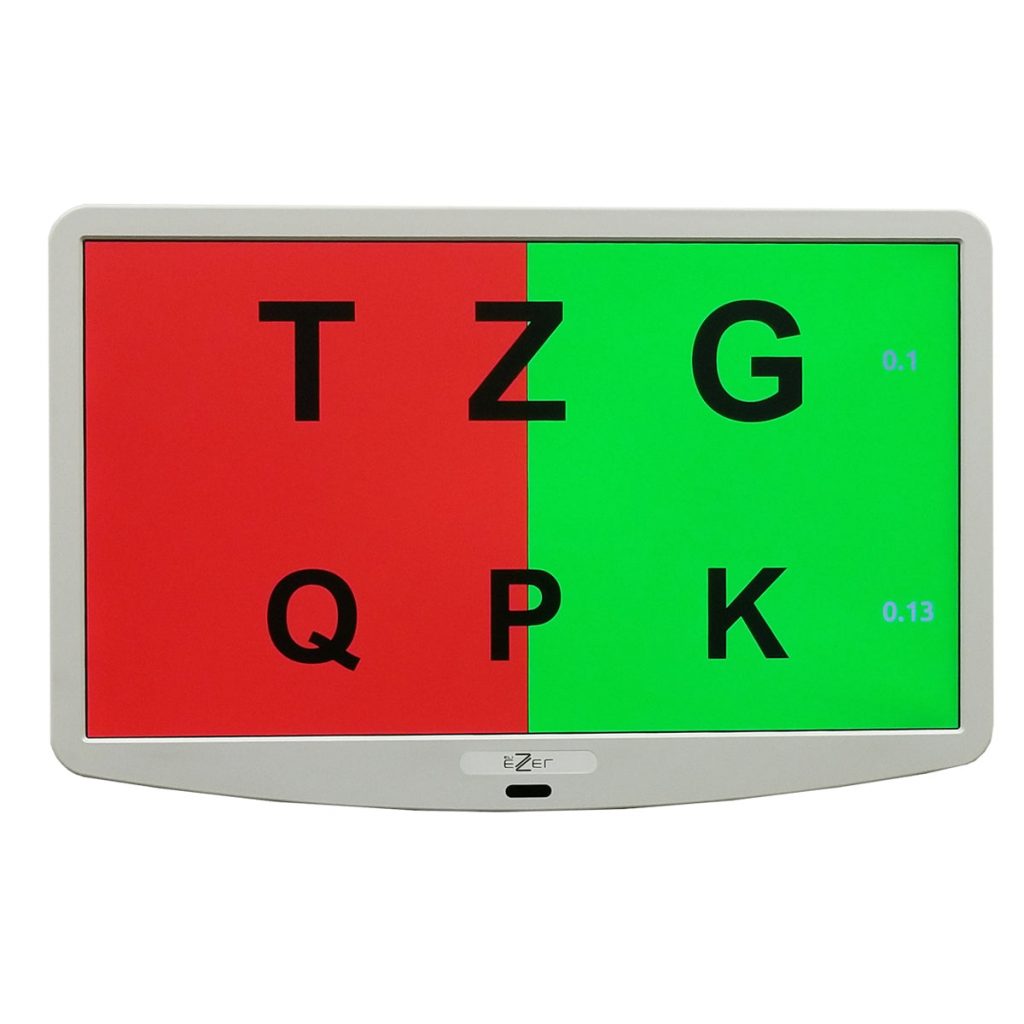

| Filter | Red and Green |
| Visual Function | 1. Red and Green, Polar Separation, Polar 3D 2. Red and Green 3D, Color Blindness (Slide Mode) |
| Special Function | Mirror mode / Contrast / Black and white inversion |
| Distance | 59in ~ 296in (9.8in Step) (1.5m ~ 7.5m (0.25m Step)) |
| Control Device | Wireless IR remote control / Digital refractor |
| Screen Saver Function | Monitor off / Display optotype (5sec, 10sec, 30sec) |
| Screen Saver Wait Time | 3min / 5min / 10min / 30min |
| Specifications | |
| Body | 23(W) x 14(V) x 2(D) in / 8.8 lb (571(W) x 347(V) x 48(D) mm / 4 kg) |
| Remote Control | 3(W) x 8(V) x 1(D) mm / 0.35 lb (64(W) x 195(V) x 20(D) mm / 160 g) |
| Power Supply | DC 12V |
| Power Consumption | 26W |
| Accessories | |
| Mounting | Table / Floor (Optional) / Wall (Optional) |
| Spectacles | Polar (Optional) / Red and Green (Optional) |
| Remote Control | 1 pc |
| Battery | 2 pcs (AA 1.5V) |
| Adapter | 1 pc |
| Serial Cable | 1 pc |
| Power Cable | 1 pc |
| Monitor Cloth | 1 pc |
