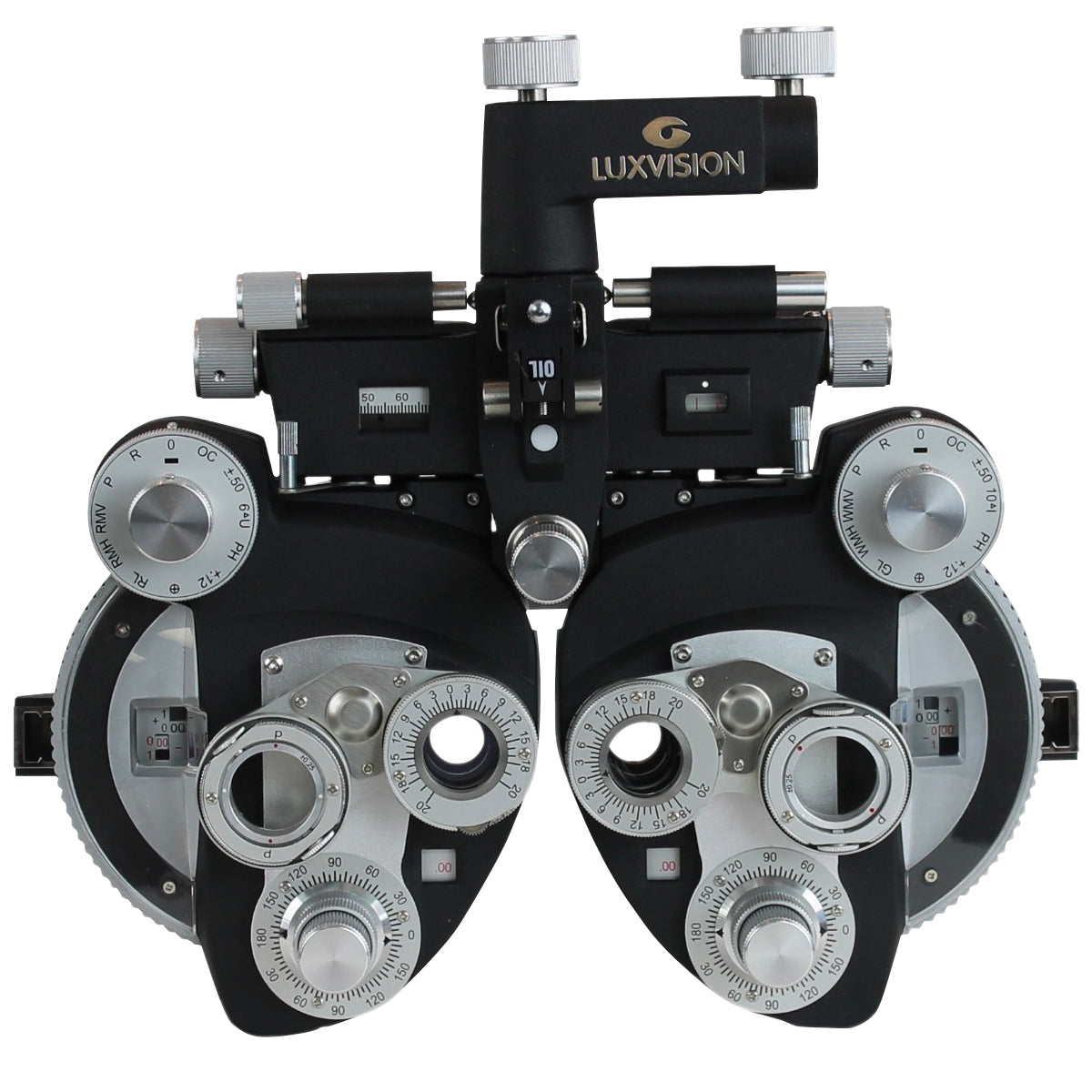

Luxvision Manual Refractor R-1500
The Luxvision R-1500 Manual Refractor Phoropter has attractive design, precision excellence and its cross cylinder and rotary prism provide the widest field of view. Luxvision R-1500 offers extensive sphere and cylinder powers, as well as several built-in auxiliary lenses, enabling you to perform vision testing on virtually any patient. Perform all of the functions necessary in a manual refraction with confidence ease. Even astigmatic testing is simplified as a result of a special mechanism on the cross cylinder loupe. The R-1500 can be further adapted with optional accessory lenses. The unit is also available in either black or white. Enjoy the possibilities of a reliable, quality engineered unit at an exceptional price.
*Not available for purchase in the USA or Canada
 |
Interpupillary Distance Adjustment Convenient knobs, located on both sides, enable smooth and quick PD adjustment. The pupillary distance adjustment ranges from 45mm-80mm in 1mm steps. |
|
 |
Wide Range Sphere Powers The Luxvision R-1500 features an impressive spherical power range from -19.00D to +16.75D in 0.25D steps. By using the unit’s auxiliary lens, you can measure -29.00D to +26.75D in 0.12D steps. The unit also features a Quick Forwarding Dial that allows you to quickly change sphere power in 3.00D steps for added speed and convenience. |
|
|
Outstanding Cylinder Powers Measure cylindrical power ranges from 0 to -6.00D in 0.25D steps. Or, use the auxiliary lens and measure ranges from 0 to -8.00D in 0.12D steps. |
||
 |
Simplified Cross Cylinder Measurements (±0.25D) Perform astigmatic testing with ease thanks to a special mechanism on the cross cylinder loupe. The cross cylinder knob on the R-1500 is conveniently synchronized with the cylinder axis control knob. This unit also features a built-in ±0.50D cross cylinder auxiliary lens. |
|
 |
Rotary Prism This Luxvision refractor allows for vertical and horizontal measurements of 0 to 20∆ in 1∆ steps. |
|
 |
Built-in Auxiliary Lenses The R-1500 features built in ±0.50D auxiliary cross cylinder lenses, +0.12D auxiliary cylinder lenses, and +2.00D (for retinoscope) auxiliary spherical lenses. |
|
 |
Optional Accessory Lenses For even greater flexibility select from an the following accessory lenses: -0.12C, -2.00C, +10.00S, -10.00. |
|
Click here to see the manual
| Spherical Power |
Range: +16.75D ~ -19.00D When applied with auxiliary lenses +10.00D, -1O.OOD(option): +26.75D ~ 29.00D Step: 0.25D When applied with auxiliary lens +0.12D: Step: 0.12D |
| Cylindrical Power |
Range: 0.00D~ -6.00D When applied with auxiliary cylinder lens -2.00D: 0.00D~ -8.00D Step: 0.25D When applied with auxiliary cylinder lens +0.12D: Step: 0.12D |
| Cylinder Axis |
Range: 0°~180 Step: 5° |
| Cross Cylinder |
±0.250 Cross Cylinder Lens Synchronized with Cylinder Axis. (±0.370, ±0.500, Cross Cylinder Lens (option)) |
| Rotary Prism | 0 to 20 prism diopter with a minimum of 1Δ steps |
| P.D Adjustment | 1.96 ~ 2.95in (50 ~ 75mm) |
| Convergence Adjustment | oo , 15in/380mm (when P.D 2.52in/64mm) |
| Forehead-rest Adjustment | 0.63in/16mm |
| Vertex Distance | 0.47in/12mm (From corneal point to standard lens surface) |
| Dimensions | 13.30(L) x 3.9(W) x 11.5(H) in (338(L) x 99(W) x 292(H) mm) |
| Weight | 11 lb (5 kg) |
| Accessories | Auxiliary lens (cylinder:-2.00D / 2pcs). A kit for near point vision chart. Sanitary face shield, 1 each right and left; others. |
