The Frey TN-100 non-contact tonometer is a modern diagnostic device that delivers fast and accurate examinations, ensuring optimal levels of patient comfort during non-invasive intraocular pressure measurement. The TN-100 measurement is fully automated, saving time for both the user and the patient. Automatic alignment and automatic firing: the TN-100 is easy and intuitive to use, even for inexperienced users. Alignment and measurement are automated; a simple manual joystick adjustment toward the patient’s eye is all that is needed to initiate the automatic examination.

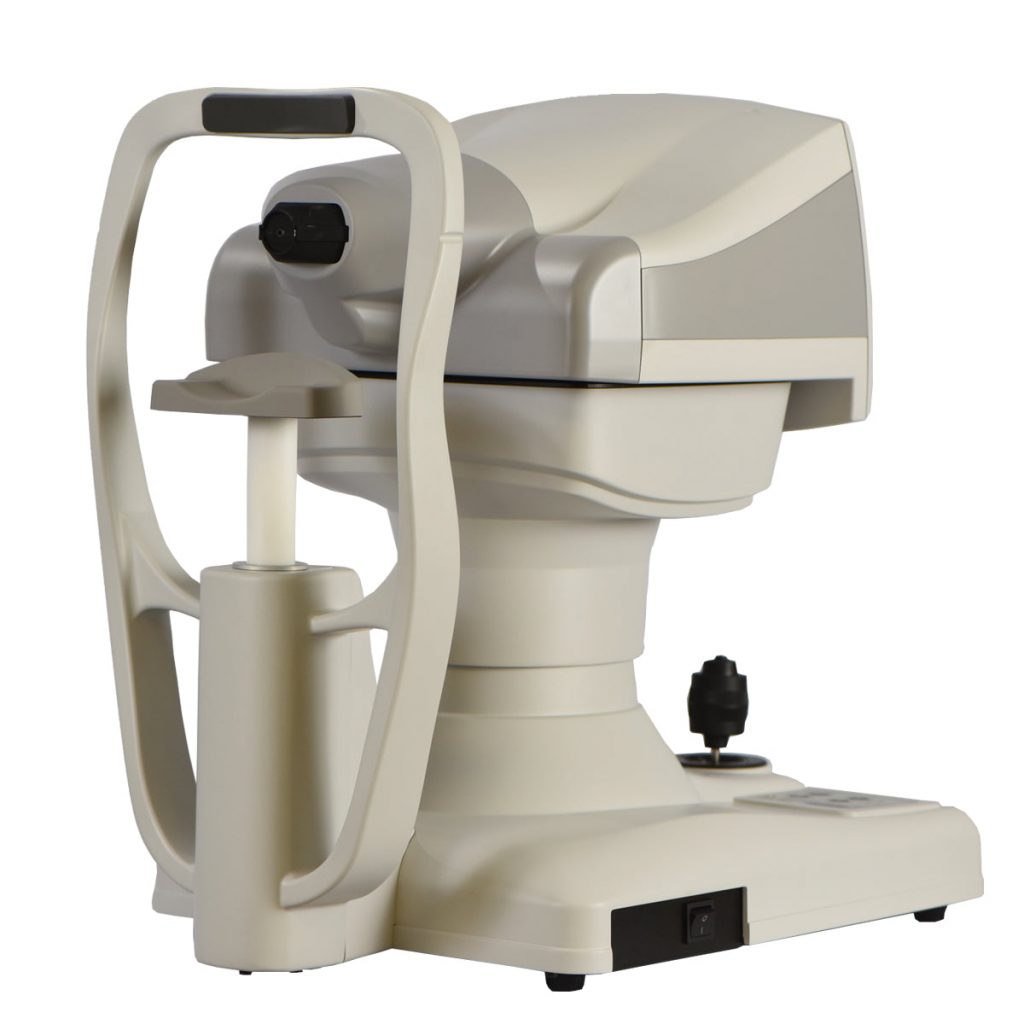

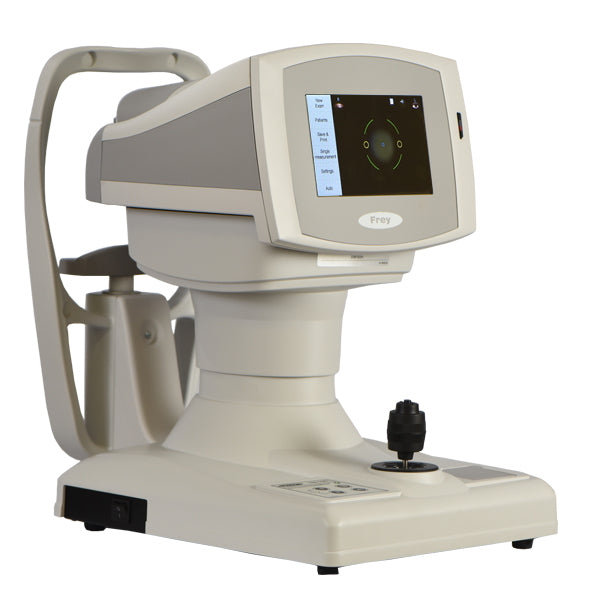

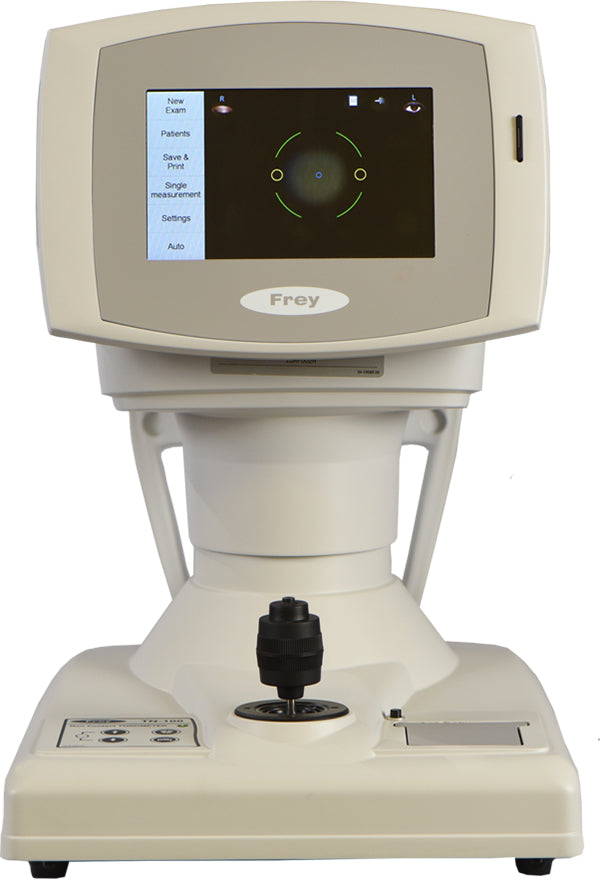

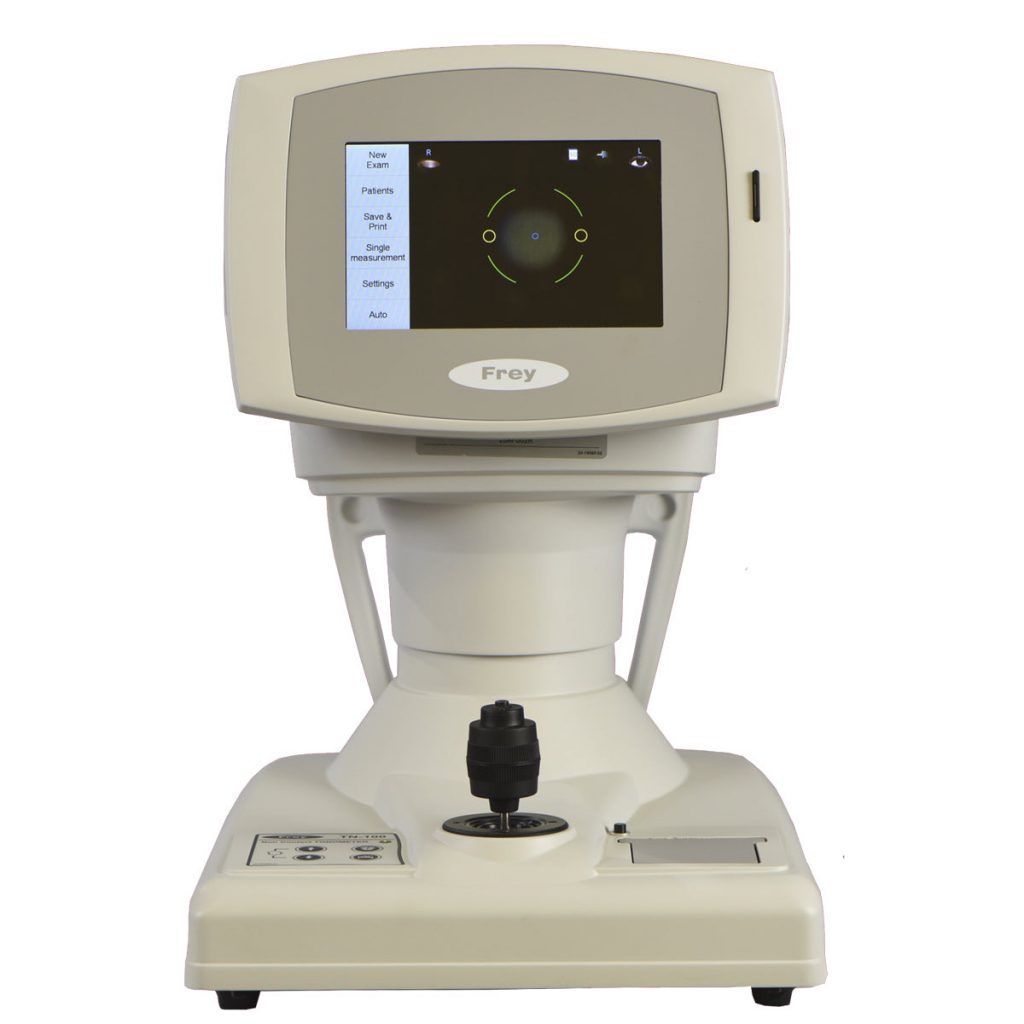

Frey Non-Contact Tonometer TN-100
REQUEST QUOTEor call toll-free (888) 881-1122Financing available — simple terms, no leasing. Ask about it in your quote request.
Non-Invasive Measurement
Measures intraocular pressure without contact, ensuring maximum patient comfort.
Fully Automated Process
Automatic alignment and firing eliminate manual steps and reduce examination time.
Fast and Accurate Results
Provides fast and reliable diagnostics through its optimized measurement technology.
Easy to Use
Intuitive design ideal for any user, regardless of their experience level.
Precise and Reliable Measurement
The TN-100 Air Tonometer is a device with precise and reliable measurement. It features a gentle air puff and silent operation. It provides high-precision measurements (measurement accuracy of 0.5mmHg) achieved through automatic alignment, which has resulted in a reduction in operator error.
Automatic Alignment and Auto-Shot
The TN-100 is easy and intuitive to use, even for inexperienced users. Alignment and measurement are automated, with a simple manual joystick adjustment toward the patient’s eye to initiate the automatic examination.
Intraocular Pressure Corrected by Corneal Thickness
Users can easily adjust the measured IOP data according to the central corneal thickness value. The TN-100 features pre-programmed formulas for IOP correction. If the central corneal thickness is entered before the examination, the device will display the corrected IOP values.

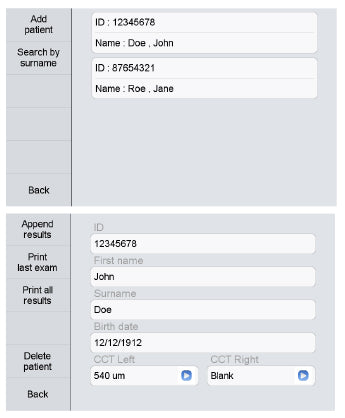

Integrated Patient Database
The patient data storage capacity and measurement values for a database of 4000 patients is included. The examination record and patient database are immediately available upon completion of the exam. The individual patient examination or the complete patient history can be printed with a single touch. The internal printer simplifies data recording.
SD Card
The SD card can be used to back up patient results and to transfer data to a PC. The PC application installation version for patient record management is delivered on the SD card included with the TN-100.
Multiple patient results can be printed at once.
The large internal memory allows for secure storage of patient measurement history. The operator can choose between printing the patient’s last measurement result or printing the complete patient history stored in the device’s memory.
Soft Air Puff and Silent Operation
For maximum patient comfort during measurement, the air puff has been optimized to be soft and silent.

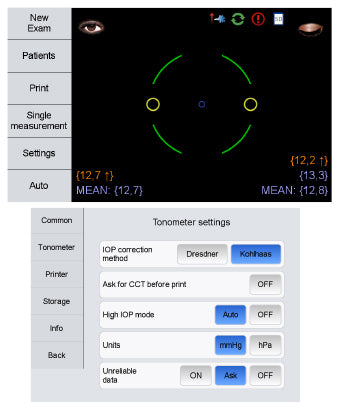

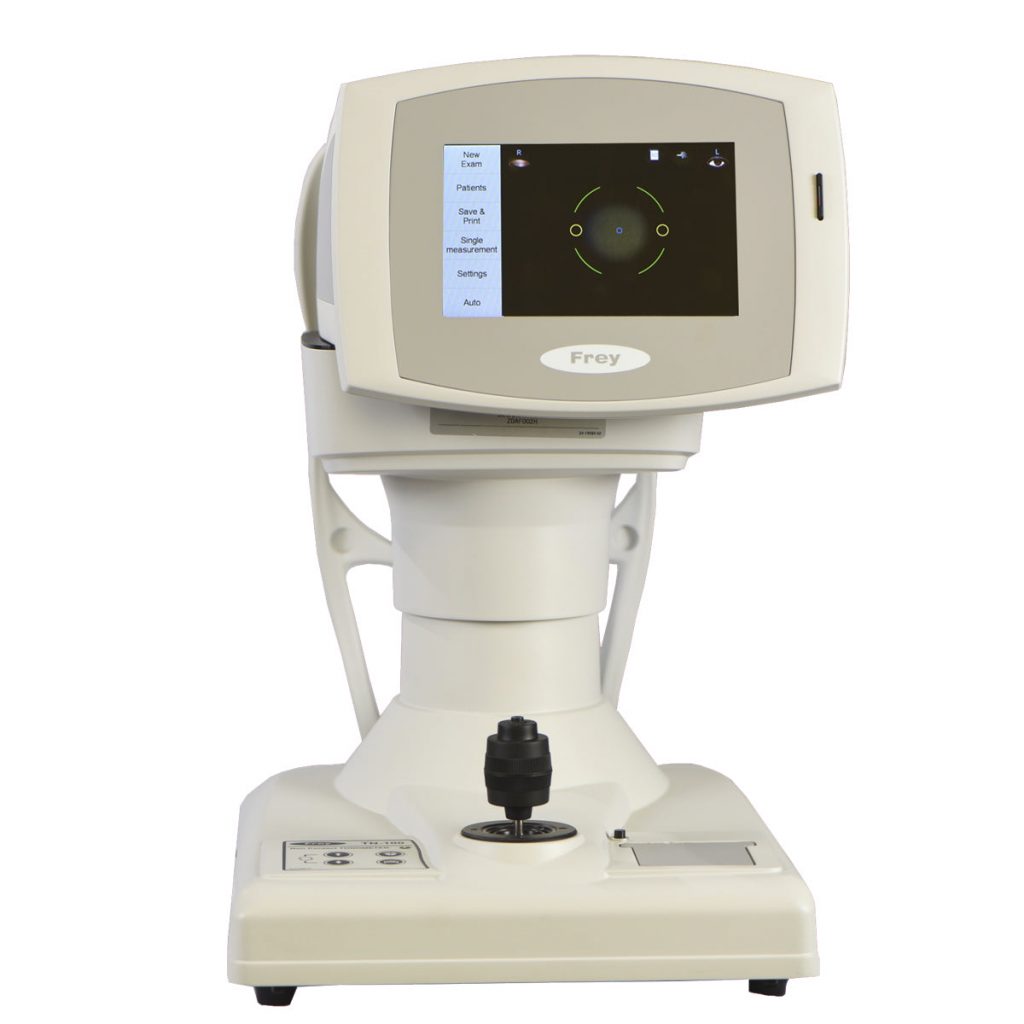

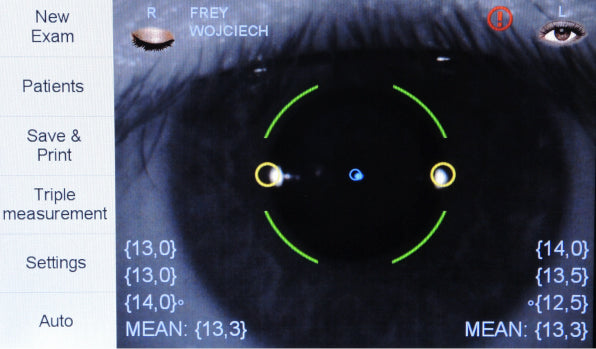

Touch Screen Interface
Easy to use, the intuitive operation of the TN-100 features a 7″ color LCD capacitive touch screen. The user interface software is optimized for each function, clearly displaying all measurement data and guiding the user through the measurement process, from eye alignment to results display. The TN-100 device menus and options are easily accessible and simple to navigate.

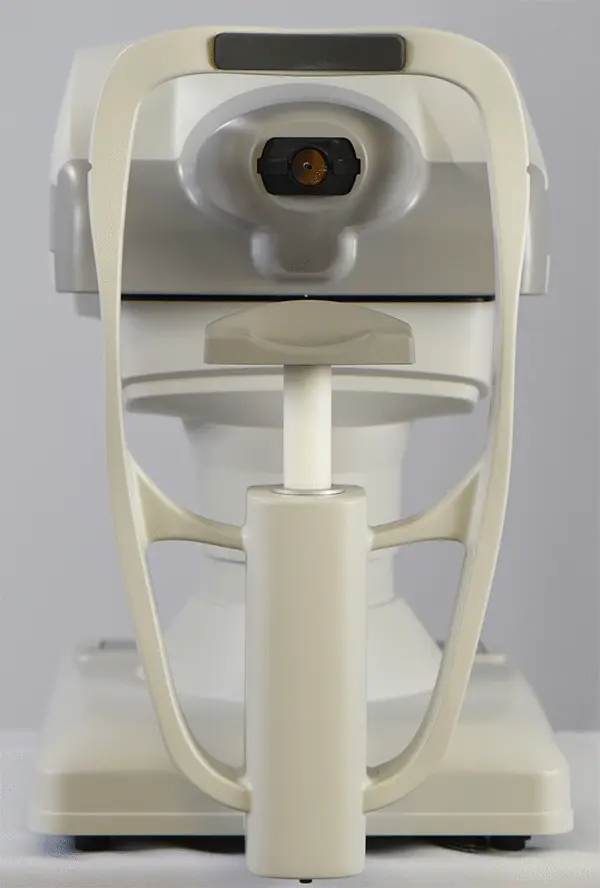

Measuring Head and Chinrest with Electric Drive
The electrically driven chinrest allows easy adjustment of the patient’s position and ensures a stable position during IOP measurement. The wide range of motion of the measuring head allows both eyes to be measured without the need to reposition the patient.

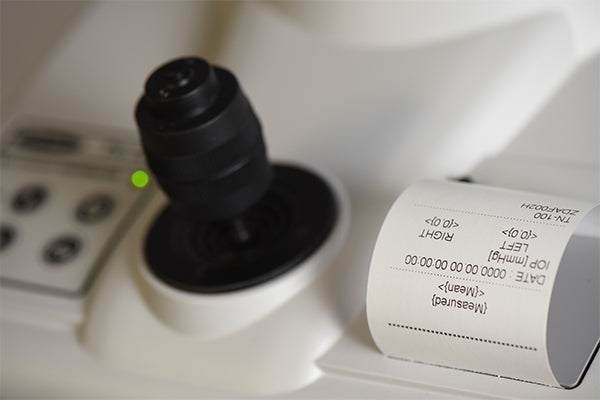

Multifunctional Joystick Control
Controls the 3-axis movement of the measurement head. Allows the user to trigger manual measurement via the push button located on the top.
Operator Panel with Push Buttons
The operator panel features buttons for Up/Down movement of the chinrest, sleep mode, and packing position.
Specifications
| Measurement range | 0 - 60 mmHg (0 - 80hPa) |
|---|---|
| Measurement accuracy | 0.5 mmHg |
| Main unit | Dimensions W/D/H 460 x 300 x 480 mm Weight 18 kg |
| Power supply | 100-240VAC 50/60 Hz |
| Power Consumption | Max 45VA |
| Power supply unit | External, medical power adapter INPUT: 100-240V ~1.5A OUTPUT: 12V ⎓5A |
| Printer | Integrated, thermal |
| Display | 7" color LCD with touchscreen |
| Chin rest travel | 69 mm (up/down) |
| Travel of the measurement unit | 85 mm (X axis); 40 mm (Y axis); 50 mm (Z axis) |
| Chinrest | Electrical adjustment (up/down) |
| Storage devices | Internal flash, SD card |
| Database capacity | Up to 4000 patients x 100 examinations x 3 measurements (per each eye) Data format: XML |
