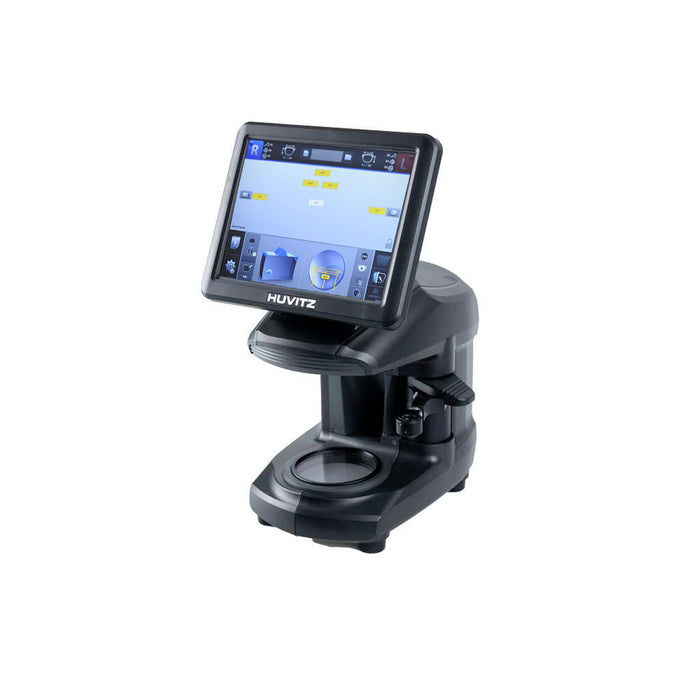

Huvitz Smart Blocker HBK-410
Introducing the newest lens blocker: the Excelon HBK-410 Smart Blocker. The HBK-410 features smart digital scanning technology as well as improved performance and increased stability. Easily load a finishing block into the holder and use the new smart arm to flip the attached block 180 degrees and adhere to the lens with a leap pad. Built-in smart digital scan technology recognizes unique and traditional frame shapes and drill holes. High resolution and sharp imaging capabilities allow for easy viewing of laser markings.
Perfect Duet with the HPE-410!
Huvitz brings you the sleek and newly designed EXCELON Smart Blocker. Improved performance and stability based on our years of finishing experience as well as incorporating new functions and performance based on our customers’ feedback.
Smart arm for manual lens blocking
Blocking arm is loaded a leap block from upper side with easy and attaches the block by single push of the arm lever without rotating it.
Smart digital scanning technology
Digital scan recognizes frame shapes, drill holes and creative shapes.
High resolution and sharp imaging capabilities allow for easy viewing of laser markings.
Other features
* Tiltable LCD screen
* Tiltable LCD screen
* SD card storage of 16GB
* Barcode reader interface
Click here to see the brochure
Blocking Method | Manual (Push down) |
Blocking Mode | Box center, Optical center |
Blocking Guide | 3-Dot, Bi-focal, Progressive |
Digital Scan | Frame shape, Hole/Slot/Notch, Scan & Cut shape |
Blocking Assistance | Laser mark visualization, PD/OH live adjustment, Lens shortage check, Block attachment check, Auto Brightness control, Camera zoom |
Blocking Tolerance | ±0.5mm |
Axis Tolerance | ±1° |
Layout Factors |
FPD, PD(Binocular, Monocular), DBL, OH(Y, Boxed height, Mixed height), Centering Method(Box center, Optical center) |
Edging Factors |
Lens material(Plastic, Polycarbonate, High index, Glass, Trivex) Edging Type(Bevel, Groove, Flat, Mini bevel, Partial bevel, Partial grooving, Dual grooving Hybrid grooving, Asymmetric bevel, Semi-U bevel, Step bevel) Edging Position(Front %, Front mm, Rear mm, Base curve, Auto, Manual) Edging Option(Polishing, Safety bevel, Safety mode) |
Functions |
Job Manager, Digital Pattern, Hole Editor, Asymmetric Bevel Editor, Step Bevel Editor, Scan & Cut Data Editor, Image File Converter, OMA Import/Export, CAD(dxf) Import/Export, R-L shape correction, Lens diameter measurement, Auto save & transmission of job files |
Utilities |
Tiltable LCD (Viewing angle 15~70°) SD card storage of 16GB(Support up to 32GB) Barcode reader interface |
Display | 9.7 inch Color TFT LCD (1024x768) with Touch Screen |
Dimensions / Weight | 9.5(W) x 11(D) x 17(H)in / 17.6 lb (236(W) x 268(D) x 422(H)mm / 8kg) |
Power Supply | AC 100~240V 50/60Hz |
Power Consumption | 20W |
