The Ezer EUS-1800 A/P is an Ultrasonic Biometer Pachymeter that eliminates signal loss and produces remarkably clear images. The EUS-1800 A/P combines two indispensable tools in a single compact unit, enabling both A-Scan Biometry and Pachymetry. As an essential component of ophthalmic practice, A-scan ultrasound is fundamental in the preoperative evaluation of patients undergoing cataract surgery. The Ezer EUS-1800 A/P takes multiple precise readings, offering a wide range of features that will help you deliver better patient care and select the appropriate intraocular lens (IOL) power for cataract surgery. In addition, it provides accurate corneal pachymetry measurements. Whether you are performing LASIK surgery, screening for Keratoconus, preparing for Limbal Relaxing Incision (LRI) surgery, or conducting screening studies in your Glaucoma patients, this device is programmed with all the functions and tools that the eye care professional needs in daily practice. You will get all this and more in a portable, elegant design when you choose the EUS-1800 A/P.

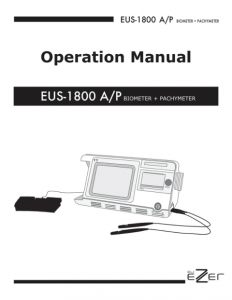

Ezer Biometer + Pachymeter EUS-1800 AP

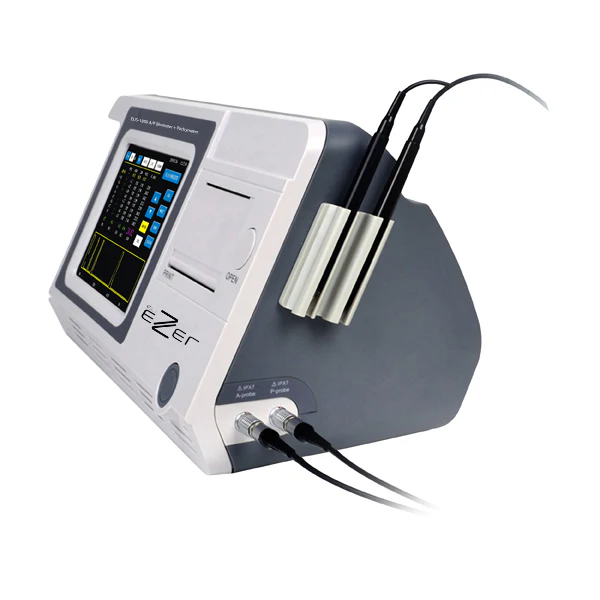

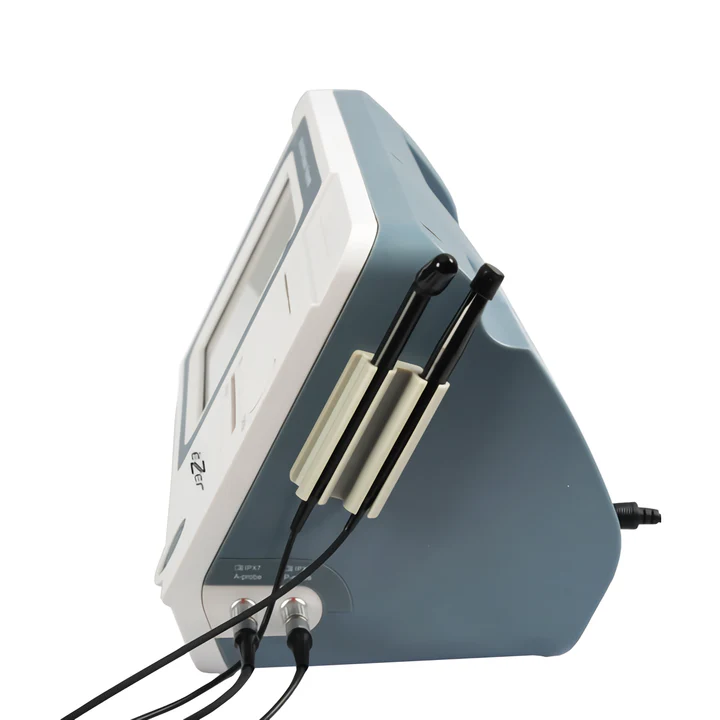

Dual scanning probes
The Ezer EUS-1800 A/P offers a 10MHz Biometric A-Scan probe that enables precise and accurate axial length measurements and intraocular lens (IOL) power calculation, while the 20MHz Pachymetry probe helps professionals determine corneal thickness.

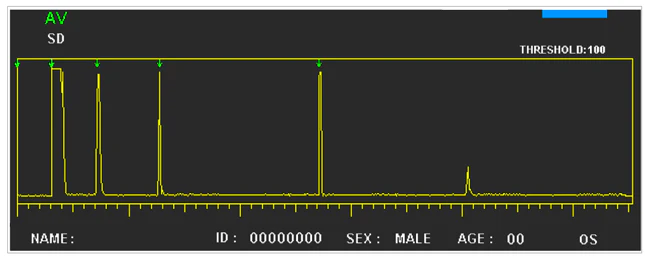

Multiple A-Scan Measurement Modes
Contact and immersion measurement allows automatic readings in four different modes: Normal, Cataract, Aphakic, and Special. Manual measurement is also available.

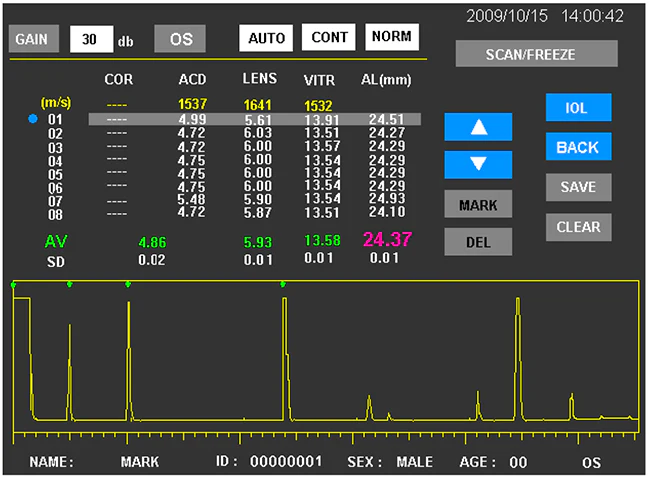

Automatic A-Scan Readings
The EUS-1800 A/P automatically takes eight readings per group. Users can manually adjust the reading results at any time during the automatic measurement.

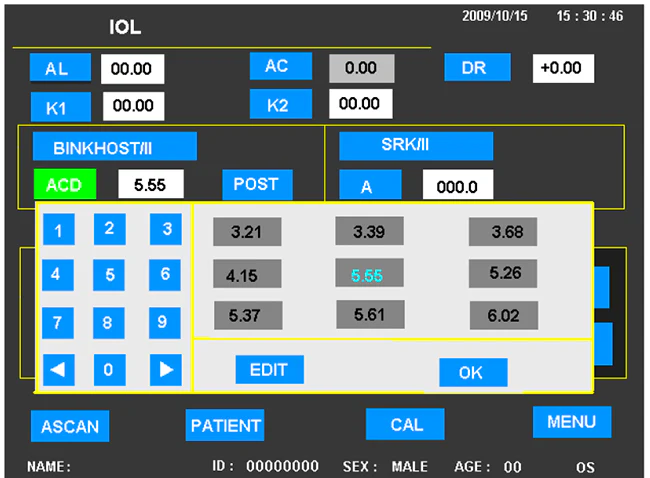

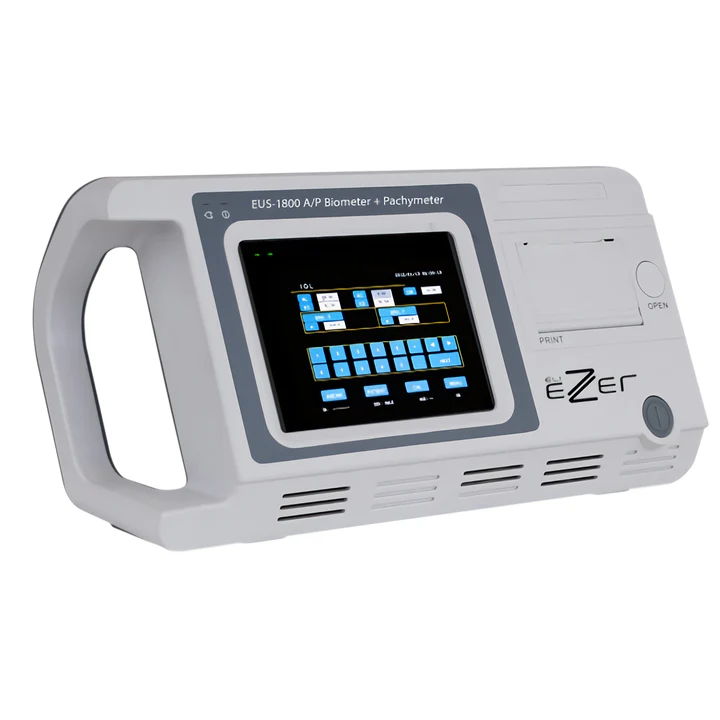

IOL Calculation
IOL calculation with the EUS-1800 A/P is simple and reliable. Choose from six different formulas: SRK-II, SRK-T, BINKHOST-II, HOLLADAY, HOFFER-Q, and HAIGIS. You can even compare the results of different formulas.

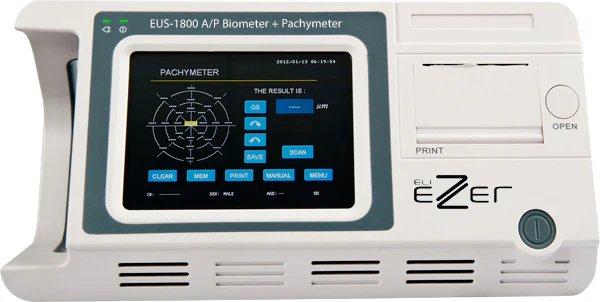

Exact corneal thickness
The EUS-1800 A/P takes automatic readings of corneal thickness. Select between multiple or single-point readings.

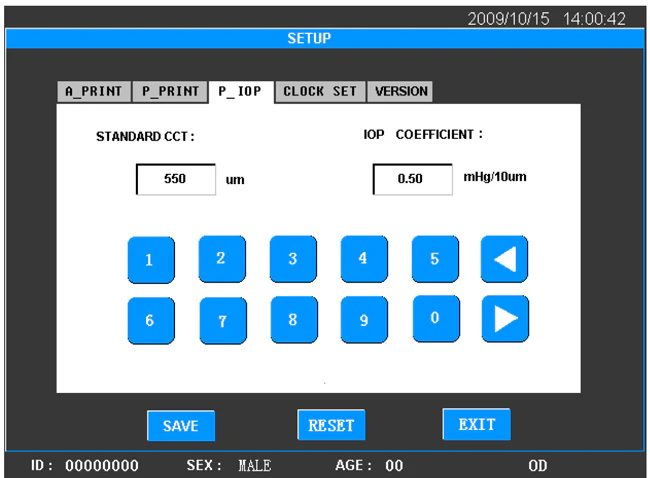

Intraocular Pressure (IOP) Parameters
The standard coefficients for central corneal thickness (CCT) and intraocular lens (IOL) provide an excellent reference for Glaucoma management and tonometry measurements. The corneal thickness distribution map allows for even more useful detail.

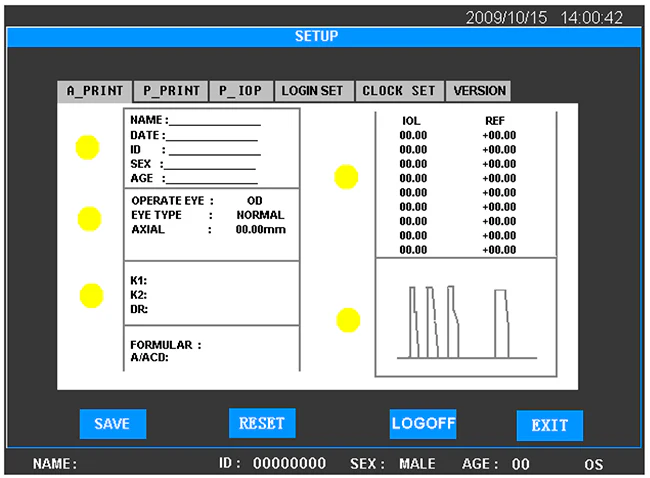

User-defined interface
Complete control is at your fingertips with the EUS-1800 A/P. This unit allows you to define acoustic velocity, IOP parameters, printing options, and much more.
Standard Deviation
The EUS-1800 A/P provides S.D. (Standard Deviation) to help the professional evaluate the reliability of the reading.

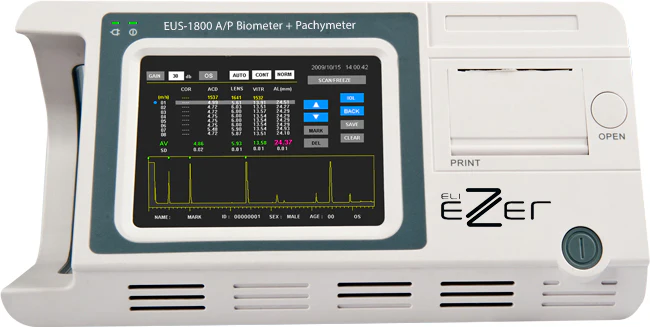

Color LCD Touchscreen
Biometry has never been easier thanks to the intelligent color touchscreen guided by a menu that users will enjoy when selecting the EUS-1800 A/P.
Integrated printer
For greater efficiency, this compact unit features a built-in thermal printer that offers user-defined printing options.

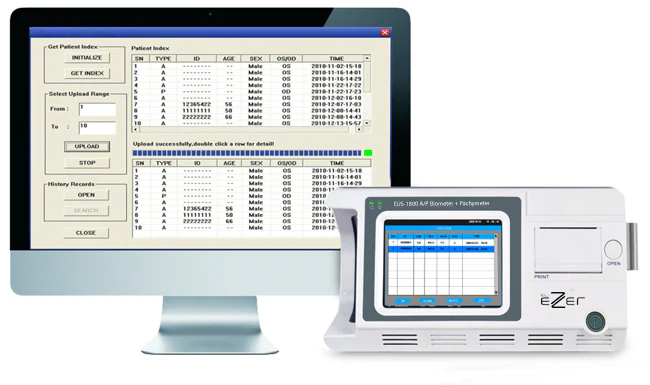

Data Management
With the EUS-1800 A/P, you can store up to 180 patient records for convenient filing. Alternatively, you can connect the system to a PC and automatically store all the data the professional may need.
Specifications
| A-Scan | |
|---|---|
| Probe | 10MHz with red fixation light |
| Total Gain | ≥ 100dB |
| Biometry accuracy | ≤ ± 0.002in / 0.05 mm |
| Resolution | 0.0004in / 0.01 mm |
| Measurement range | 0.59 - 1.57in (15 - 40 mm) |
| Measurement mode | Contact, immersion mode |
| Measurement parameters | Anterior chamber depth, lens thickness, vitreous length, and axial length |
| Different measurement modes | Automatic (for Normal, Cataract, Aphakic, and Special) |
| 8 automatic measurement readings | Manually adjust automatic measurement readings during automatic measurement |
| IOL Formula | SRK/II, SRK-T, BINKHOST-II, HOLLADAY, HOFFER-Q, HAIGIS |
| Pachymeter | |
| Probe Frequency | 15-20 MHz |
| Screen resolution | 1 µ |
| Biometry accuracy | ≤ ± 5 µm |
| Measurement range | 230-1200 µm Multiple corneal maps with graphical display |
| Accessories | Probe, 10MHz P Probe, Footswitch, Test Object, PC Suite, AC Adapter |
