Wall Mount Transformer with Extension Unit

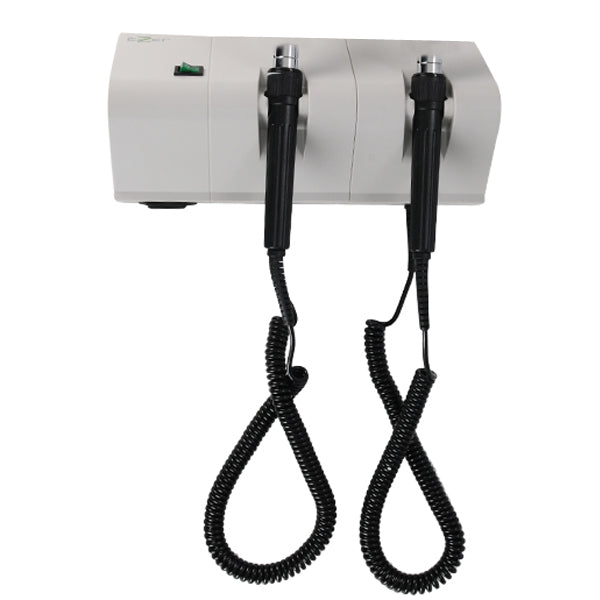

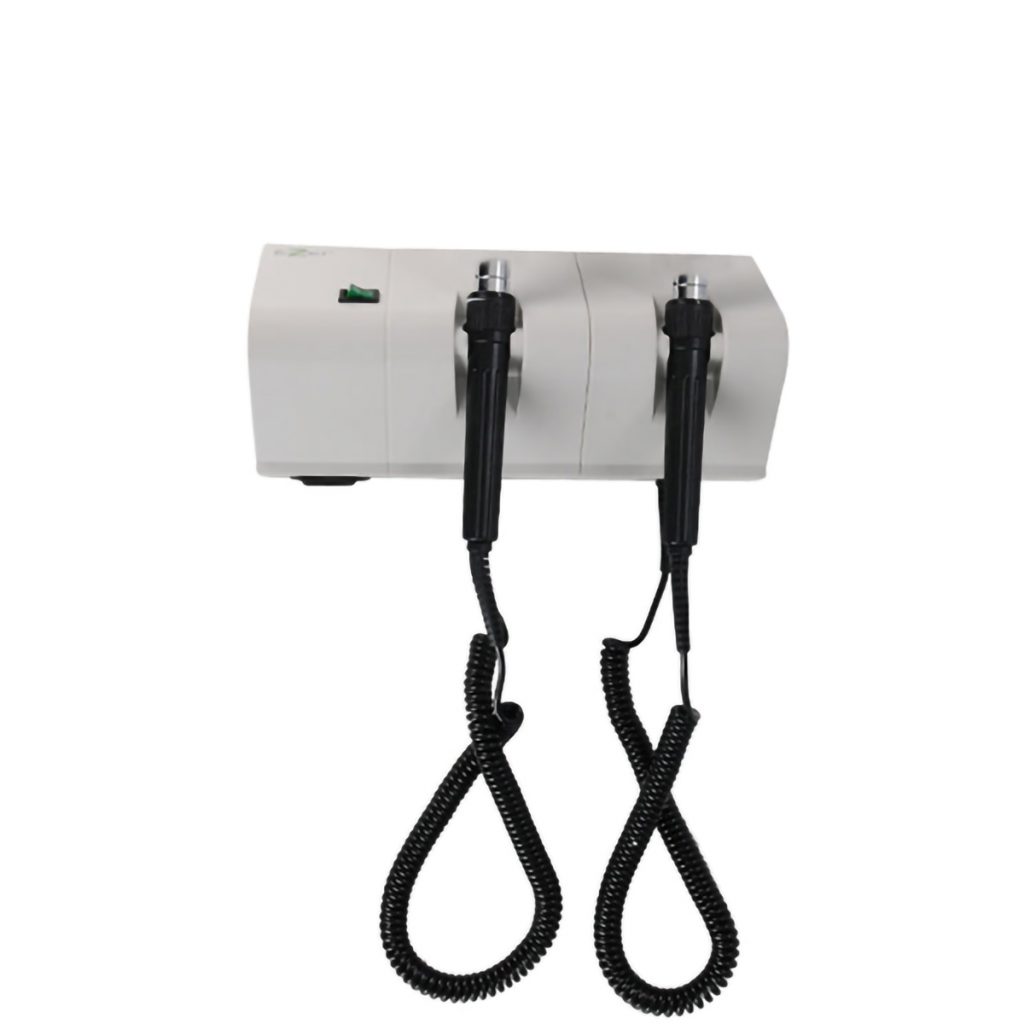

Ezer Wall Unit Transformer with Extension EZ-WTF-5200
REQUEST QUOTEor call toll-free (888) 881-1122Financing available — simple terms, no leasing. Ask about it in your quote request.
Energy savings with intelligent automatic shutdown
The automatic on/off switch saves energy by replacing the instrument in the handle unit, significantly extending lamp life.
Constant voltage despite electrical fluctuations
Provides a stable output voltage of 3.5V regardless of variations in the power supply, ensuring consistent diagnostic performance.
Ergonomic design with continuous brightness control
Advanced ergonomic handle with integrated continuous light intensity control and quality coiled cables providing a comfortable working radius of up to 3 meters.
Security with locks against unauthorized removal
Instrument locking system that prevents unauthorized removal of the equipment, protecting the investment and ensuring instrument availability.
▪ Automatic on/off switch: placing the handle back onto the unit saves energy and extends lamp service life
▪ Provides a constant output voltage of 3.5V, independent of mains voltage fluctuations
▪ Advanced ergonomic handle design. Continuous brightness control on the handle
▪ High-quality coiled cables with a comfortable working radius of up to 3 m
▪ Instrument locks prevent unauthorized removal
*The retinoscope and ophthalmoscope heads are not included with the WTF-5200
Specifications
| Electrical | |
|---|---|
| Nominal voltage | 100 VAC - 240 VAC 50Hz/60Hz |
| Input power | ≤ 18 VA |
| Output | 2 X 3.5V / 800mA |
| Fuse | T 125 mAL 250V |
| Electrical safety | Complies with EN60601-1, EN60601-1-2, Protection: Class I Operating mode: Intermittent 2 minutes ON 5 minutes OFF |
| Environmental Requirements | |
| Operation | |
| Temperature | +10ºC - +35ºC |
| Relative Humidity | 30%-75% |
| Pressure | 700 hPa - 1060 hPa |
| Shipping | Conventional transport |
| Storage | |
| Temperature | -40ºC -+55ºC |
| -40ºC -+55ºC | 10% - 90% |
| Air pressure | 500 hPa - 1060 hPa |
